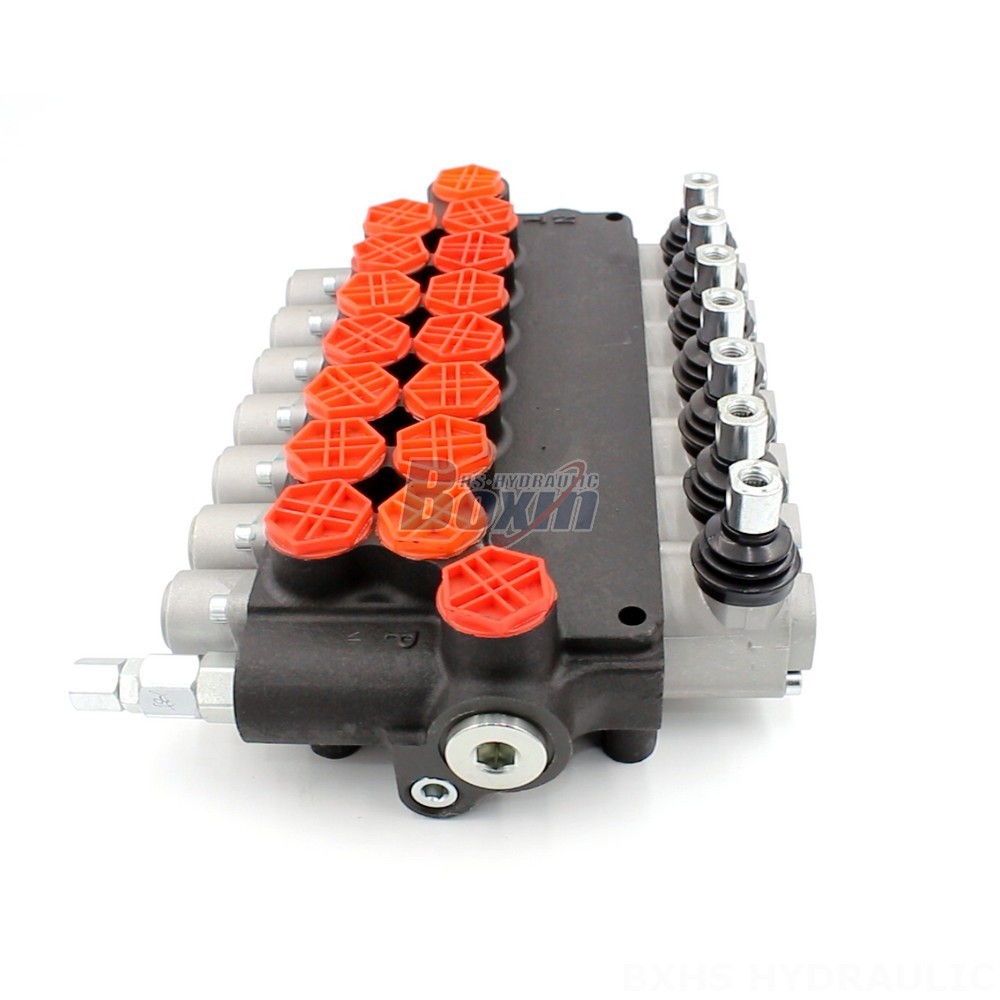

The P80-G34-OT Hydraulic Directional Valve is a high-performance, 7-section monoblock valve designed for a wide range of construction and industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is ideal for demanding tasks.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This P80 Series hydraulic directional valve features a manual control method and is built for durability and reliability. It is suitable for various applications including material handling, construction and earthmoving, agriculture, and industrial vehicles. The valve is designed for use with telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve offers exceptional performance and efficiency. The operating viscosity range of 15 - 75 mm²/s and the ambient temperature range of -40°C to +80°C ensure reliable operation in diverse environments.
