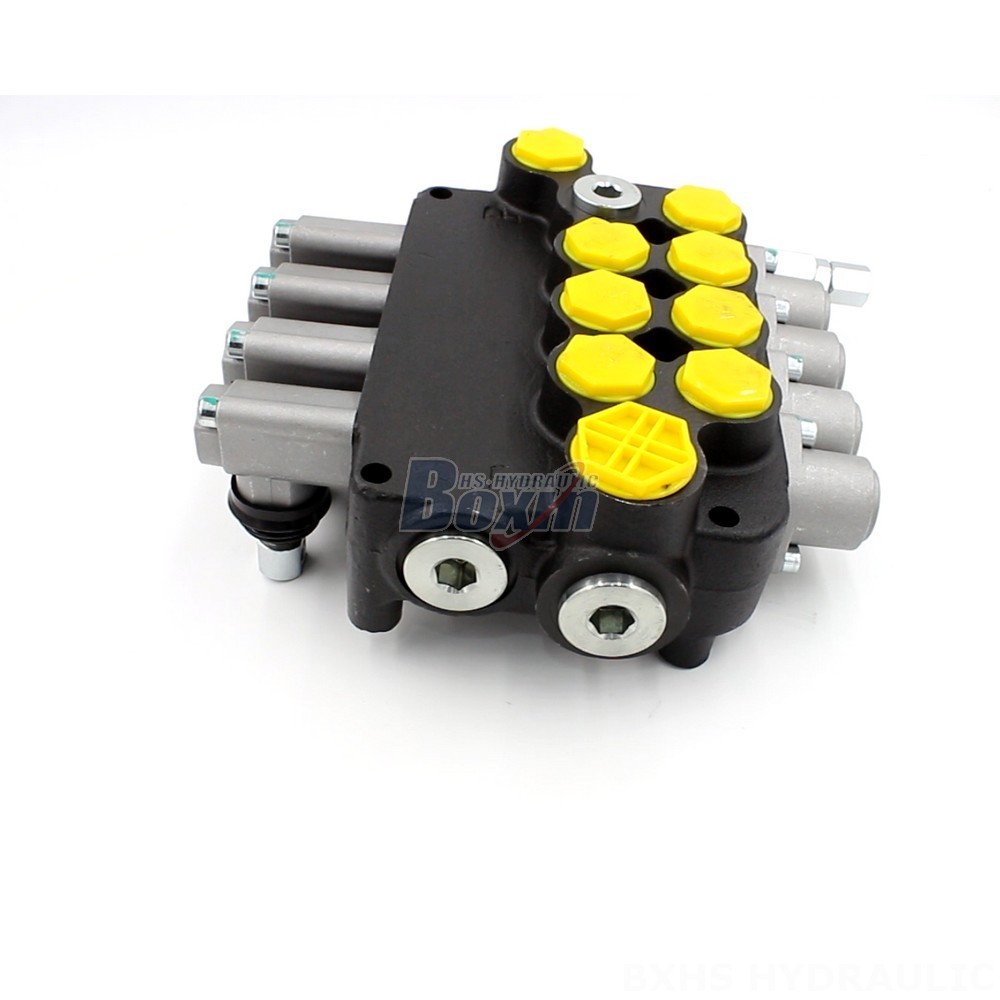

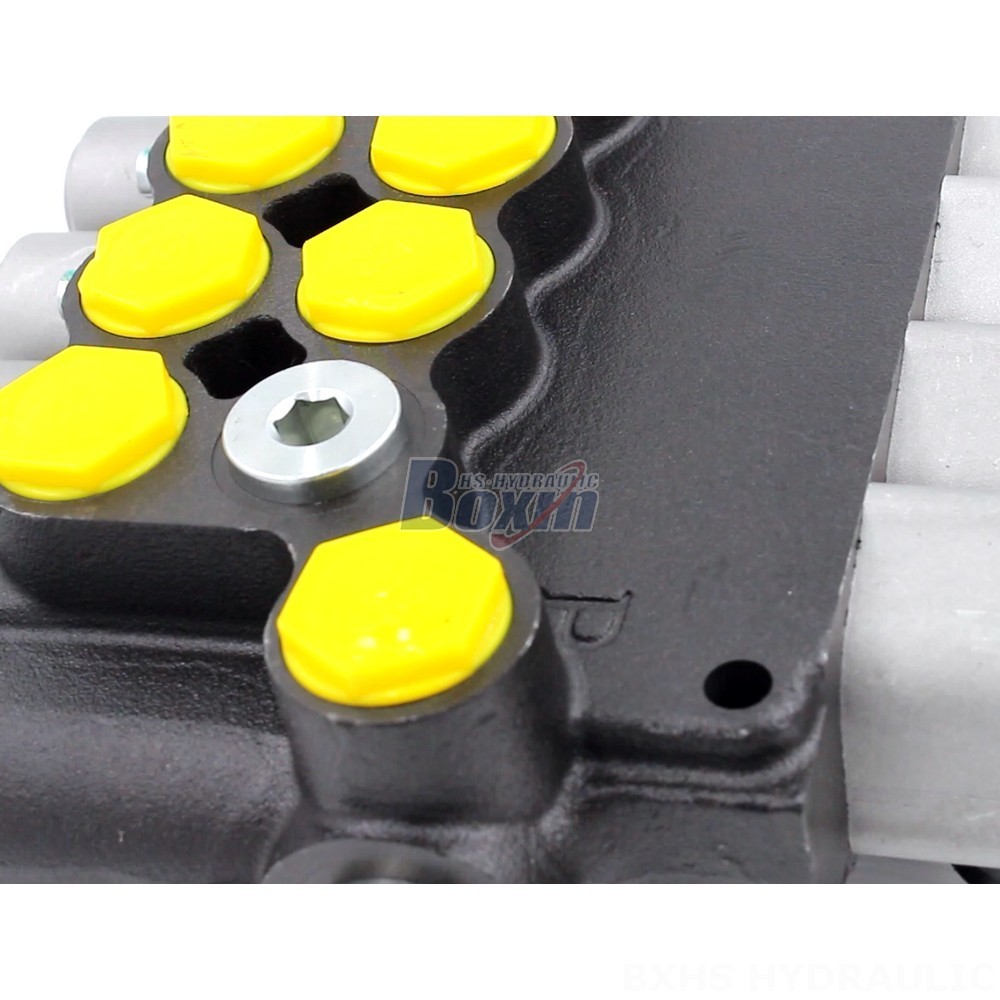

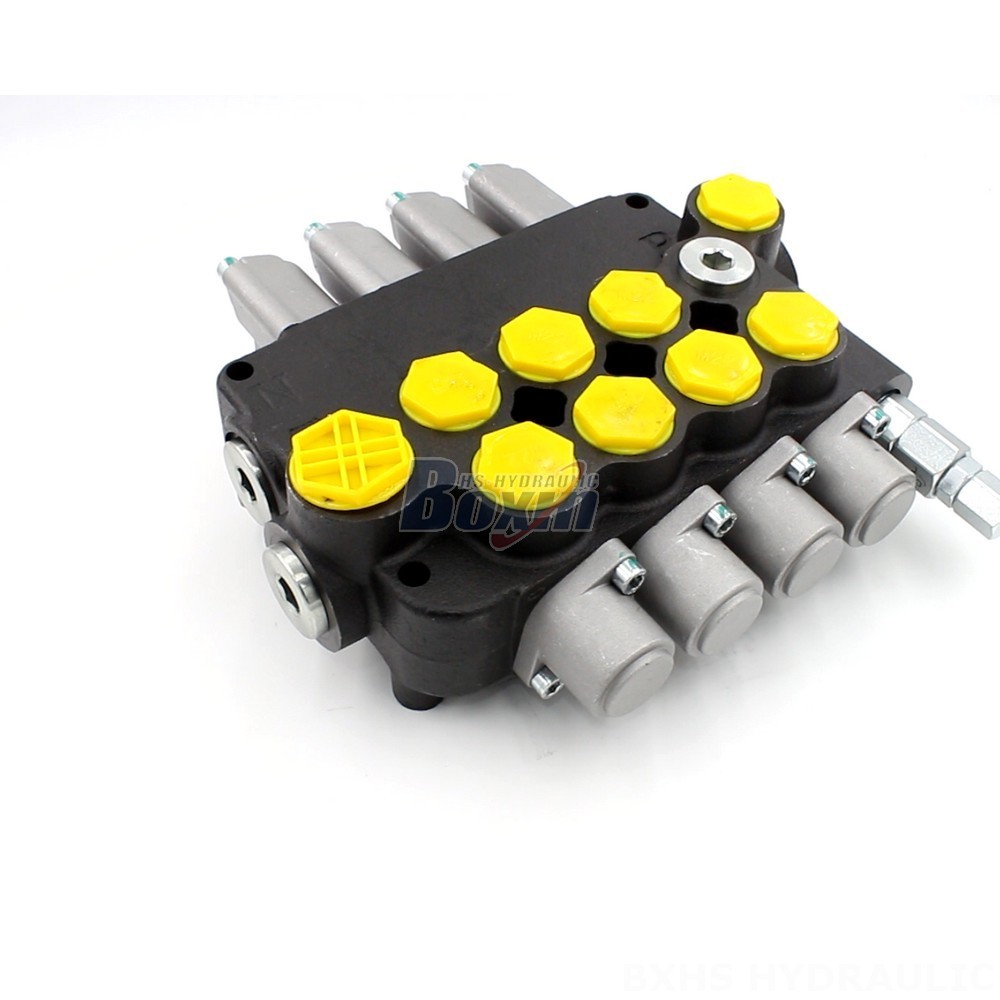

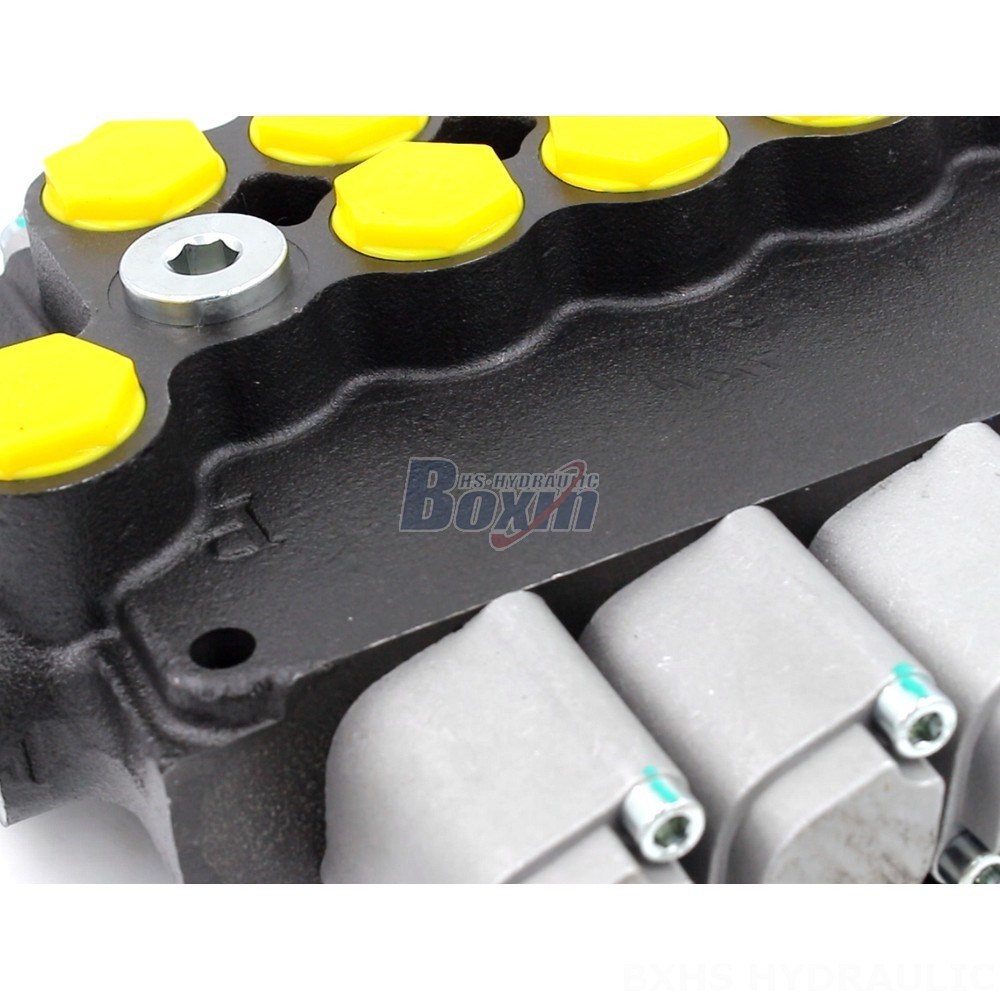

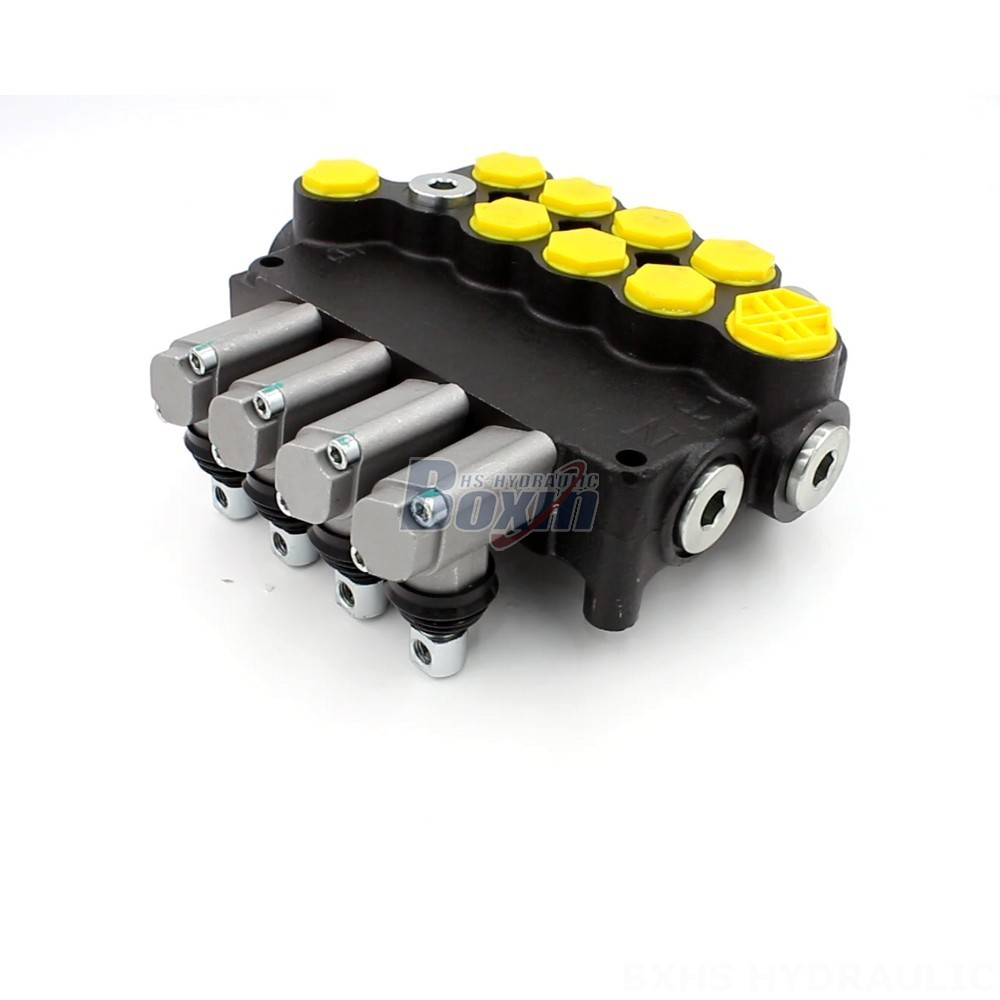

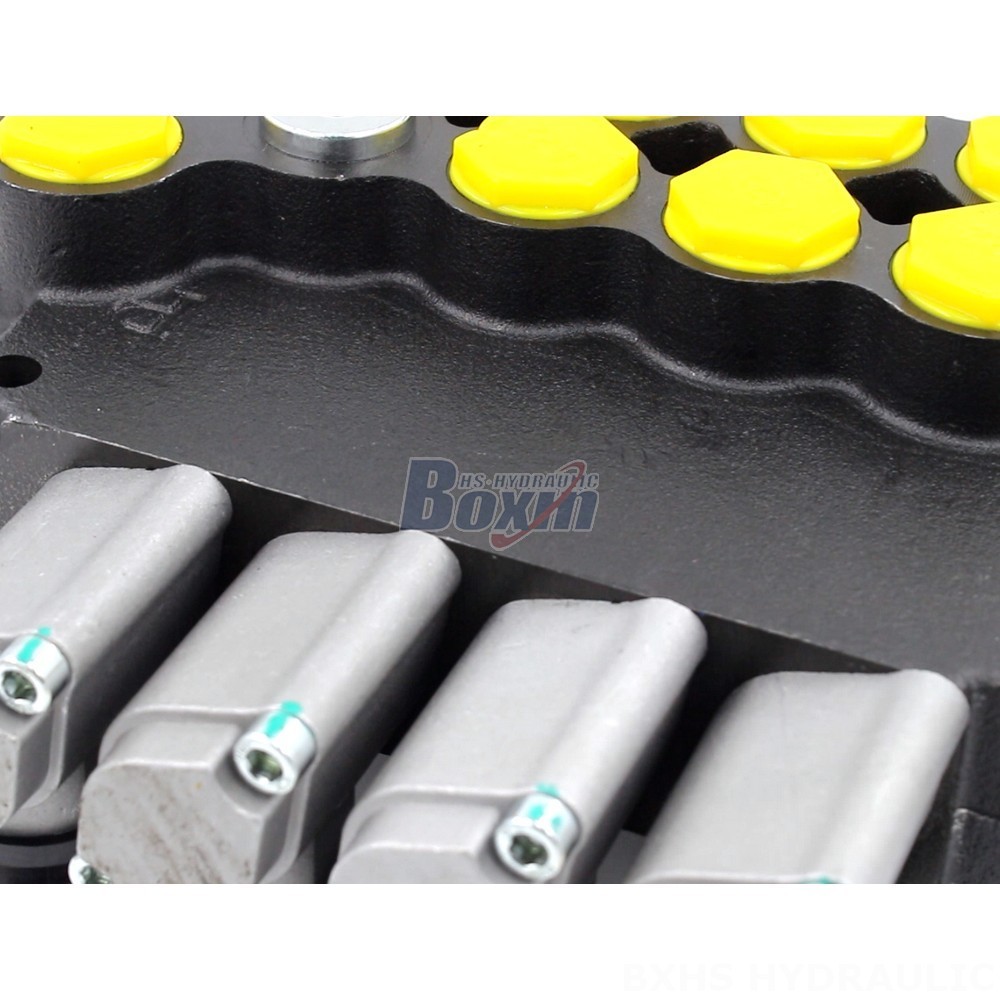

The P80-G34-G12-AT-3OT Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve offers exceptional flow control and pressure handling capabilities.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Key Features:**
* Manual control for precise operation
* Monoblock construction for durability and compact design
* 4 spool design for versatile flow control
* Rated flow of 80 L/min for efficient fluid handling
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C for reliable performance in extreme conditions
**Applications:**
* Material Handling: Telehandlers, forklifts, stackers
* Construction and Earth Moving: All terrain cranes, motor graders, midi-excavators, mini-excavators, skid steer loaders
* Agriculture: Industrial vehicles, aerial platforms
