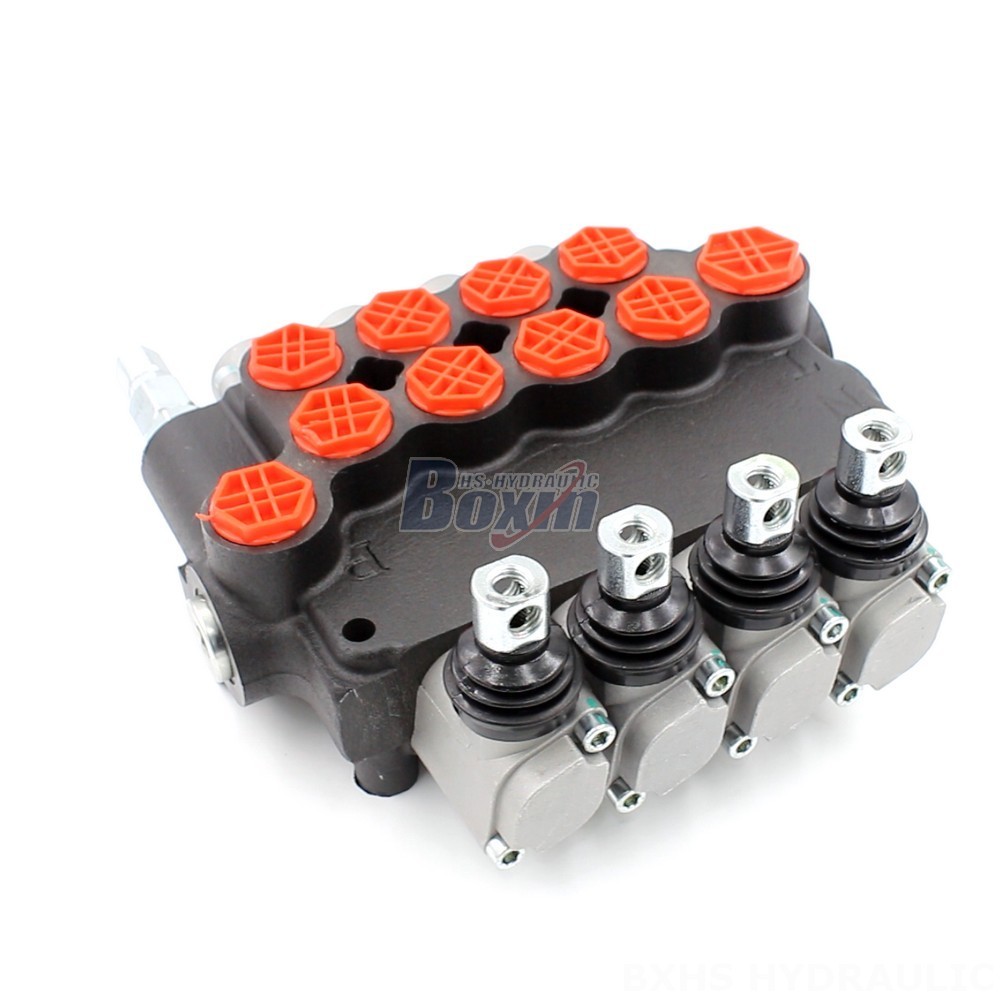

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve

控制方式:手控

路数:4 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:G3/4接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:26*27*11

Grossweight:13.40 kg

库存: 有货

1129 次查看了此产品

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve drawing image

The P80-G34-G12-4OT is a 4-section, manual control, 3-way, monoblock hydraulic directional valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for heavy duty applications in material handling, construction, earth moving, agriculture, and industrial vehicles.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

This high-performance hydraulic valve is ideal for controlling various hydraulic functions in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. Its 4-spool design allows for precise control of multiple hydraulic functions. The monoblock construction provides durability and reliability. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is capable of handling high-pressure, high-flow hydraulic systems. The manual control method allows for easy operation and adjustment. The P80-G34-G12-4OT is a robust and reliable hydraulic valve that meets the demanding requirements of a wide range of applications.
