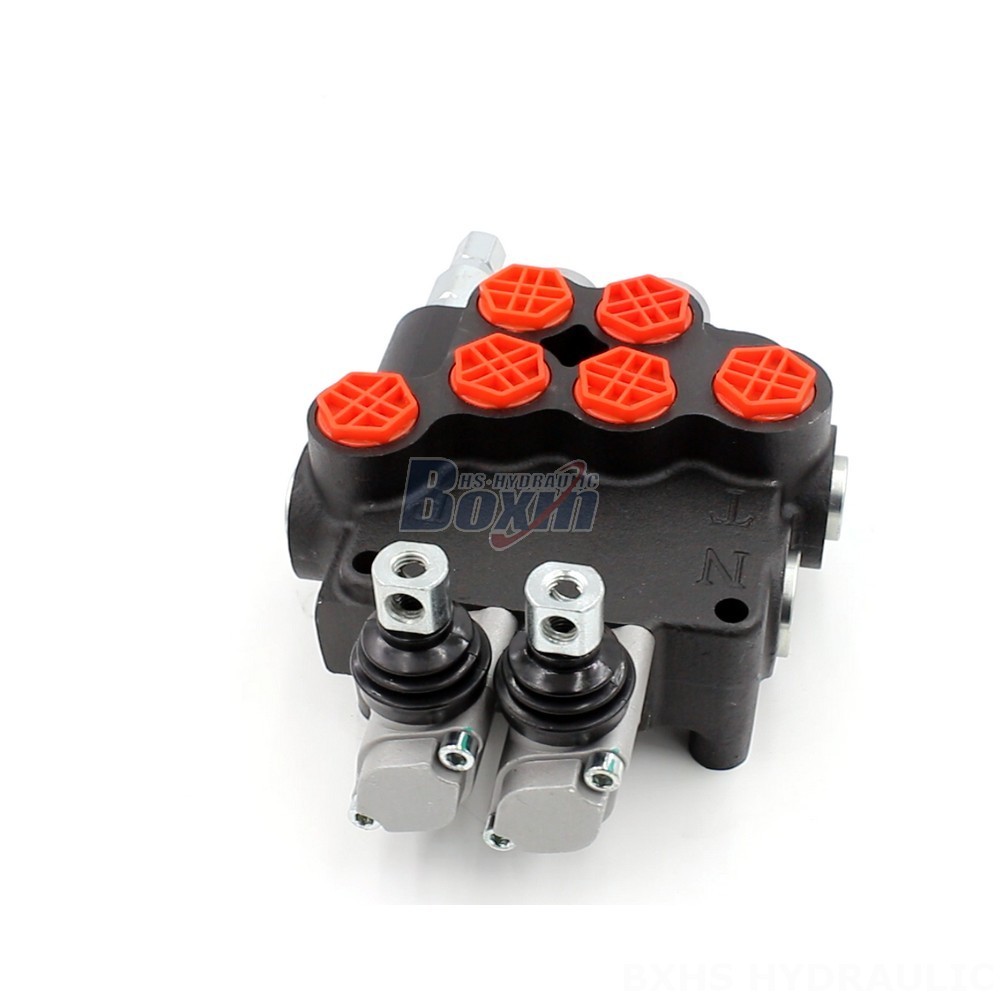

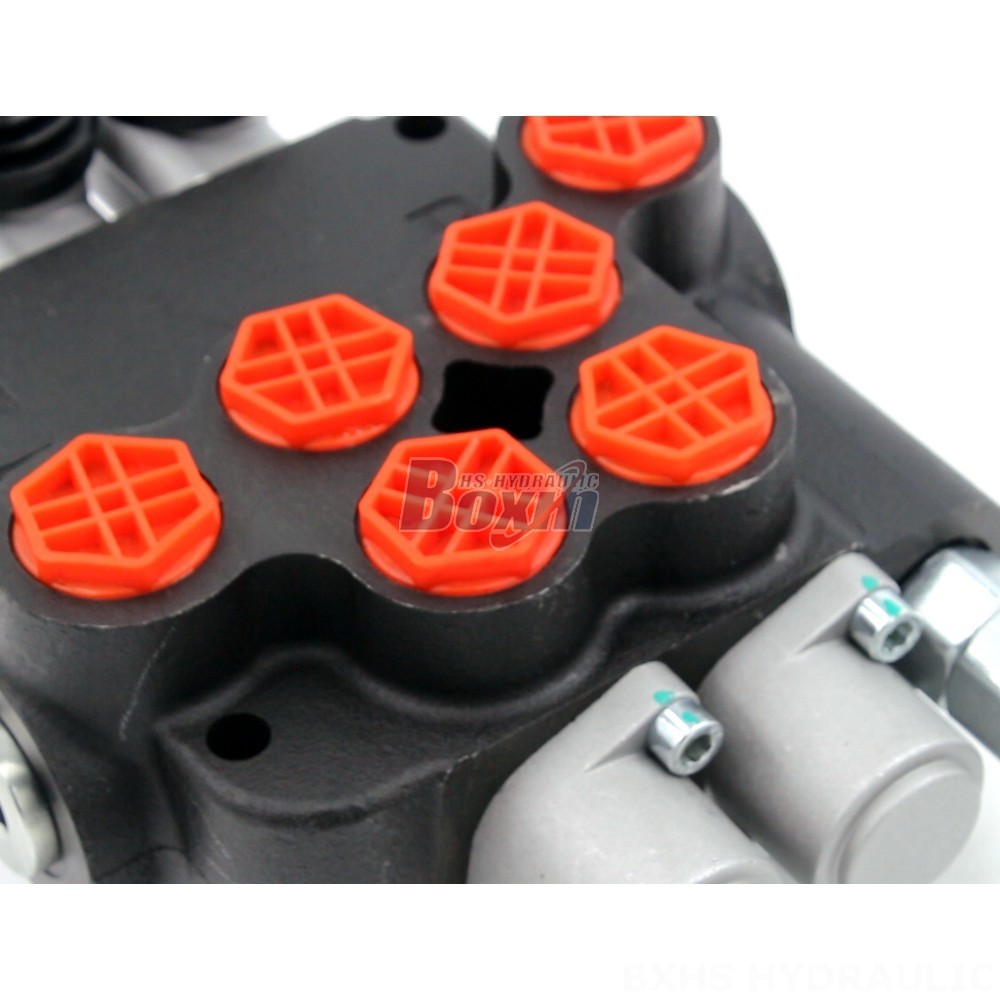

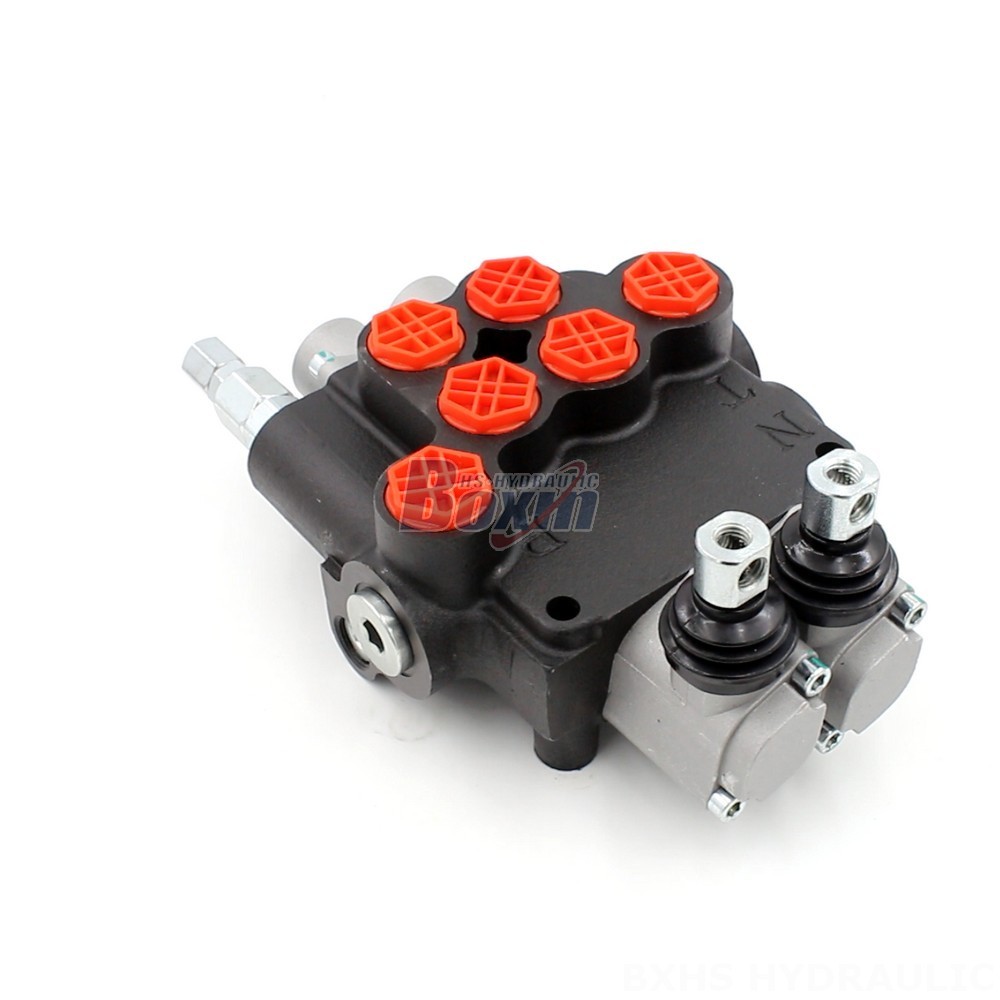

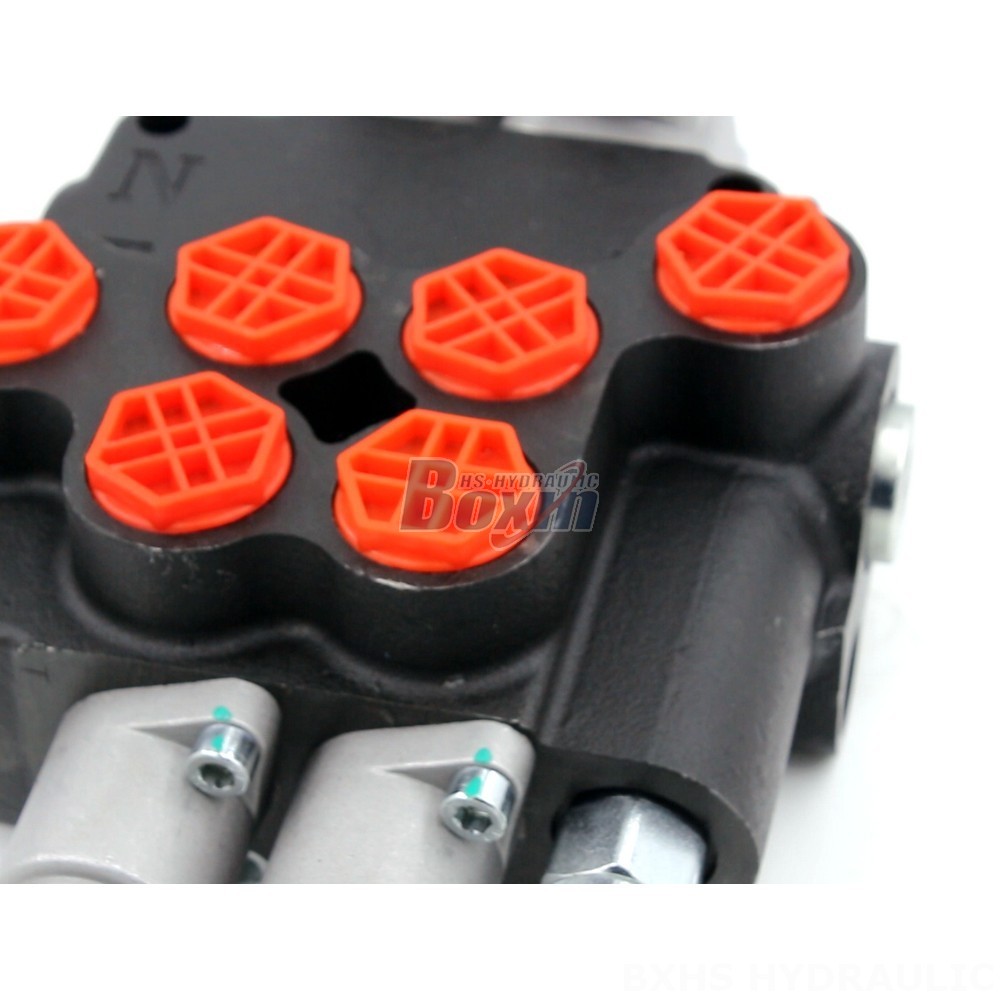

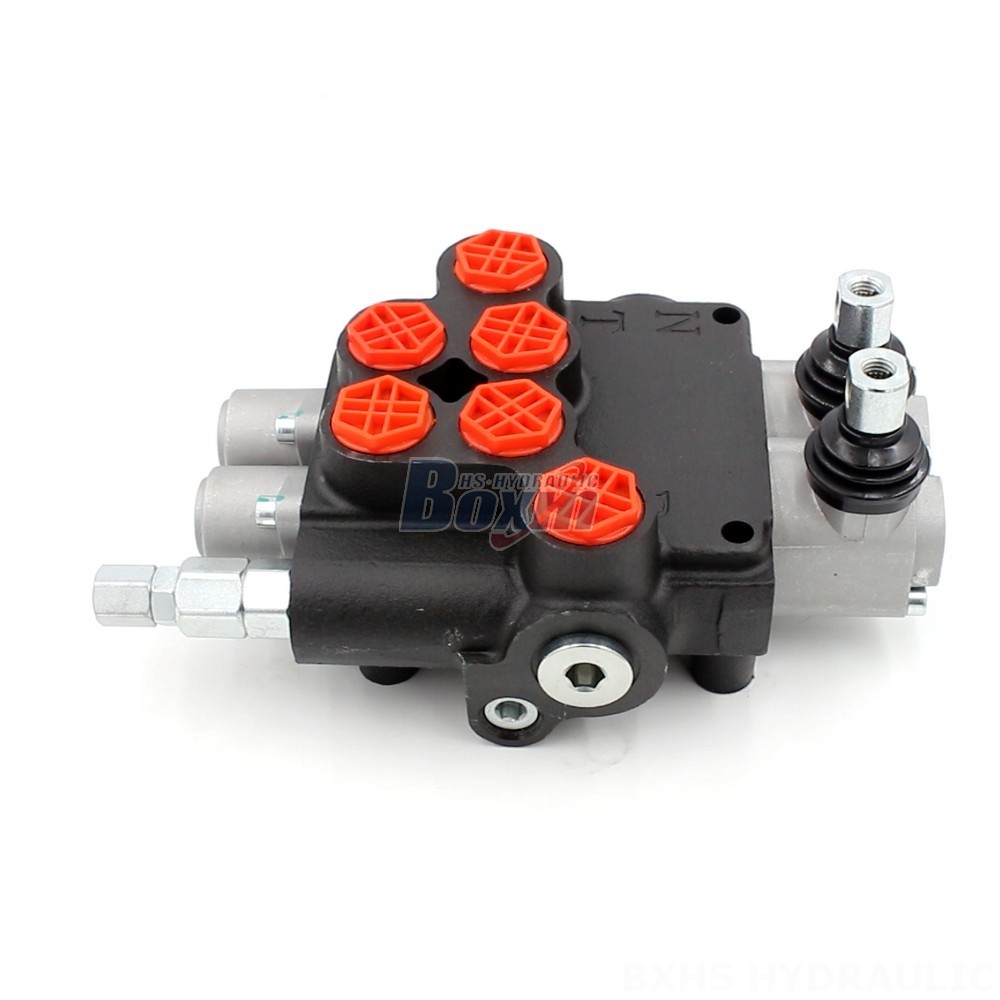

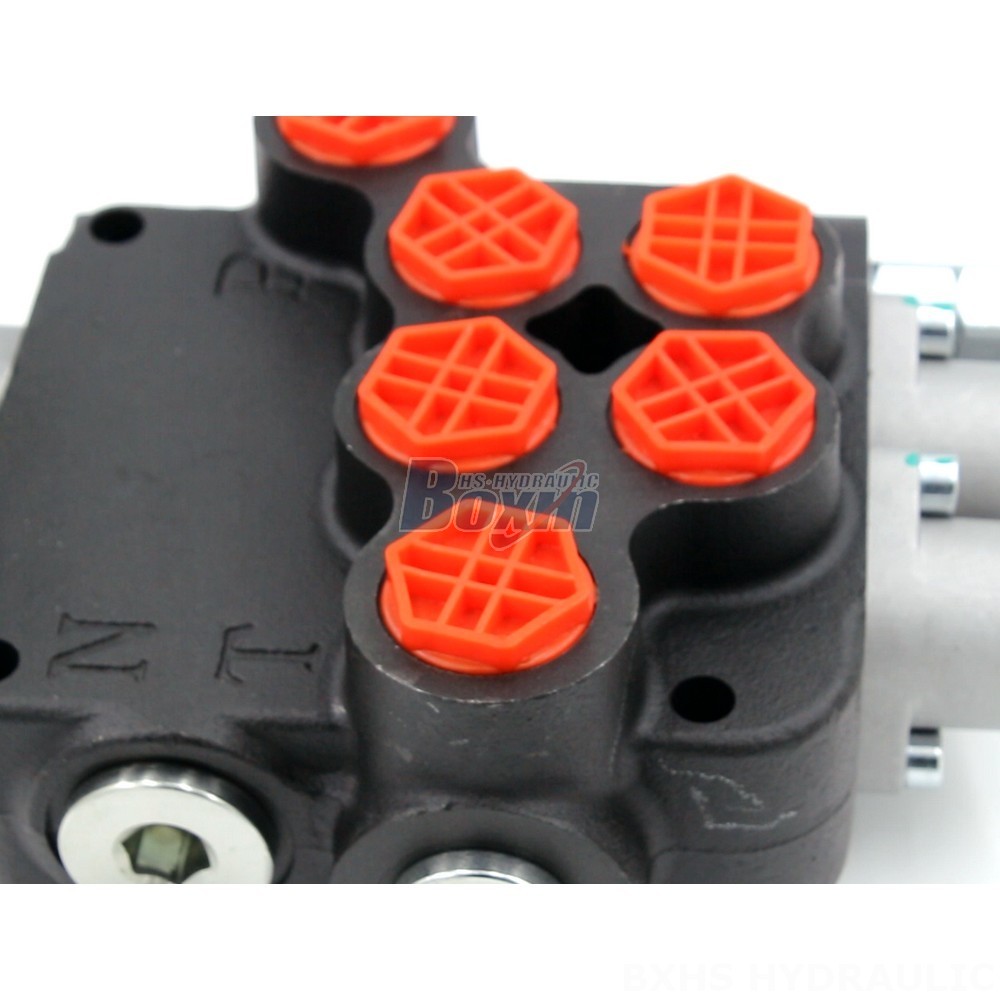

Introducing our P80-G34-G12 2-Spool Hydraulic Directional Valve, a robust and reliable solution for a wide range of industrial applications. Manufactured with precision, this valve offers exceptional performance and durability, ensuring efficient and precise fluid control.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Key Features:**
* Manual Control for precise and responsive operation
* Monoblock Valve construction for compact and leak-proof performance
* Rated Flow of 80 L/min (21.2 US gpm) for high-volume flow applications
* Max Pressure of 250 bar (3600 psi) for demanding pressure requirements
* Operating Viscosity Range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluid types
* Ambient Temperature Range of -40°C to +80°C (-40°F to +176°F) for reliable operation in harsh environments
**Applications:**
Our P80-G34-G12 2-Spool Hydraulic Directional Valve finds application in diverse industries including:
* Material Handling: Telehandlers, Forklifts
* Construction and Earth Moving: All Terrain Cranes, Stackers
* Agriculture: Aerial Platforms, Motor Graders
* Industrial Vehicles: Midi-Excavators, Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders
As a factory direct supplier, we offer customization options to meet your specific requirements. Contact us for tailored solutions and exceptional support.
