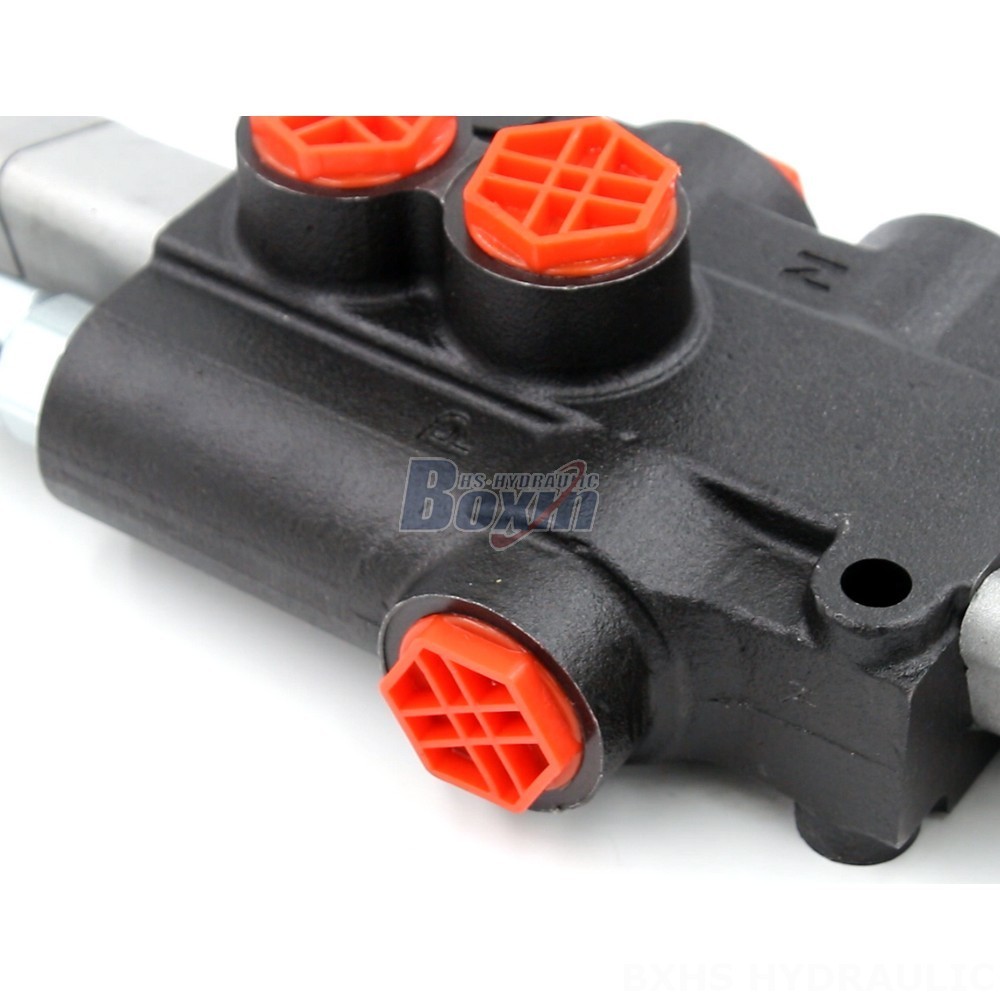

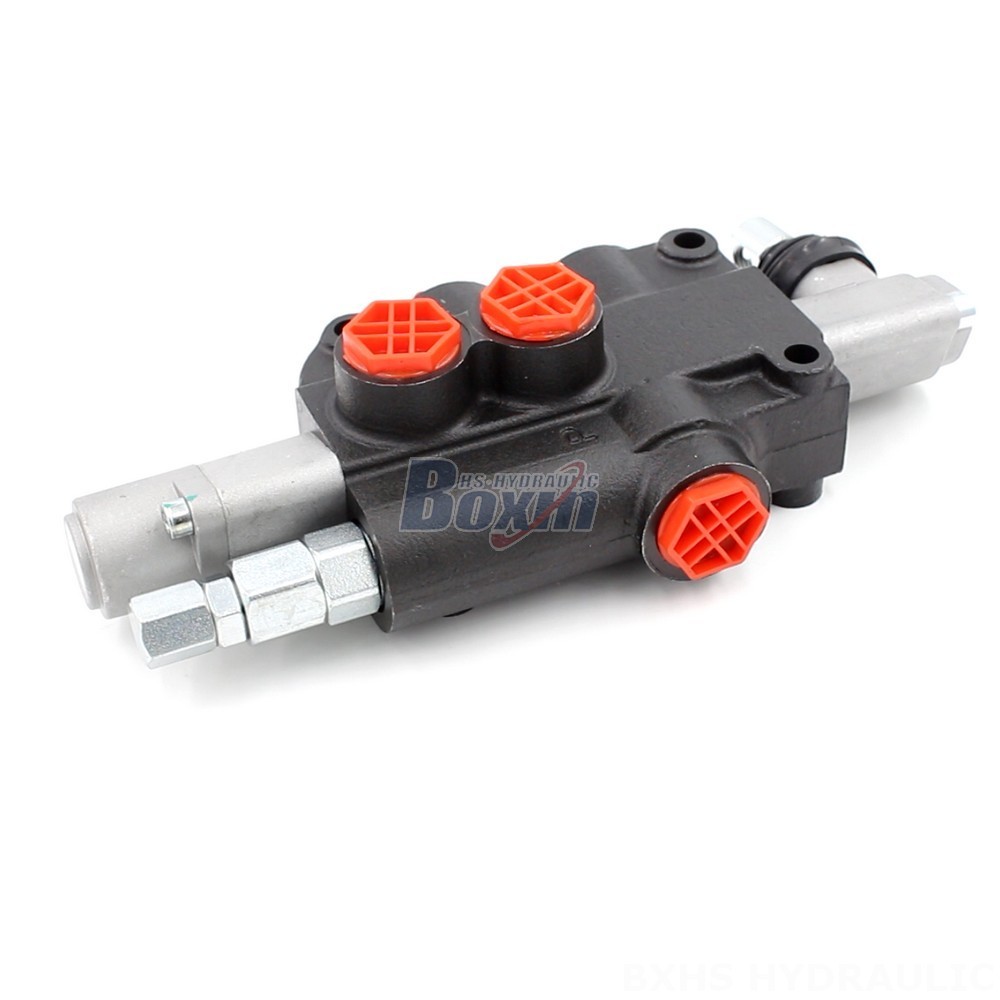

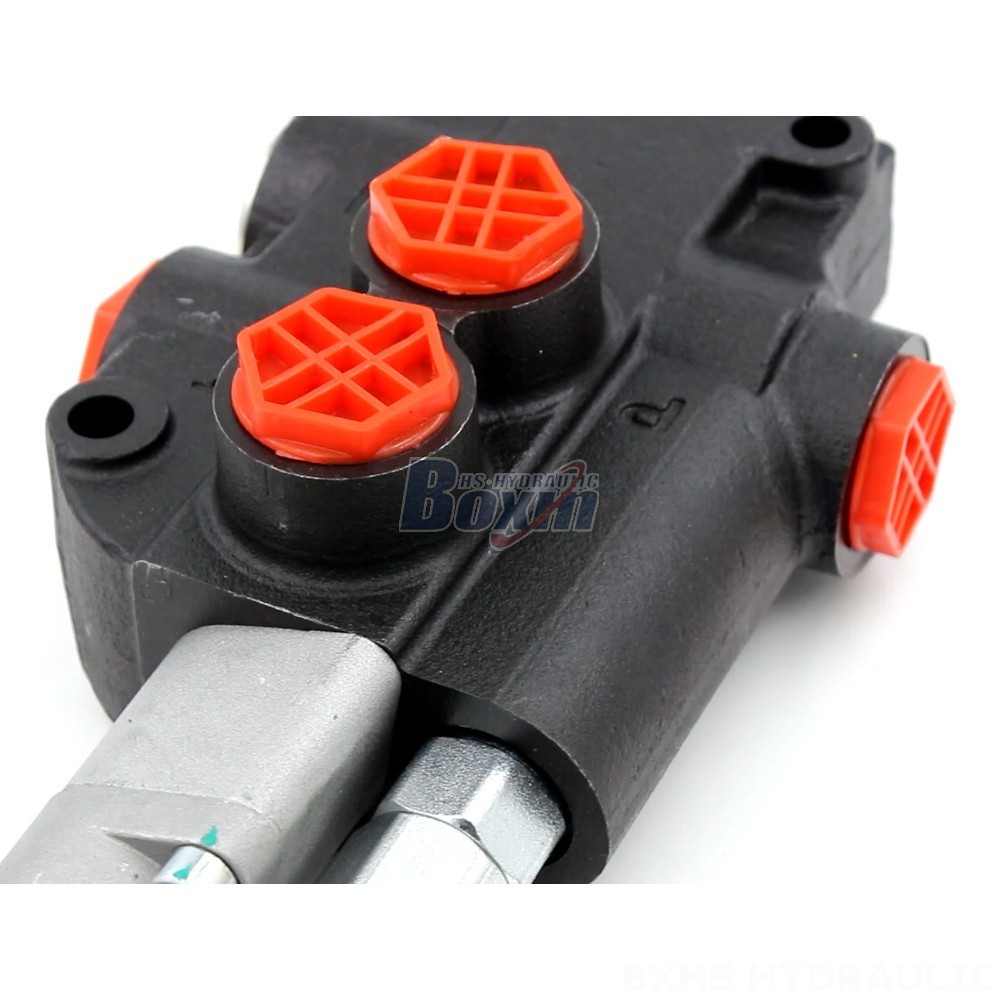

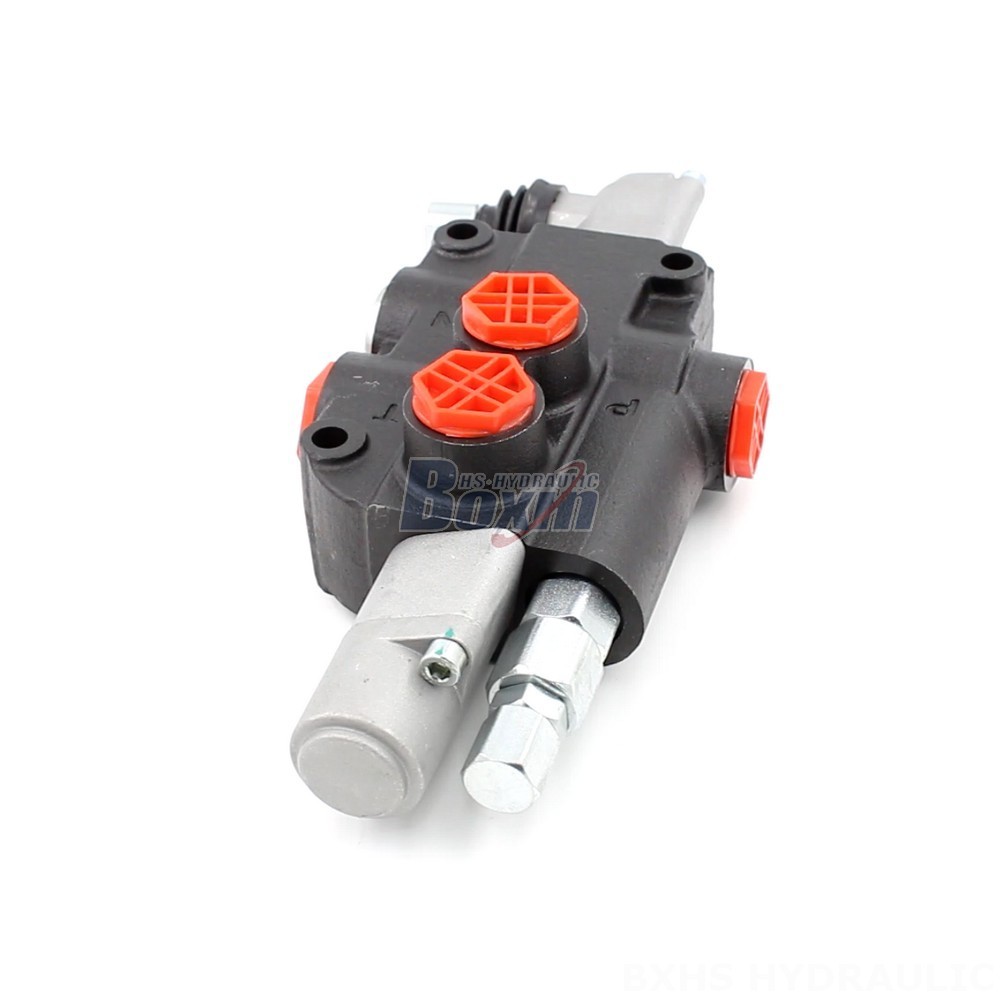

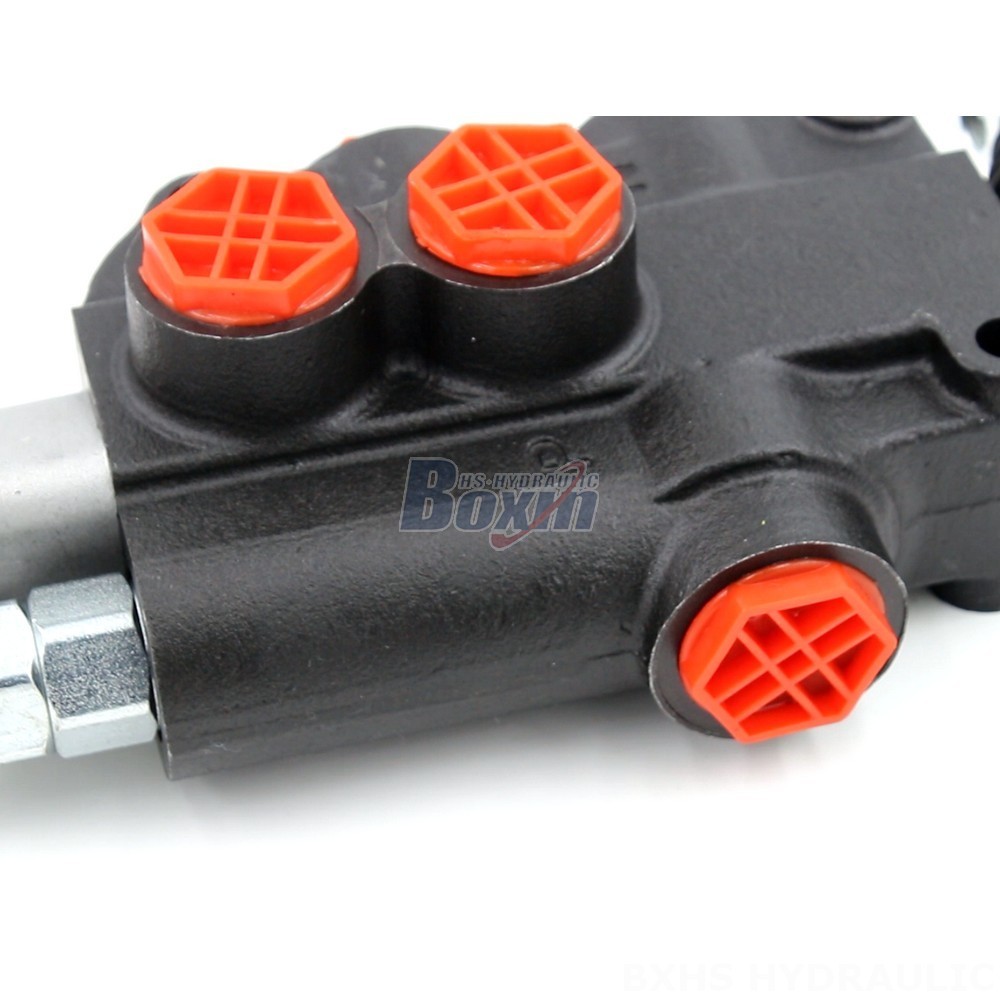

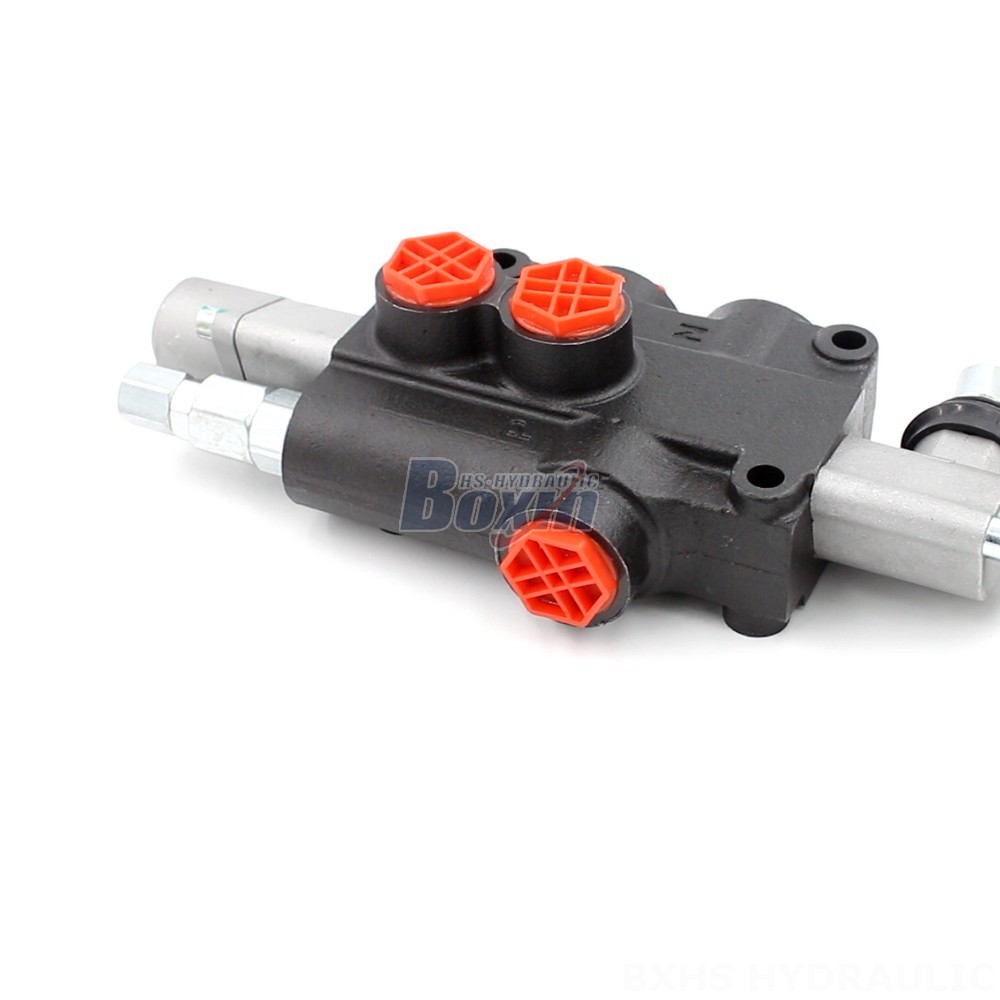

The P80-G12-QTW Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a variety of industrial applications. It features a manual control method, a 1 section structure type, and a rated flow of 80 L/min (21.2 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is suitable for use in material handling, construction and earth moving, agriculture, and industrial vehicles.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Product Name**: P80-G12-QTW Manual 1 Spool Monoblock Directional Valve
**Control Method**: Manual
**Section**: 1 Section
**Structure Type**: Monoblock valve
**Rated Flow**: 80 L/min (21.2 US gpm)
**Max Pressure**: 250 bar (3600 psi)
**Operating Viscosity Range**: 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range**: -40°C to +80°C (-40°F to +176°F)
**Spool**: 1 Spool
**Series**: P80 Series
**Application Area**: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model**: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
