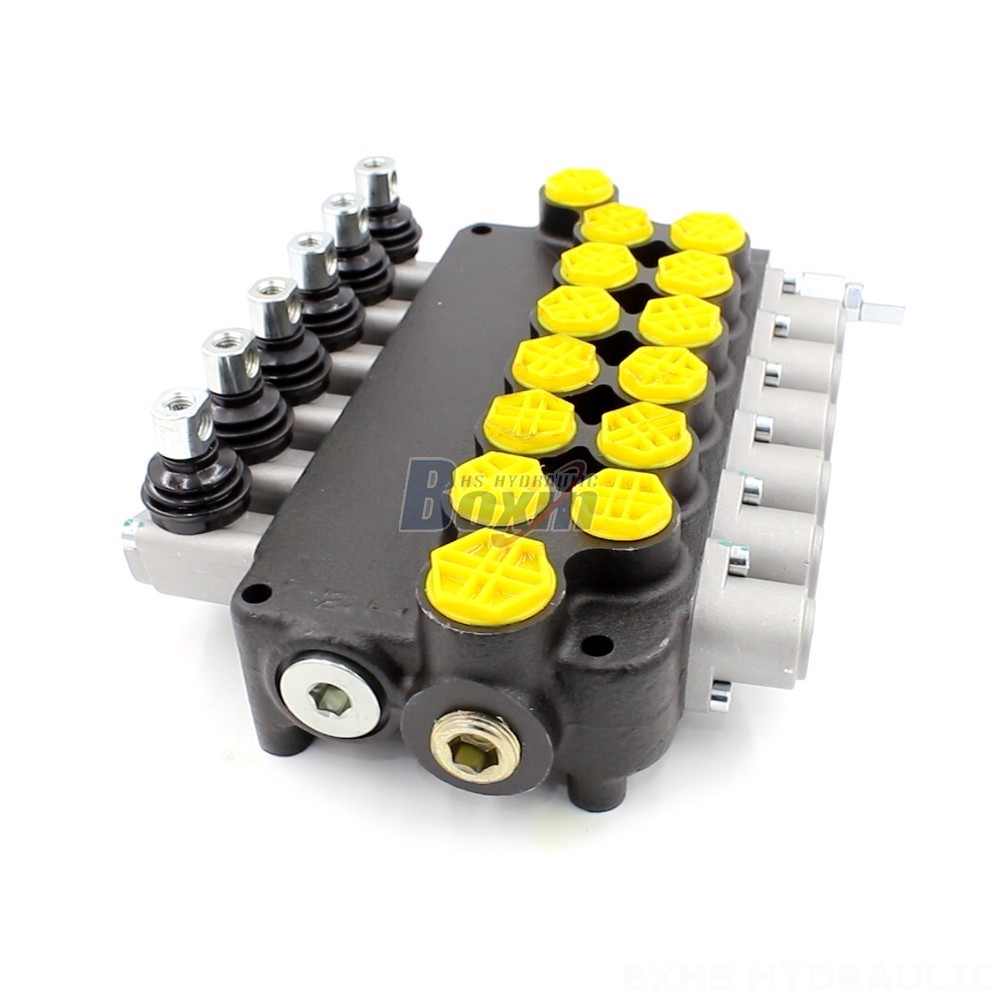

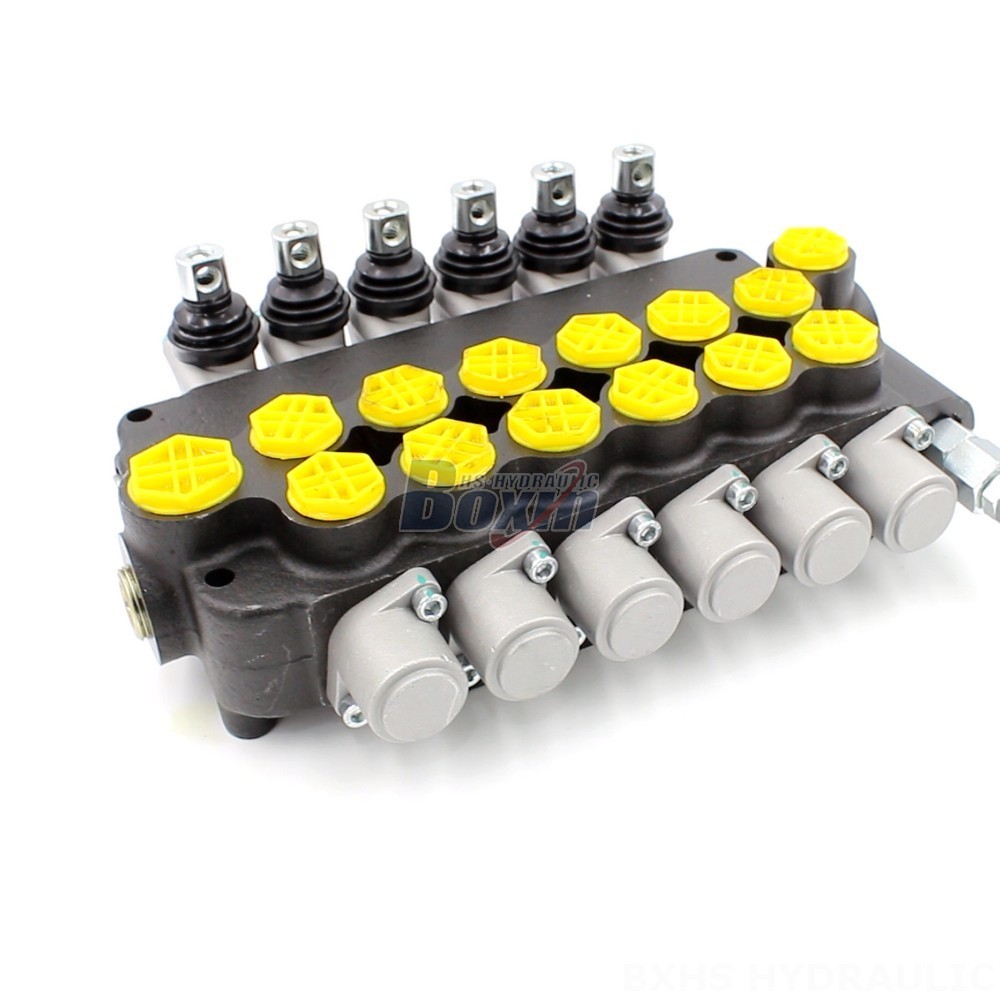

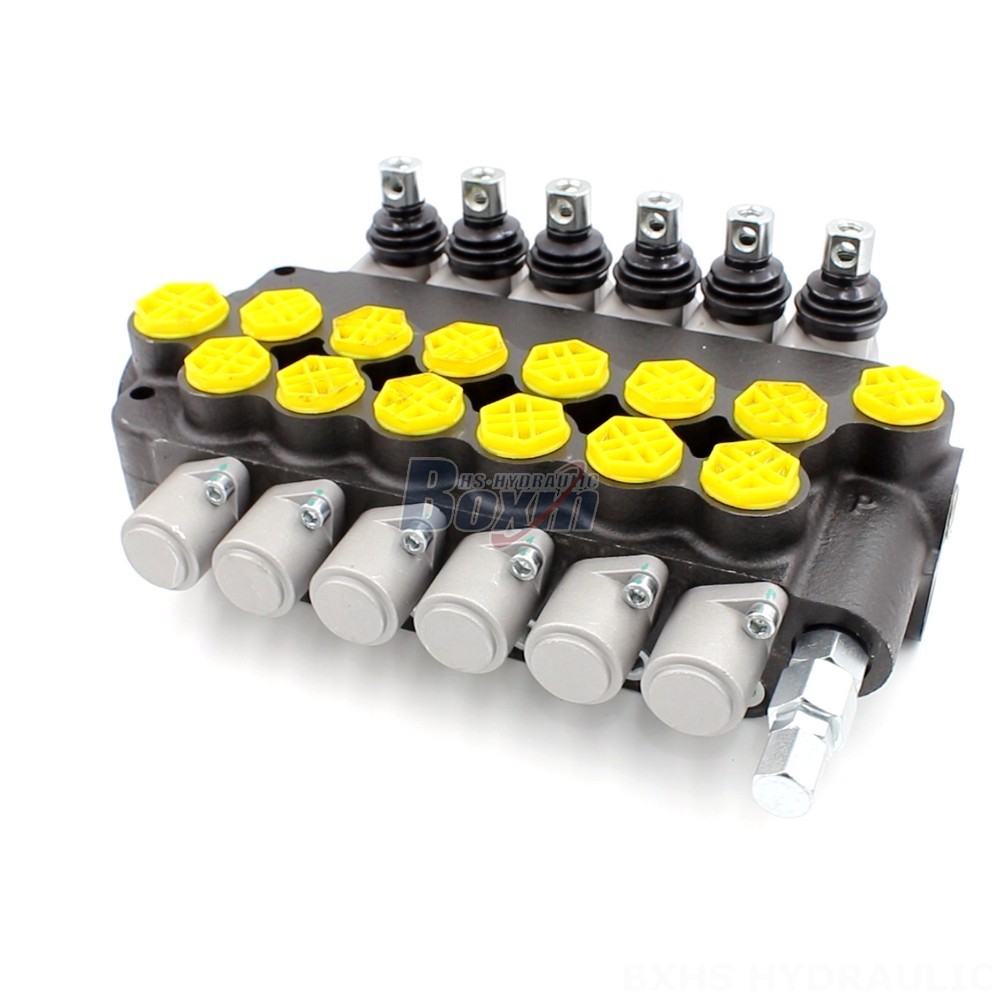

The P80-G12-G34-6OT Double Compartment Hydraulic Oil Control Valve is a 6 section, monoblock valve with manual control. It features a rated flow of 80 L/min and a maximum pressure of 250 bar. This valve is suitable for a wide range of applications, including material handling, construction, and agriculture.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This P80 series valve is a double compartment, 6 section monoblock valve with manual control. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar. Designed for operating with hydraulic oil within a viscosity range of 15 - 75 mm²/s, the valve can withstand ambient temperatures from -40°C to +80°C. It's suitable for use in various applications such as material handling, construction and earth moving, agriculture, and industrial vehicles. This valve is particularly applicable to telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
