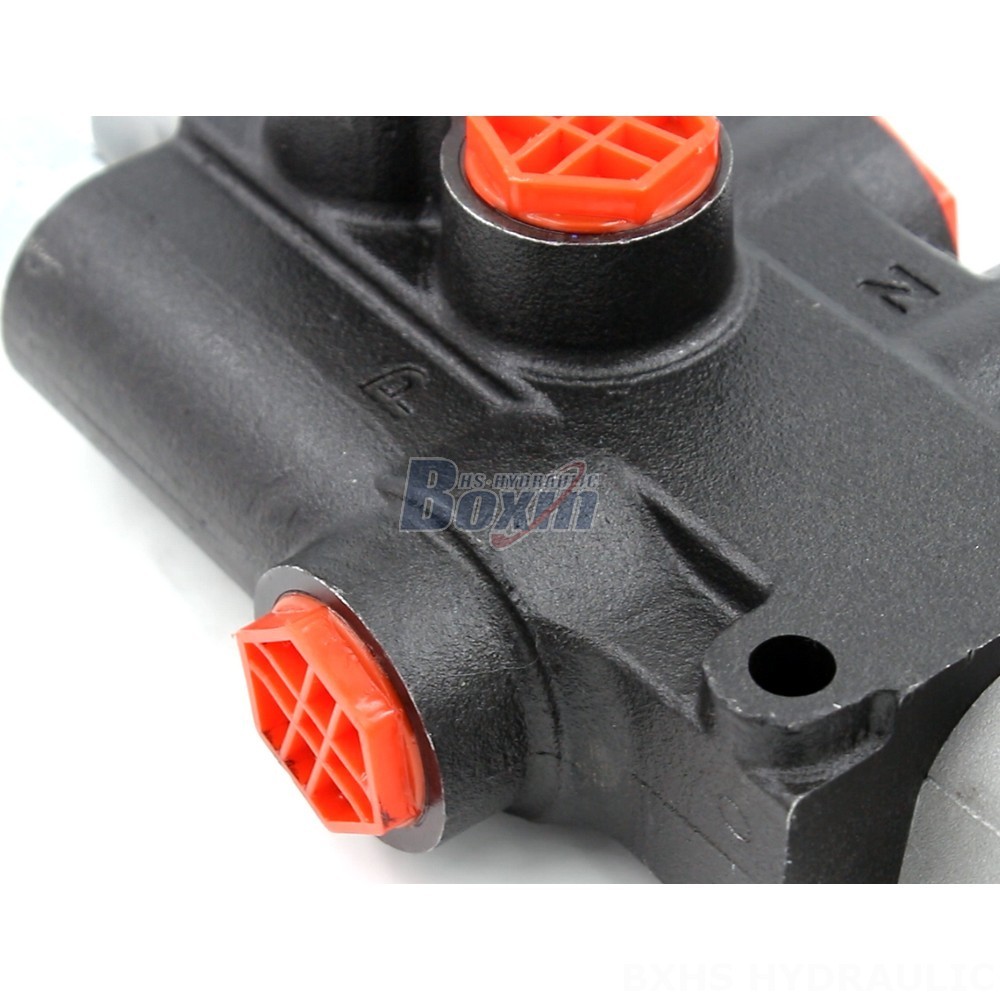

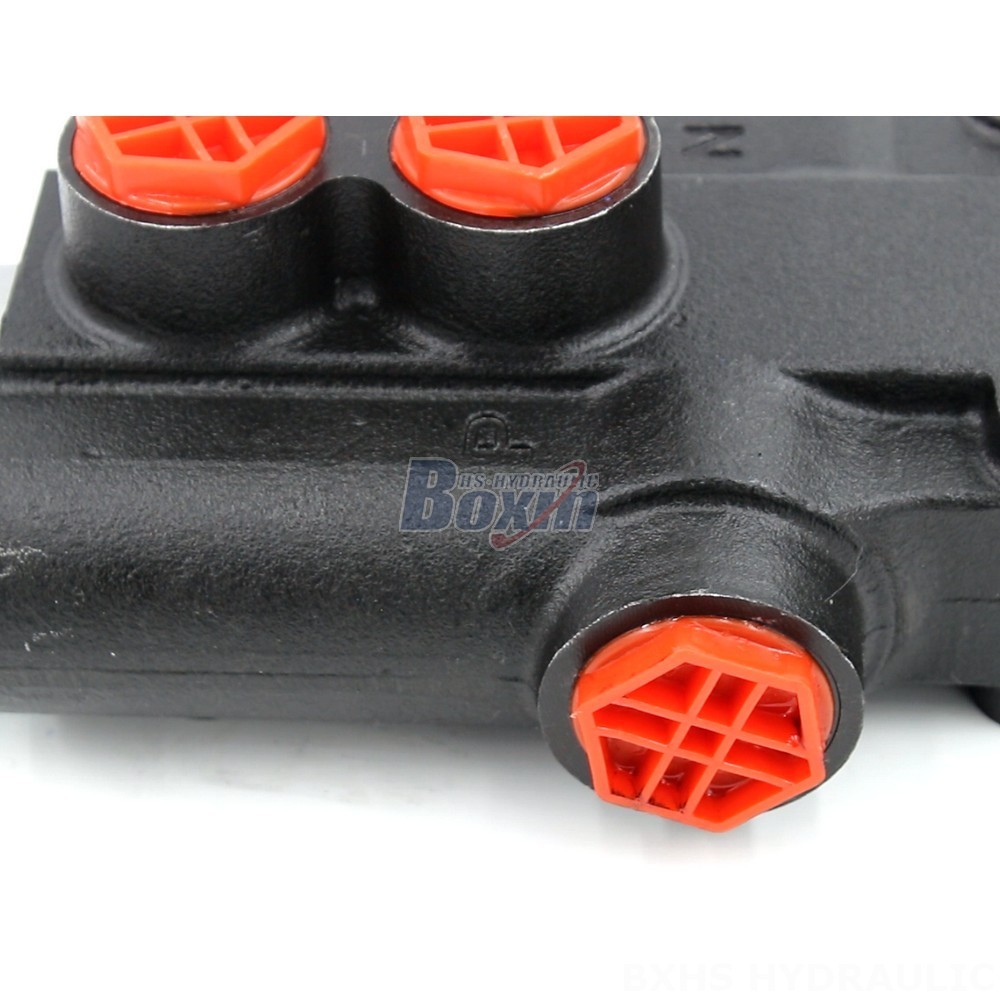

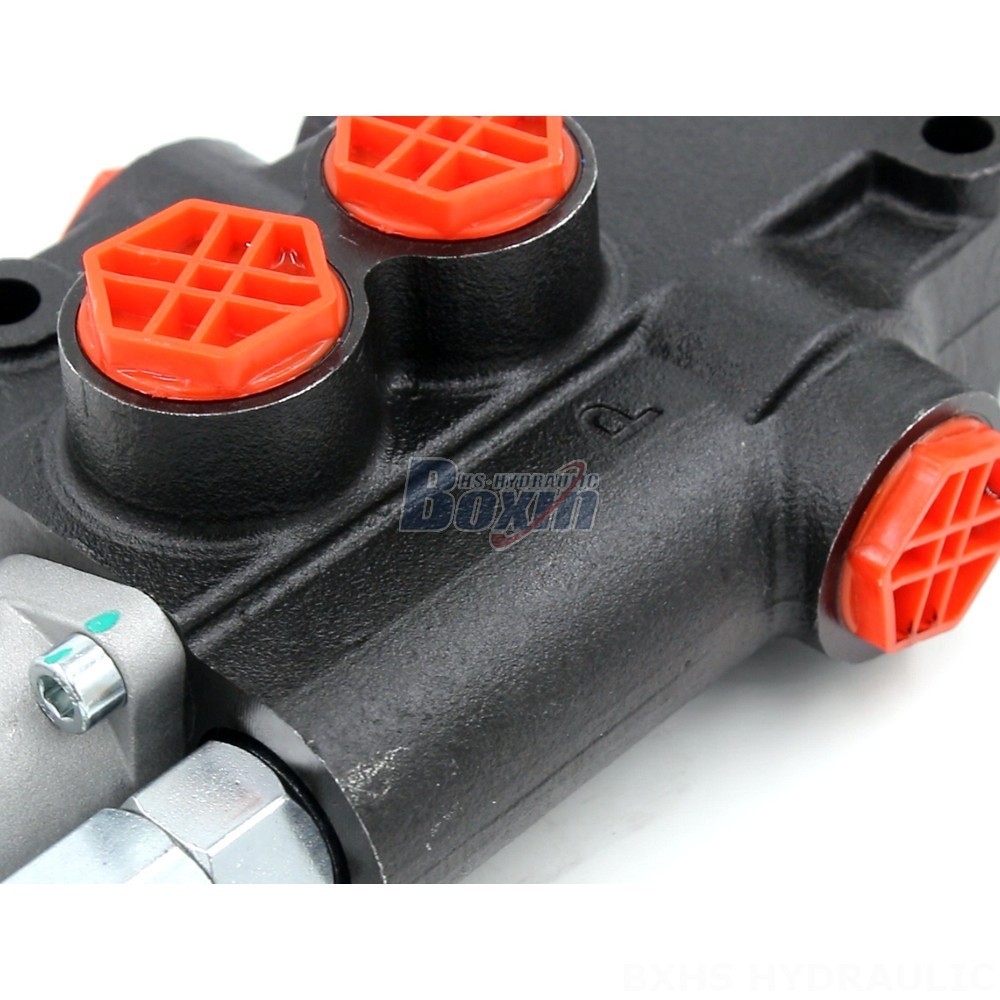

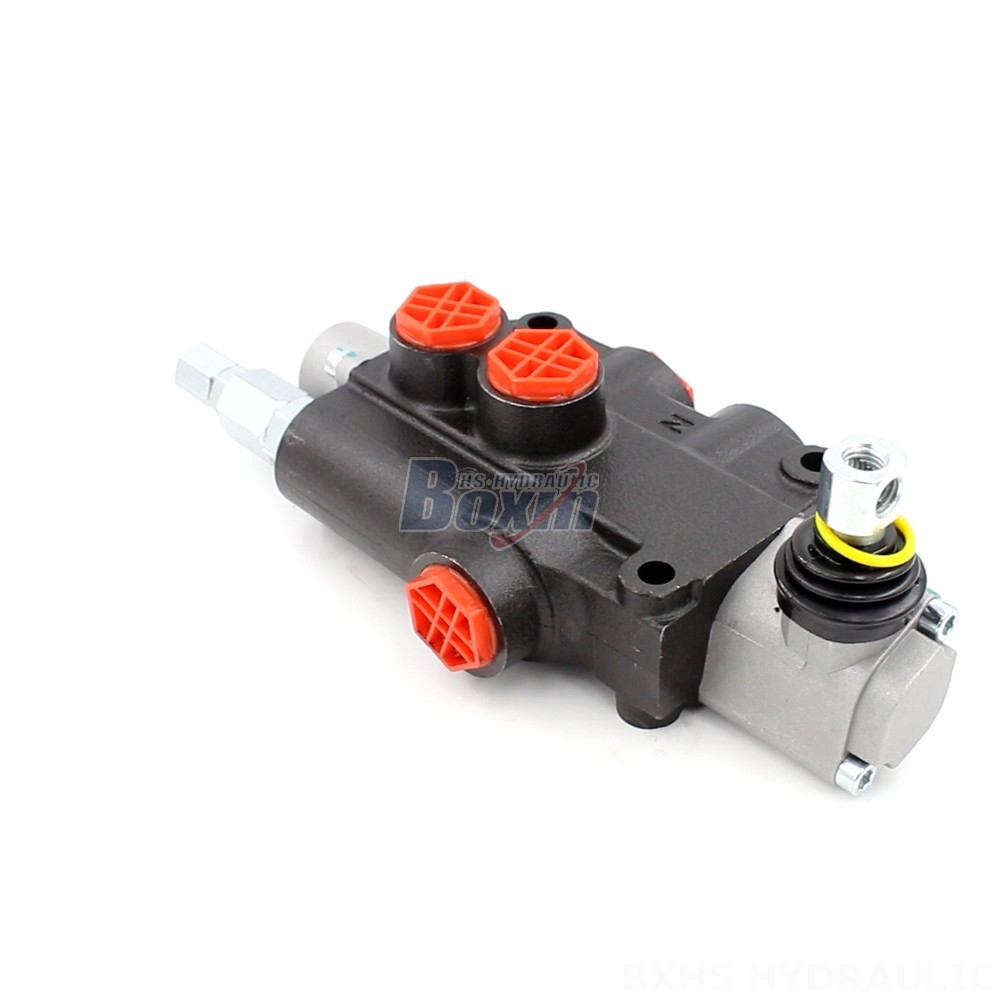

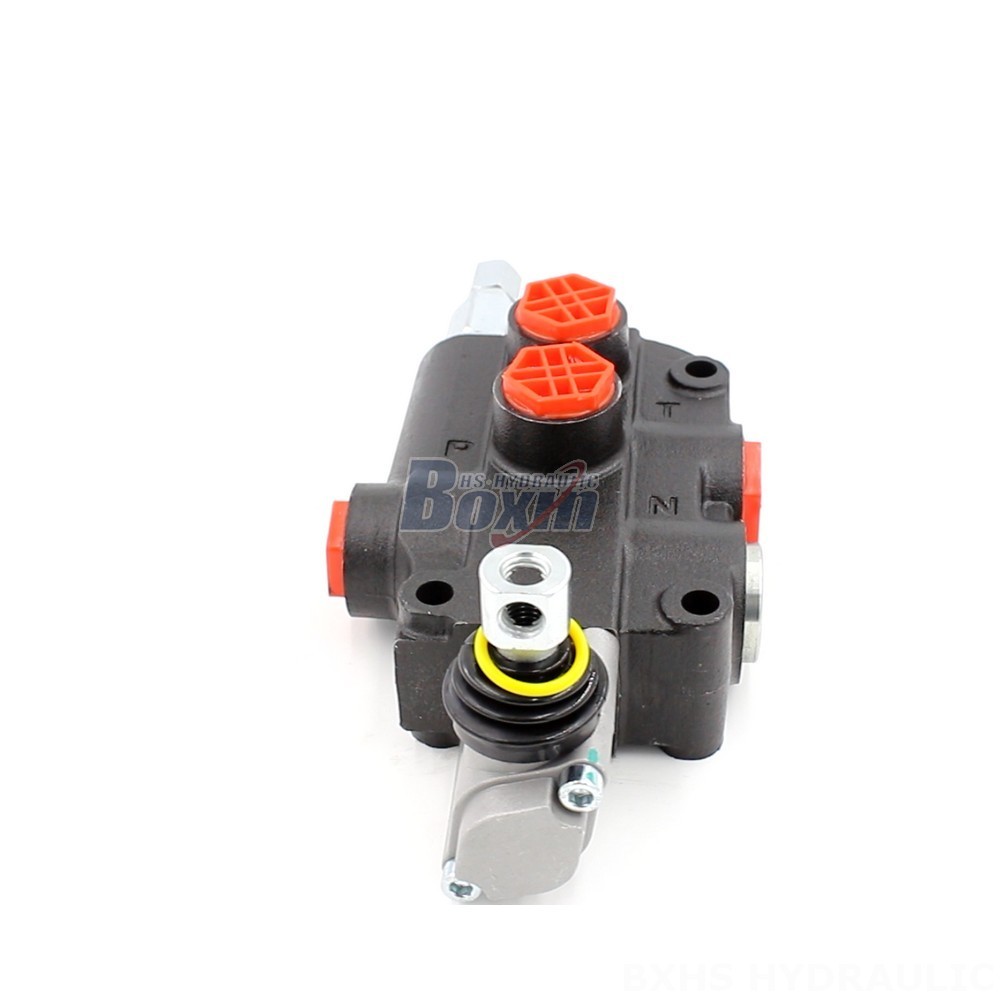

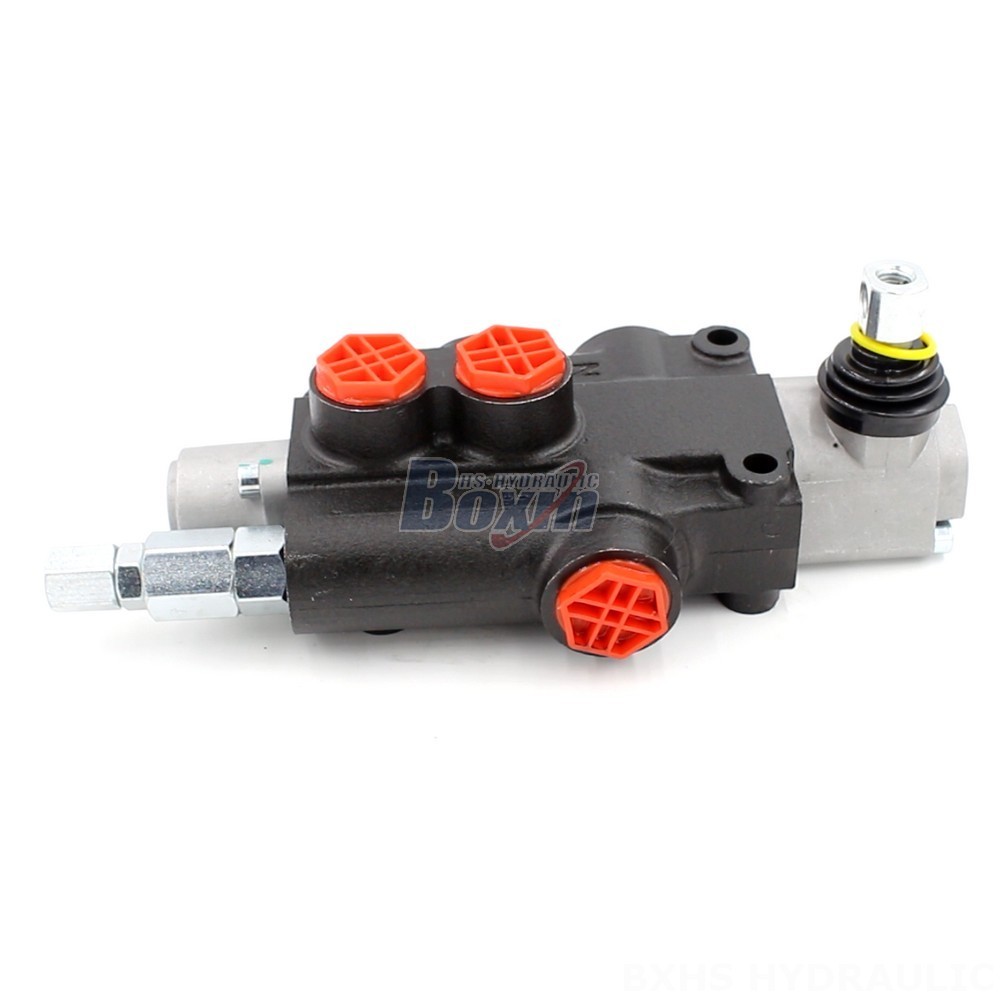

The P80-G12-1OW 1-Spool Directional Control Valve is a high-performance valve designed for use in various hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it provides excellent flow and pressure control capabilities. Its robust construction and wide operating temperature range make it suitable for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Key Features:**
- Manual control for precise and responsive operation
- Monoblock construction for durability and compactness
- High flow capacity of 80 L/min for efficient system operation
- High pressure rating of 250 bar for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C for reliable performance in extreme conditions
- Single spool design for simple and effective flow control
**Applications:**
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Mini excavators
- Skid steer loaders
- Compact wheel loaders
The P80-G12-1OW 1-Spool Directional Control Valve offers a combination of performance, reliability, and versatility, making it an ideal choice for a wide range of hydraulic system requirements.
