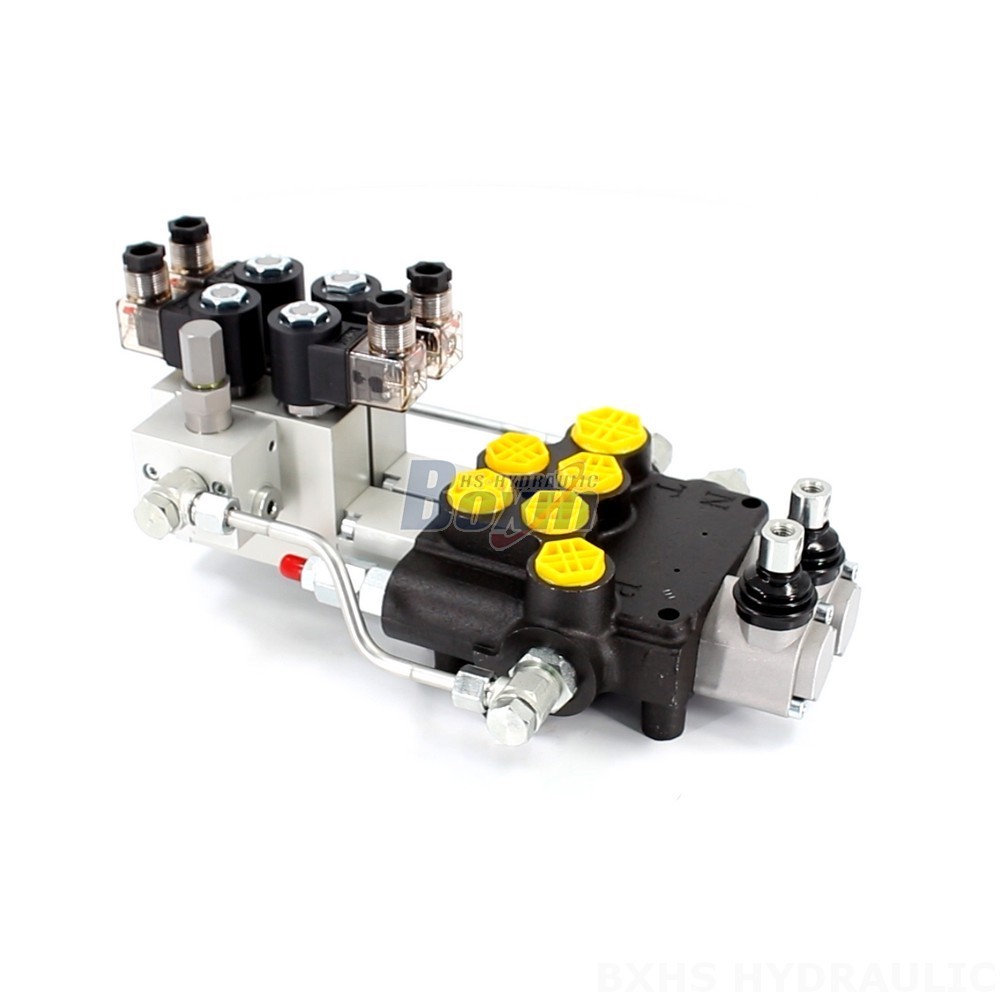

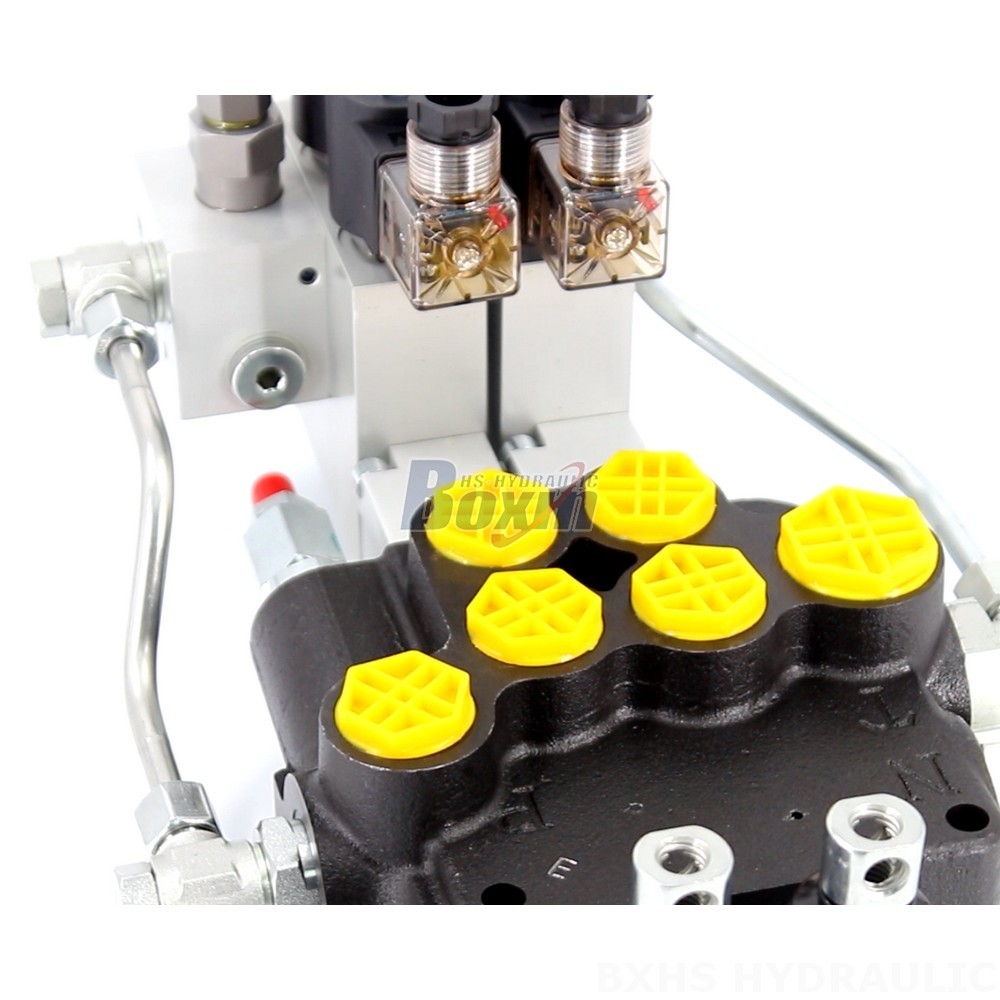

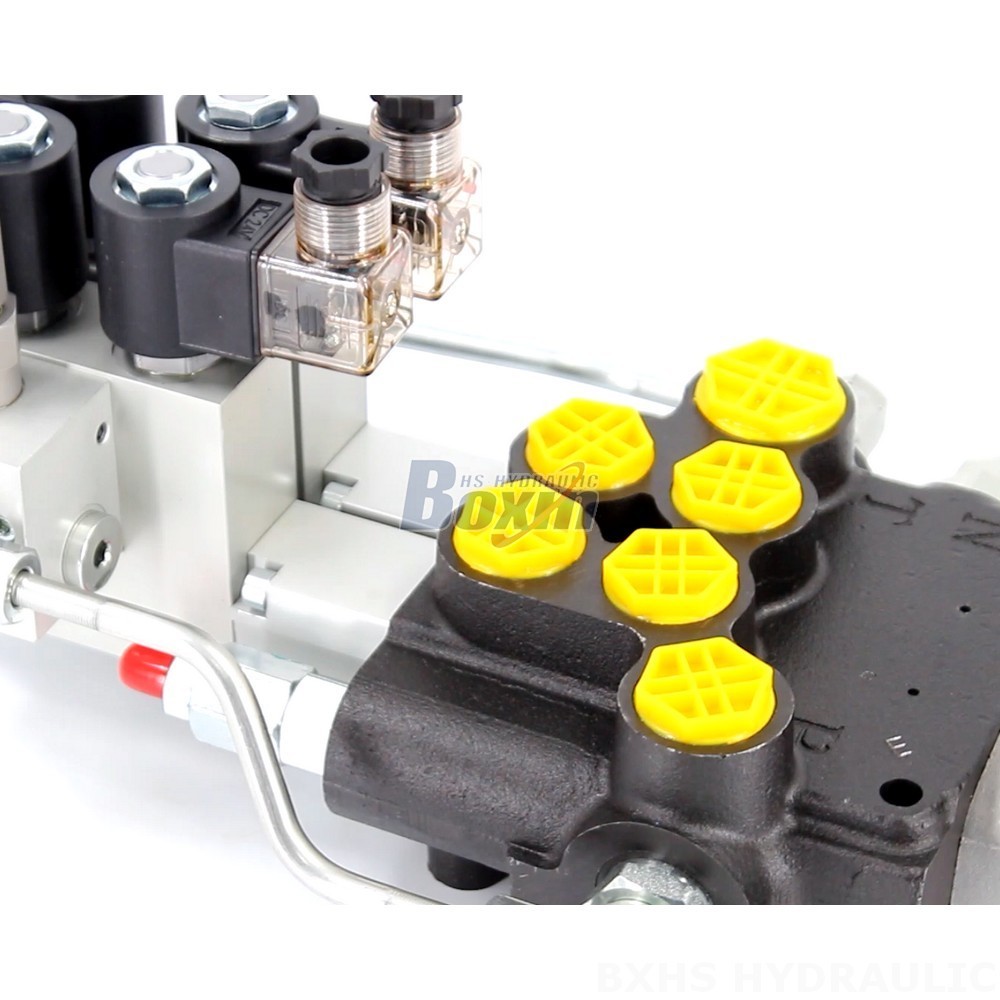

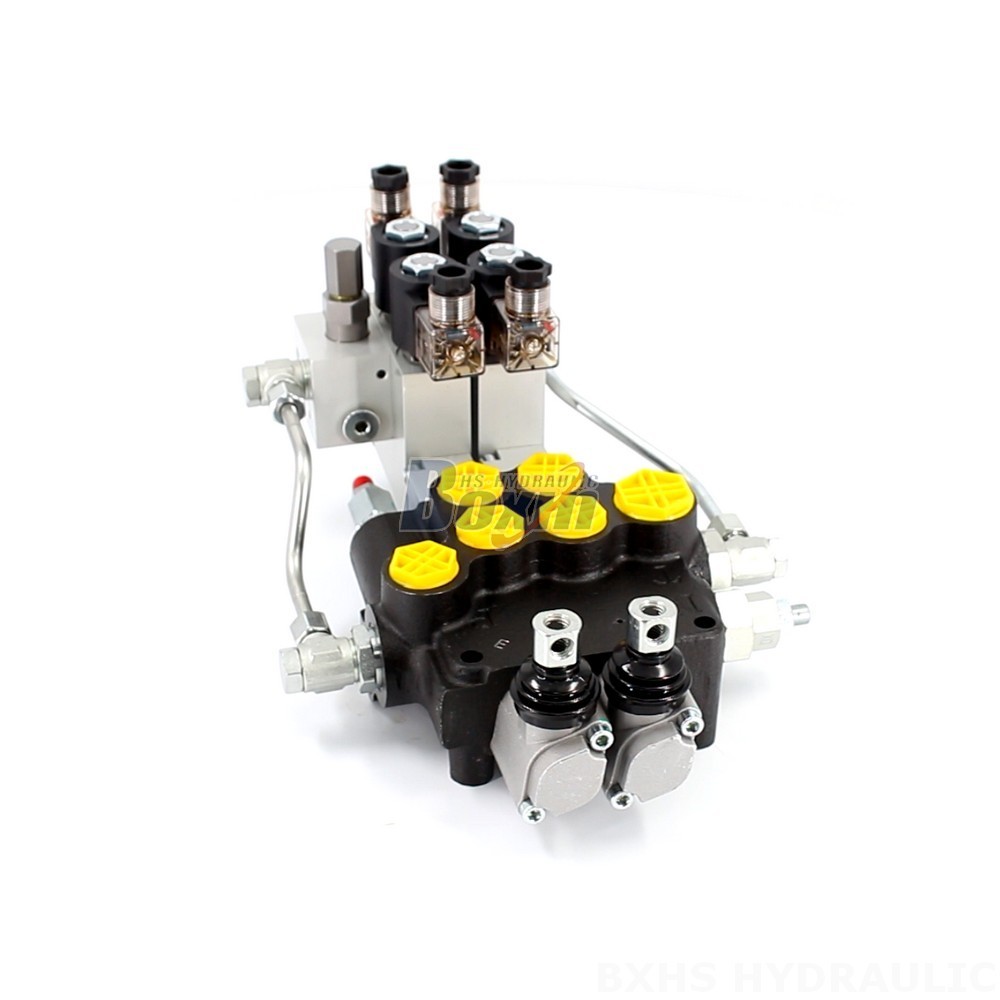

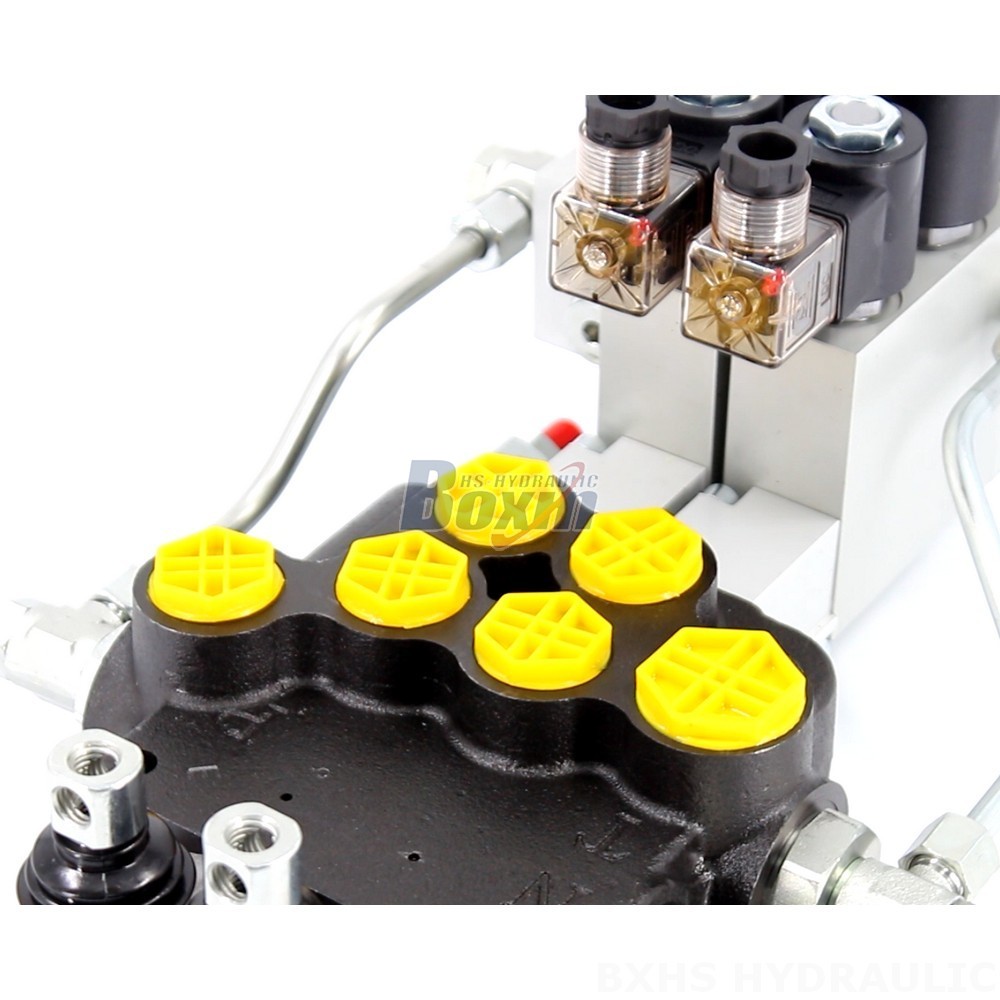

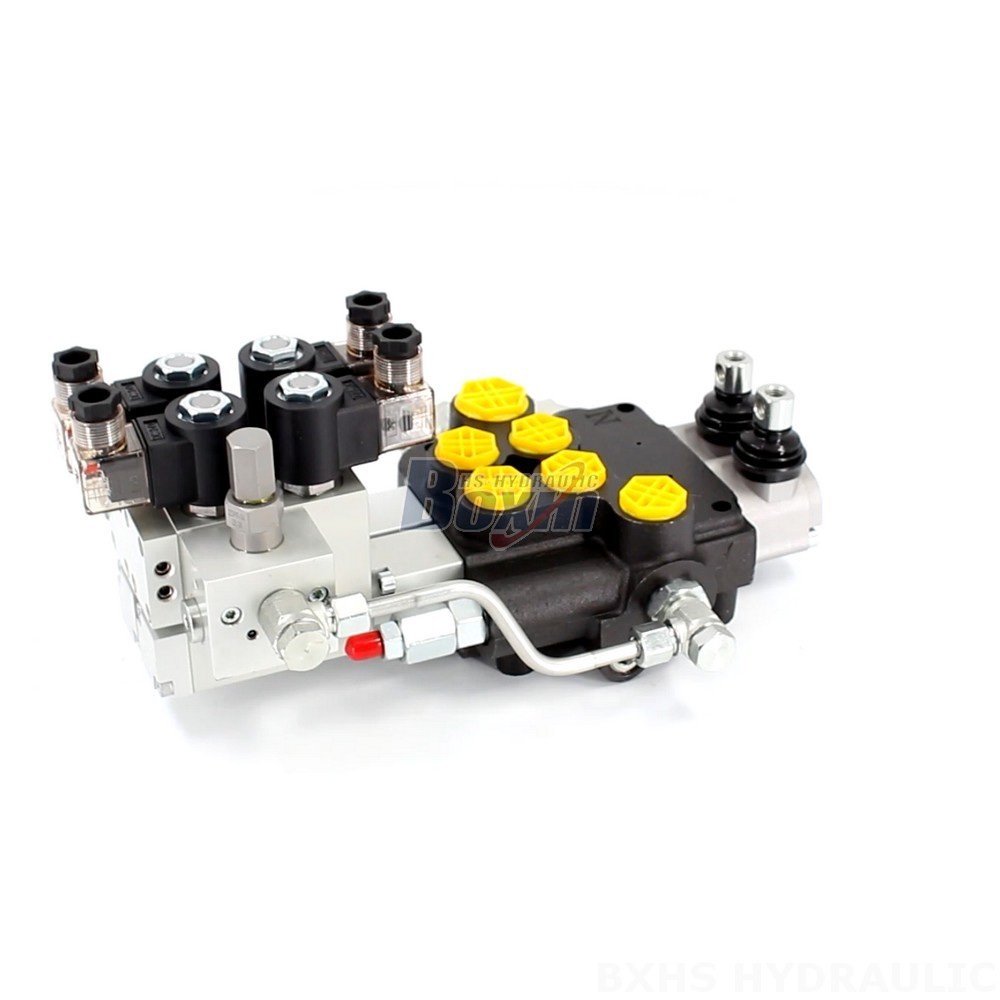

The P80 Electro-Hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. With its advanced electro-hydraulic control system, 2 section design, and robust monoblock construction, the P80 valve provides precise and reliable control of hydraulic systems.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Key Features and Benefits:**
* Electro-hydraulic control for precise and responsive operation
* 2 section design for increased flexibility and control
* Monoblock construction for durability and reliability
* Rated flow of 80 L/min for high flow capacity
* Max pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of fluids
* Ambient temperature range of -40°C to +80°C for use in extreme conditions
* 2 spool design for increased control options
* P80 Series for compatibility with other P80 series components
* Ideal for use in material handling, construction, earth moving, agriculture, and industrial vehicles
* Common applications include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
