The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a high-performance valve designed for use in demanding hydraulic systems. It features a robust monoblock construction, electro-hydraulic control, and a flow rate of 80 L/min. The valve is suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |

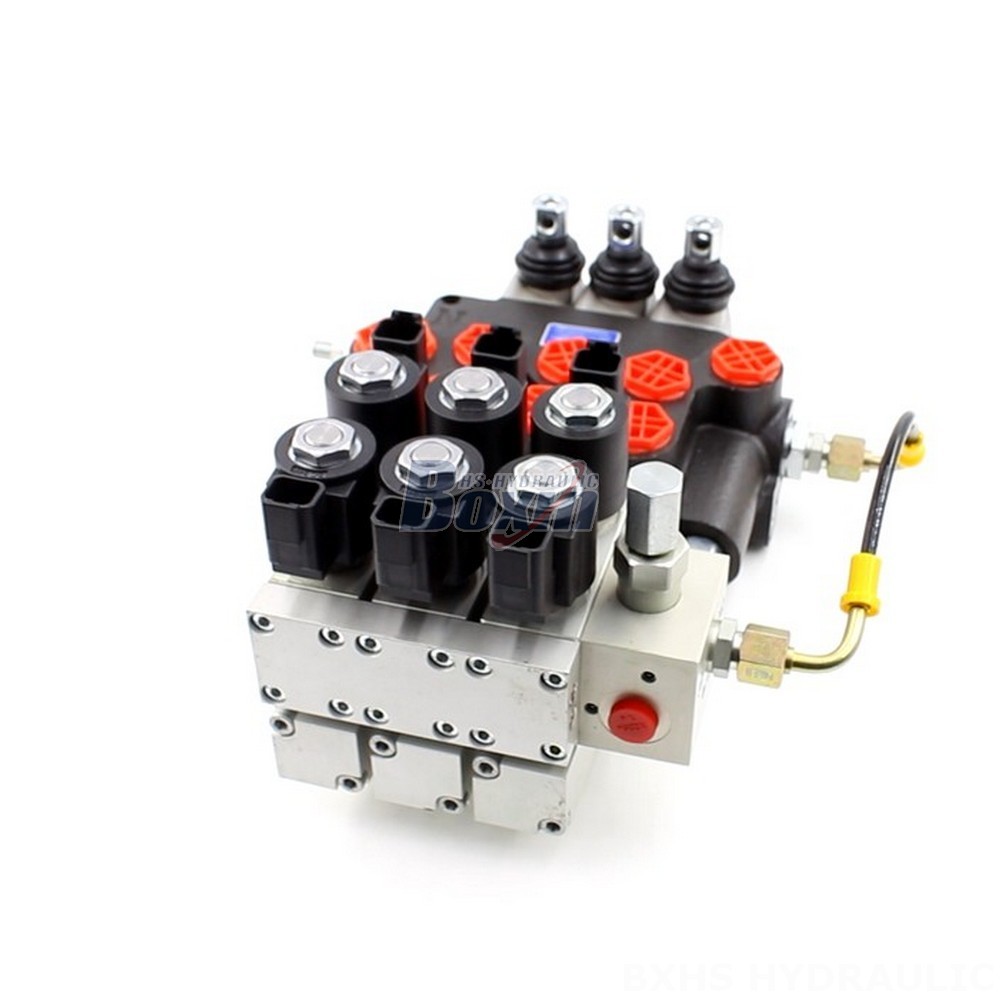

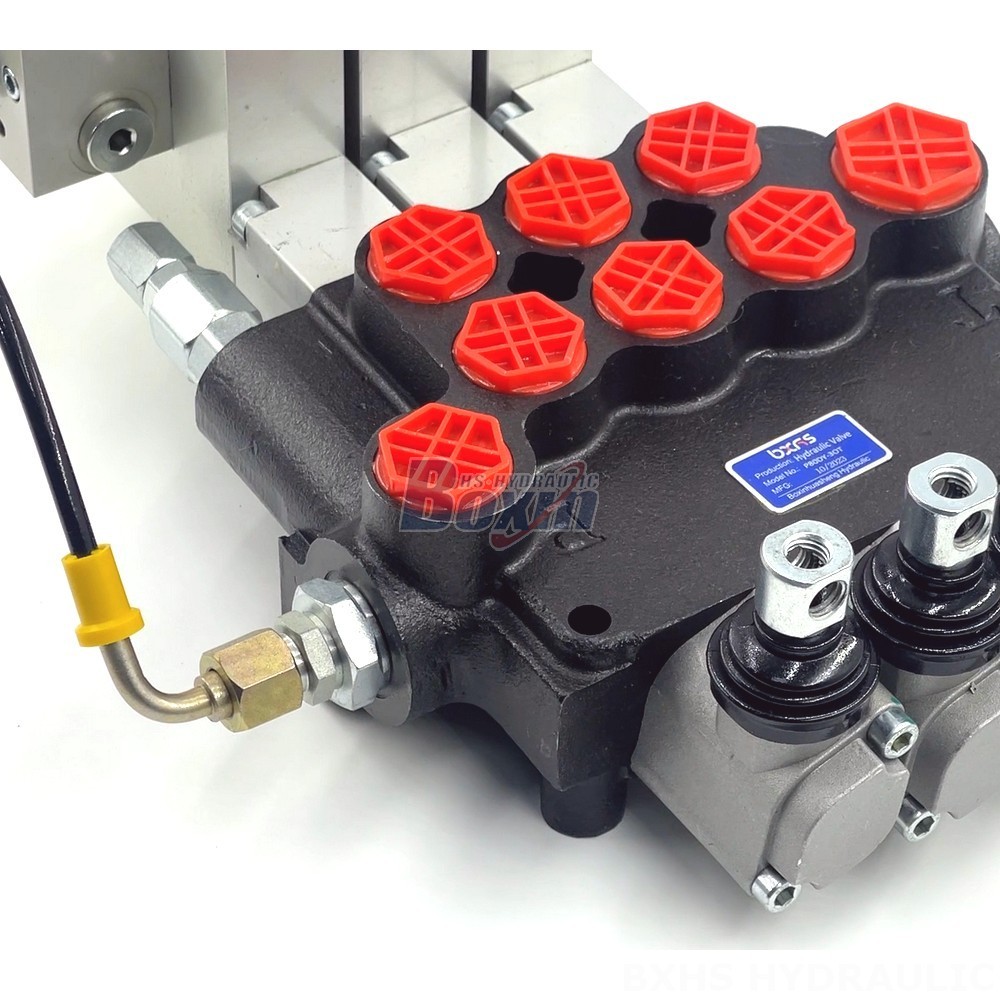

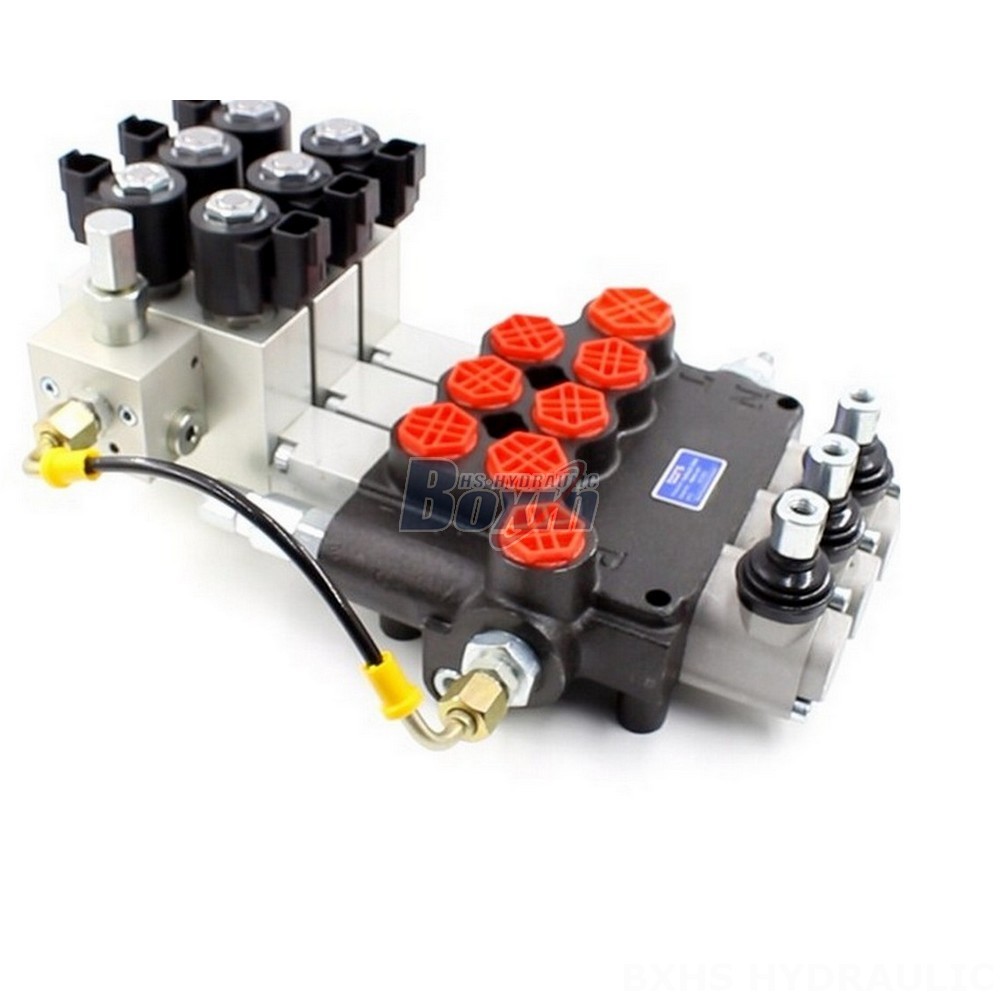

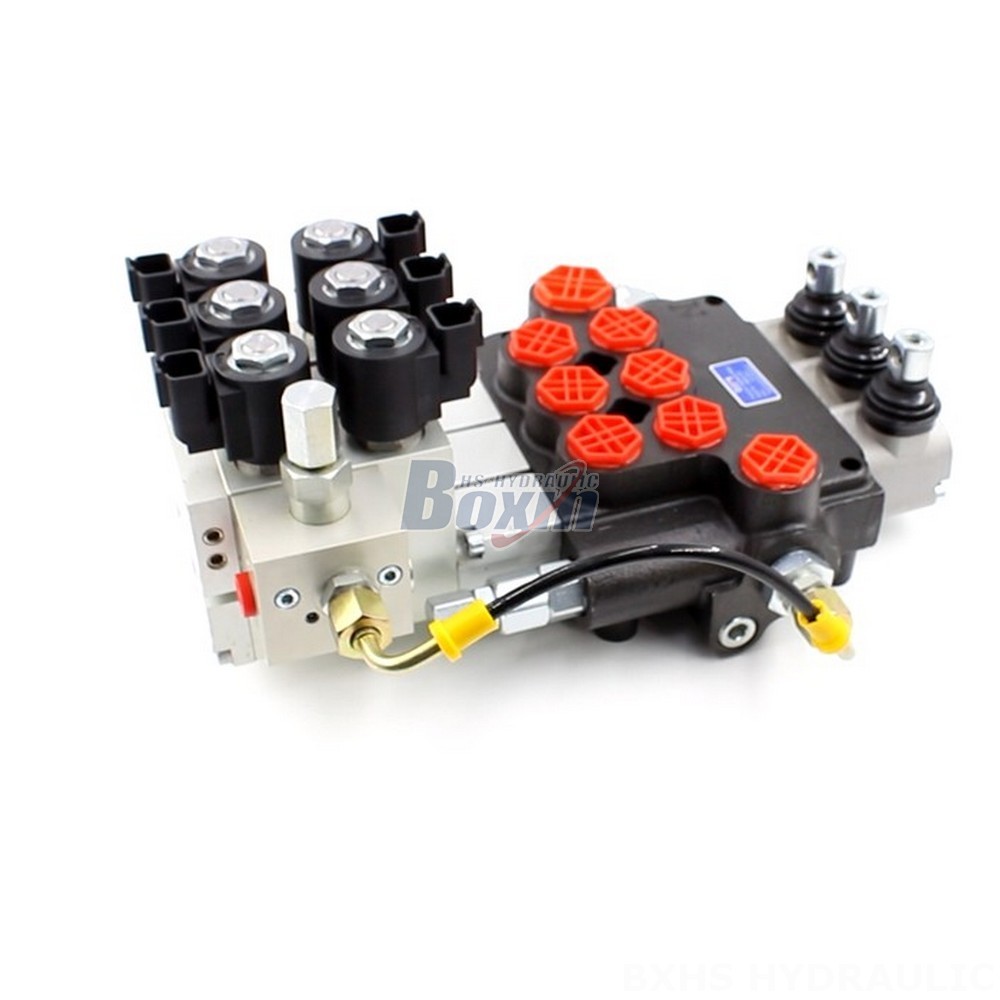

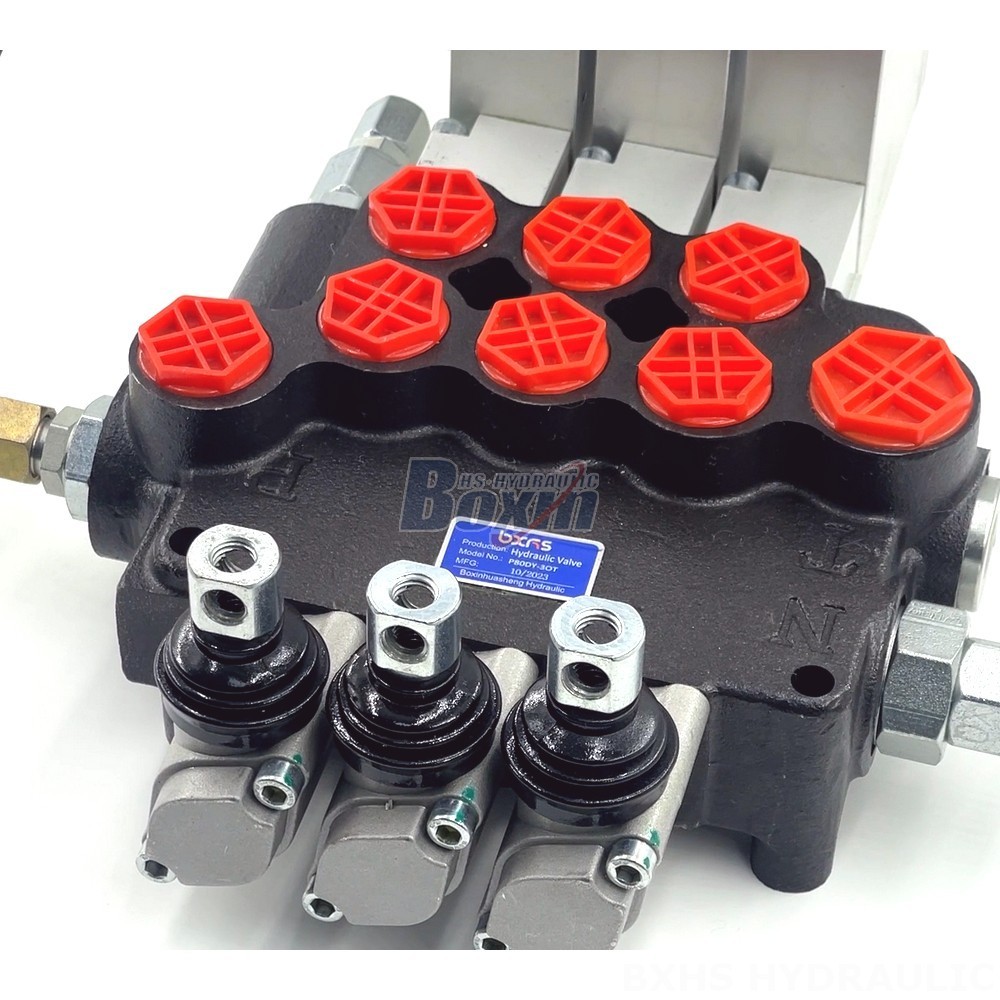

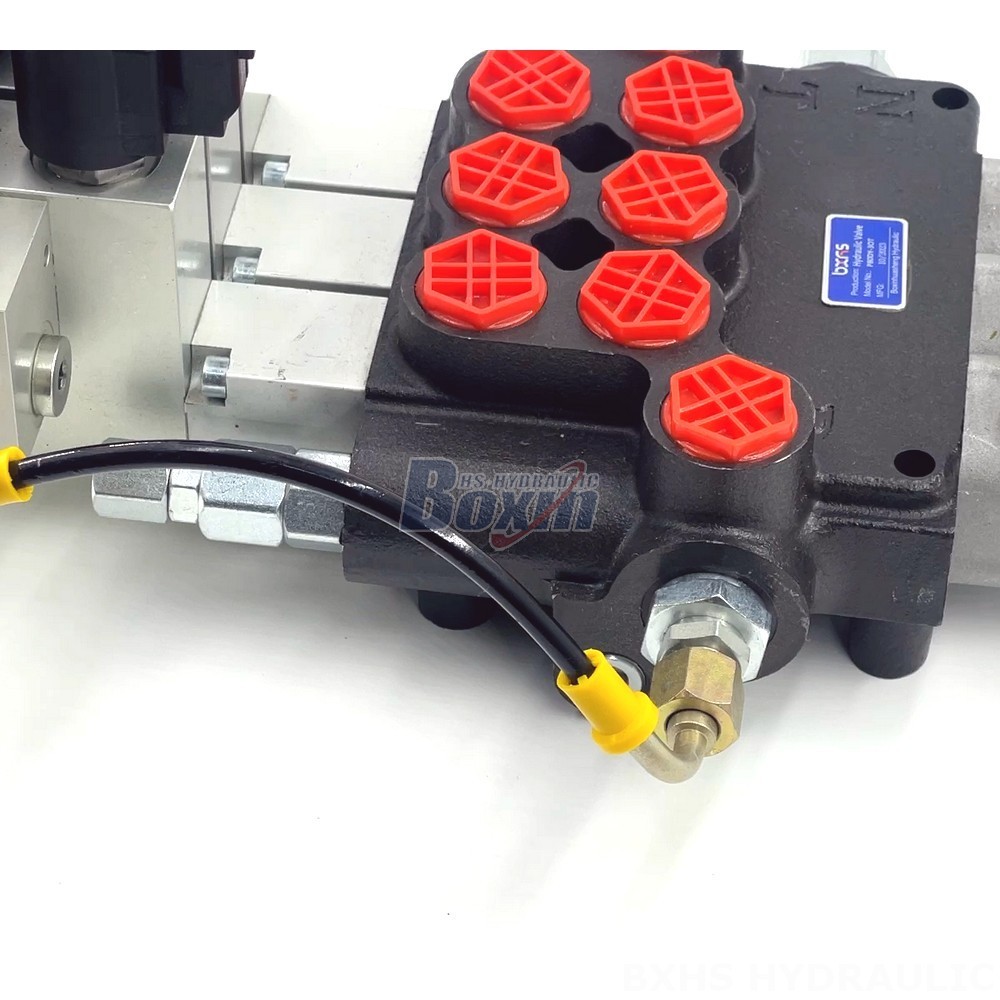

**P80 Electro-hydraulic 3 Spool Monoblock Directional Valve**
The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a versatile and reliable valve that is ideal for use in a variety of hydraulic systems. It features a robust monoblock construction that provides excellent strength and durability. The valve is also equipped with electro-hydraulic control, which allows for precise and responsive operation. With a flow rate of 80 L/min and a maximum pressure of 250 bar, the P80 valve is capable of handling even the most demanding applications.
**Key Features:**
* Monoblock construction for strength and durability
* Electro-hydraulic control for precise and responsive operation
* Flow rate of 80 L/min
* Maximum pressure of 250 bar
* Suitable for a wide range of applications
**Applications:**
* Material handling
* Construction
* Agriculture
* Industrial vehicles
