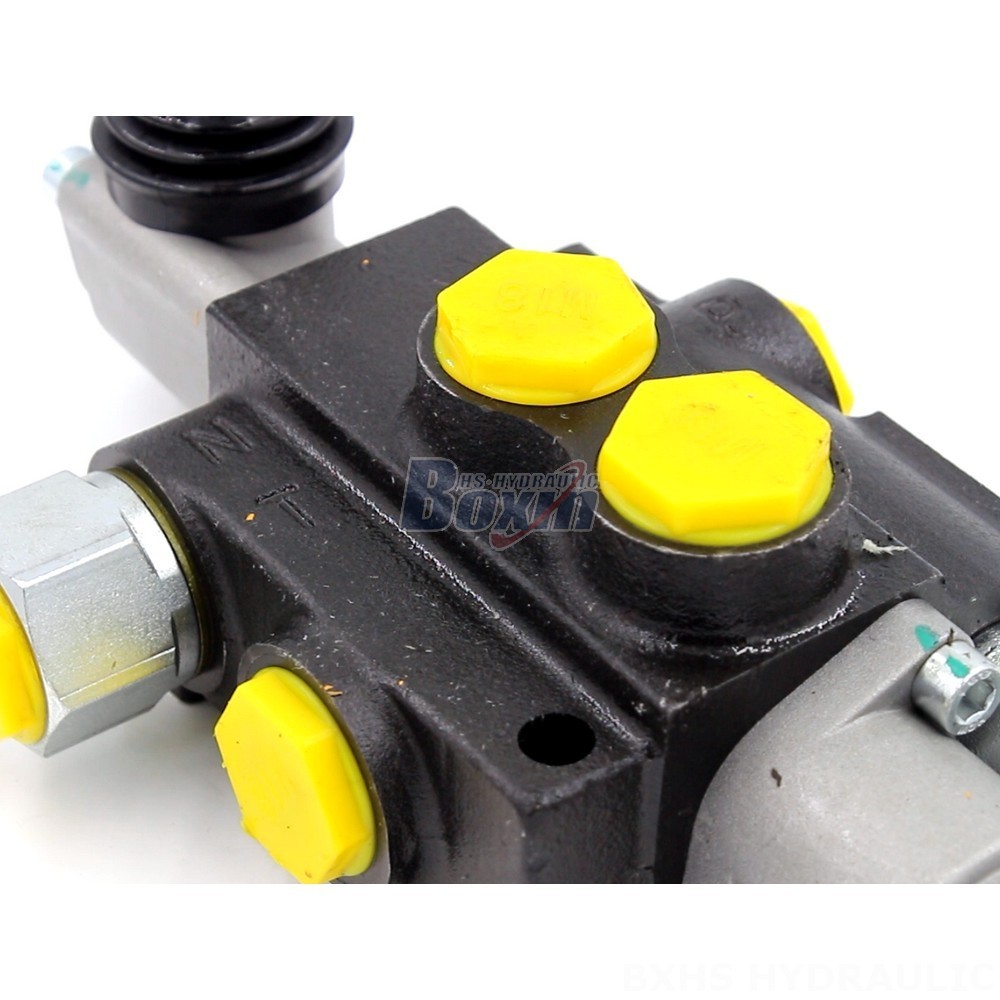

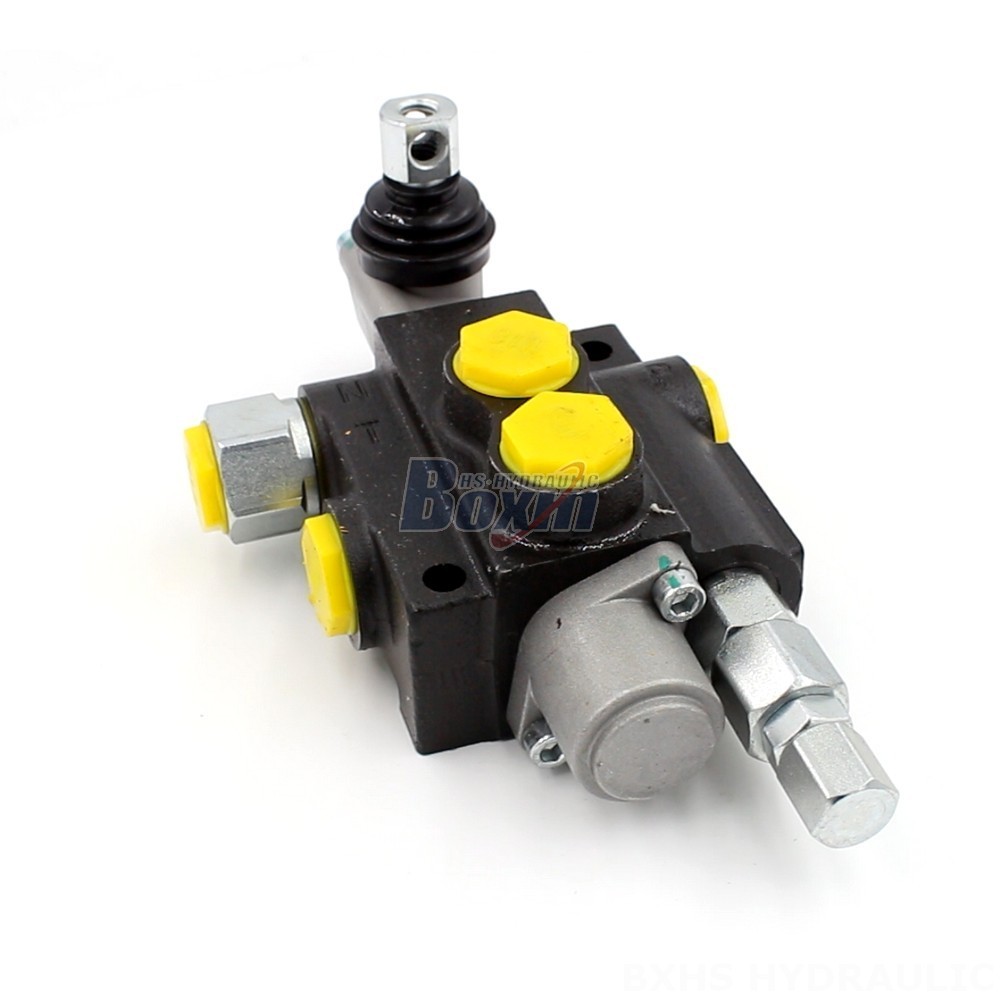

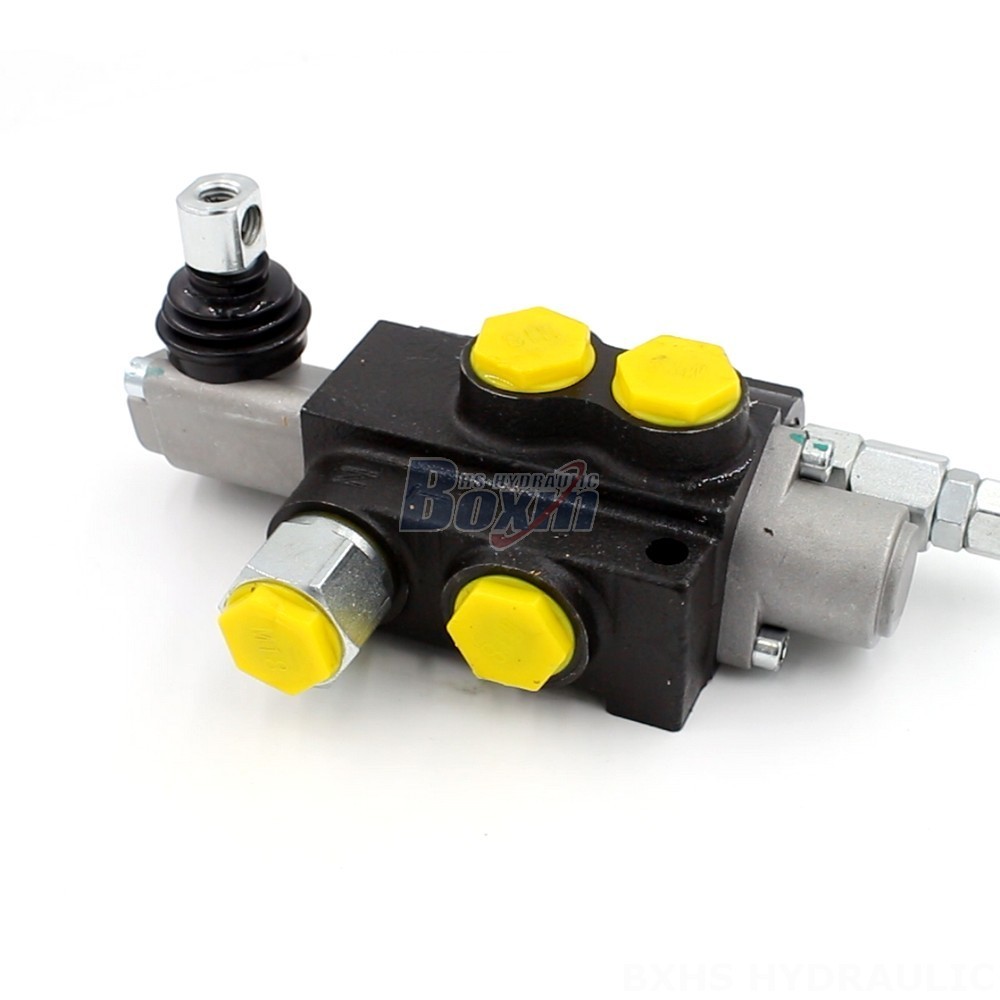

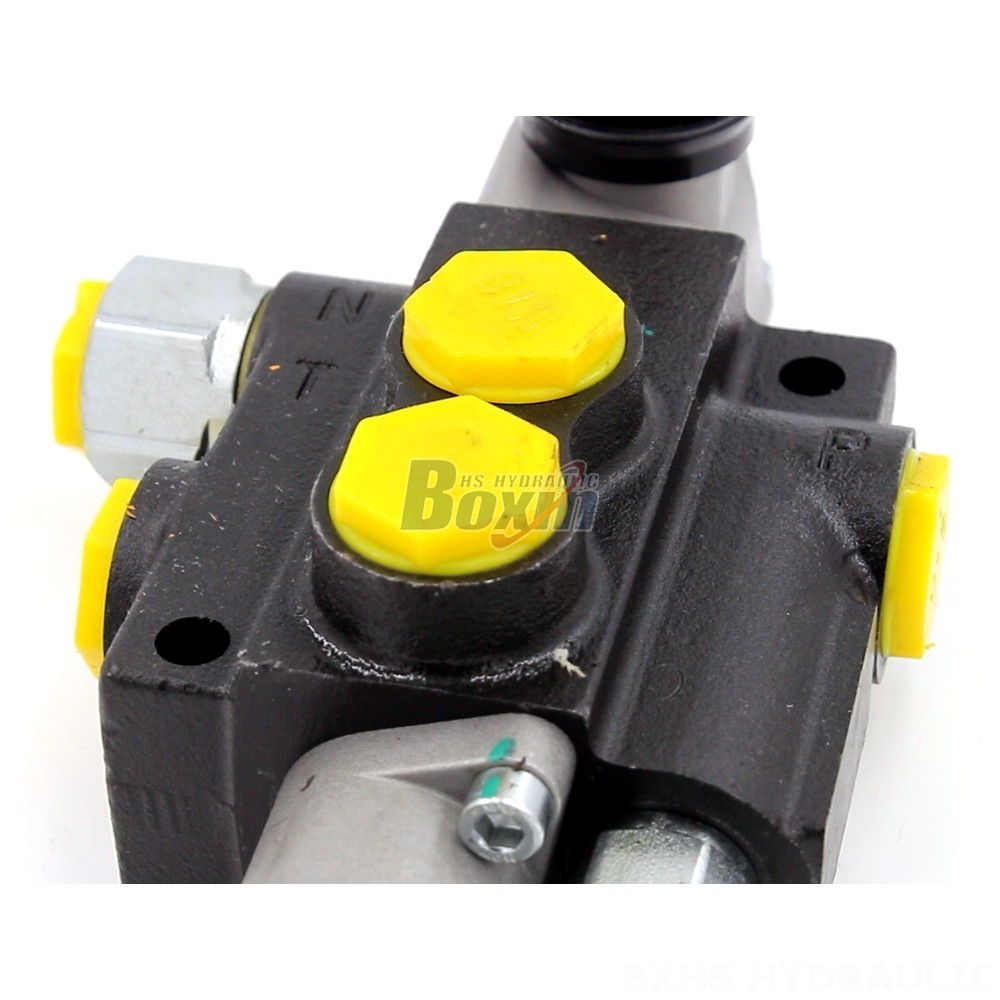

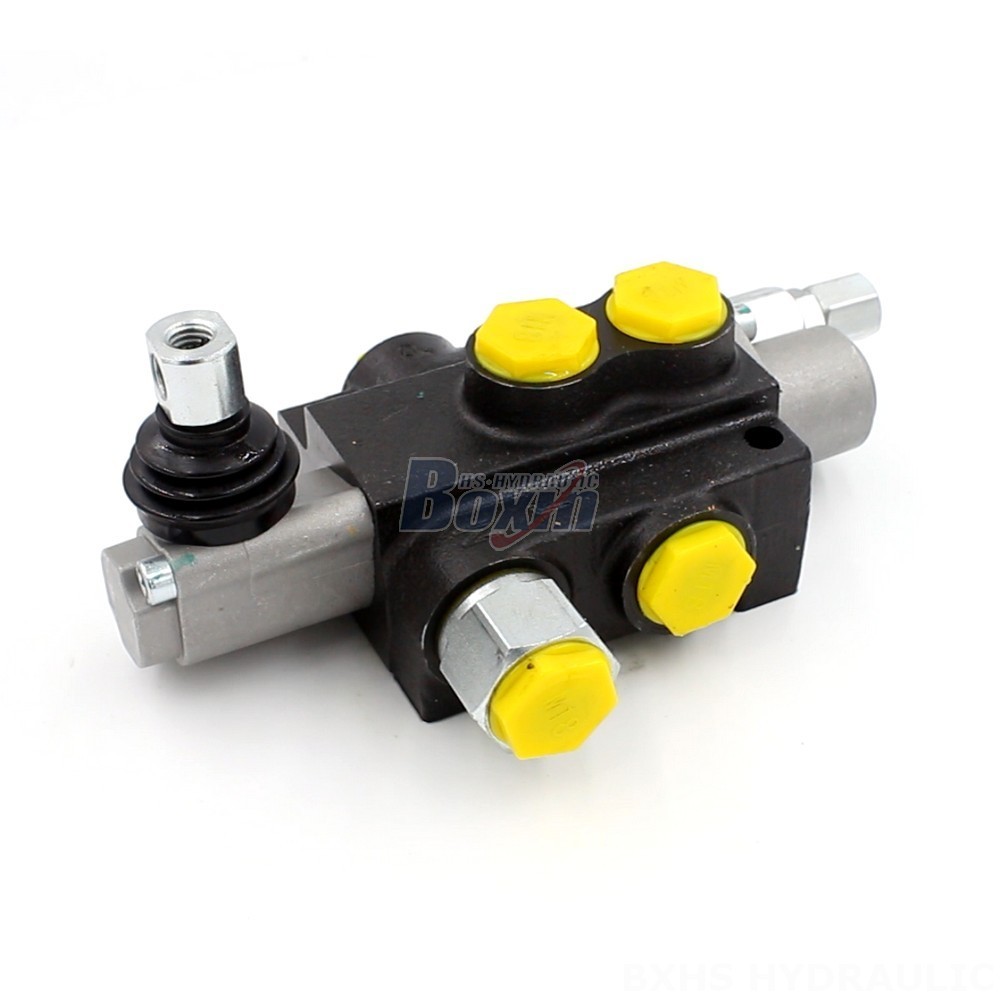

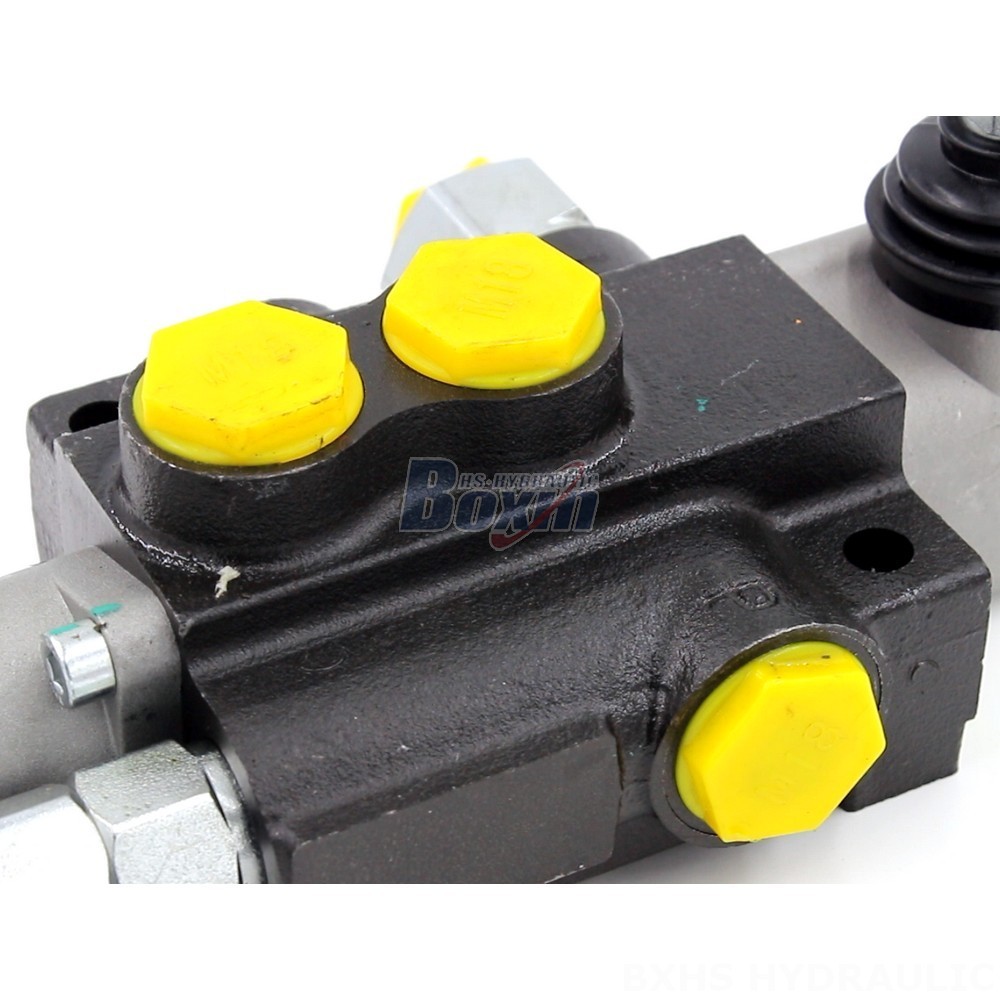

The P40J Hydraulic Directional Control Valve is a robust and reliable monoblock valve designed for a variety of applications, including material handling, construction, and agriculture. This manual control valve features a 40 L/min flow rate and a 250 bar maximum pressure, making it suitable for various hydraulic systems.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40J Hydraulic Directional Control Valve is a single-section monoblock valve with a manual control method. It features a 40 L/min flow rate and a 250 bar maximum pressure, making it ideal for applications requiring reliable and efficient hydraulic control. The valve operates within a viscosity range of 15-75 mm²/s and is designed to withstand ambient temperatures from -40°C to +80°C. This versatile valve is suitable for a wide range of applications including material handling equipment like telehandlers, forklifts, and stackers, as well as construction and earthmoving equipment like cranes, motor graders, excavators, and skid steer loaders. It's also suitable for agricultural equipment and industrial vehicles.
