Hydraulic Valve Remote Control P40J Hydraulic Directional Valve | Factory Direct & Customizable

控制方式:手控

路数:1 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G3/8接口

出油口:G3/8接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*16*11

Grossweight:3.20 kg

库存: 有货

958 次查看了此产品

Hydraulic Valve Remote Control P40J Hydraulic Directional Valve | Factory Direct & Customizable

Hydraulic Valve Remote Control P40J Hydraulic Directional Valve | Factory Direct & Customizable

Hydraulic Valve Remote Control P40J Hydraulic Directional Valve | Factory Direct & Customizable drawing image

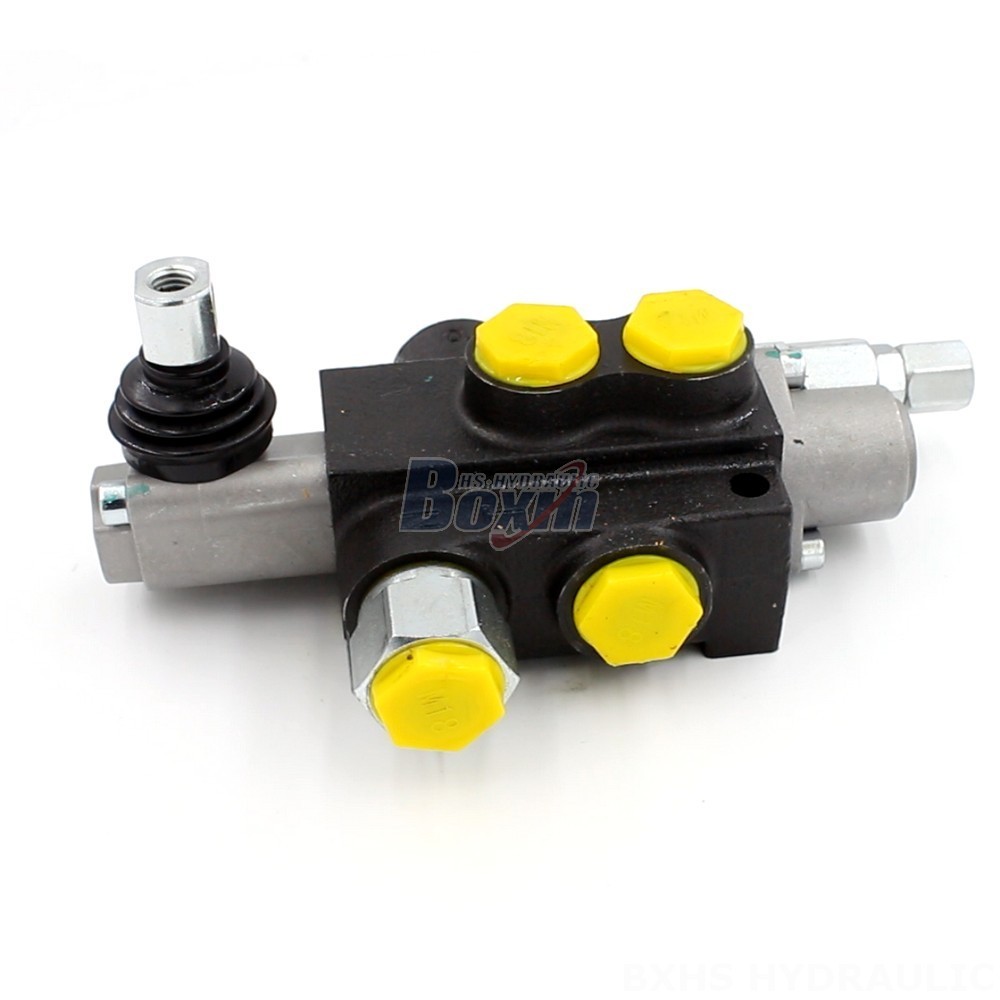

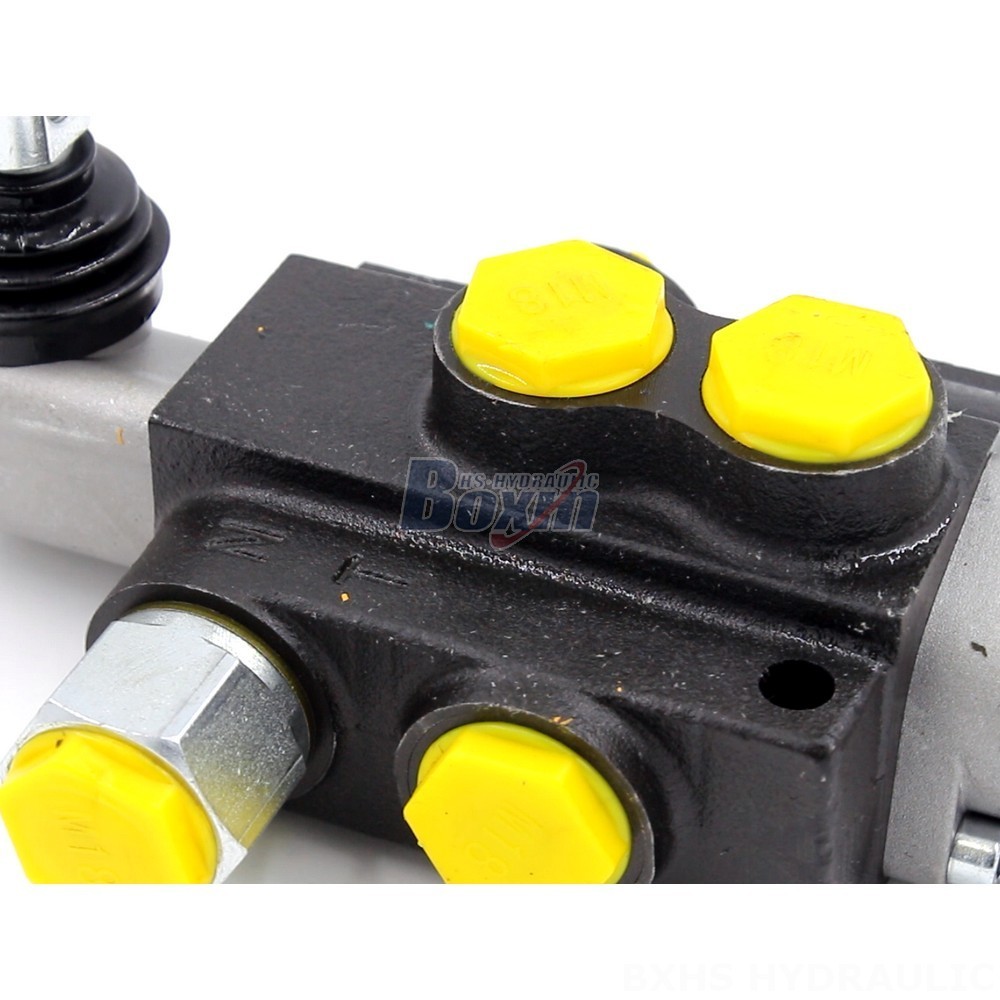

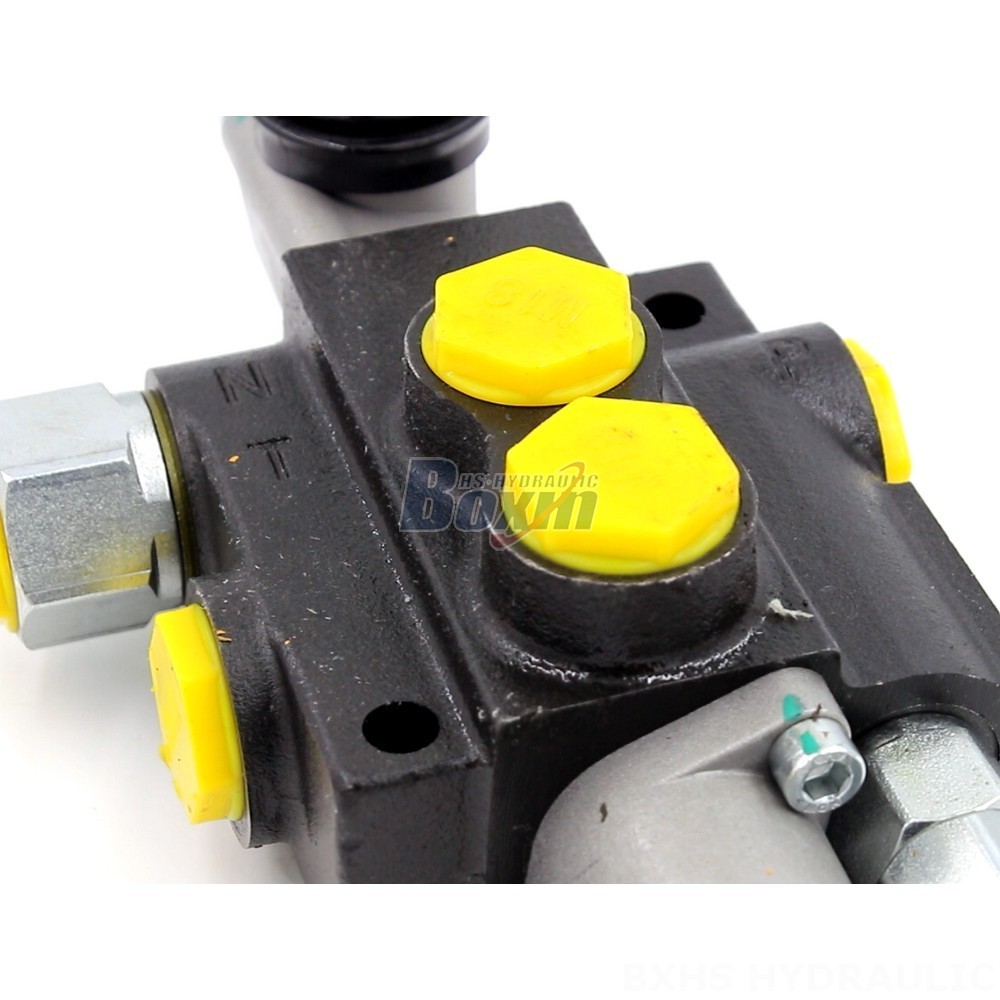

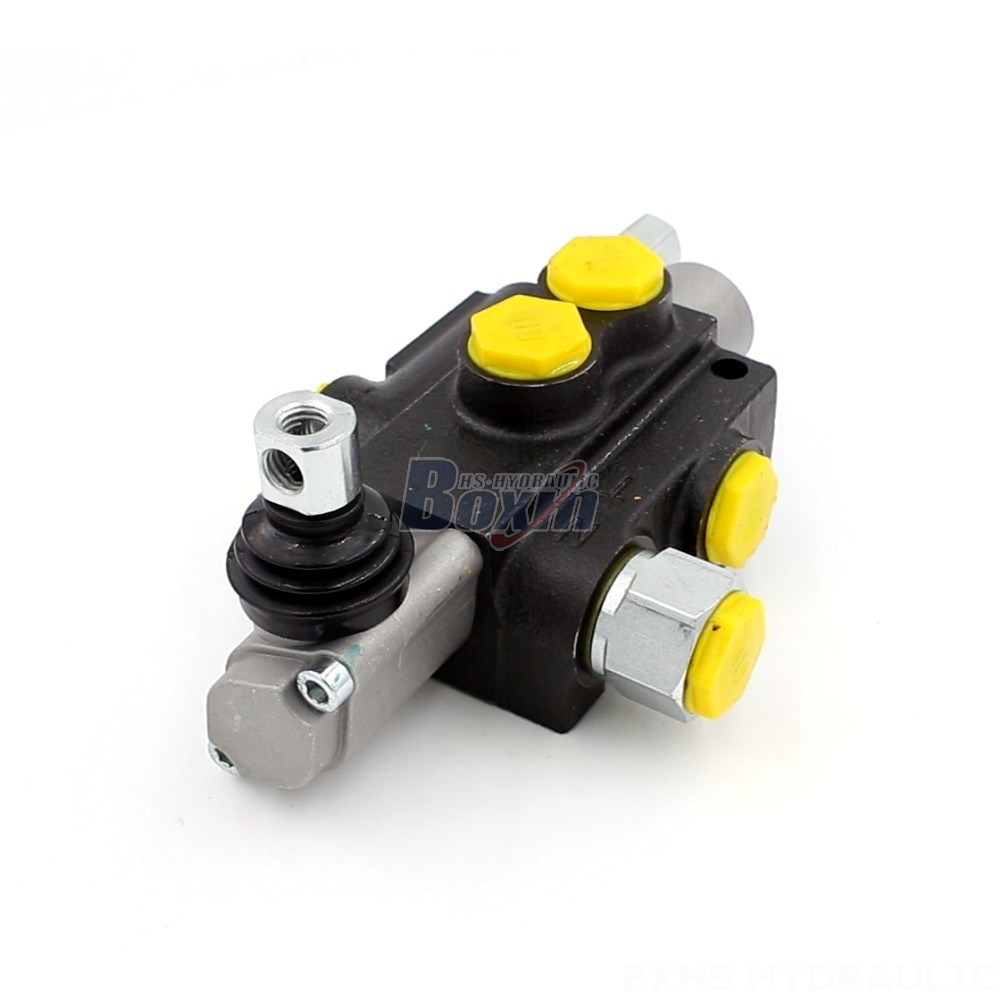

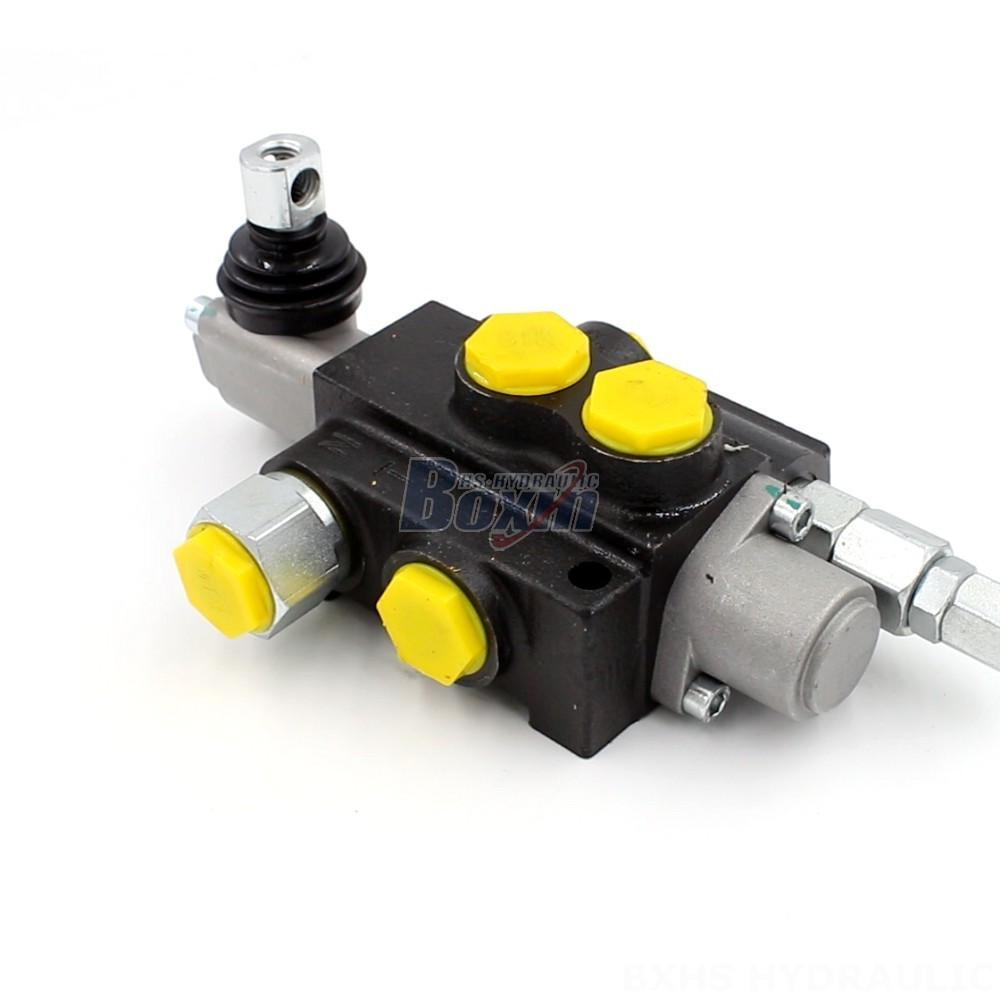

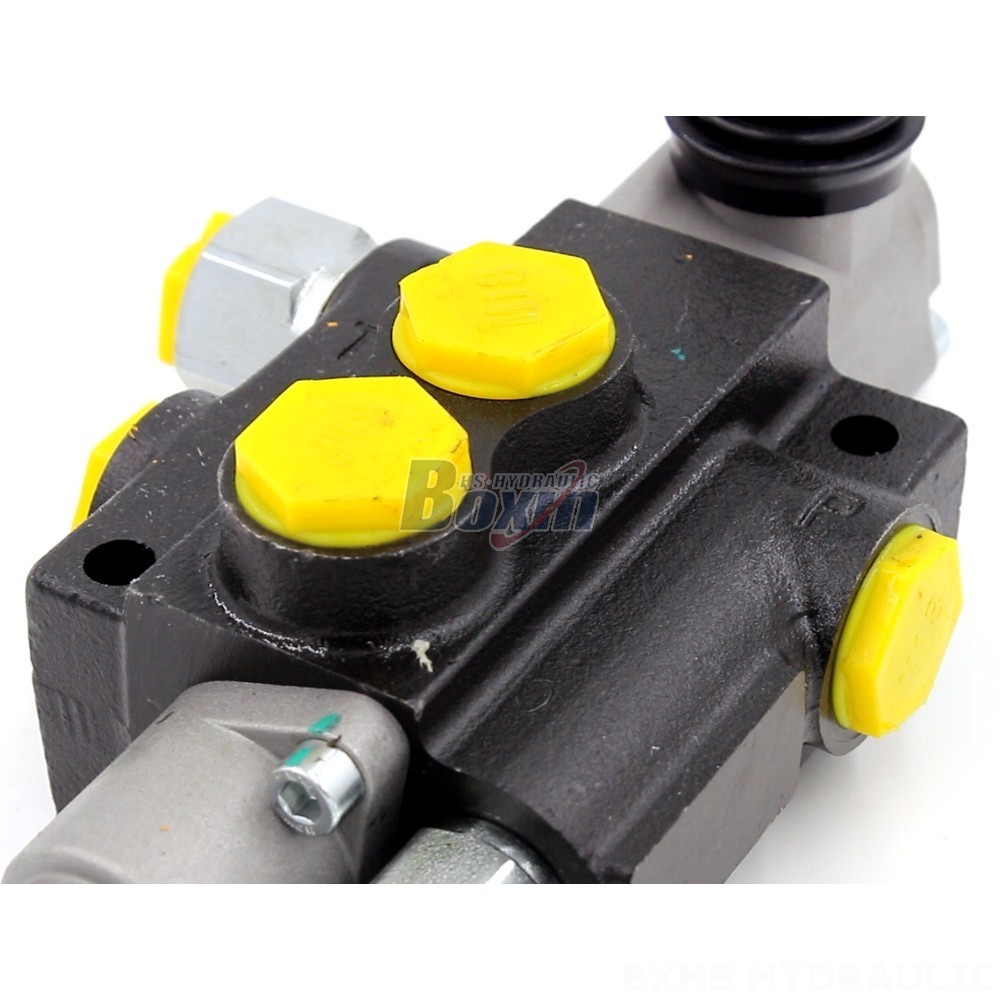

The P40J Hydraulic Directional Valve is a remote control, monoblock valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It features a compact design, high flow rate, and robust construction, making it an ideal choice for various mobile equipment.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40J Hydraulic Directional Valve is a high-performance, remote control valve offering exceptional reliability and durability. This monoblock valve is specifically engineered for demanding applications in construction, material handling, agriculture, and industrial vehicles. Featuring a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi), the P40J valve provides ample power for a wide range of hydraulic systems. Its compact design and robust construction ensure long-term performance in challenging environments. The P40J valve is compatible with various mobile equipment including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. It's a versatile solution for various hydraulic system configurations and applications.
