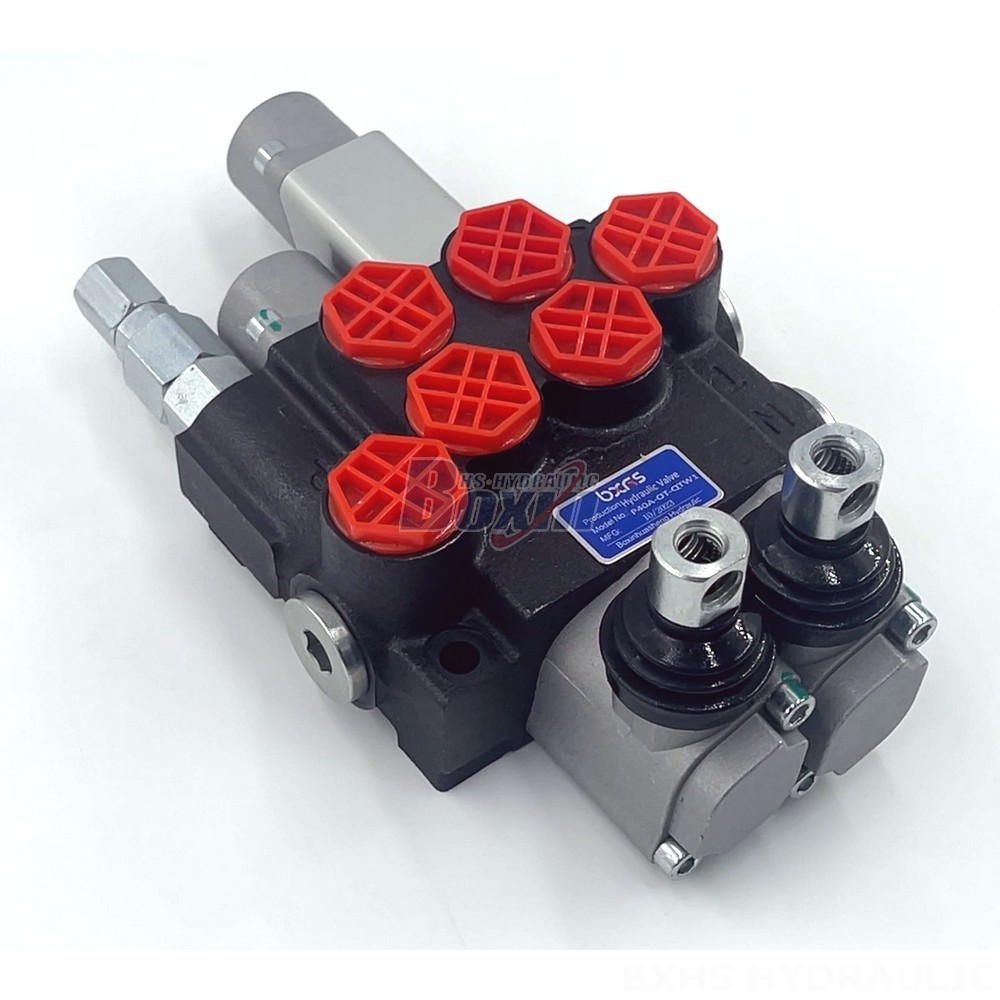

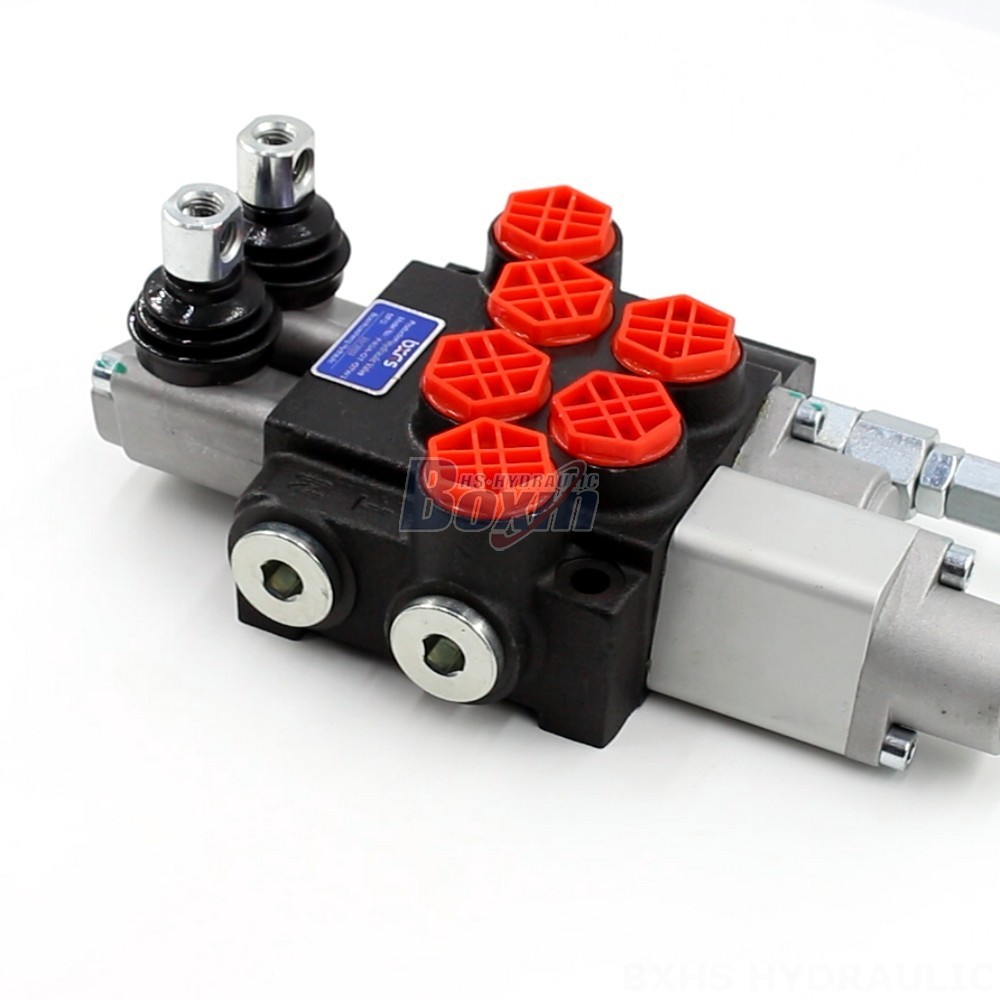

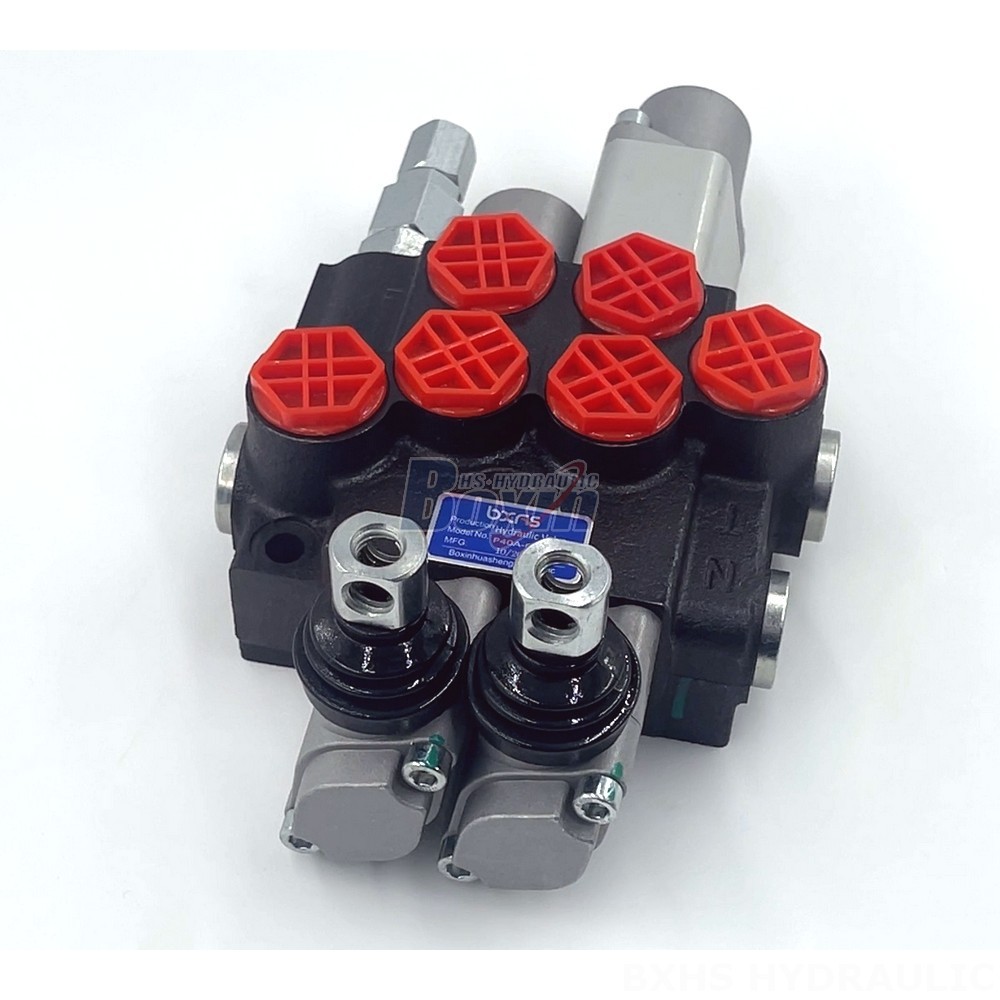

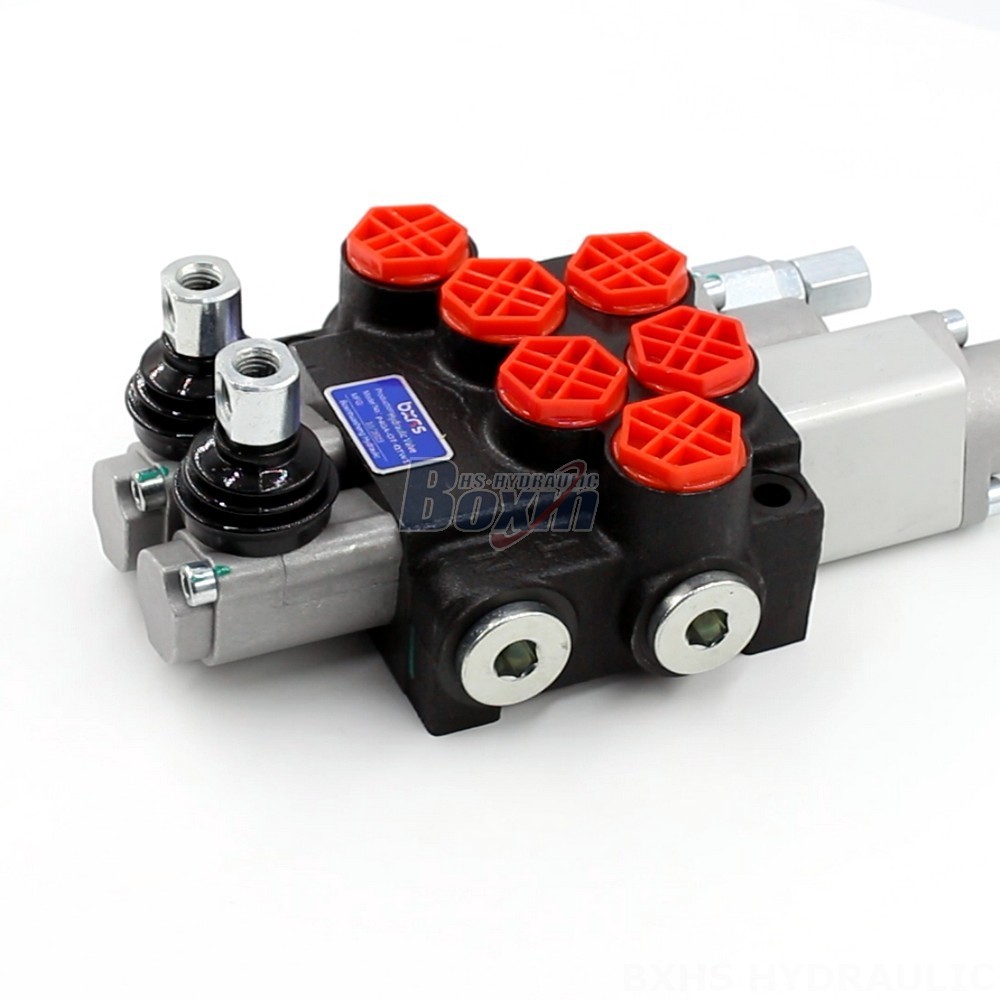

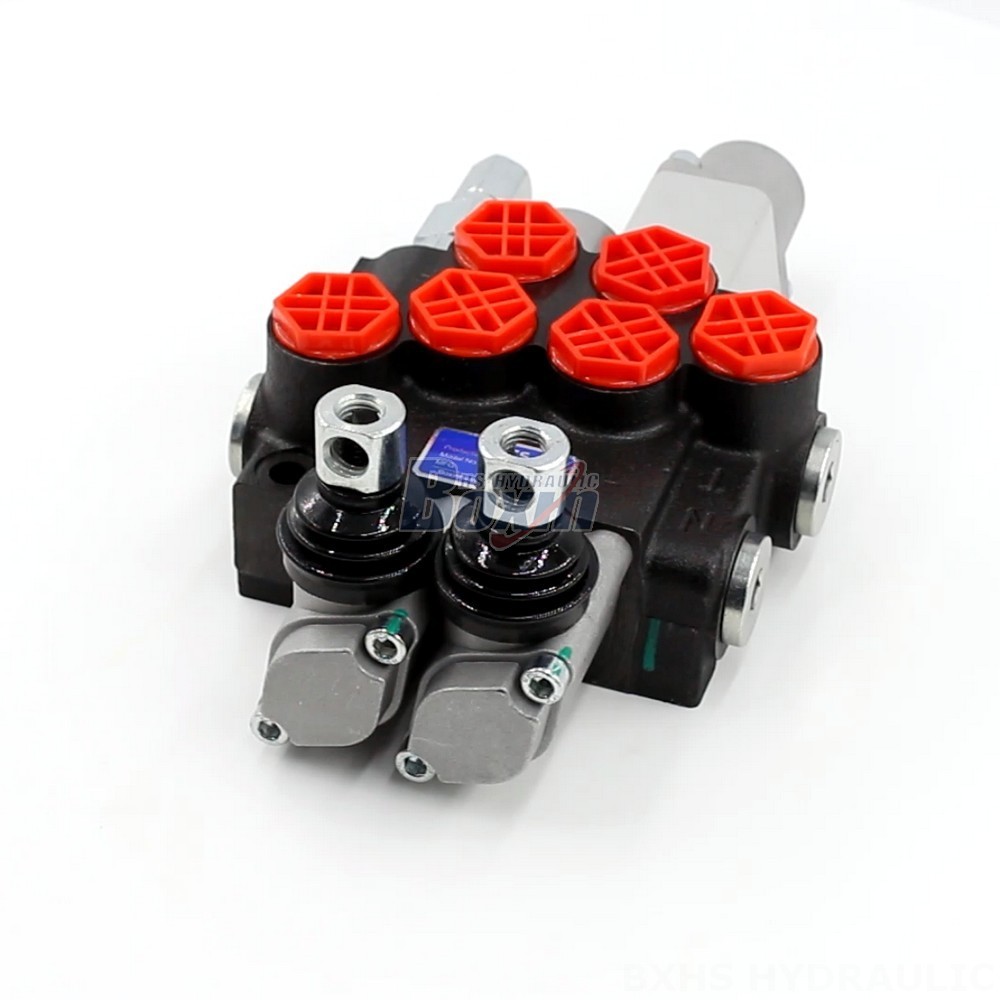

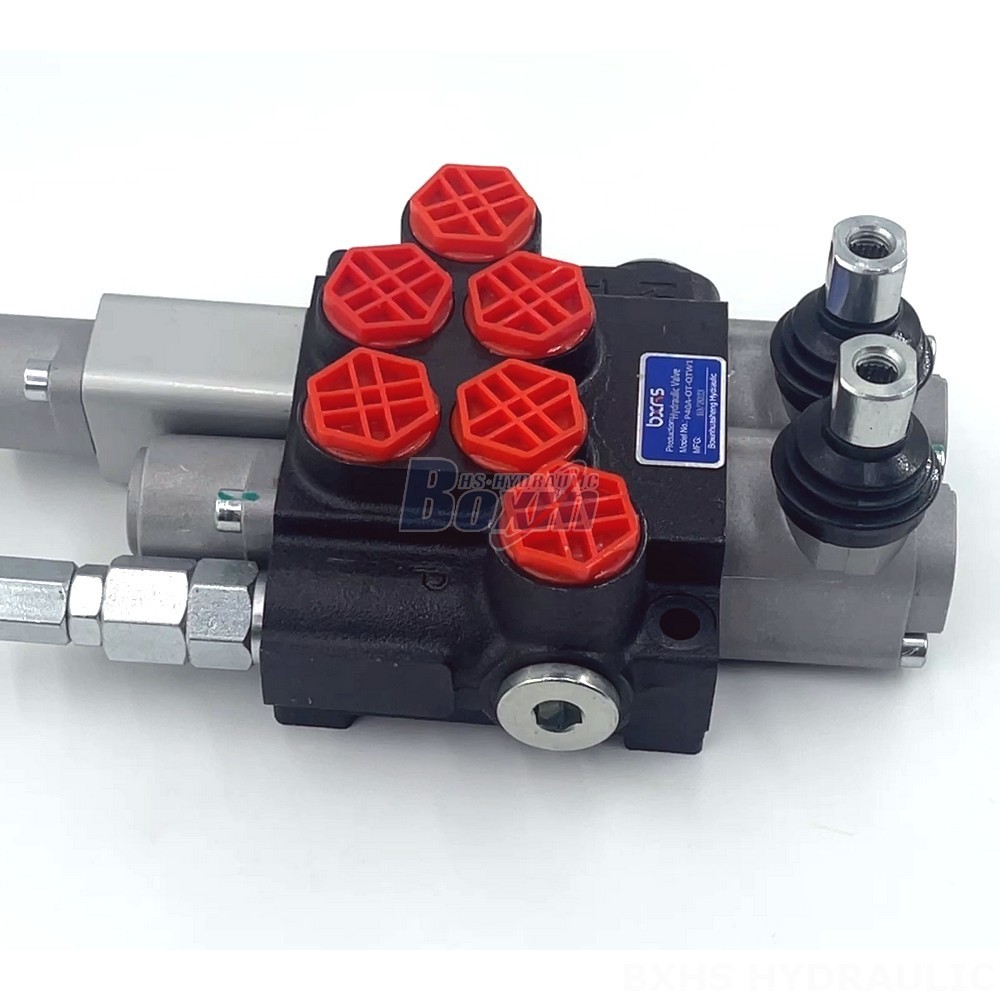

The P40A Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various applications in industries such as material handling, construction, agriculture, and industrial vehicles. With its manual control and compact monoblock design, this valve offers precise flow control and reliable operation in demanding conditions.
| P40A系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features:**
- Manual Control for precise flow management
- 2 Section design allows independent control of two hydraulic circuits
- Monoblock construction for compact size and reduced leakage
- Rated Flow of 40 L/min (10.5 US gpm) for efficient flow handling
- Max Pressure of 250 bar (3600 psi) for high-pressure applications
- Operating Viscosity Range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
- Ambient Temperature Range of -40°C to +80°C (-40°F to +176°F) for operation in extreme temperatures
**Applications:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Mini Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
