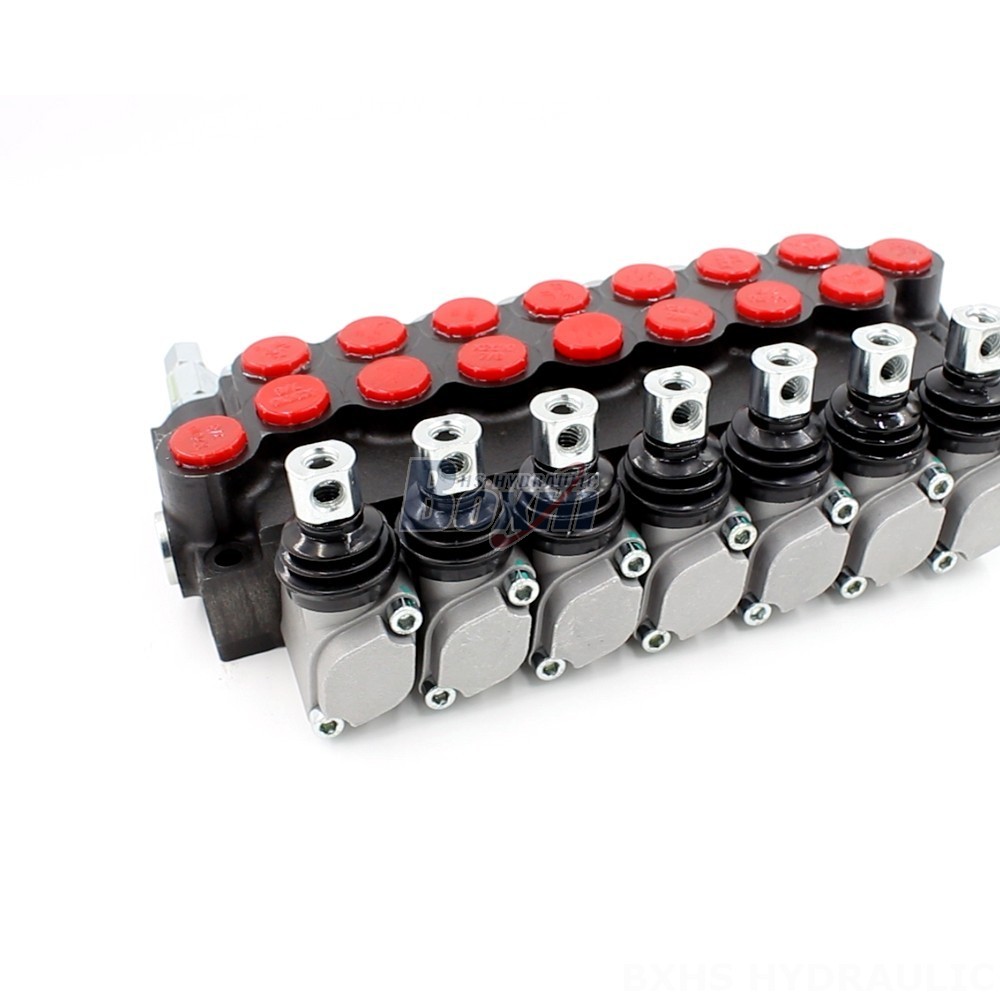

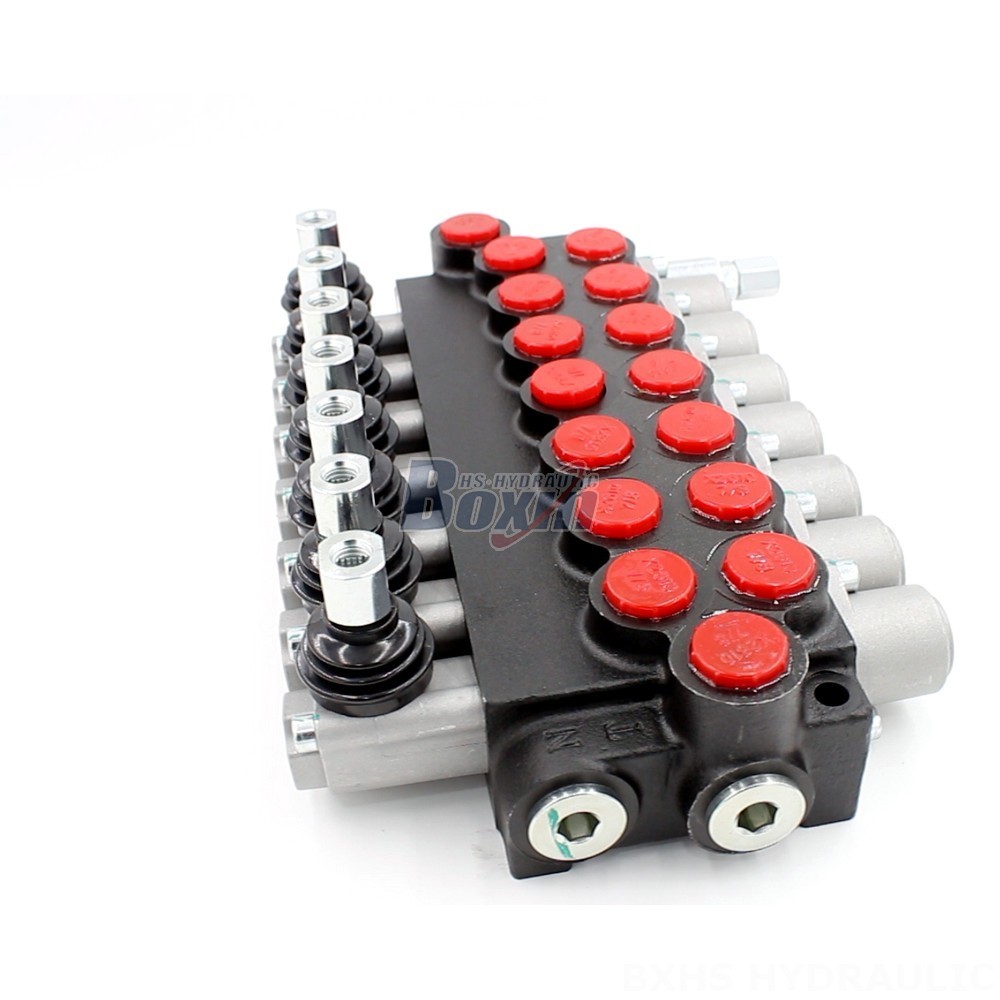

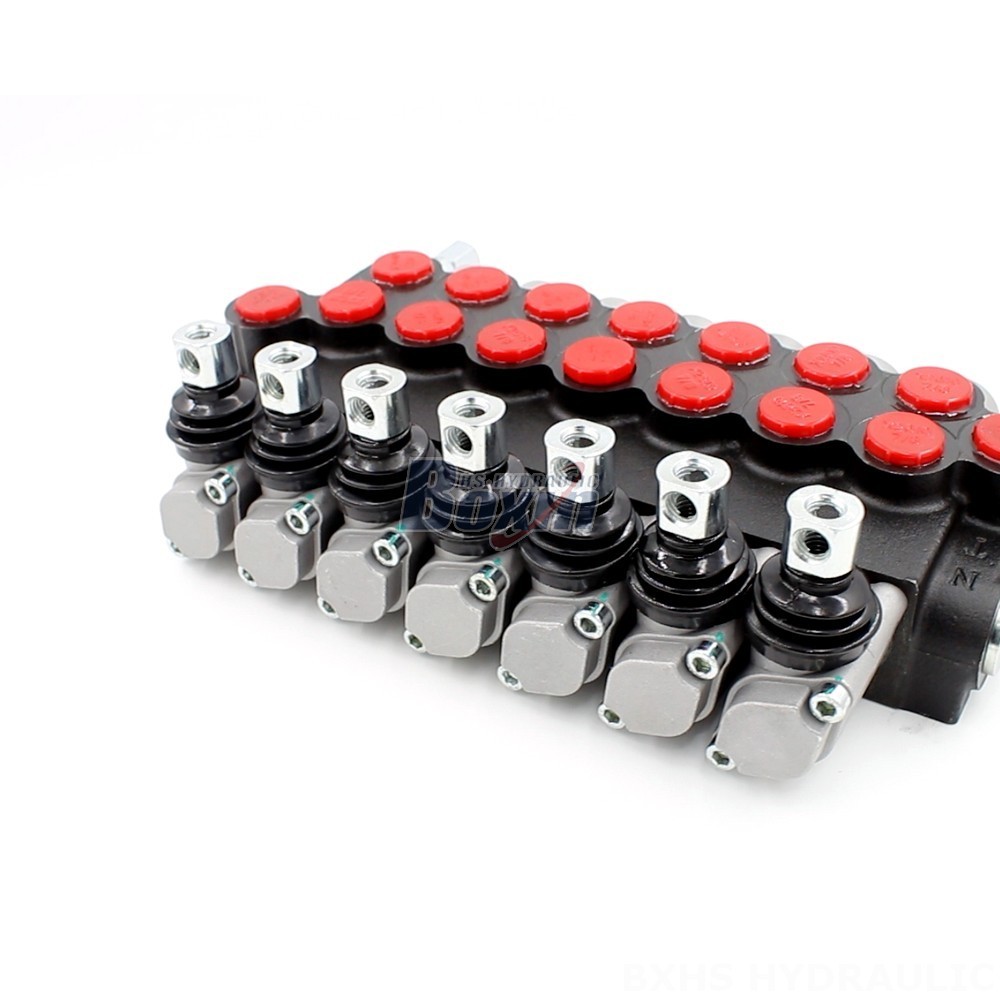

The P40-U78 is a heavy-duty, manual electric hydraulic control valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This 7-section monoblock valve offers high flow rates (40 L/min) and reliable performance under pressure up to 250 bar. It's compatible with a wide range of equipment, including forklifts, telehandlers, mini excavators, and more.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This P40-U78 electric hydraulic control valve is a 7-section monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi). It features a manual control method, making it easy to operate. The valve has a 7-spool design and is suitable for various applications including material handling, construction, agriculture, and industrial vehicles. The P40-U78 is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
