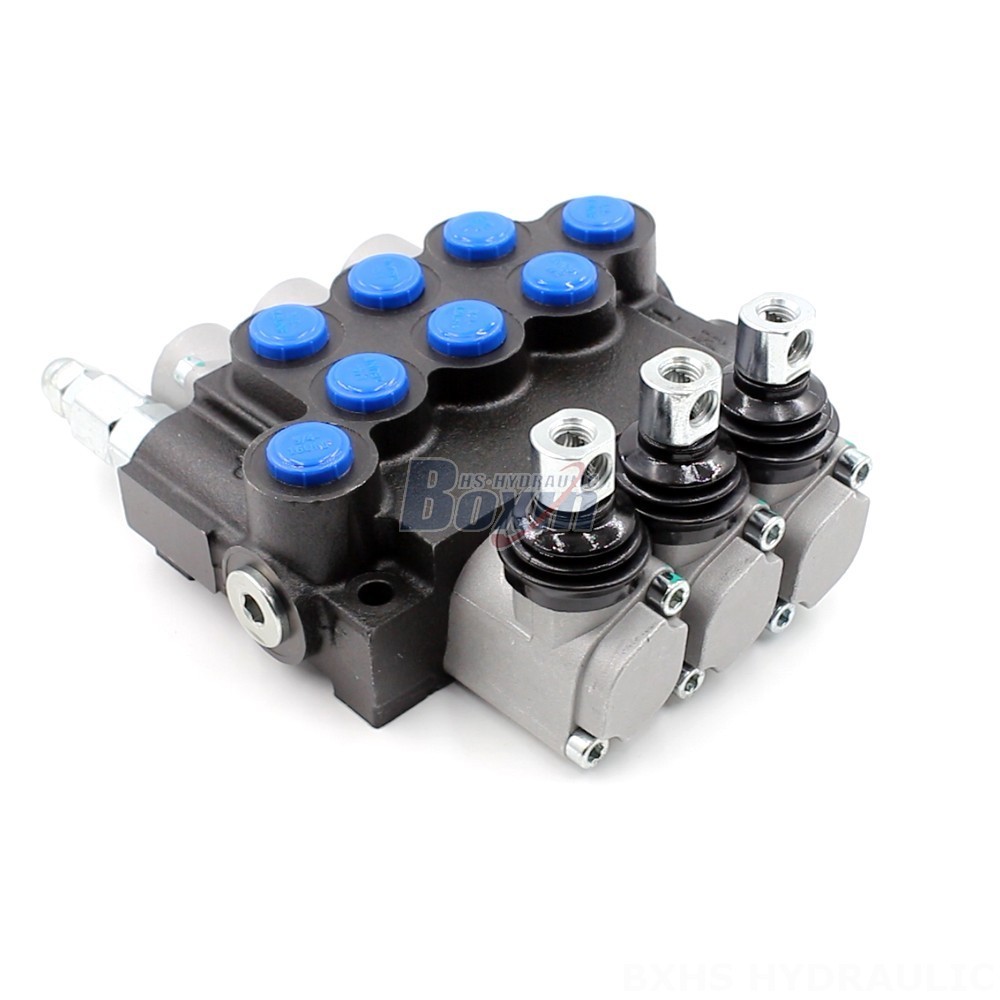

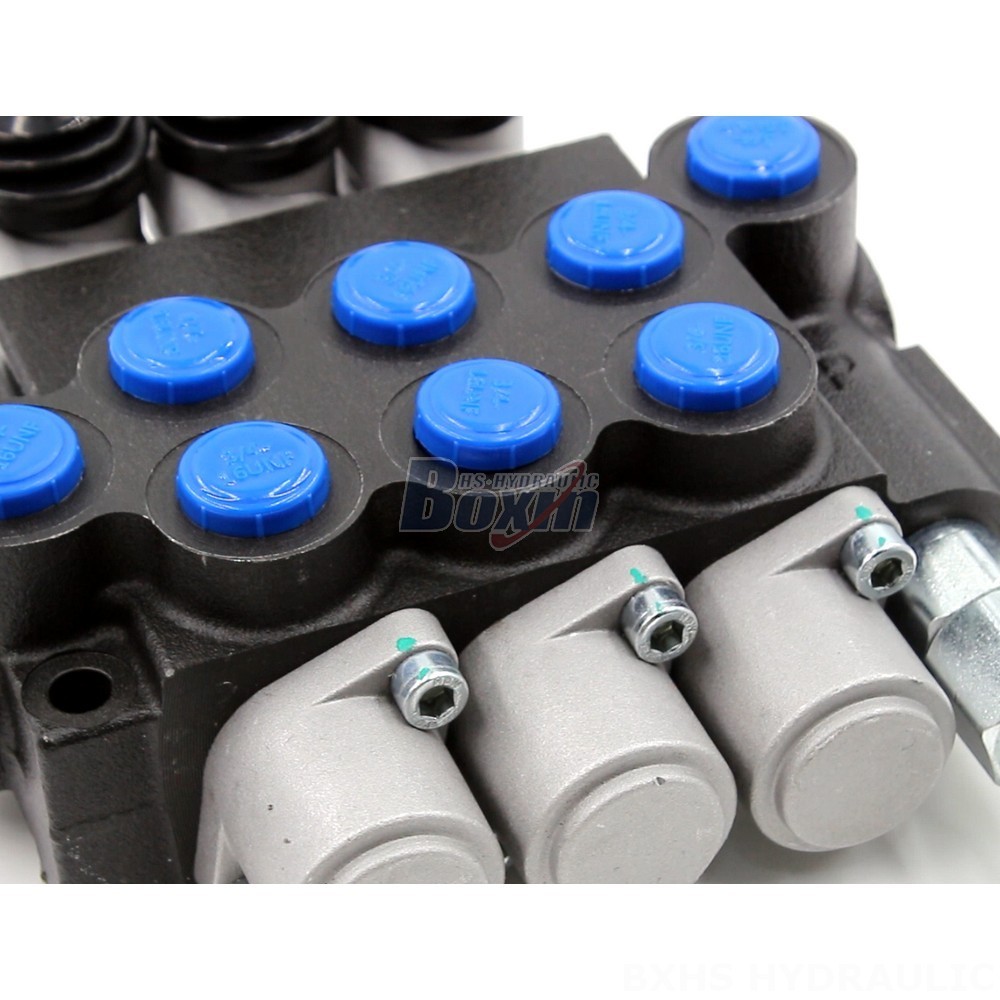

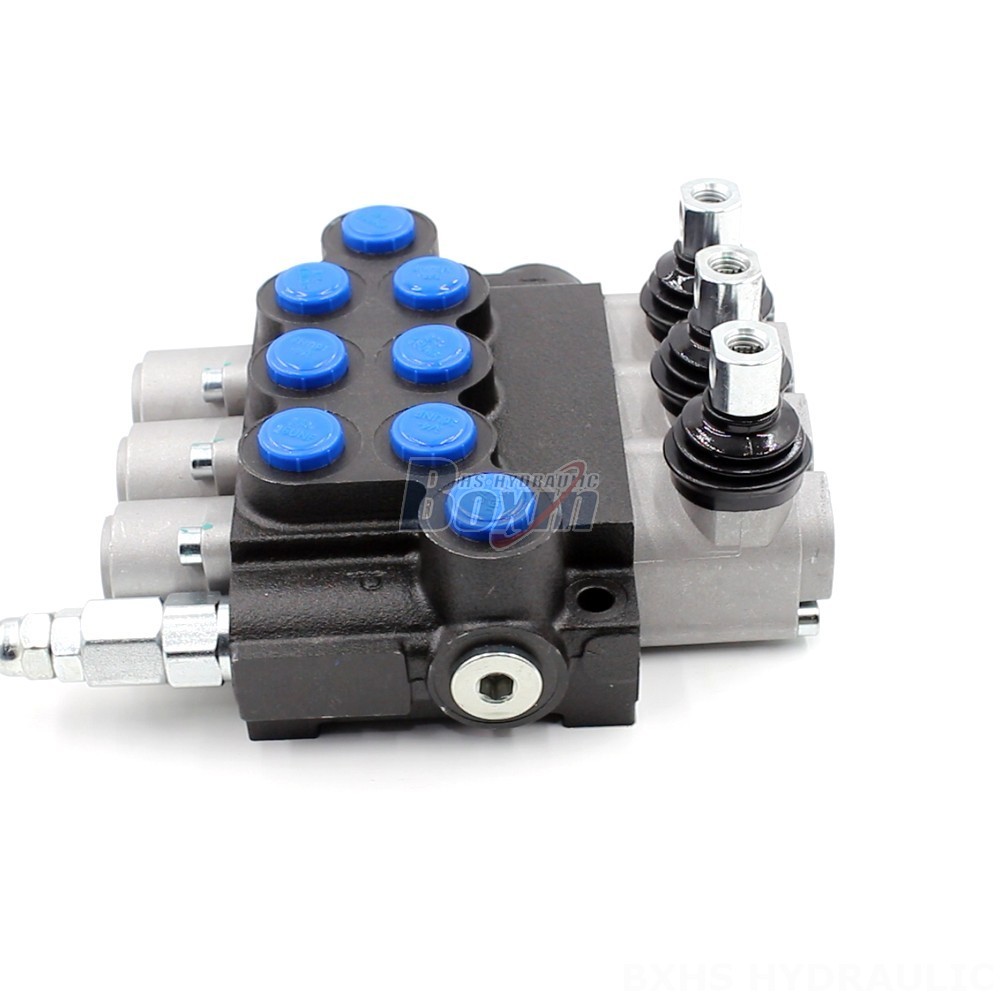

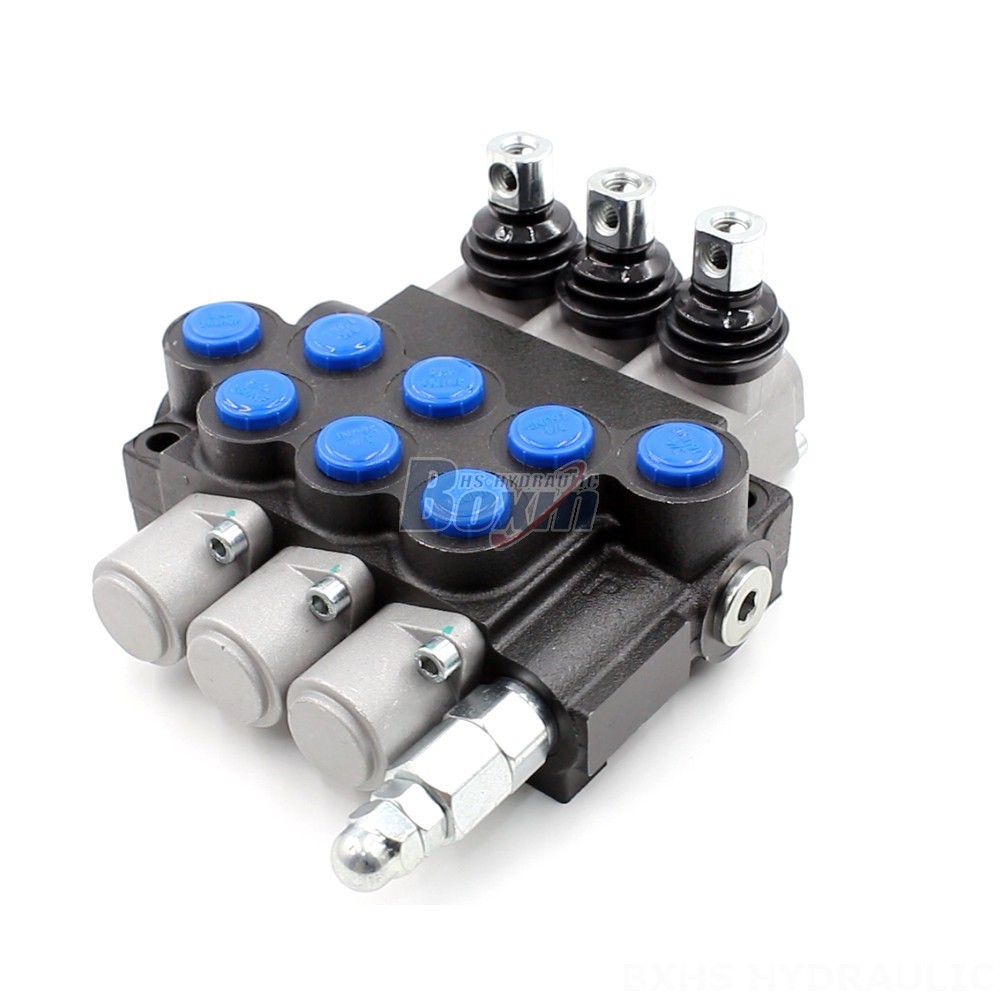

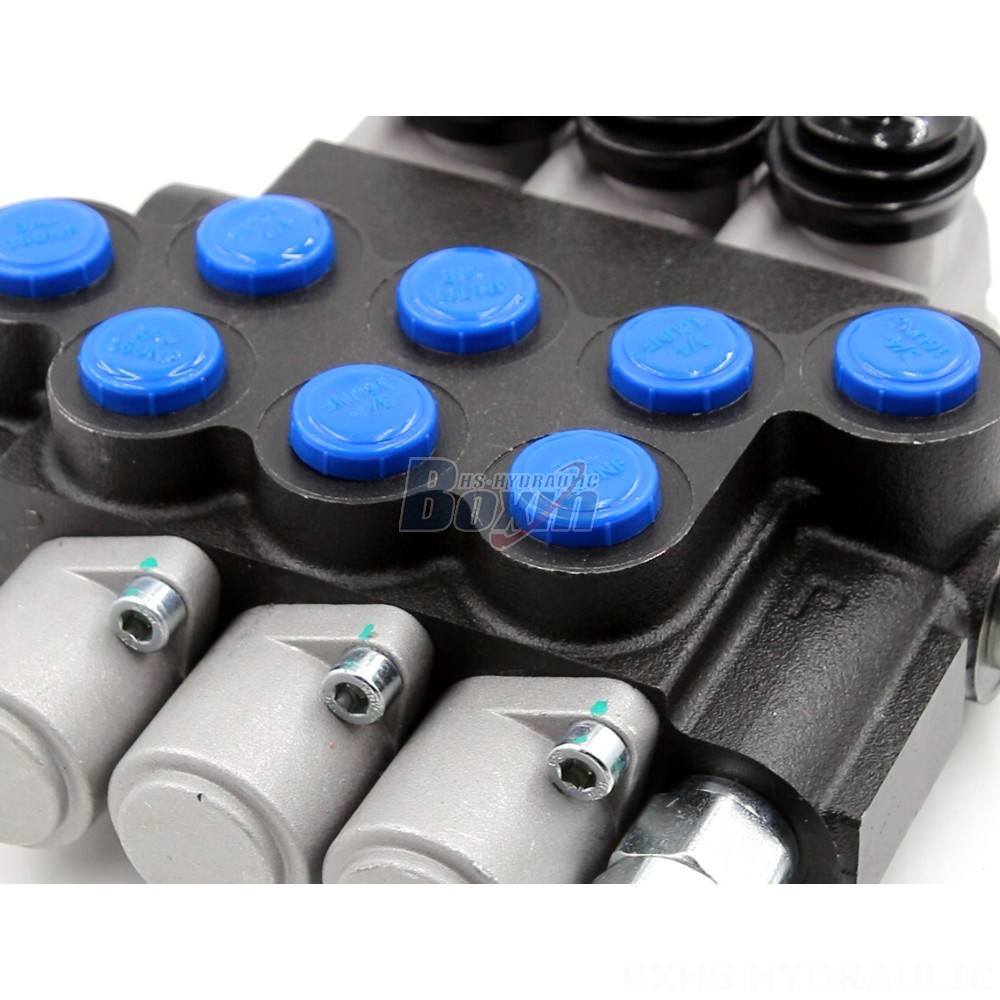

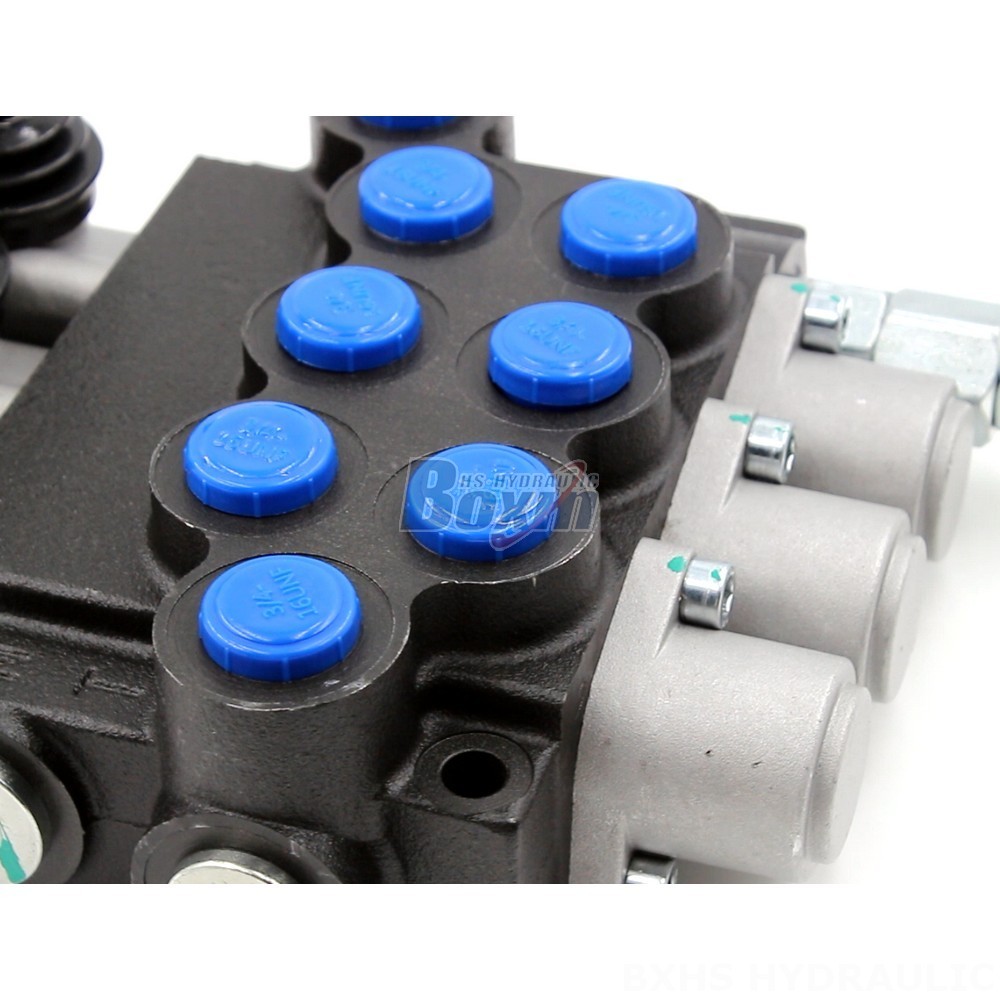

P40-U78 Directional Control Valves: Partner with Us for OEM/ODM Manufacturing

控制方式:手控

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:SAE 10接头

出油口:SAE 10接头

接口尺寸:SAE 10接头

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列单块式方向阀

Packagingsize:24*21*13

Grossweight:6.60 kg

库存: 有货

描述

P40-U78 Directional Control Valves: Partner with Us for OEM/ODM Manufacturing

P40-U78 Directional Control Valves: Partner with Us for OEM/ODM Manufacturing drawing image

The P40-U78 Directional Control Valve is a high-performance hydraulic component designed for OEM and ODM manufacturing. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), it is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.

P40系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	40 L/min (10.5 US gpm)
最大压力	250 bar (3600 psi)
进油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸	G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

**OEM/ODM Manufacturing Capabilities**
We offer comprehensive OEM and ODM manufacturing services, enabling you to customize our valves based on your specific requirements. Our experienced engineers can assist you with design optimization, prototyping, and mass production to meet your unique needs.

**Key Features:**
- 3 Section configuration for versatile control
- Monoblock valve design for compact and durable performance
- Manual control method for precise operation
- Wide operating viscosity range (15 - 75 mm²/s) for compatibility with different hydraulic fluids
- Extended ambient temperature range (-40°C to +80°C) for reliable operation in challenging conditions

**Applications:**
The P40-U78 Directional Control Valve is widely used in a range of applications, including:
- Telehandlers and forklifts
- All-terrain cranes and stackers
- Aerial platforms and motor graders
- Excavators and skid steer loaders
- Wheel loaders and backhoe loaders
- Dumpers and concrete boom pumps
- Paving rollers and rotary drilling equipment
- Crushers and stone cutters
