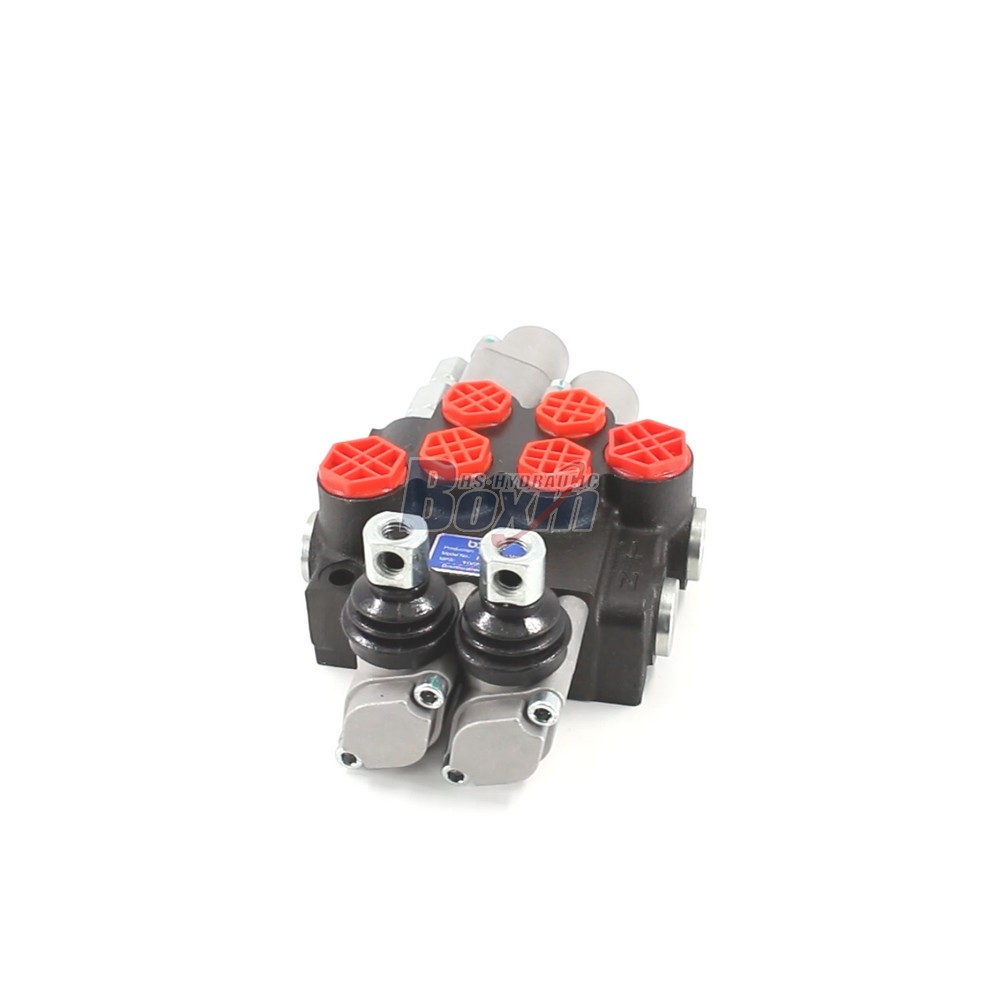

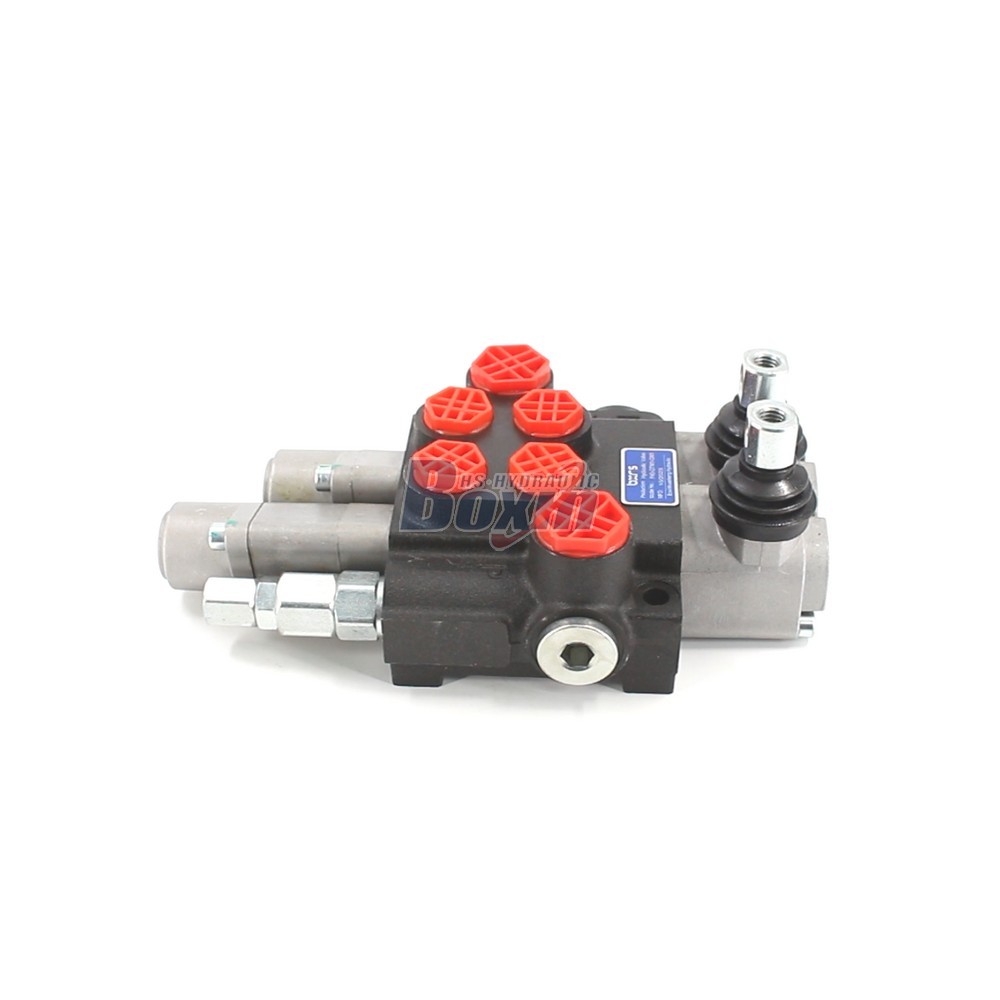

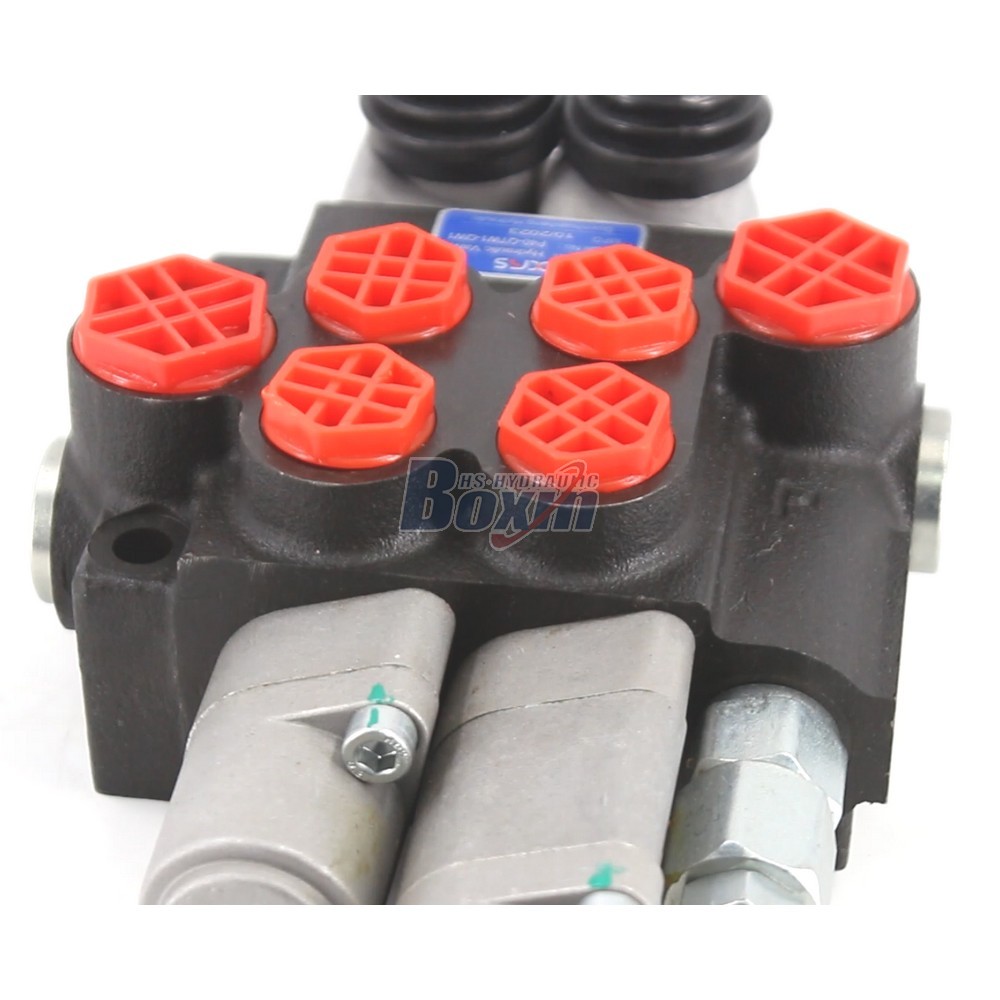

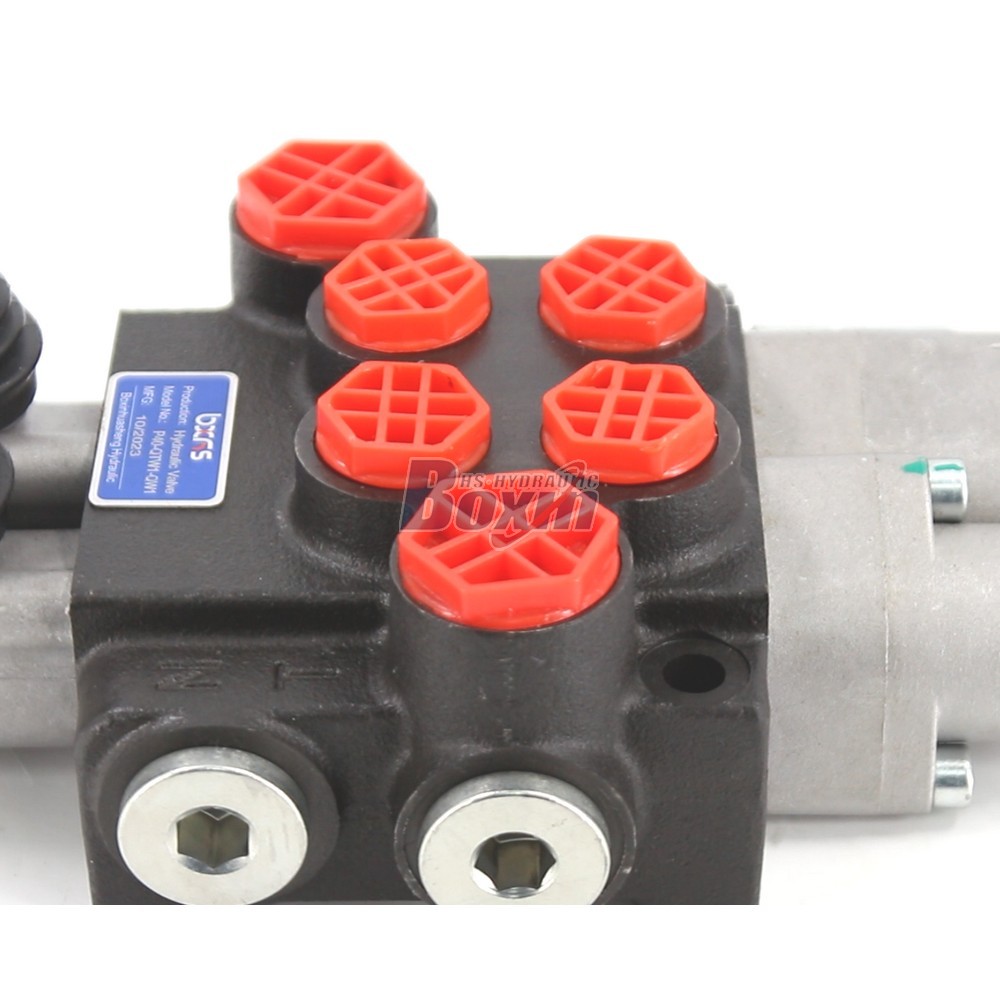

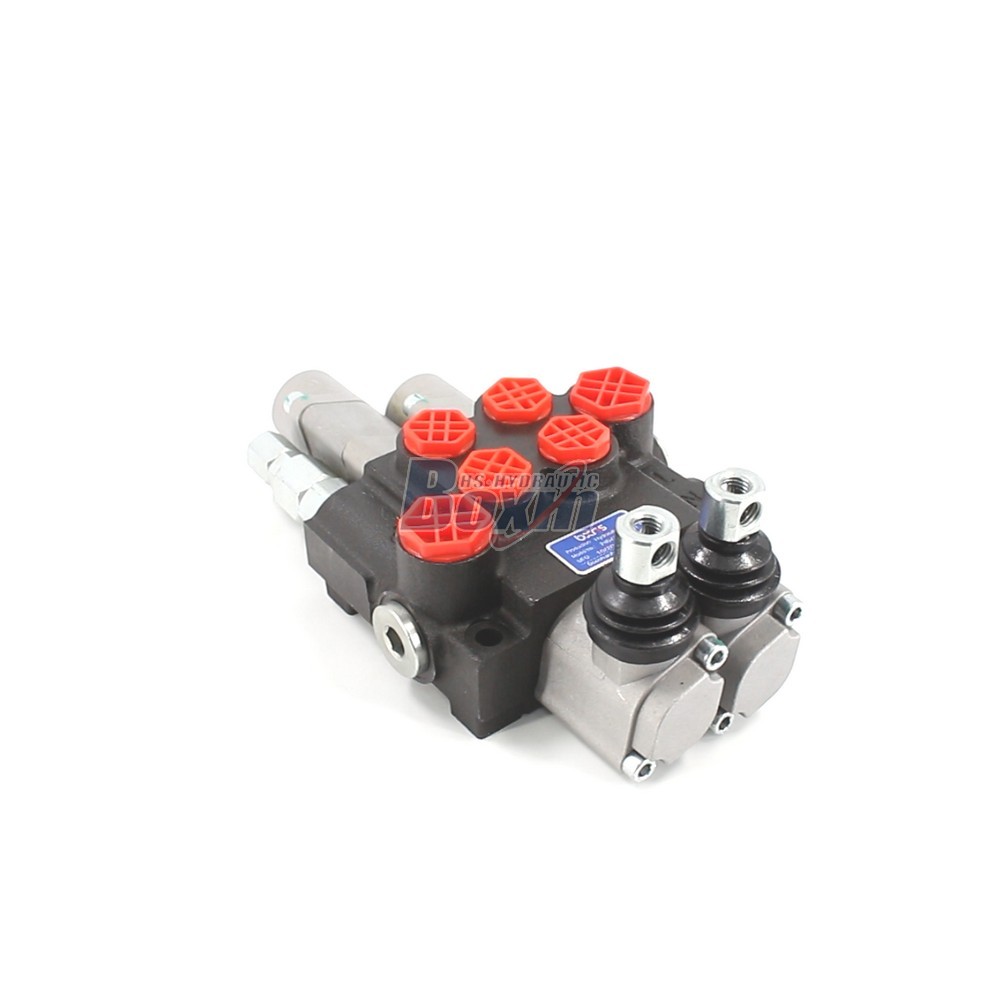

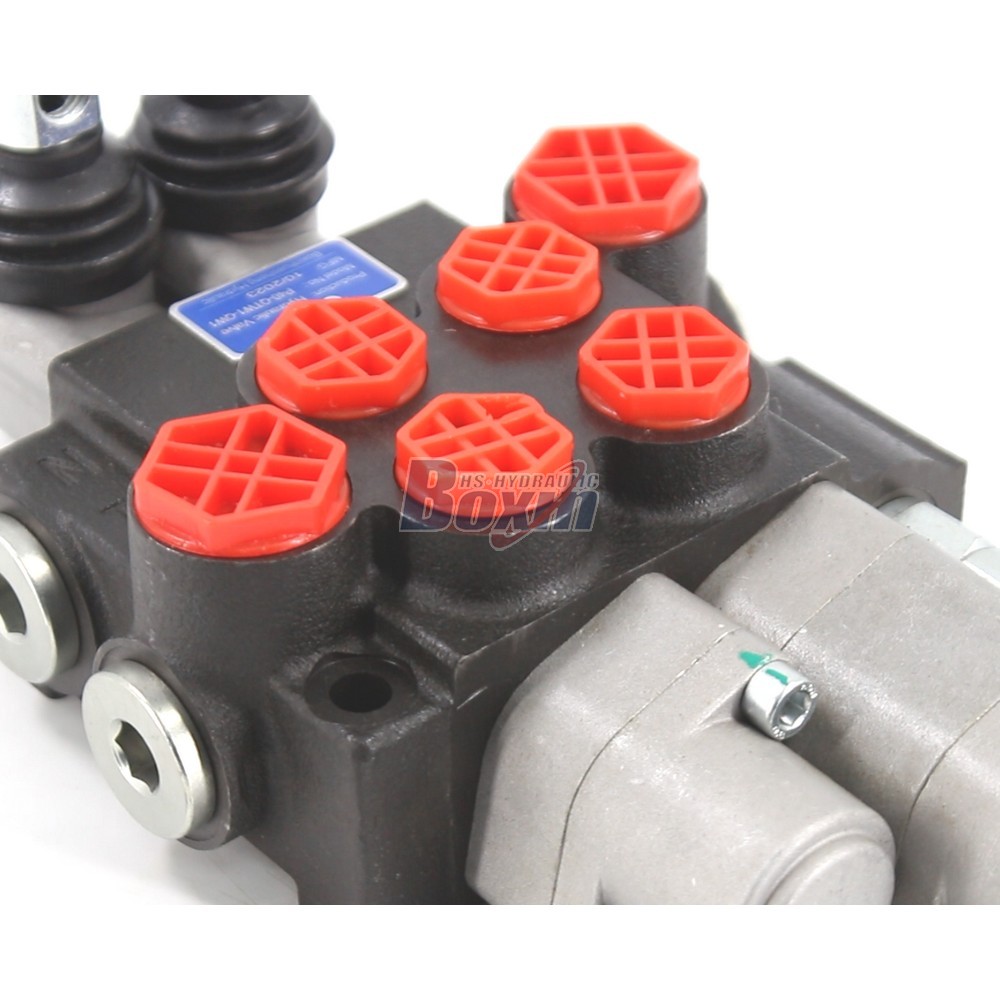

P40-QTW1-QTW Manual 2 Spool Monoblock Directional Valve

控制方式:手控

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:28*18*12

Grossweight:6.50 kg

库存: 有货

16 次查看了此产品

P40-QTW1-QTW Manual 2 Spool Monoblock Directional Valve

P40-QTW1-QTW Manual 2 Spool Monoblock Directional Valve

P40-QTW1-QTW Manual 2 Spool Monoblock Directional Valve drawing image

The P40-QTW1-QTW is a robust 2-spool monoblock directional control valve designed for precise fluid power management in mobile and industrial machinery, offering a rated flow of 40 L/min and high-pressure operation up to 250 bar.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

Engineered for high performance, our P40 series manual directional control valve is ideal for demanding applications including tractors, front-end loaders, wood splitters, and forklifts. As a professional manufacturer, we provide comprehensive factory-direct solutions, including OEM, ODM, and private labeling services to meet your specific technical requirements. We specialize in high-volume wholesale and bulk supply, ensuring competitive pricing and consistent quality for our global partners. We are actively seeking long-term cooperation with distributors, wholesalers, trade agents, and industry partners worldwide. Our customizable production capabilities allow for tailored configurations to suit varied construction and agricultural equipment needs. Partner with our factory for reliable hydraulic components, scalable manufacturing capacity, and efficient international logistics support.
