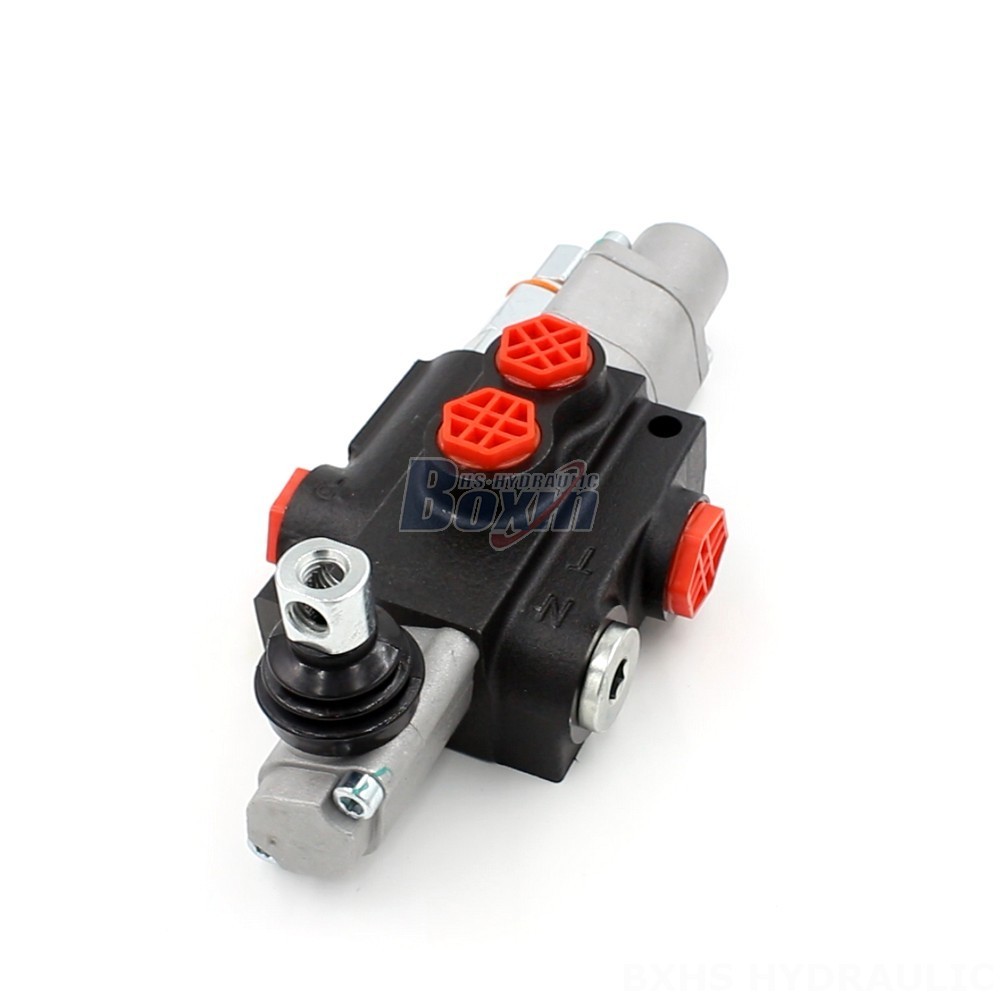

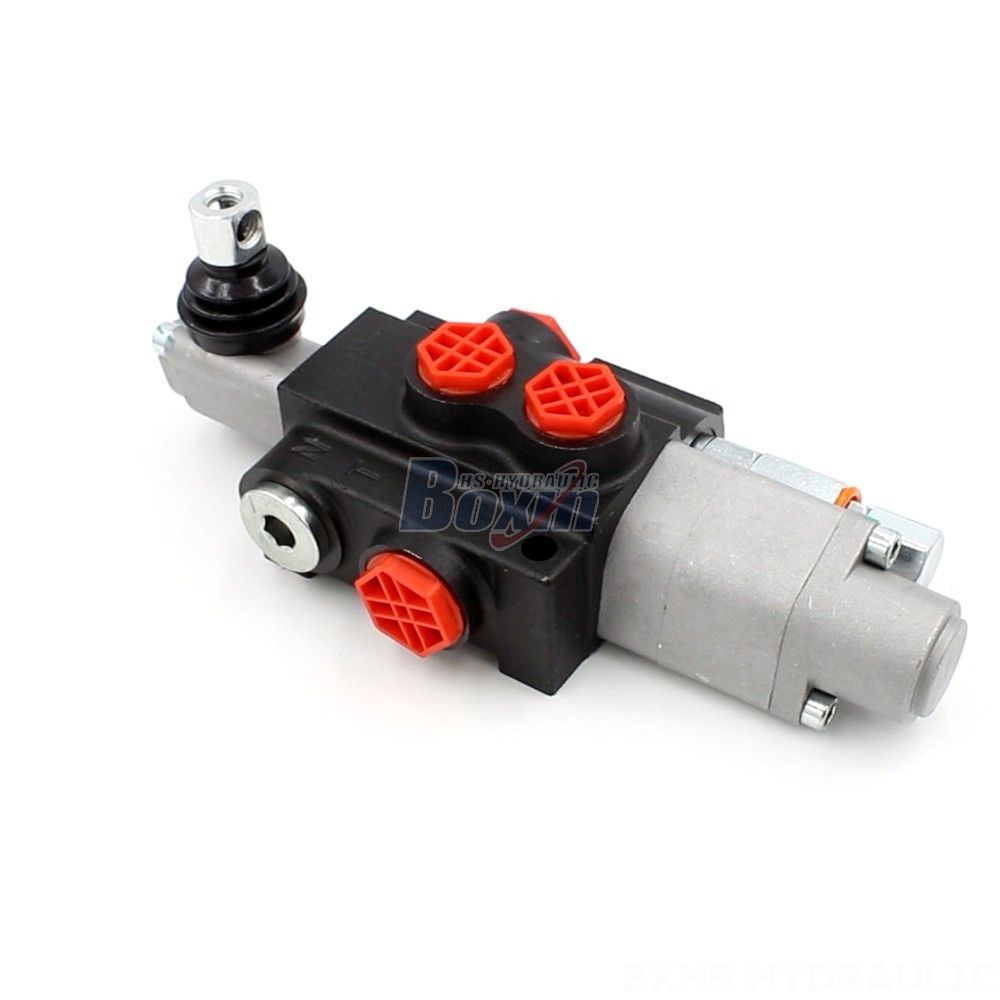

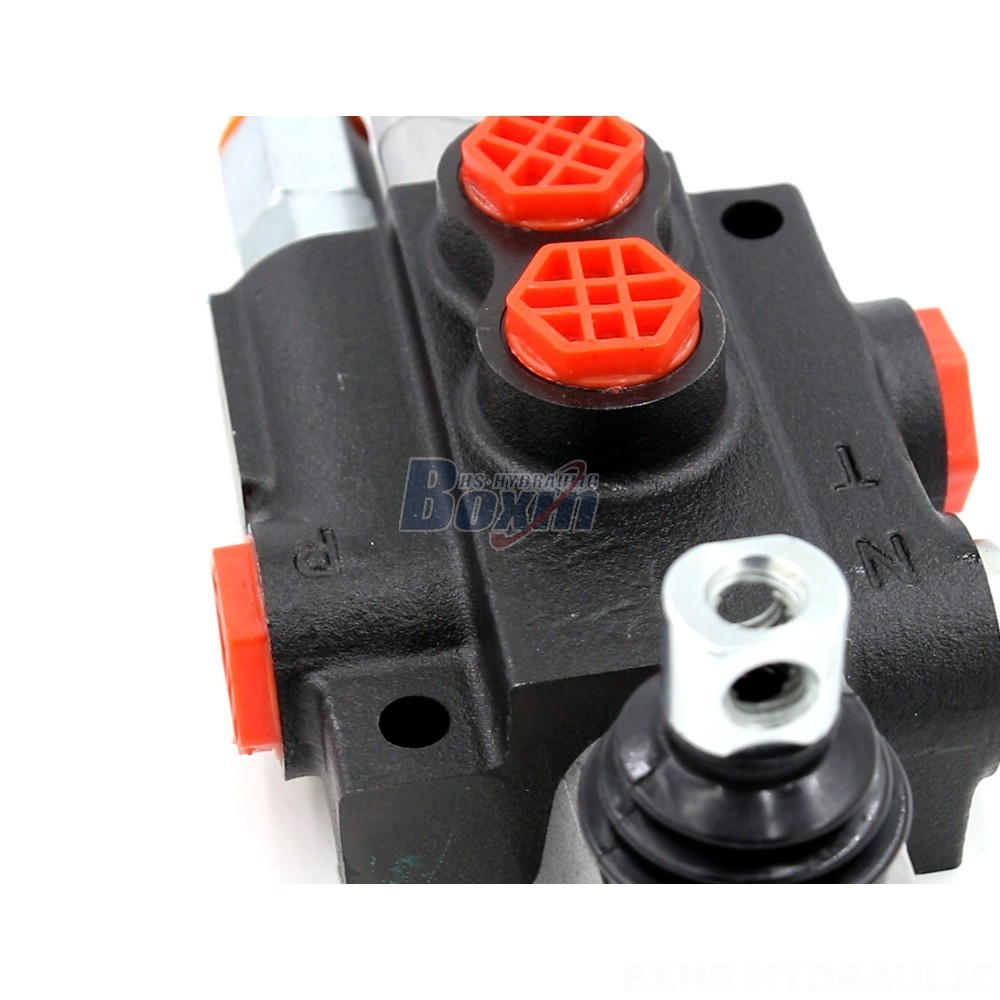

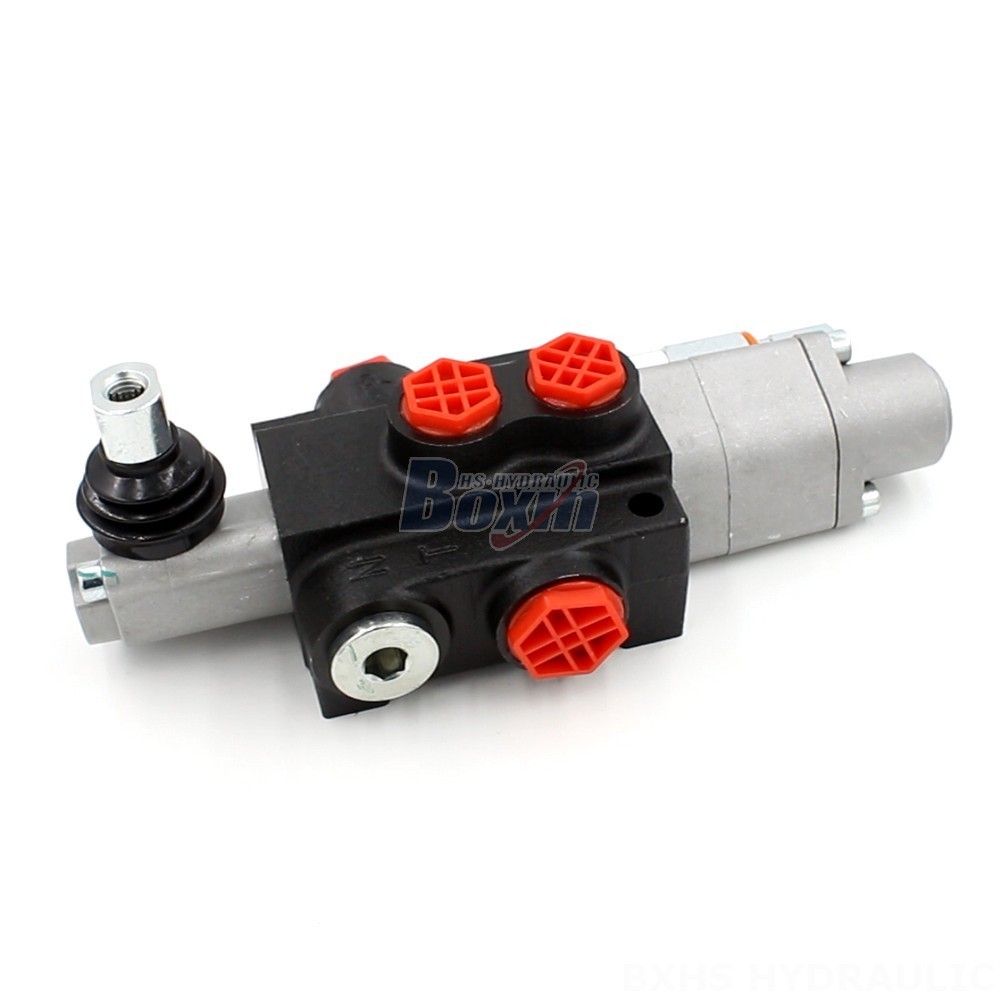

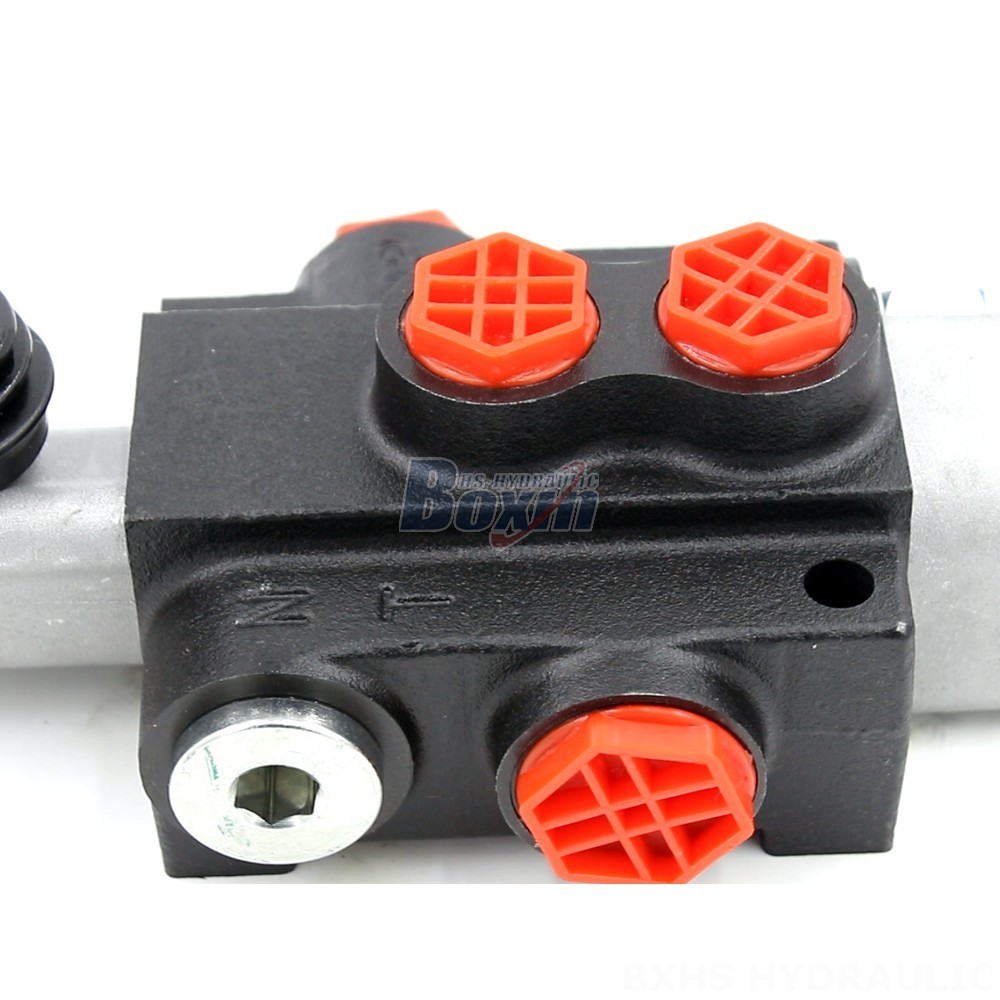

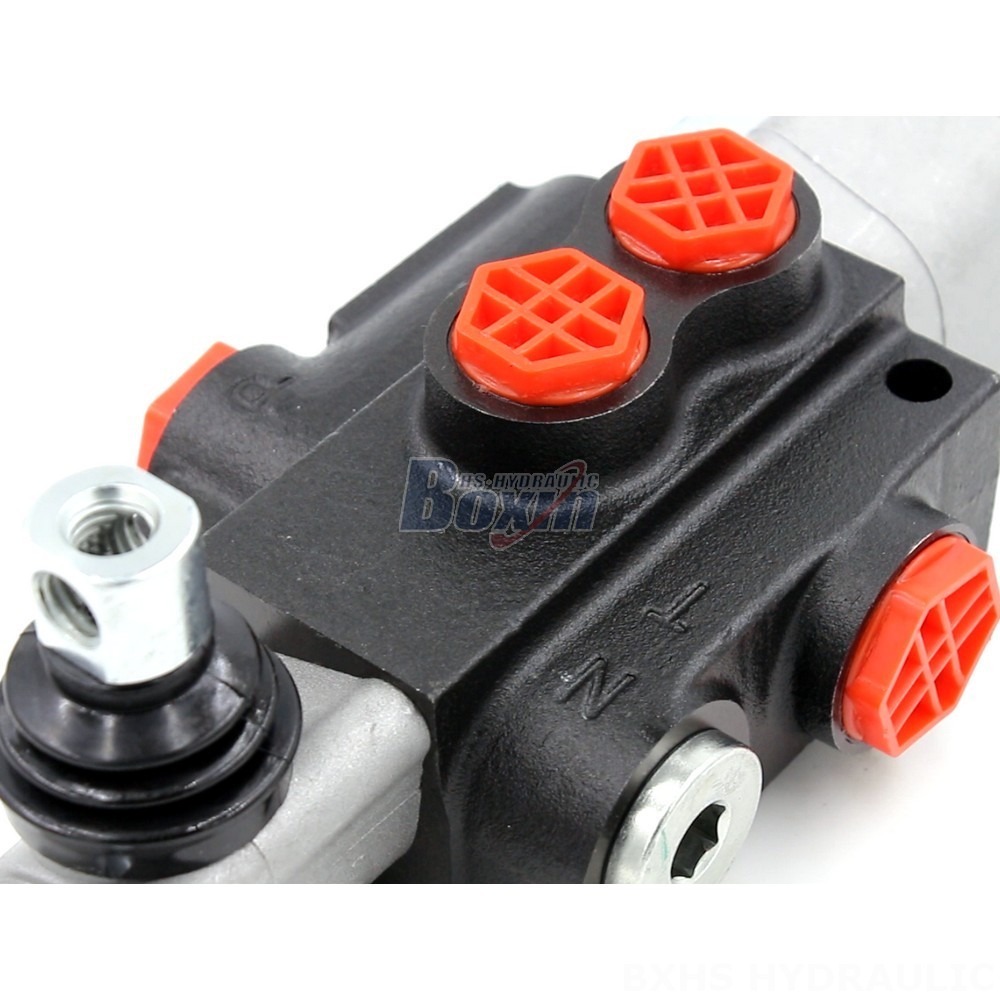

The P40-QTW1 is a reliable and efficient hydraulic flow control valve designed for a variety of applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve offers manual control and a rated flow of 40 L/min, ideal for telehandlers, forklifts, and other equipment.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-QTW1 Hydraulic Flow Control Valve is a high-performance, 1-section, monoblock valve with manual control. This valve offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its operating viscosity range spans from 15 to 75 mm²/s (15 cSt to 75 cSt), allowing for operation in various conditions. The P40-QTW1 is designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is suitable for various equipment types, such as telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders. The valve's robust design and reliable performance make it an ideal choice for demanding applications.
