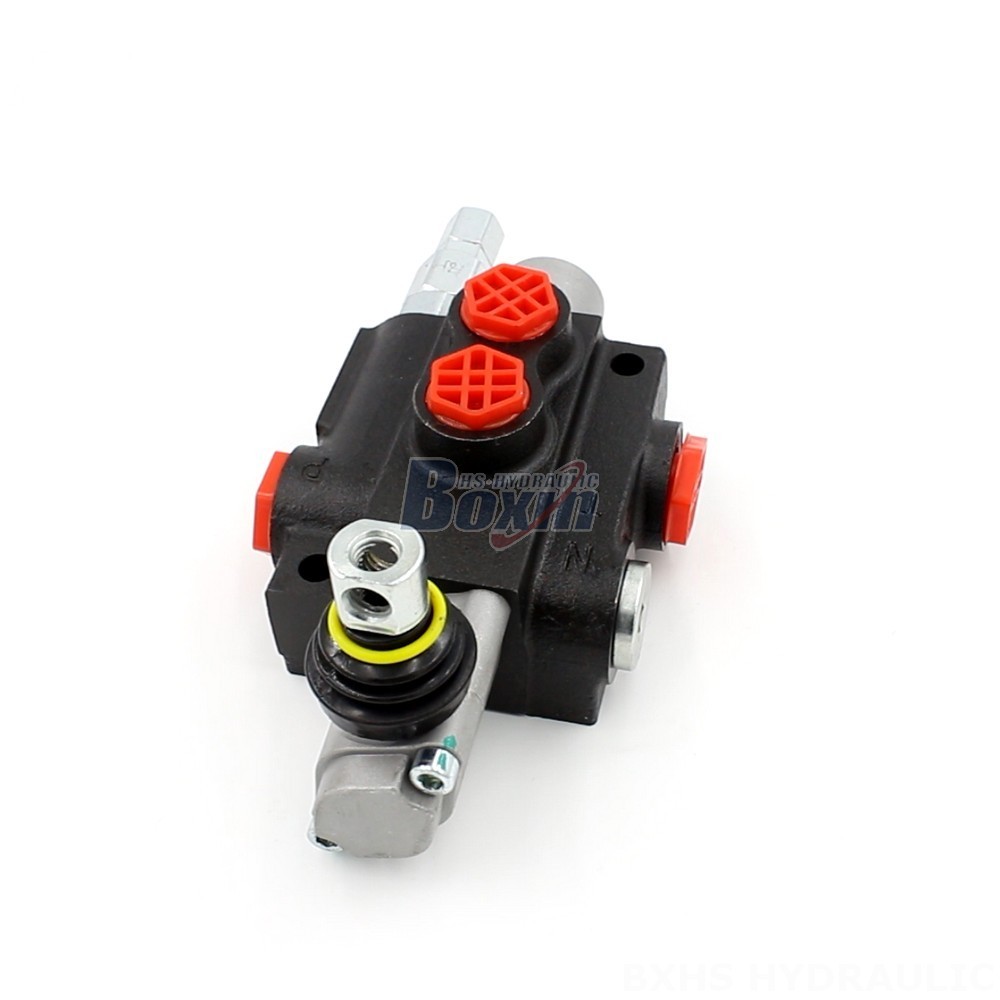

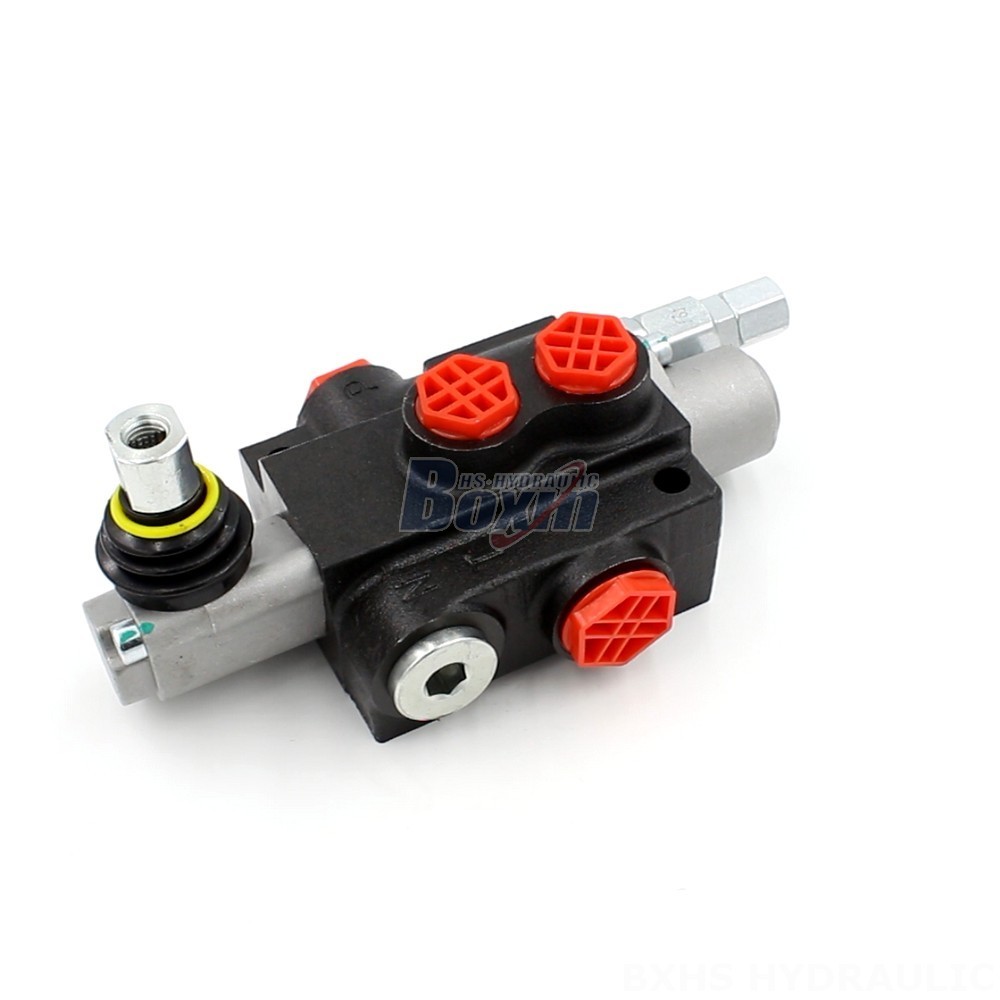

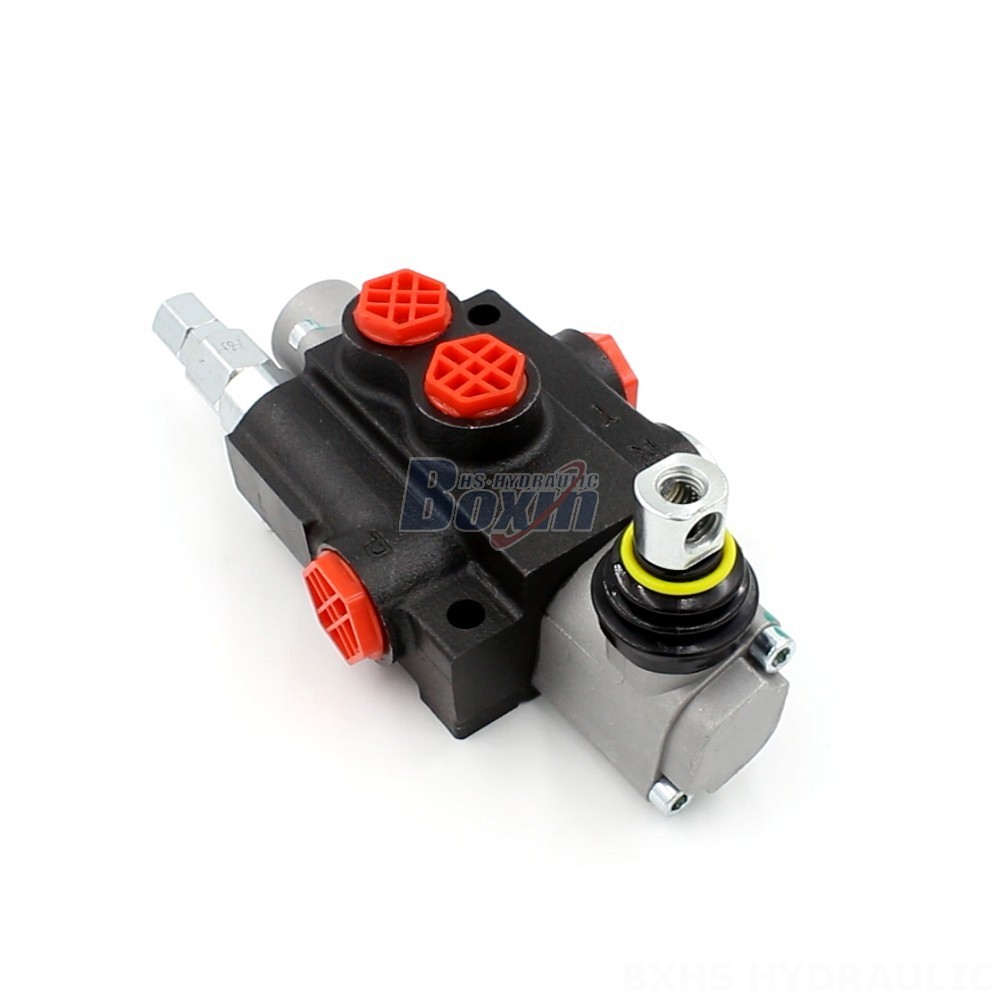

The Electric Hydraulic Valve P40-OW 1 Spool Valve is a compact and efficient hydraulic valve designed for diverse applications in material handling, construction, agriculture, and industrial vehicles. This manual controlled valve features a monoblock construction, a rated flow of 40 L/min, and a maximum pressure of 250 bar, making it ideal for use in telehandlers, forklifts, cranes, and other equipment.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-OW 1 Spool Valve is a high-performance, compact hydraulic valve designed for demanding applications. Its monoblock construction provides exceptional durability and reliability, while its 40 L/min rated flow and 250 bar maximum pressure deliver powerful performance. This valve is ideal for use in various equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The P40-OW valve is known for its compact size, efficient operation, and ease of use, making it a popular choice for a wide range of hydraulic systems.
