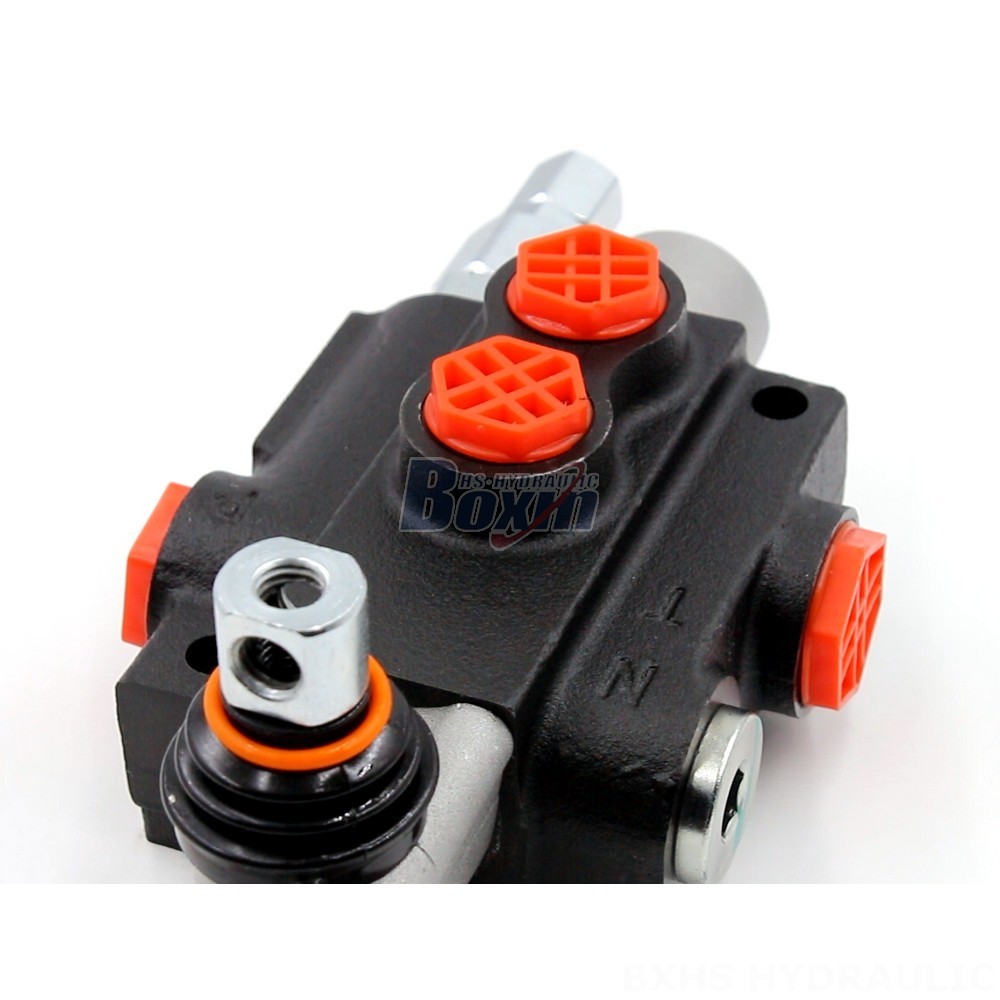

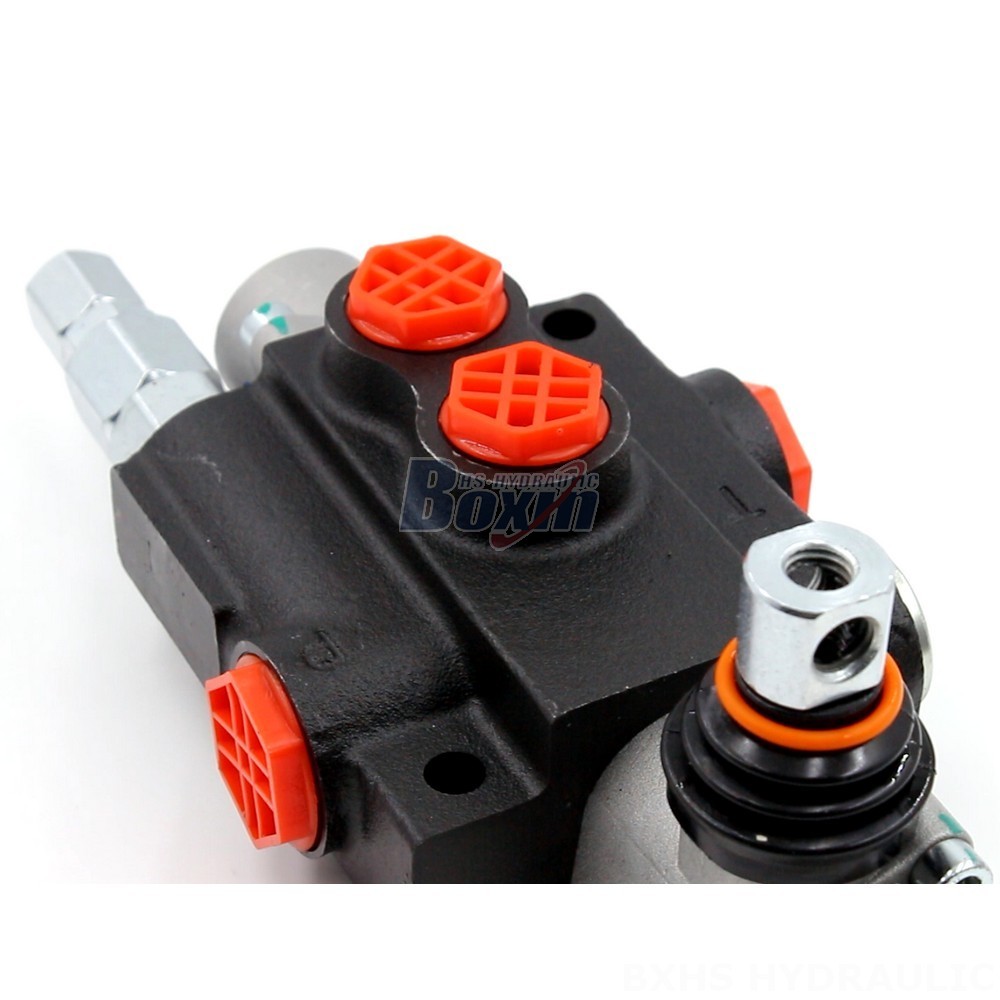

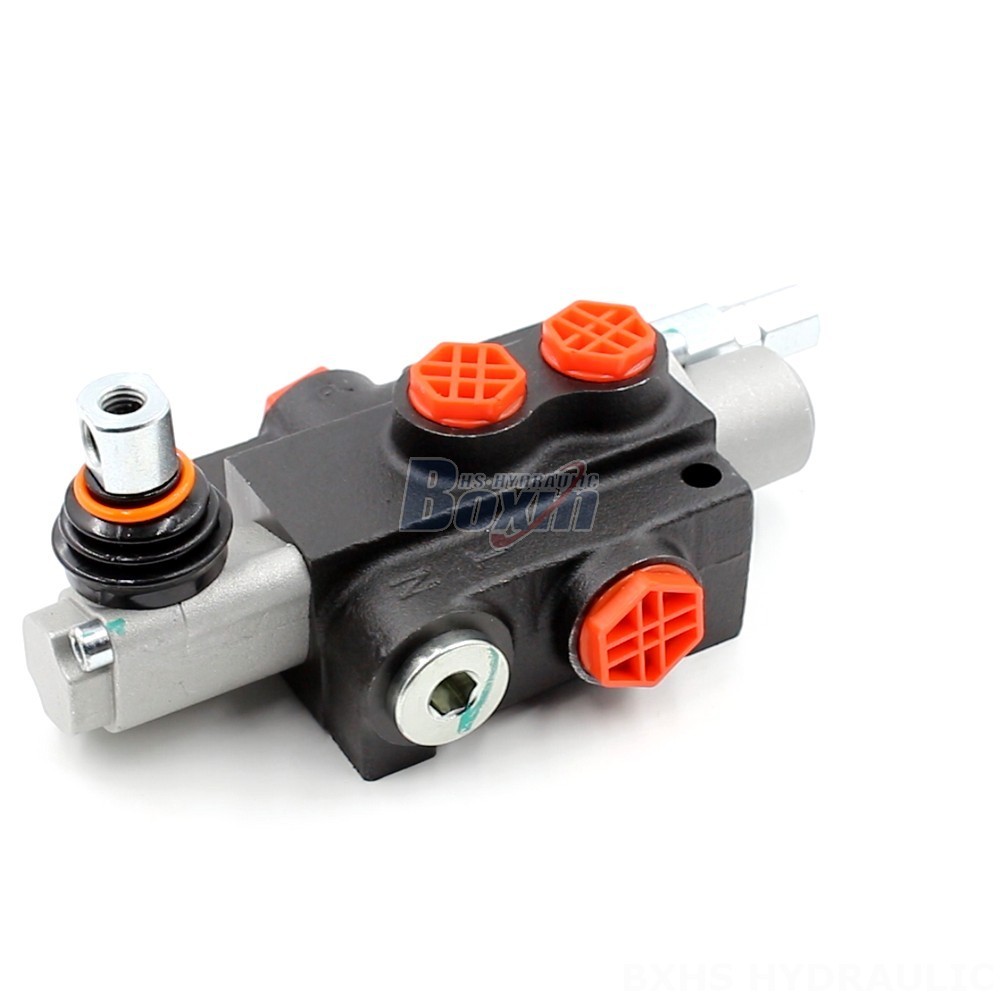

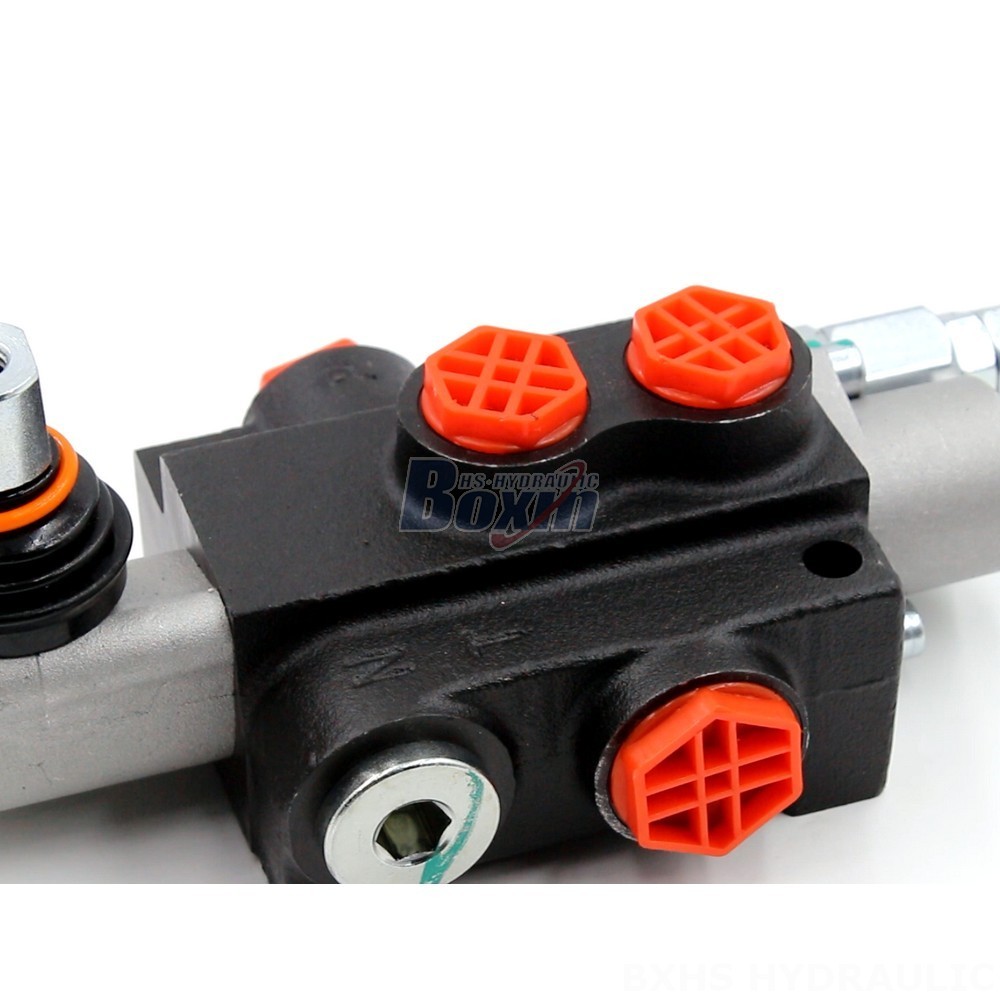

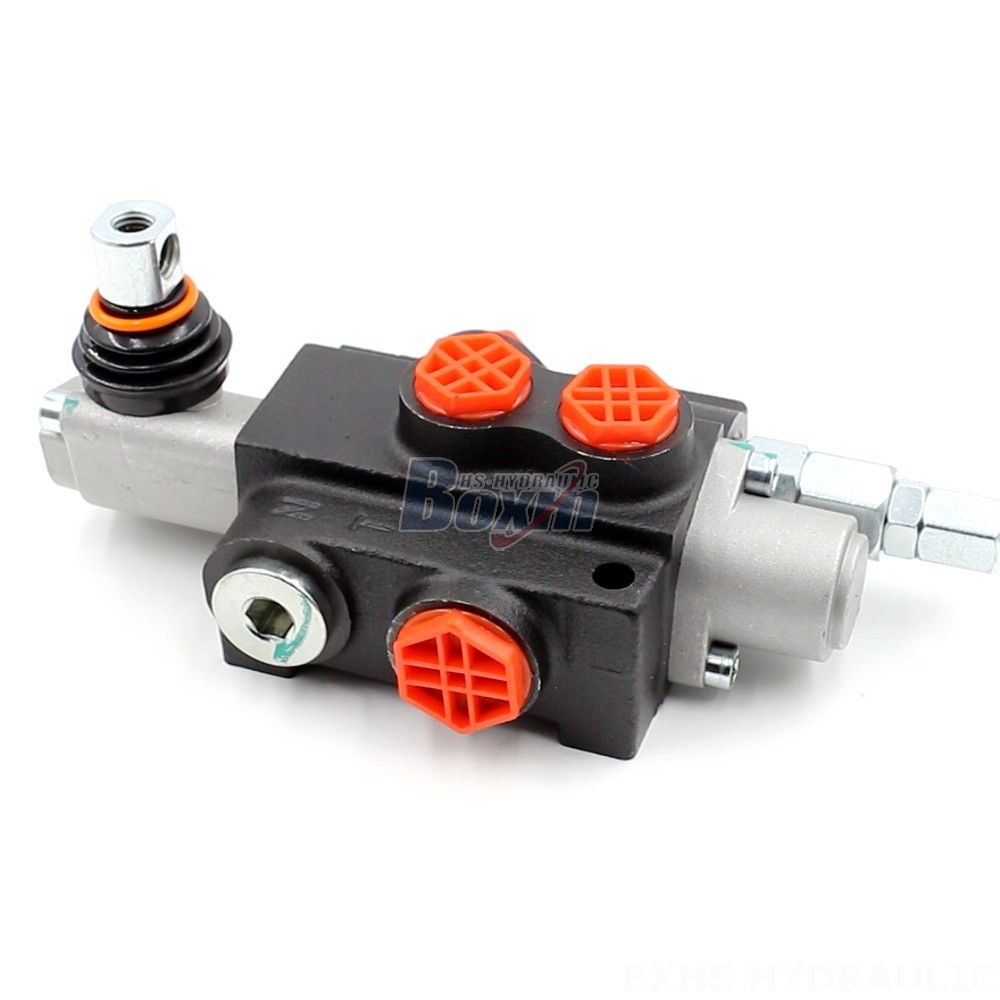

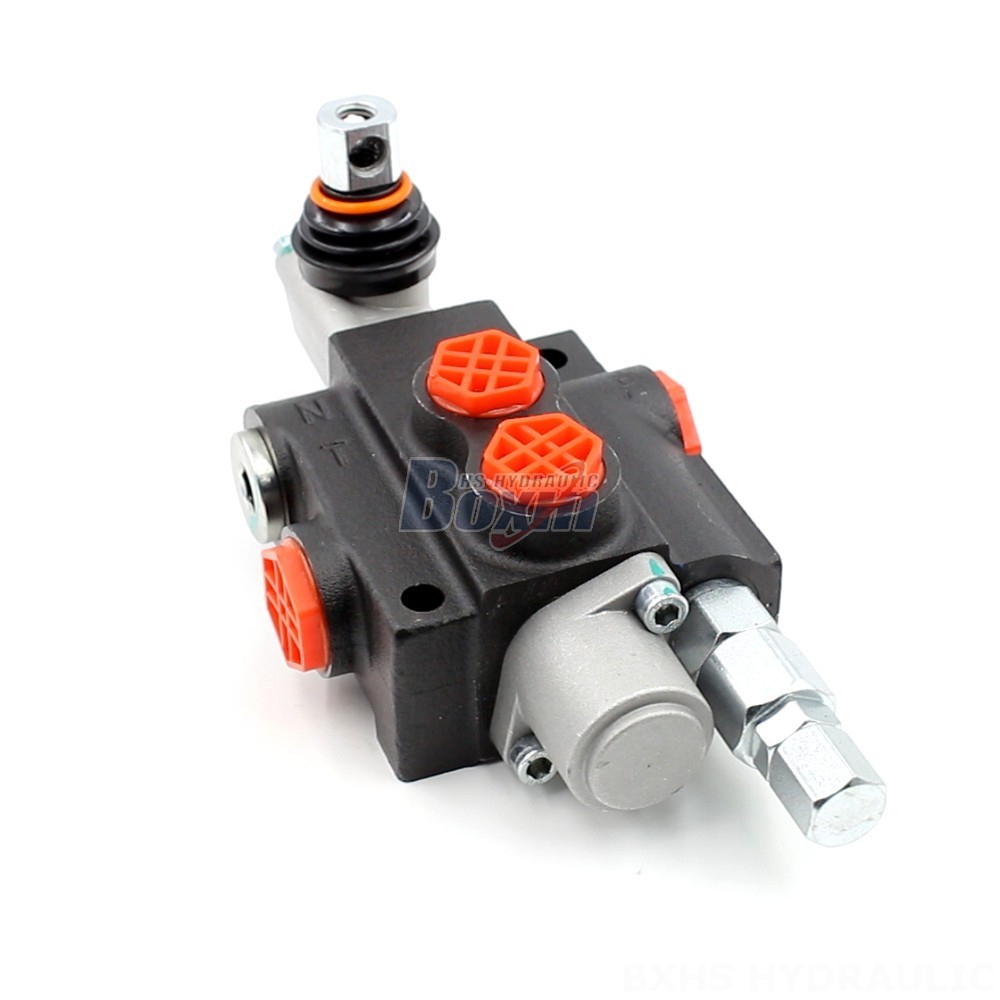

The P40-G12-YW Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control and offers a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi). Its operating viscosity range spans from 15 to 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F).
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
**Key Features and Benefits:**
* **Manual Control:** Allows for precise and responsive operation.
* **Monoblock Valve:** Provides a compact and durable design with reduced leakage potential.
* **High Flow Capacity:** Delivers up to 40 L/min (10.5 US gpm) to meet the demands of demanding applications.
* **Robust Construction:** Built to withstand harsh operating conditions, ensuring long-lasting performance.
* **Wide Operating Range:** Can handle a wide range of fluid viscosities and temperatures, making it suitable for diverse applications.
**Applications:**
The P40-G12-YW Directional Control Valve finds applications in a variety of hydraulic systems, including:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
