Tipper Control Valve P40-G12-OT Hydraulic Directional Valve | Factory Direct & Customizable

控制方式:手控

路数:1 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*16*11

Grossweight:3.00 kg

库存: 有货

894 次查看了此产品

Tipper Control Valve P40-G12-OT Hydraulic Directional Valve | Factory Direct & Customizable

Tipper Control Valve P40-G12-OT Hydraulic Directional Valve | Factory Direct & Customizable

Tipper Control Valve P40-G12-OT Hydraulic Directional Valve | Factory Direct & Customizable drawing image

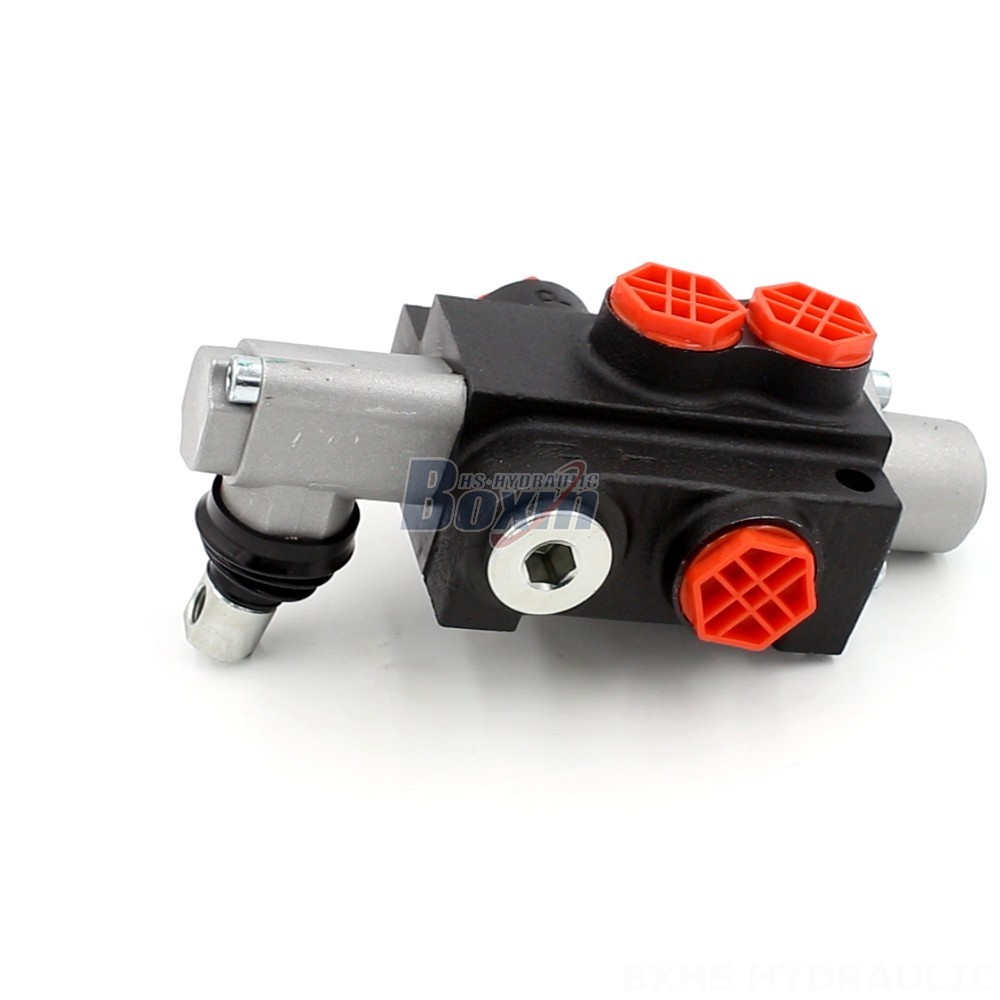

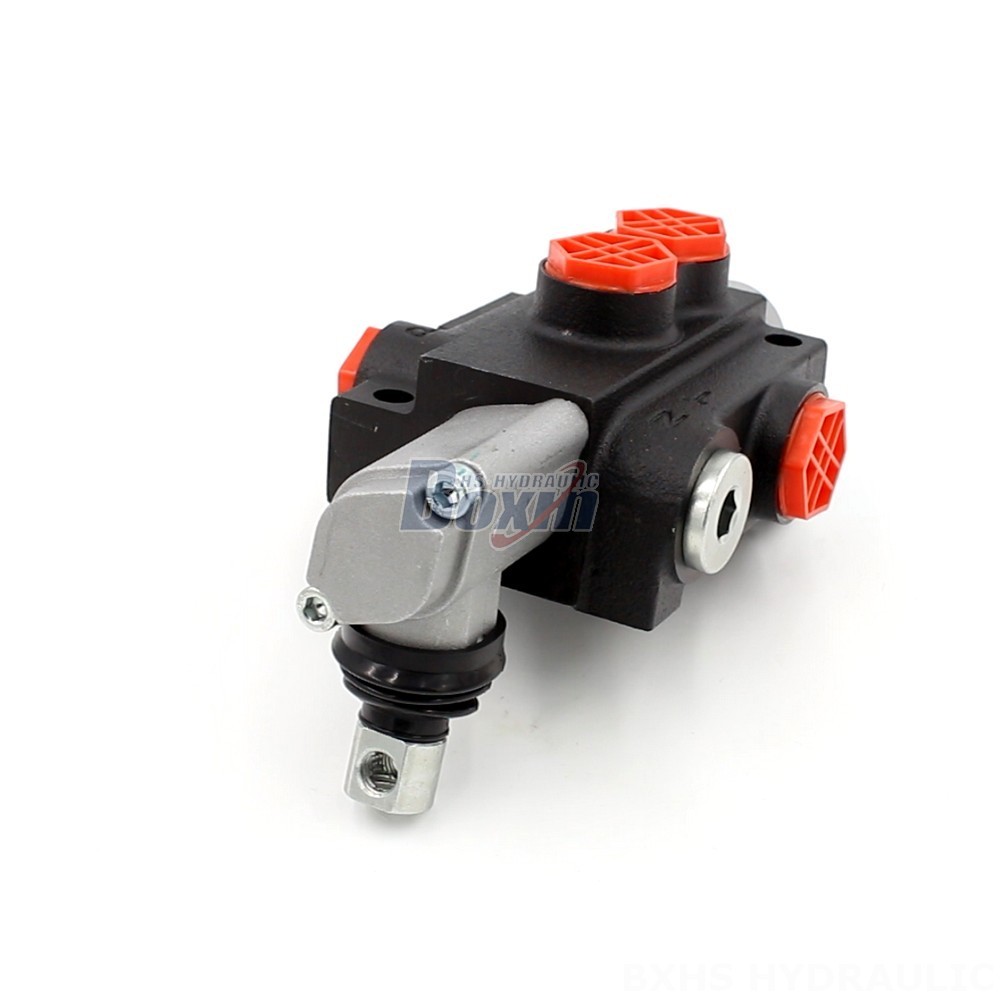

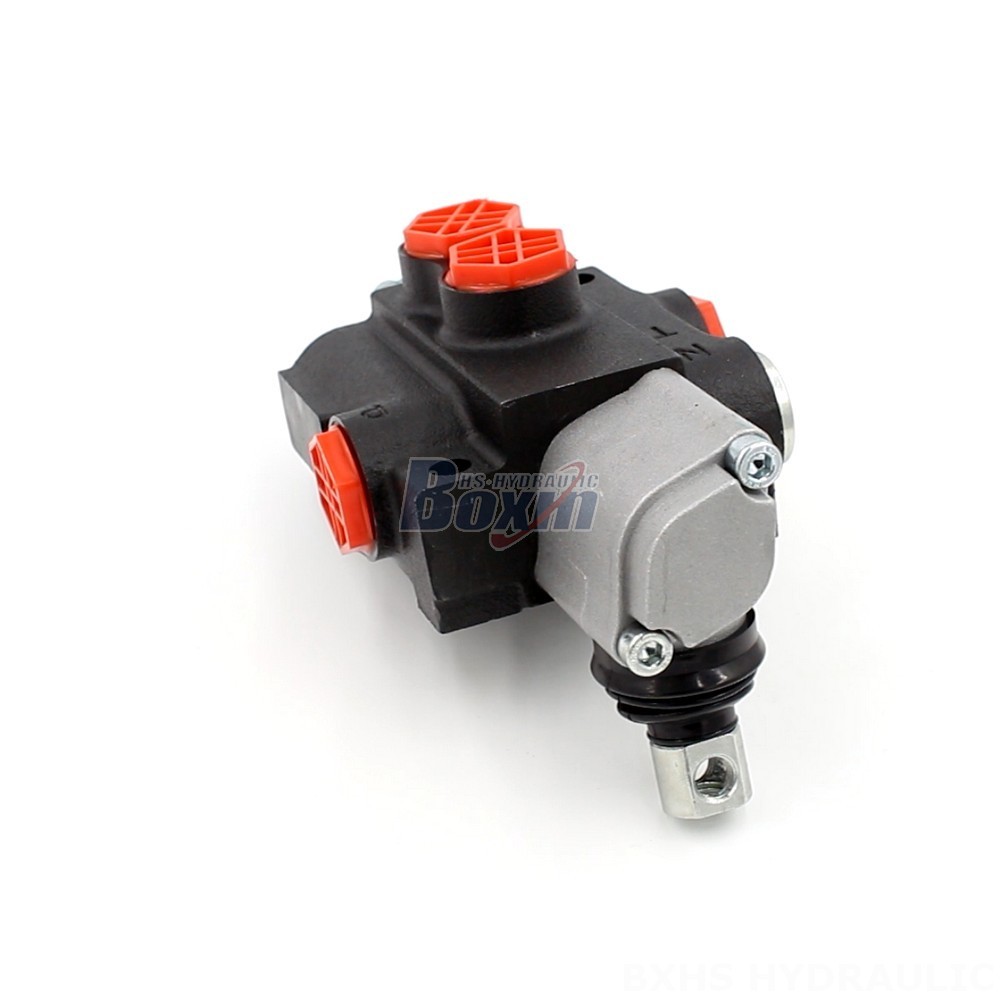

The P40-G12-OT Tipper Control Valve is a high-performance hydraulic directional valve designed for demanding applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. It features a manual control method, 1 section, monoblock valve structure, 40 L/min rated flow, and 250 bar maximum pressure. This valve is available factory direct and customizable to meet your specific needs.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40-G12-OT Tipper Control Valve is a reliable and durable hydraulic valve designed for heavy-duty applications. It offers a compact and robust design with a 1-section monoblock valve structure. This valve is manually controlled, providing precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve delivers powerful hydraulic performance. It's suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders. The P40-G12-OT Tipper Control Valve is manufactured with high-quality materials and rigorous testing to ensure long-lasting performance and reliability. It's available factory direct, offering flexibility for customization to meet your specific requirements. This valve is ideal for demanding applications where robust performance and reliability are essential.
