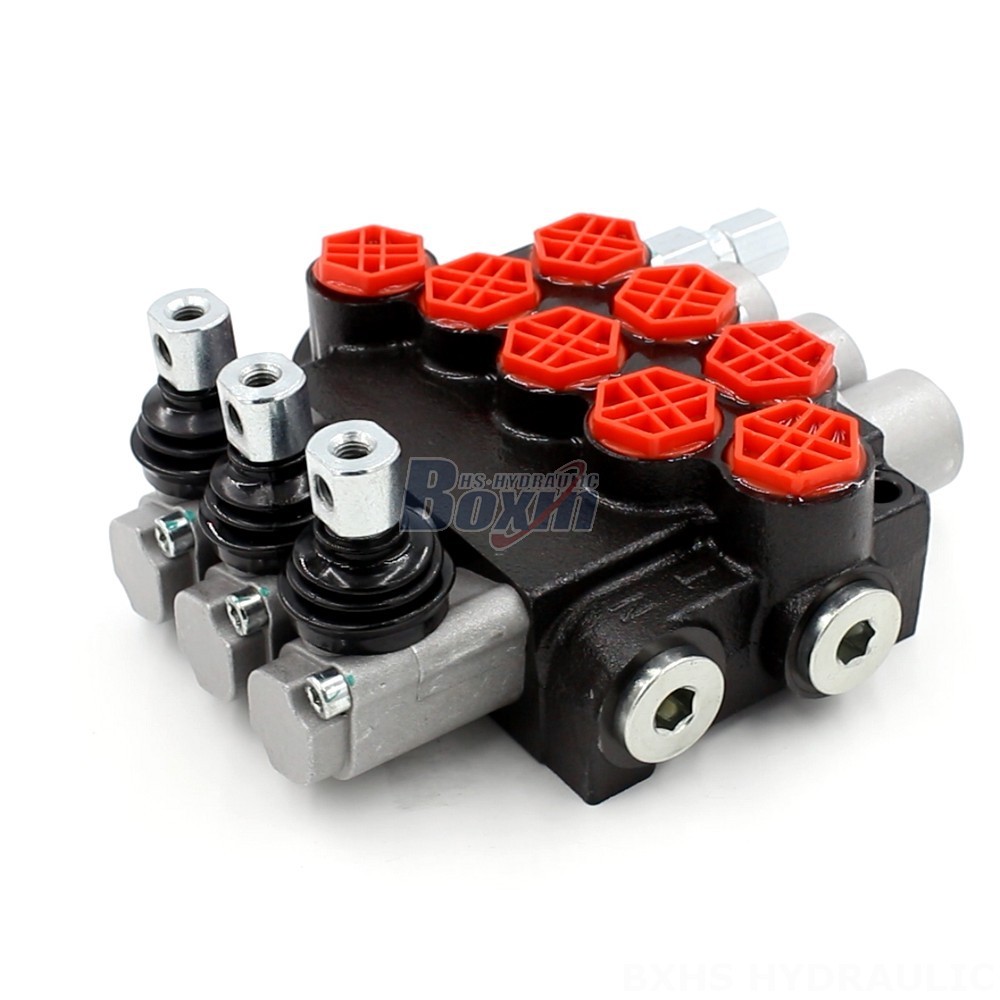

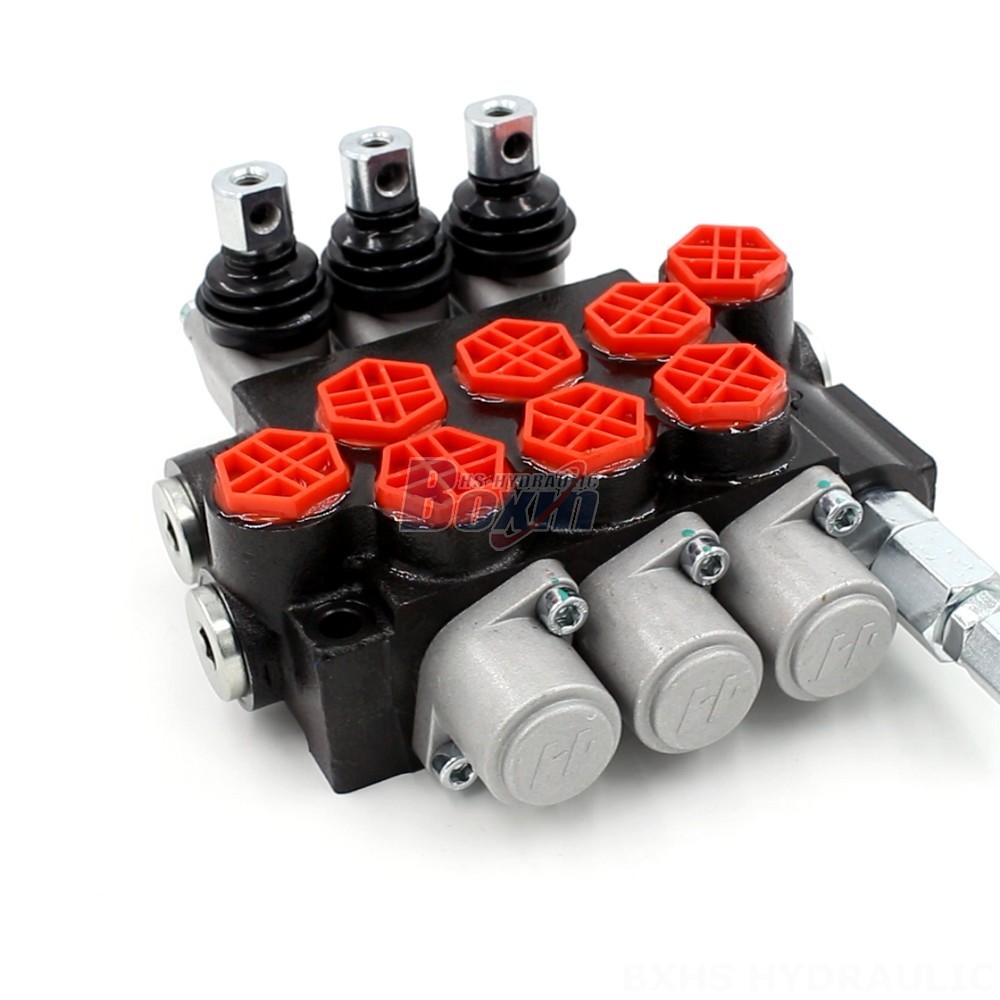

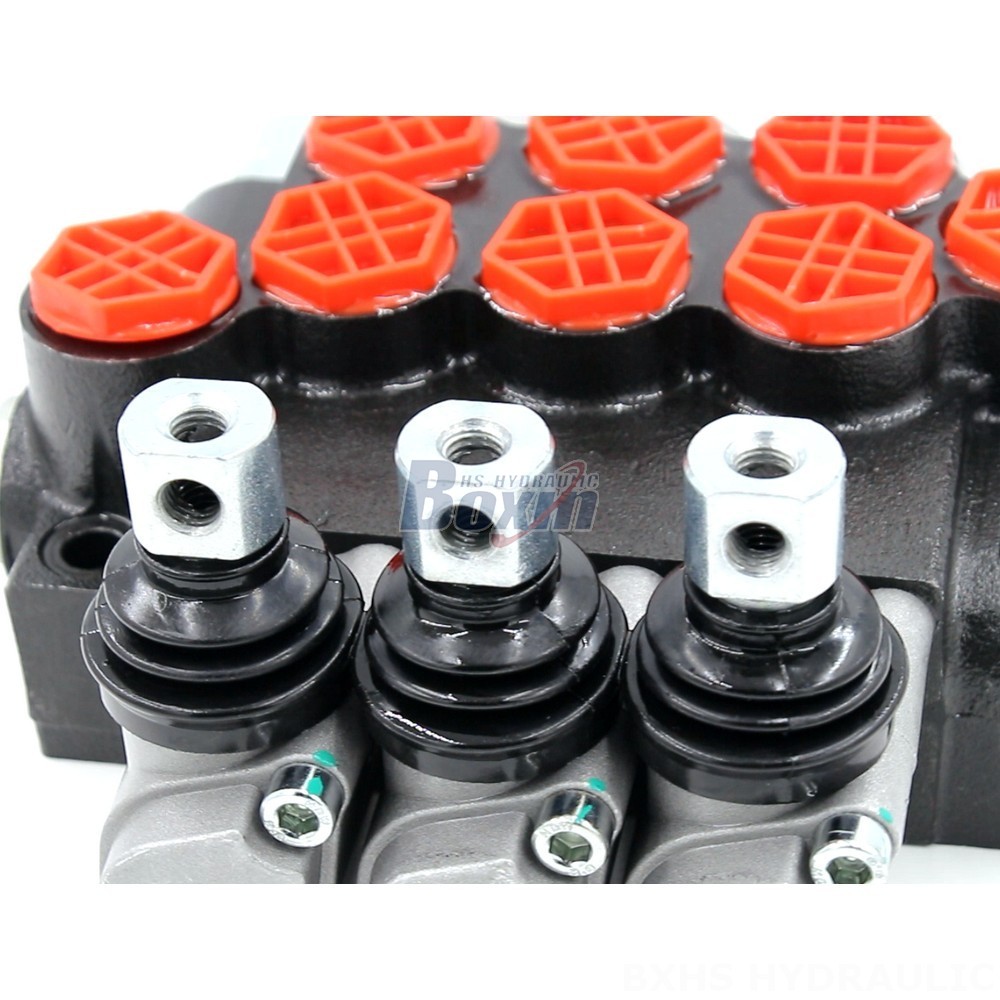

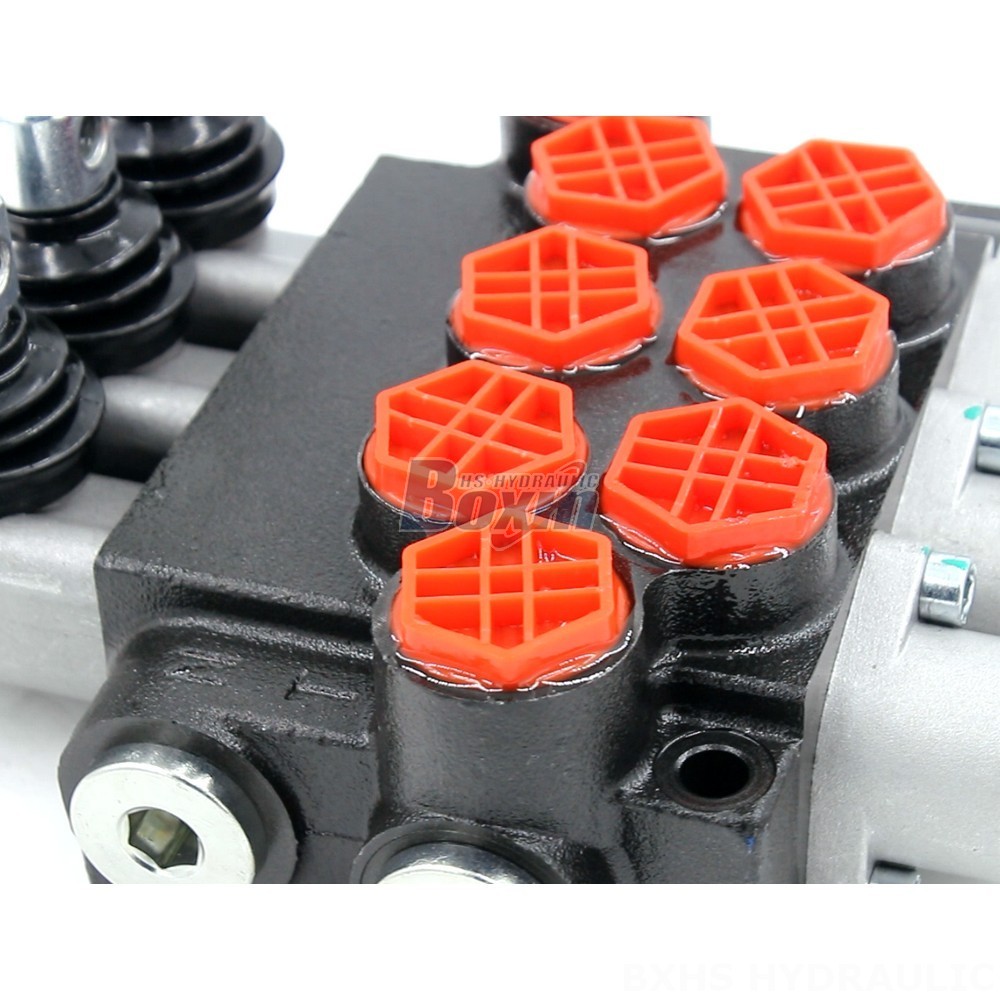

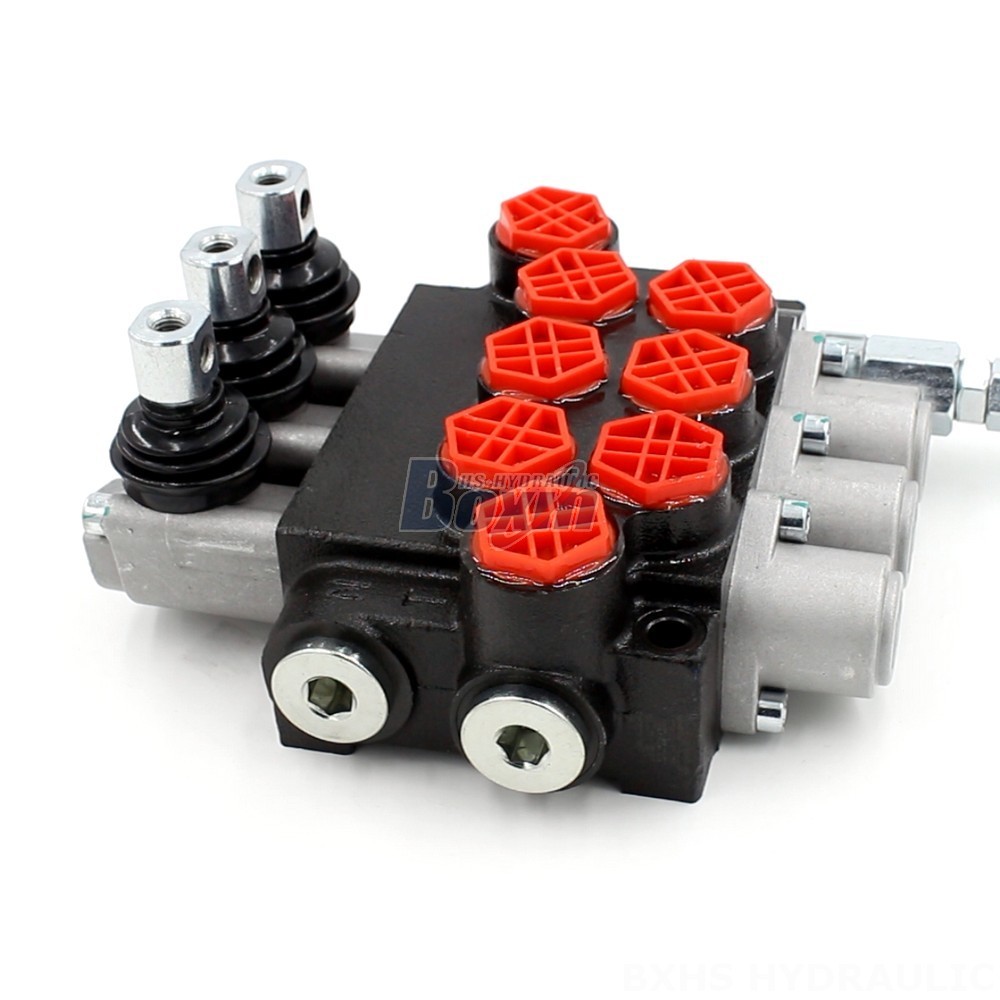

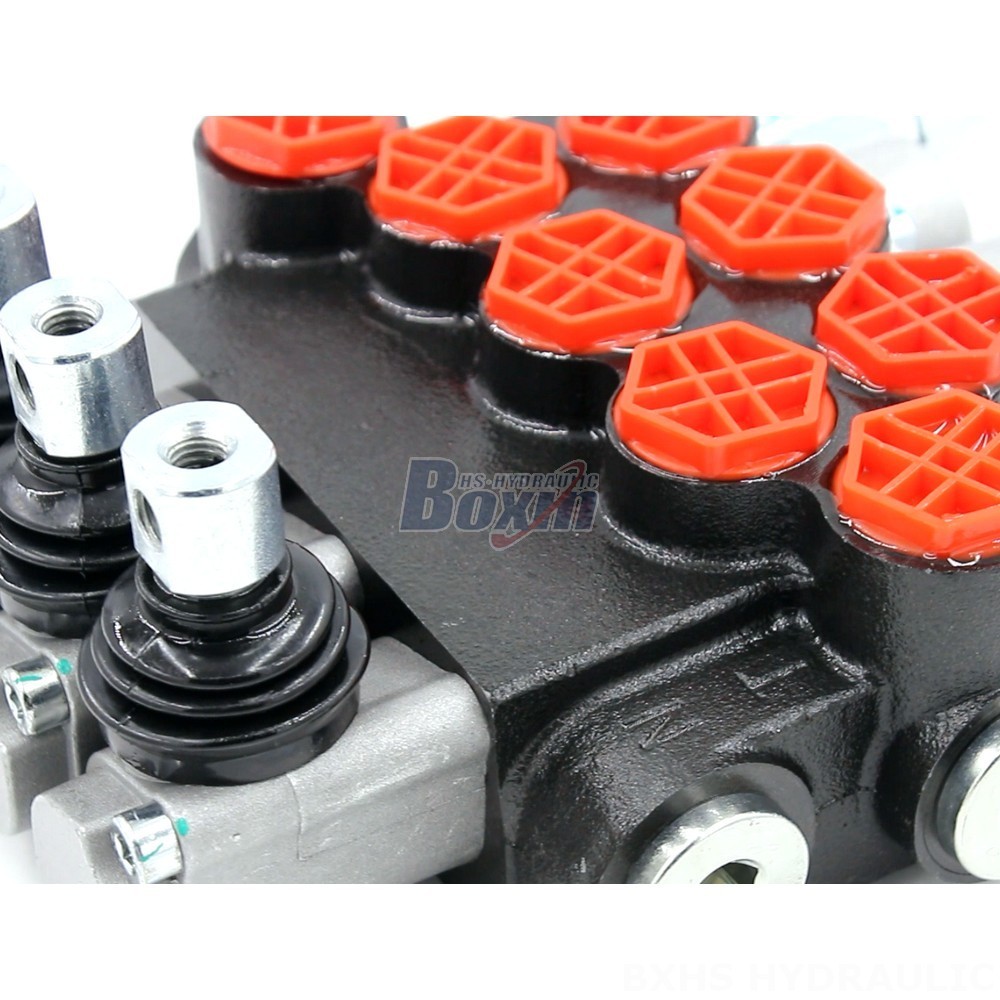

P40-G12-OT Hydraulic Components: Factory Direct Sales & Engineering Support

控制方式:手控

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:24*21*13

Grossweight:6.60 kg

库存: 有货

1087 次查看了此产品

P40-G12-OT Hydraulic Components: Factory Direct Sales & Engineering Support

P40-G12-OT Hydraulic Components: Factory Direct Sales & Engineering Support

P40-G12-OT Hydraulic Components: Factory Direct Sales & Engineering Support drawing image

Introducing the P40-G12-OT Hydraulic Components, offering superior quality and performance. Manufactured directly in our factory, these components provide exceptional reliability and efficiency for various applications, including material handling, construction, agriculture, and industrial vehicles. With our engineering support and factory-direct sales, you're assured of expert guidance and cost-effective solutions.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40-G12-OT Hydraulic Components are meticulously engineered to deliver unmatched performance and durability. Featuring a monoblock valve design and manual control, these components ensure precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, they are capable of handling demanding hydraulic systems. The operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse operating conditions.

As a leading manufacturer, we offer factory-direct sales, providing you with competitive pricing and direct access to our production expertise. Our engineering support team is dedicated to assisting you with technical queries and ensuring the seamless integration of our components into your systems. Whether you're a distributor, wholesaler, agent, or trader, we invite you to partner with us and leverage our manufacturing capabilities to meet the growing demand for high-quality hydraulic solutions.
