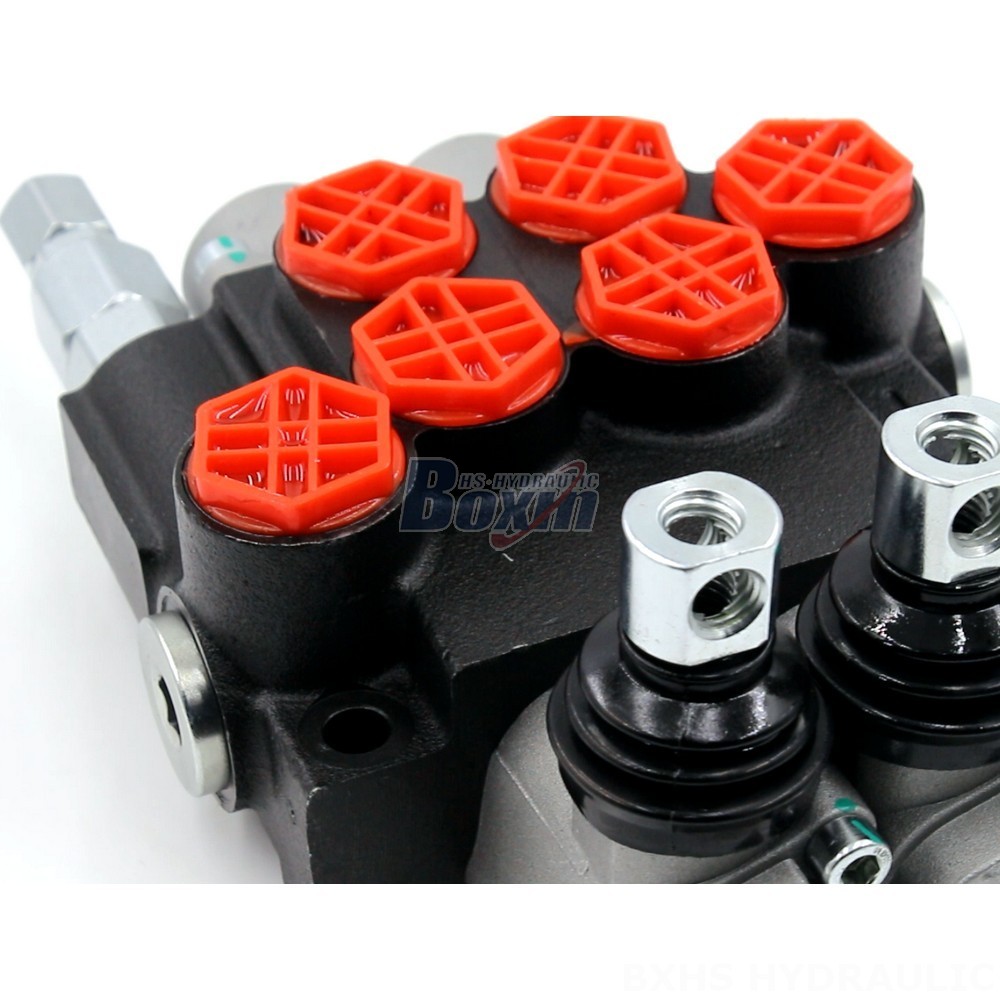

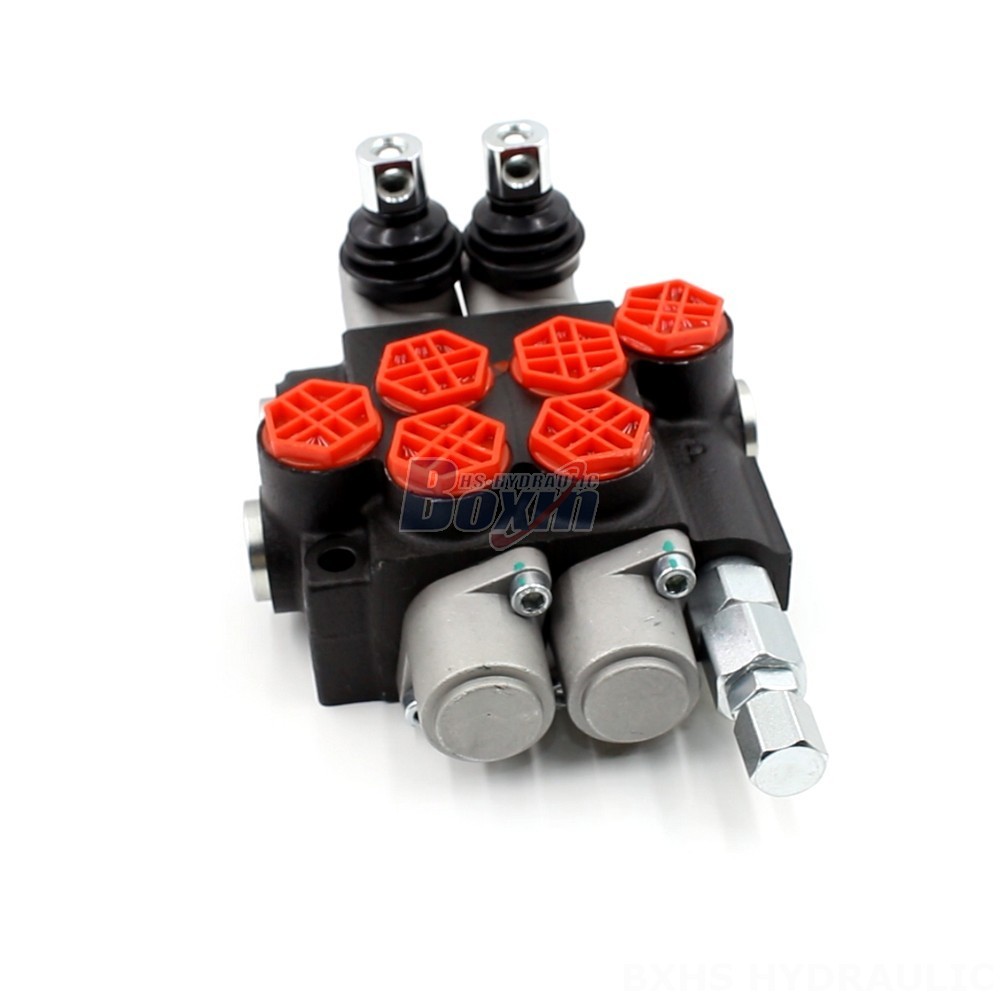

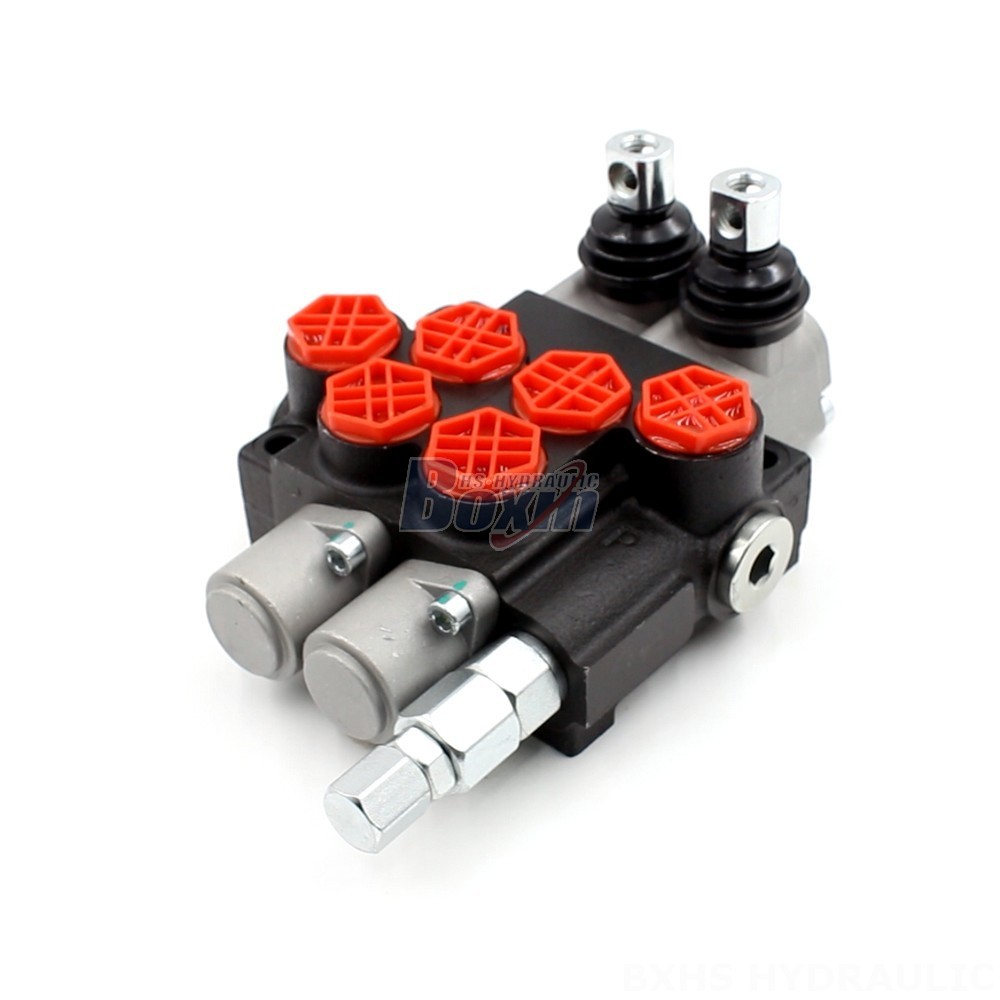

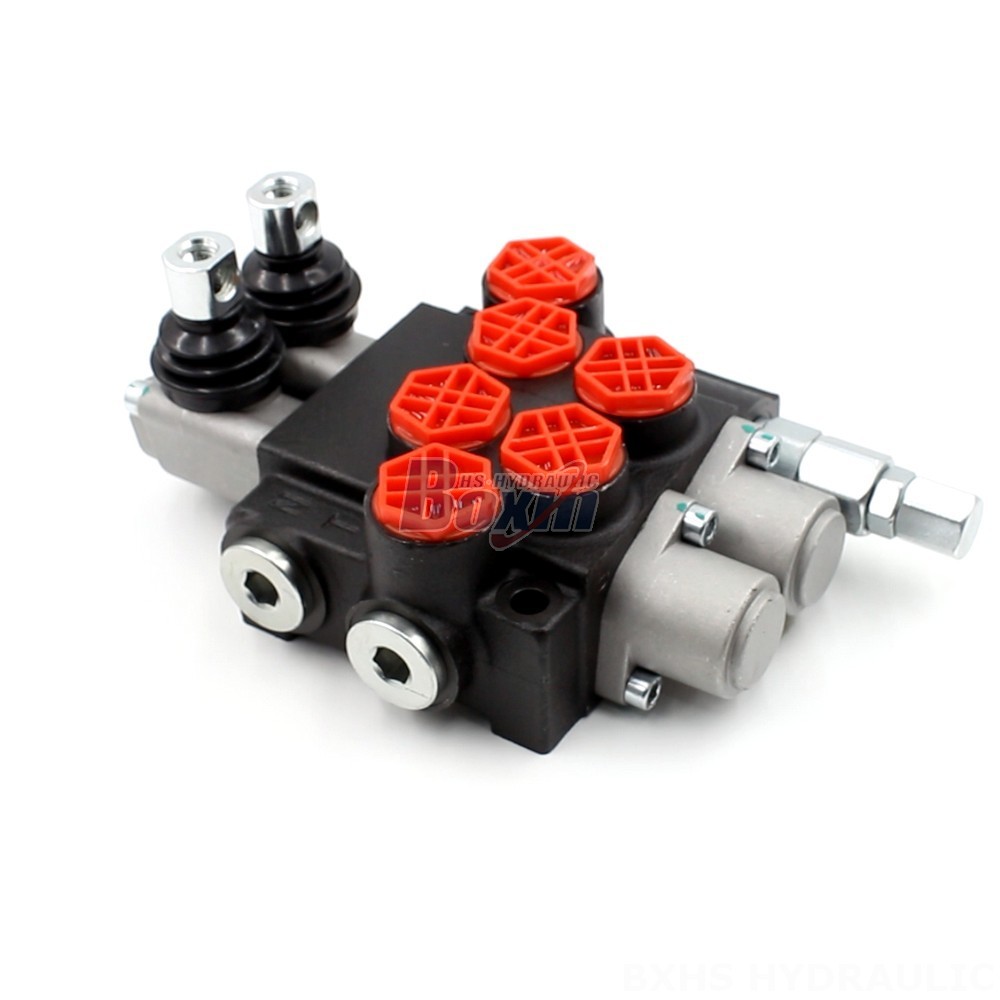

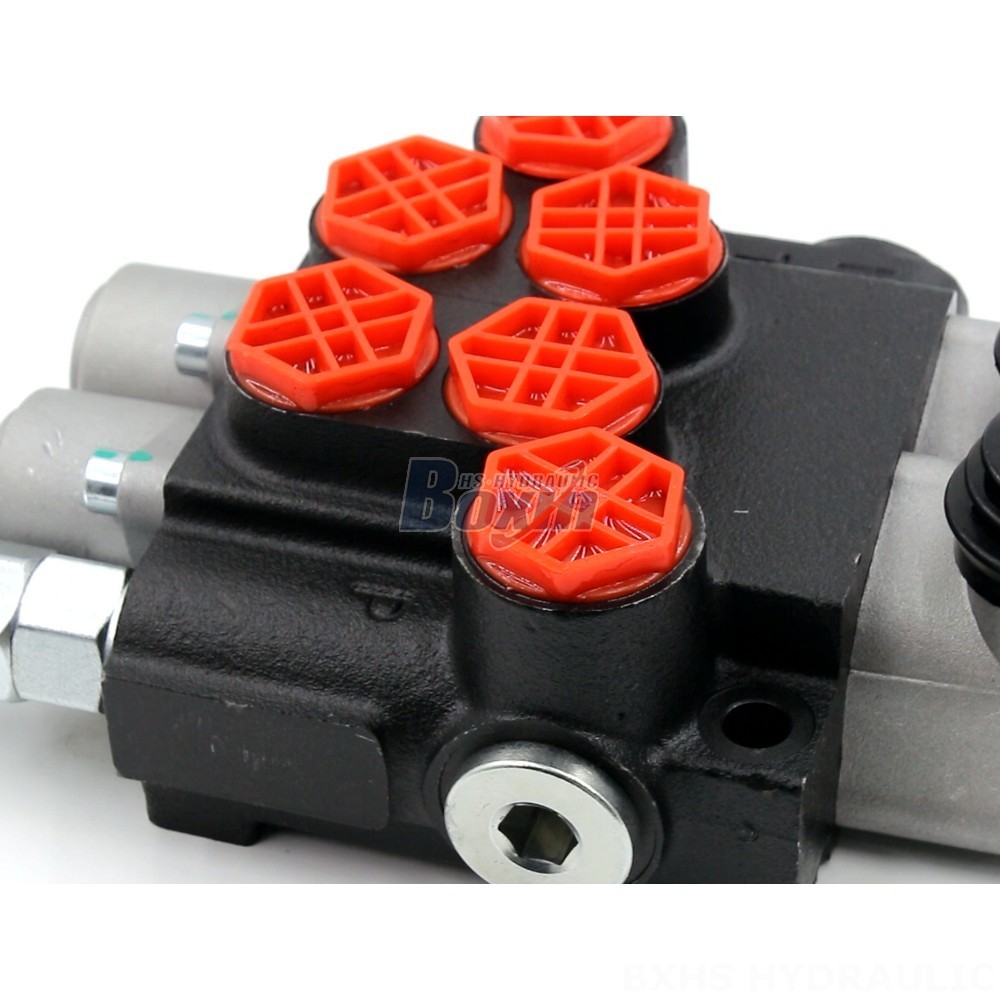

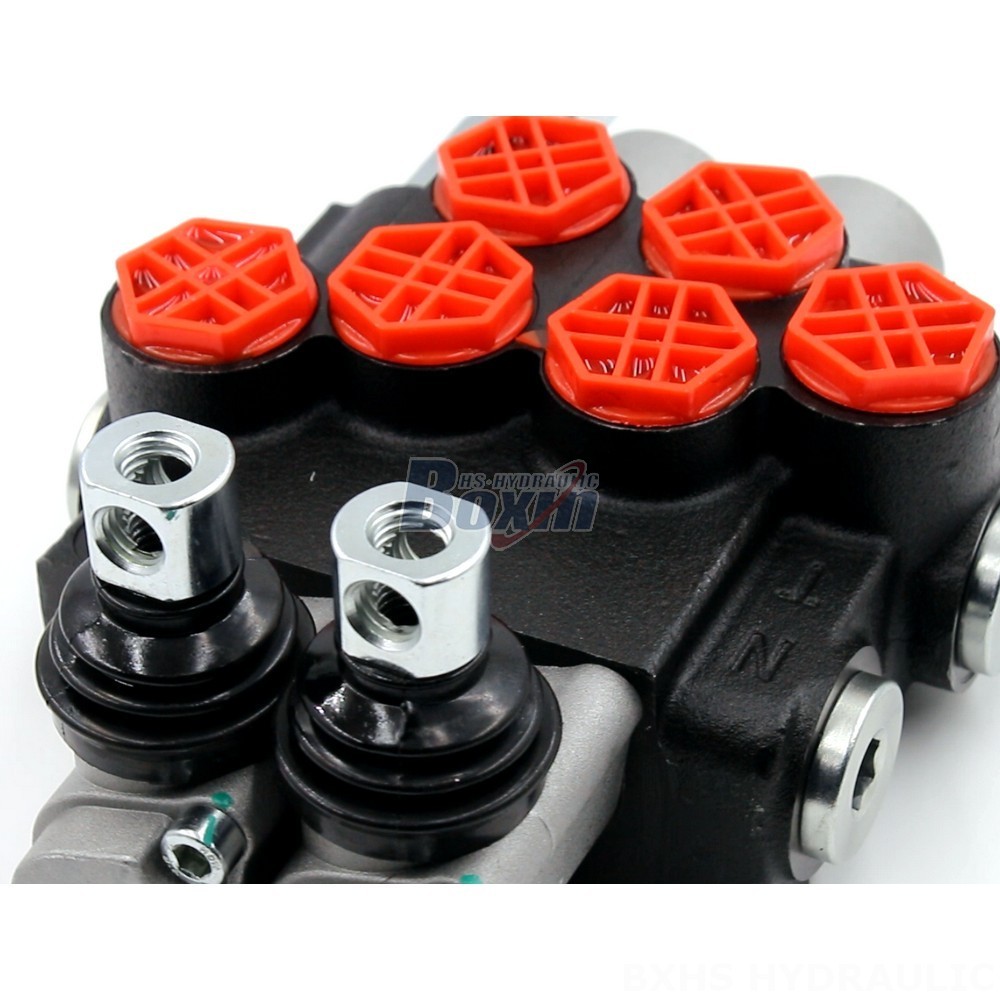

Hand Operated Hydraulic Valve P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

控制方式:手控

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*18*13

Grossweight:5.00 kg

库存: 有货

1044 次查看了此产品

Hand Operated Hydraulic Valve P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

Hand Operated Hydraulic Valve P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

Hand Operated Hydraulic Valve P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions drawing image

The P40-G12 Monoblock Directional Valve is a reliable and versatile hand operated hydraulic valve designed for a wide range of applications. It features a 2-section design, 40 L/min rated flow, and 250 bar maximum pressure, making it suitable for material handling, construction, earthmoving, agriculture, and industrial vehicles.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

This hand-operated hydraulic valve is a 2-section monoblock valve offering a rated flow of 40 L/min and a maximum pressure of 250 bar. Designed for demanding applications in industries like material handling, construction, earthmoving, agriculture, and industrial vehicles, this valve is compatible with various equipment types including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. The valve boasts a robust construction and an operating viscosity range of 15-75 mm²/s, ensuring reliable operation in diverse environments and temperature ranges from -40°C to +80°C. The P40-G12 valve is a valuable component for various hydraulic systems, offering reliable control and efficiency.
