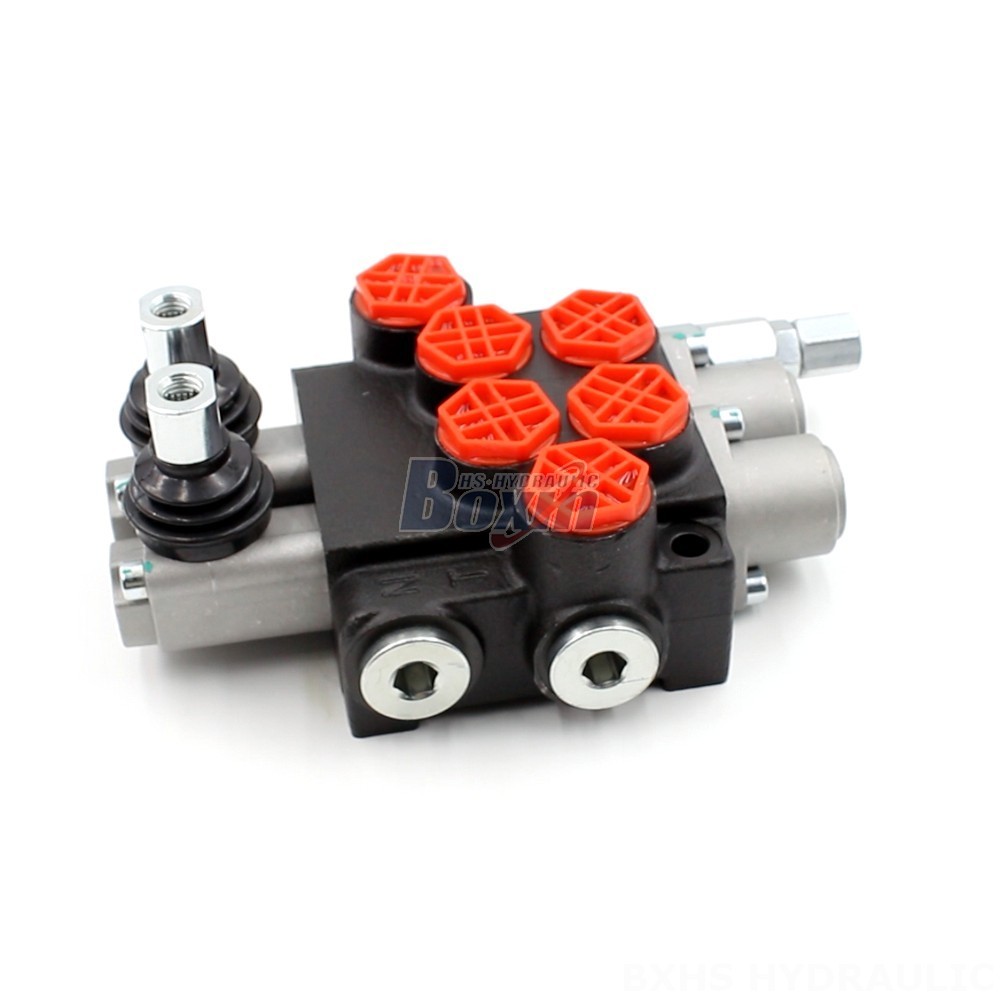

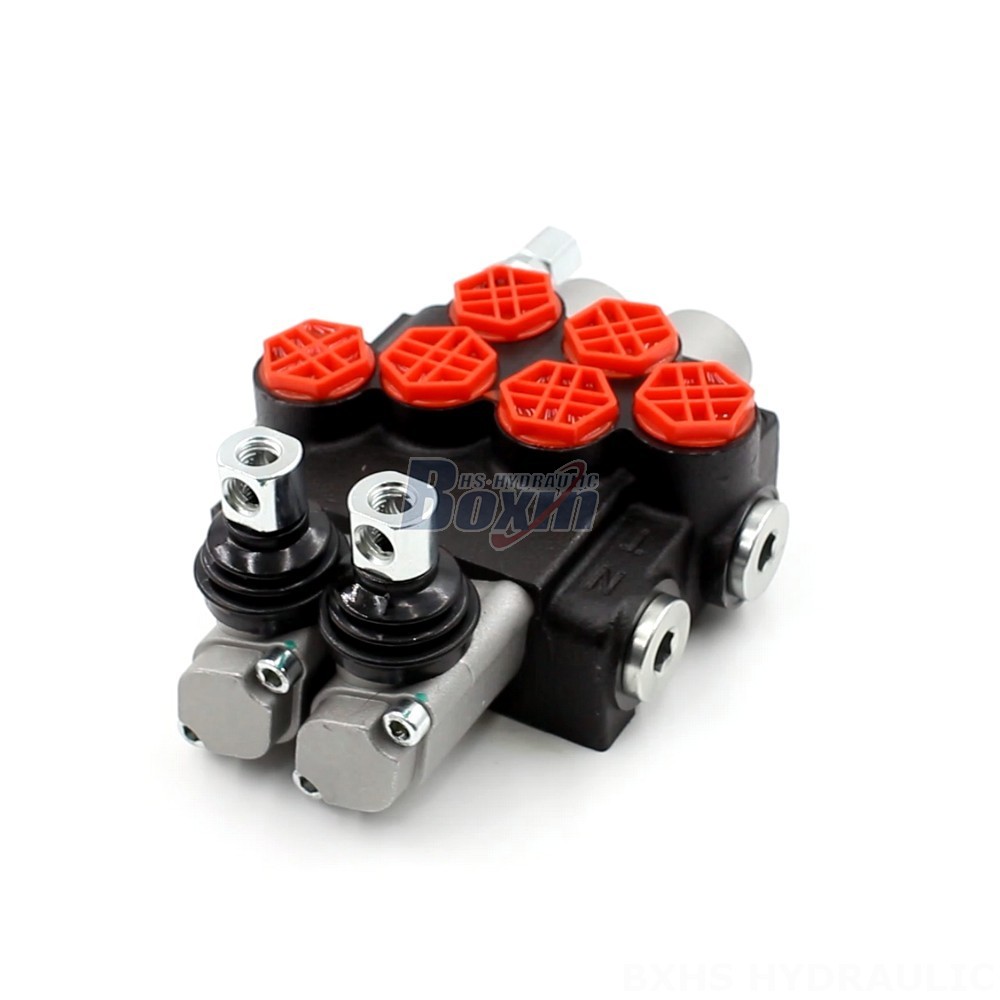

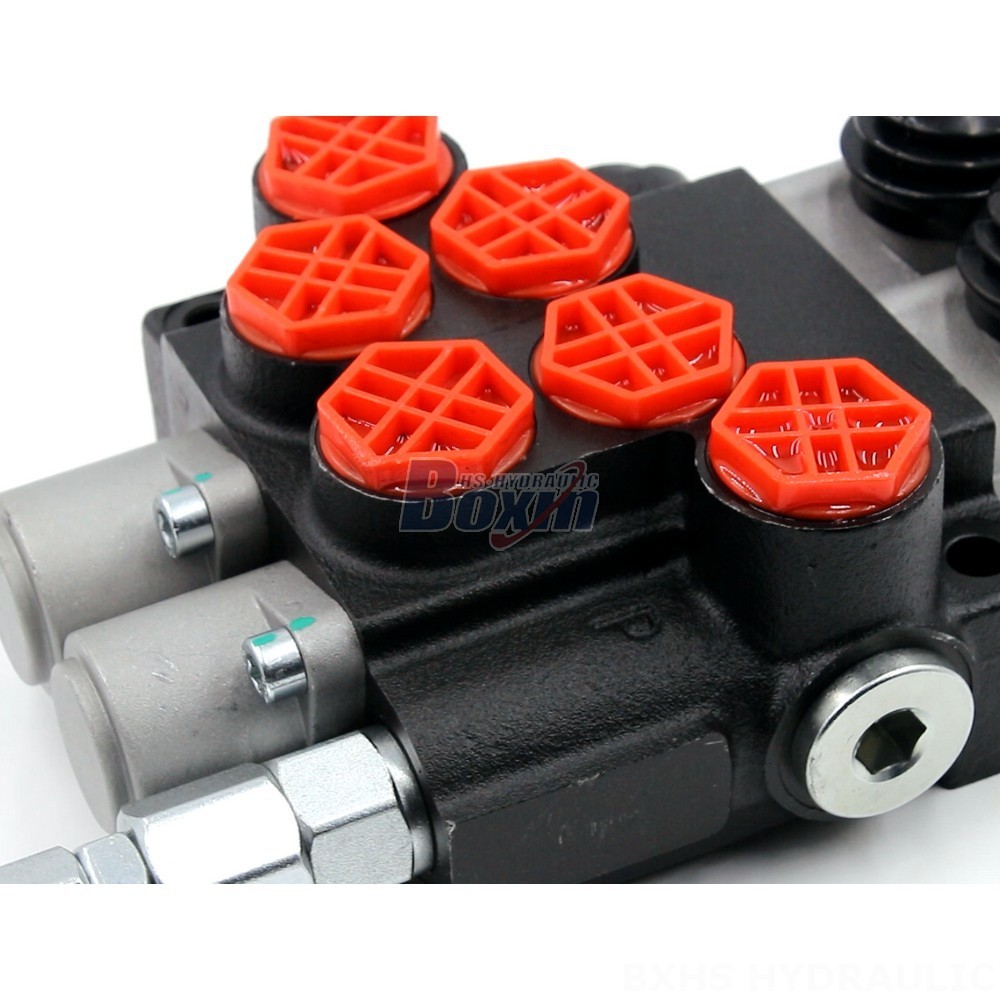

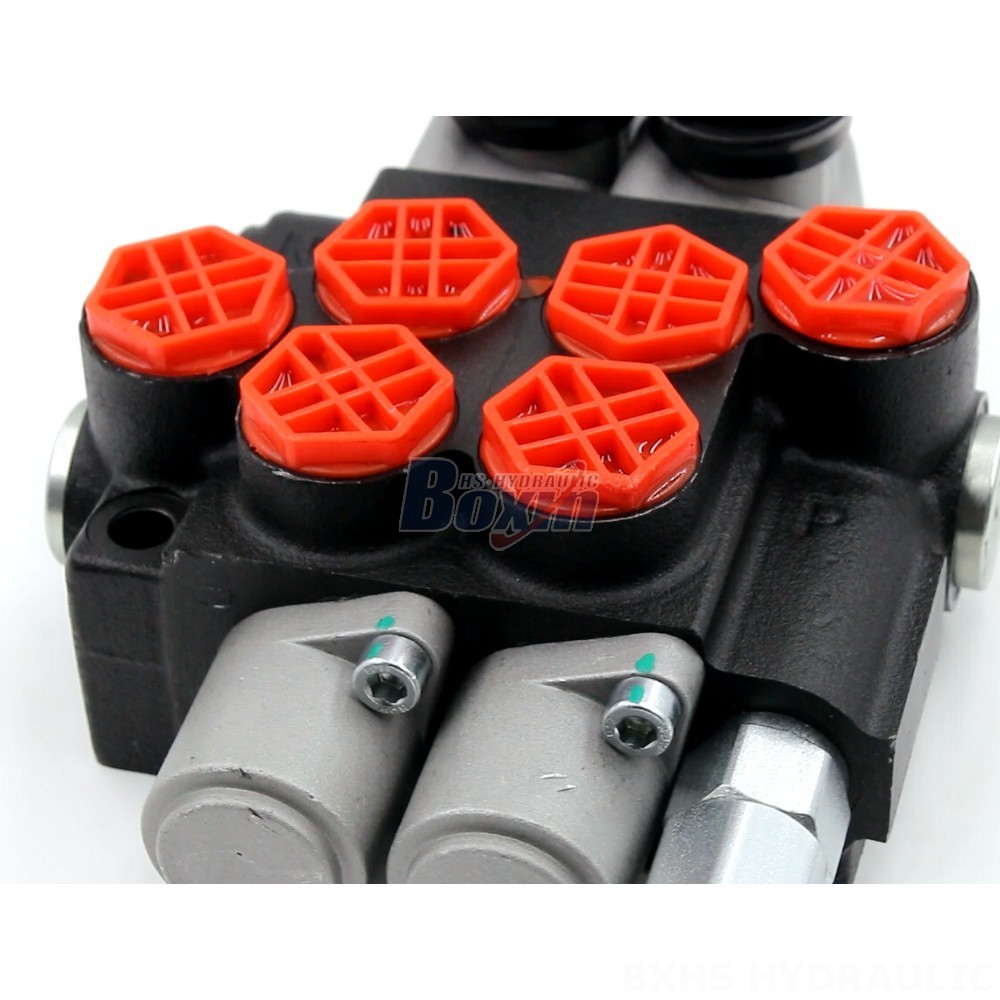

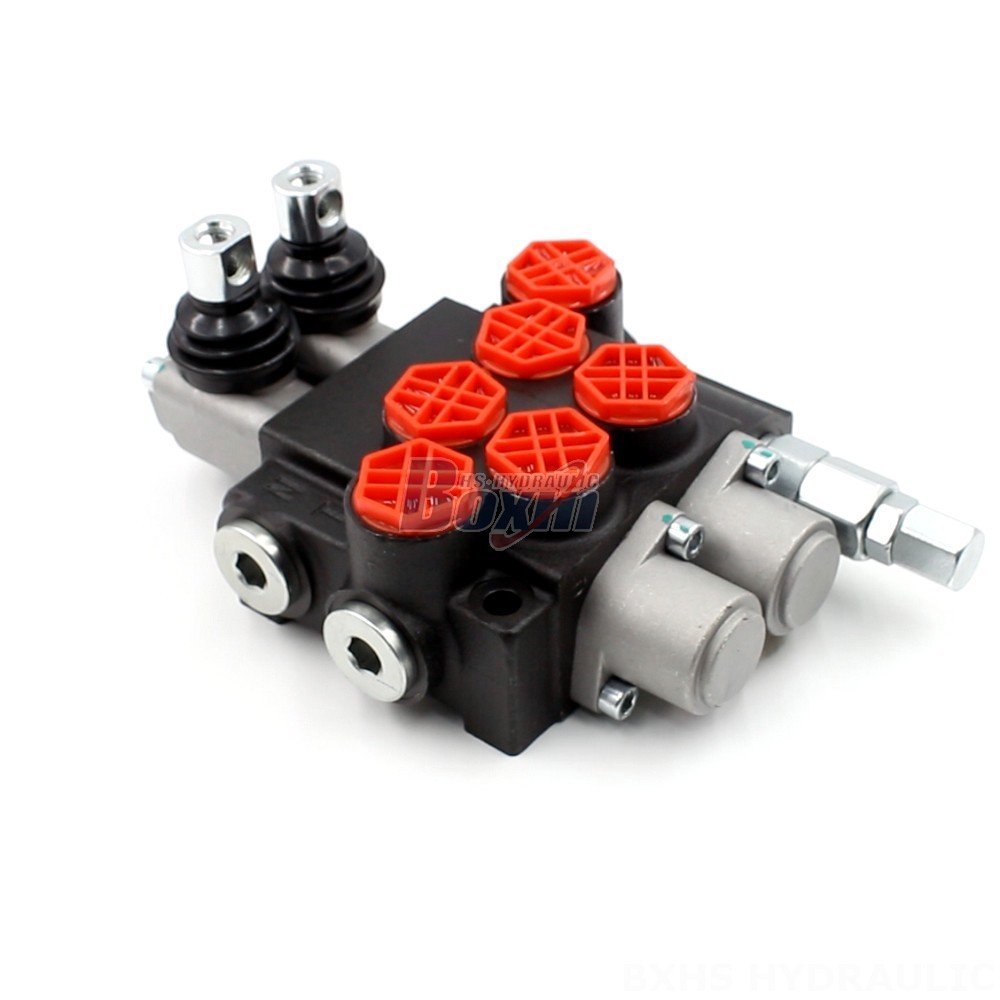

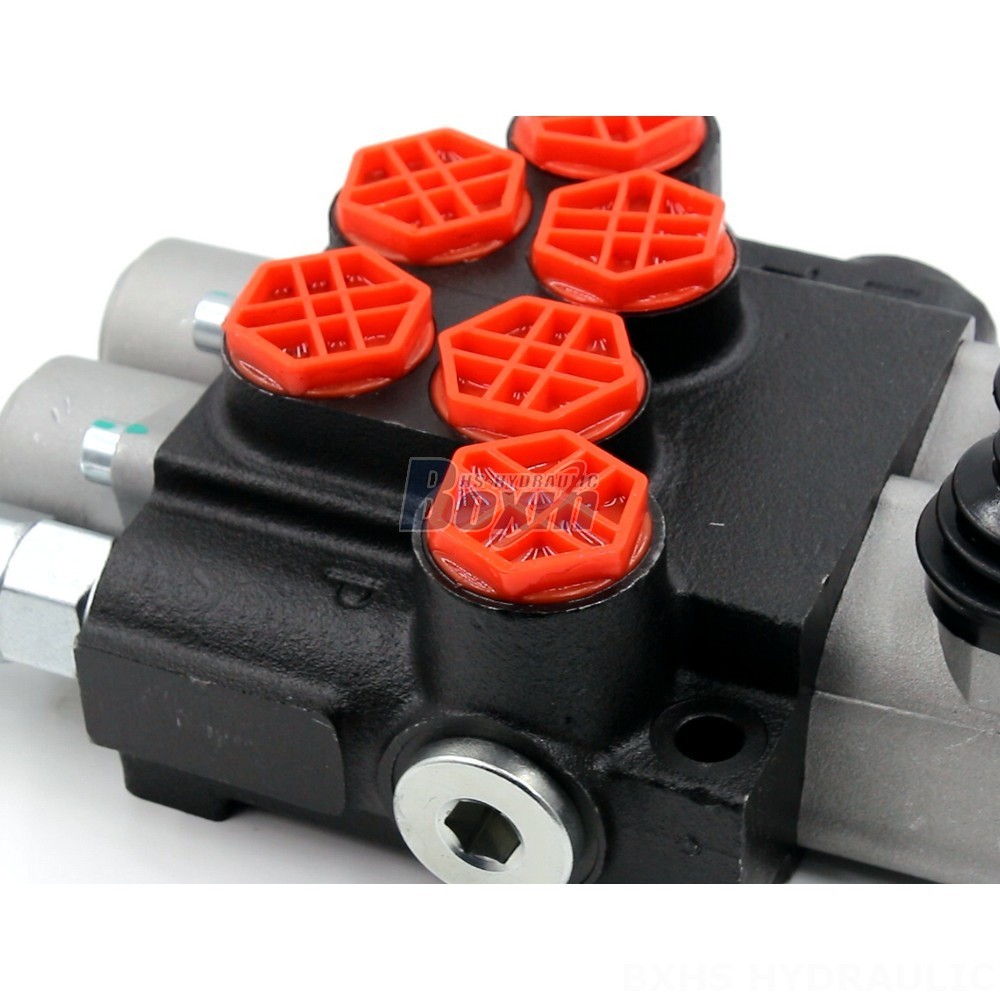

The P40-G12 Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
**Key Features:**
* Manual control for precise and responsive operation
* 2 spool design for versatile flow control
* Monoblock construction for compact and leak-free performance
* Rated flow of 40 L/min for efficient system operation
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for reliable operation in harsh environments
**Applications:**
The P40-G12 Manual 2 Spool Monoblock Directional Valve is widely used in hydraulic systems of various types of heavy equipment and machinery, including:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
* Backhoe loaders
* Dumpers
* Face drill rigs
* Concrete boom pumps
* Pave rollers
* Rotary drilling
* Crushers - stone cutters
