This is a high-quality hydraulic solenoid diverter valve from a reputable factory. It is designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This valve is available at factory wholesale prices, making it an attractive option for buyers seeking cost-effective solutions.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

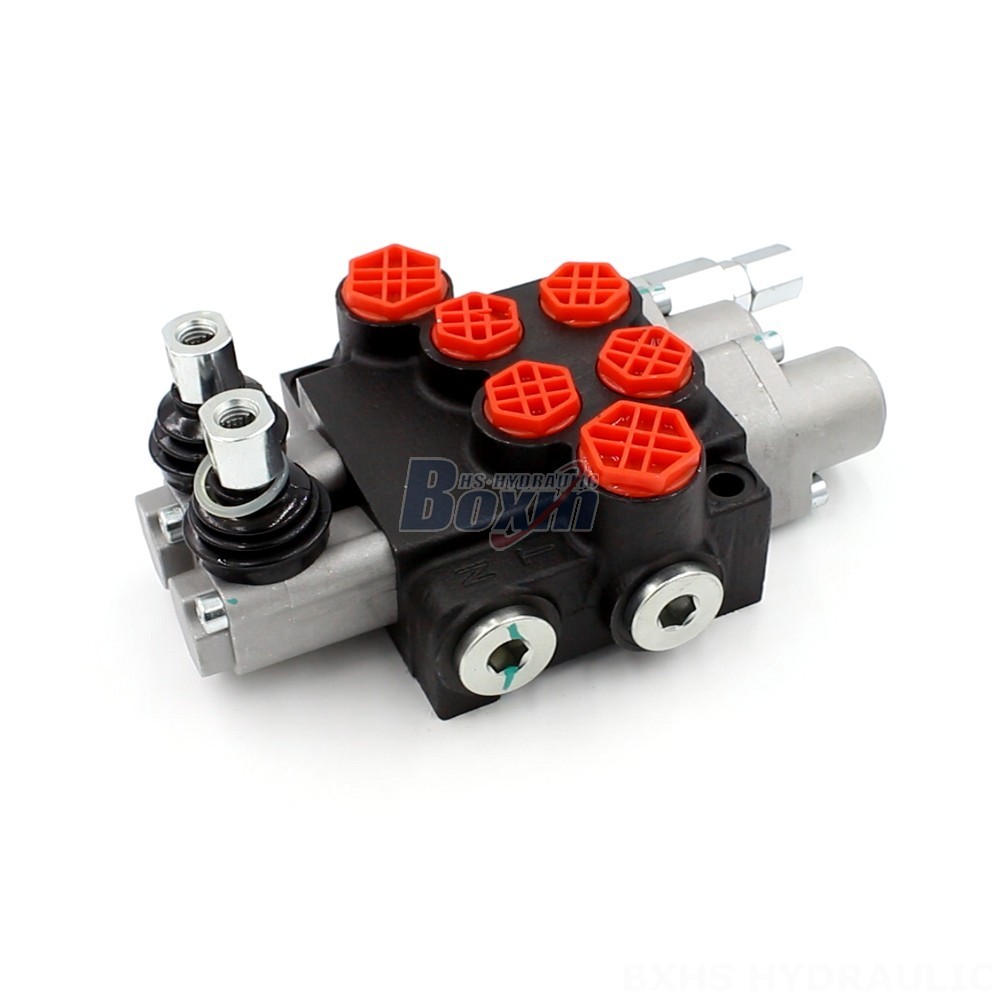

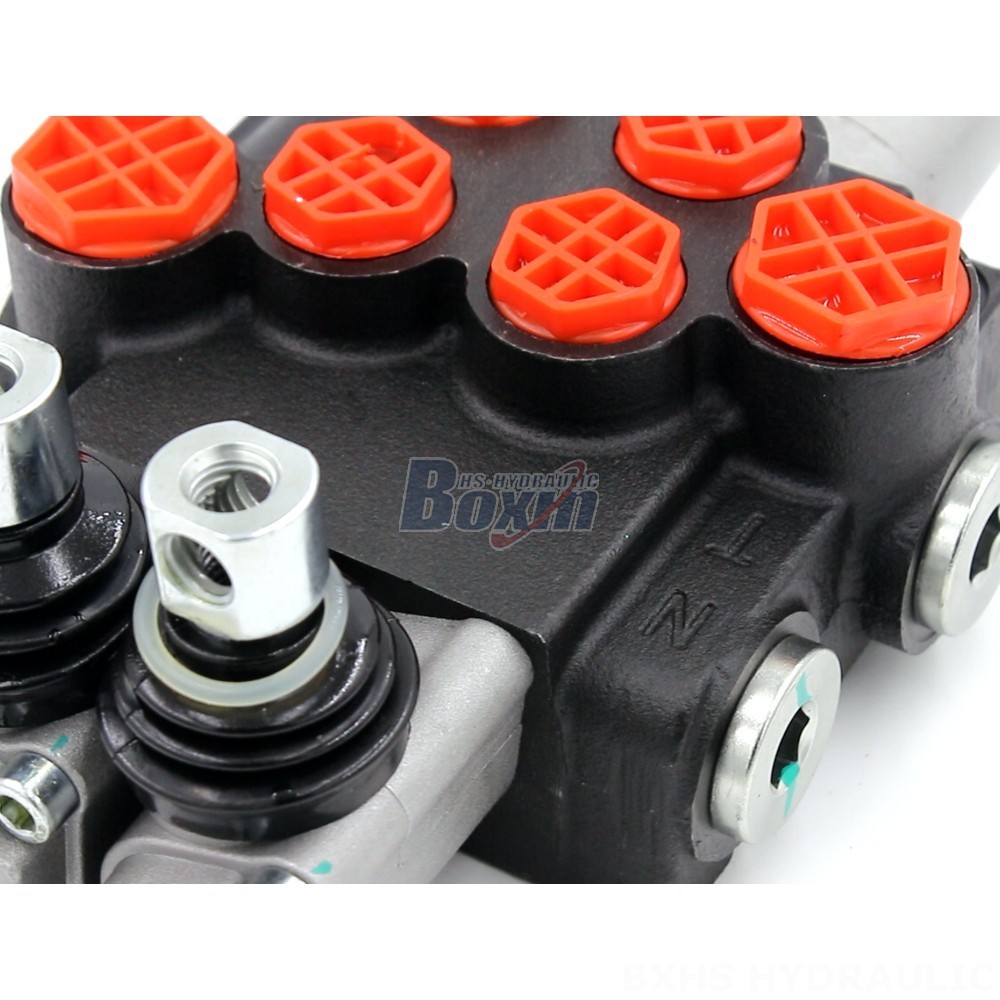

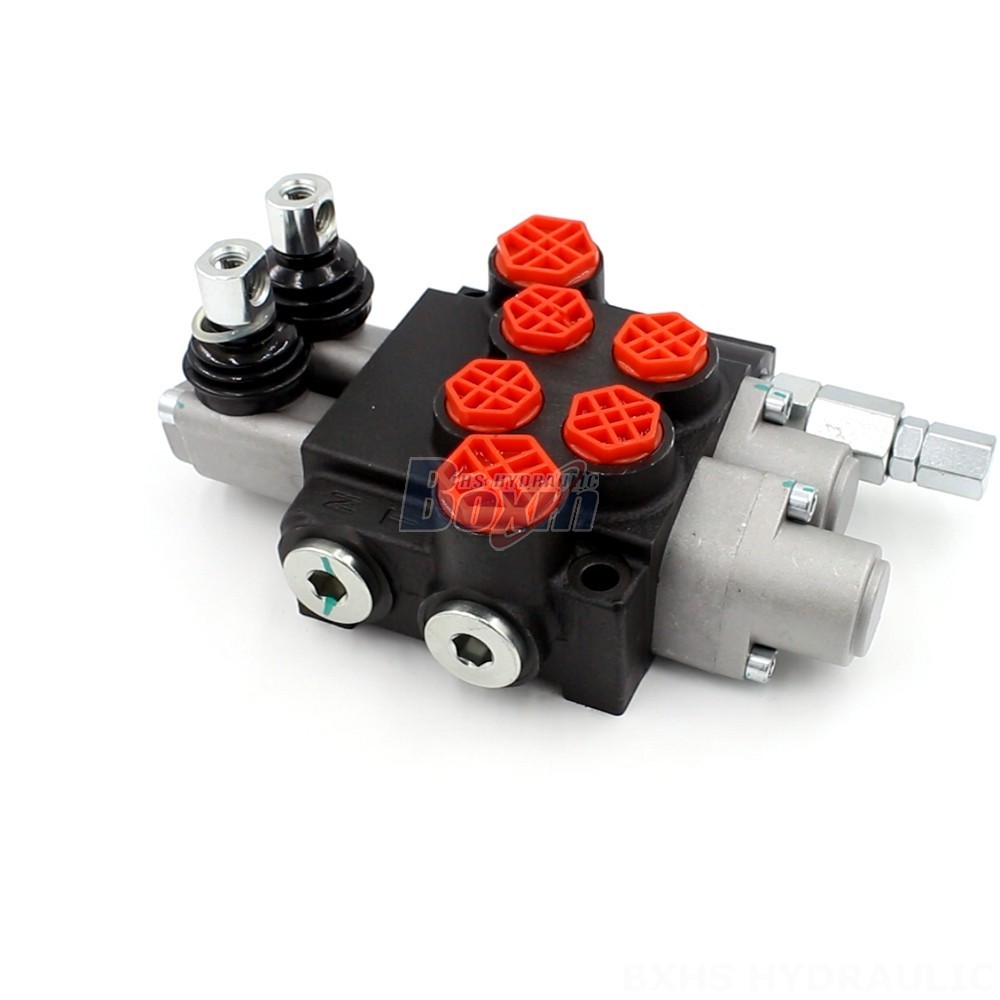

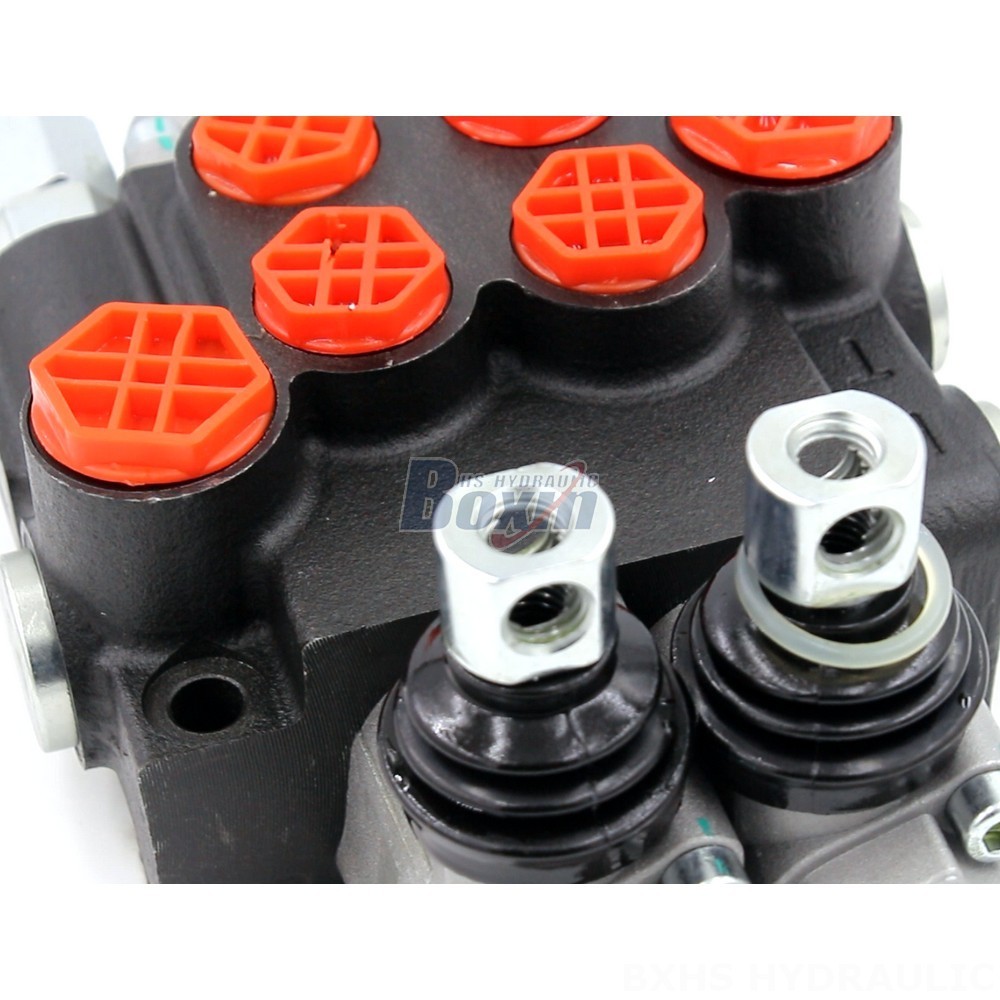

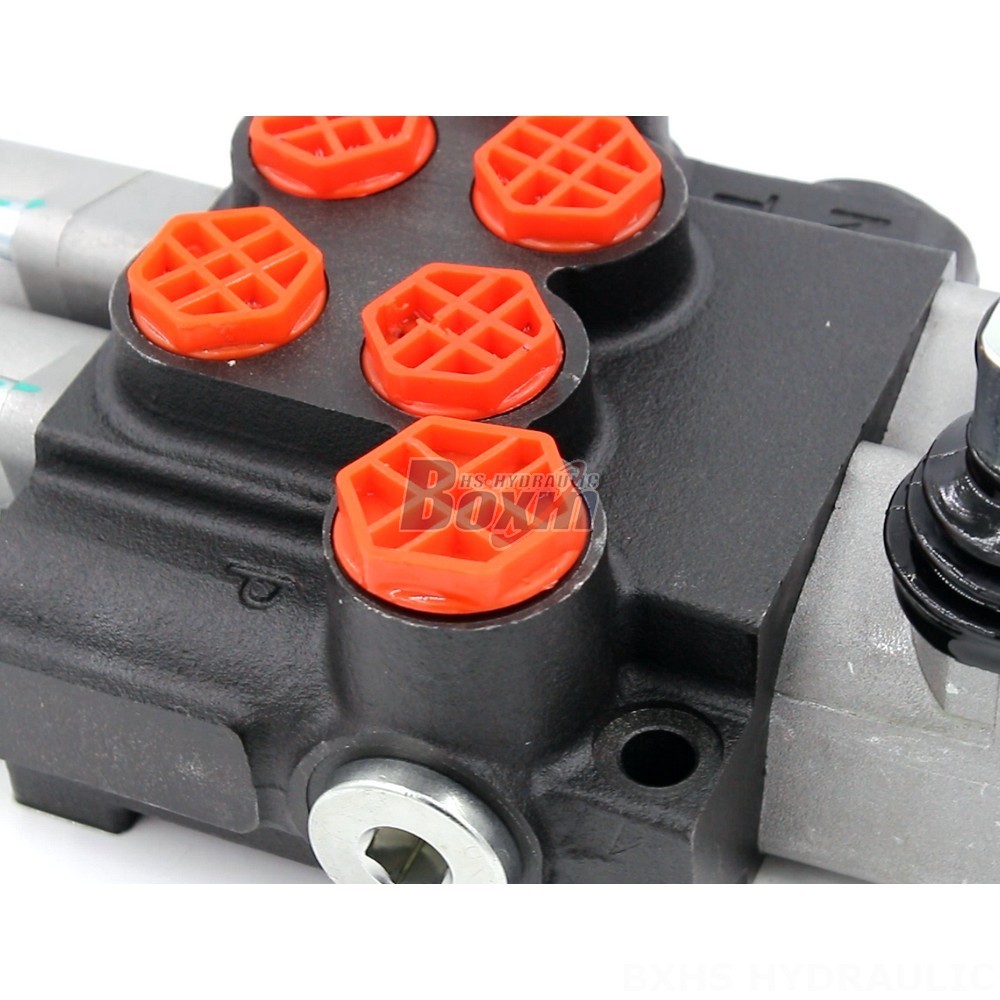

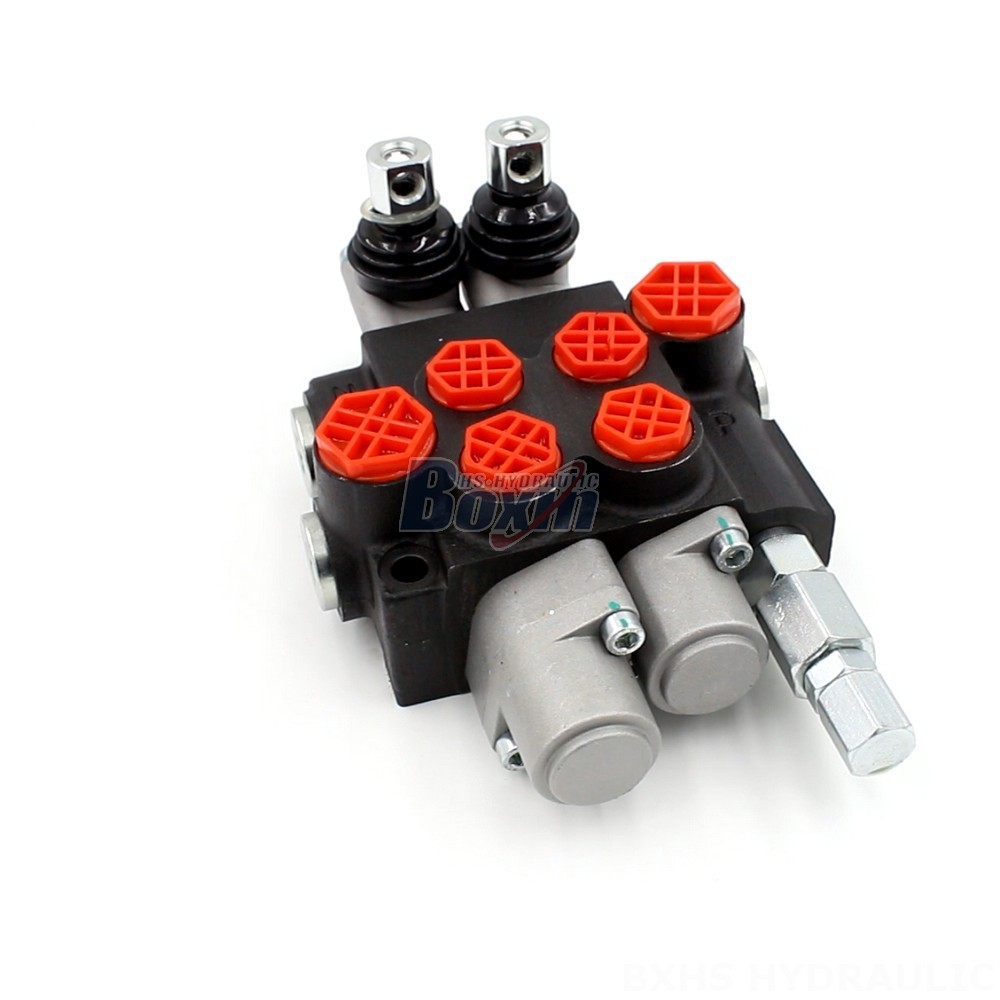

This Hydraulic Solenoid Selector Diverter Valve (P40-G12-G38-OT-QTW) is a 2-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It features a 2-spool design and is suitable for applications requiring manual control. This valve is specifically designed for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. As a manufacturer, we offer factory wholesale prices on this product, allowing you to purchase directly from the source and save on costs. We also provide OEM, ODM, and customized services to meet your specific requirements.
