P40-G12-G38-OT-QTW Hydraulic Directional Valve is a 2-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for applications in material handling, construction and earth moving, agriculture, and industrial vehicles. The valve can be controlled manually or by joystick and has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. It is part of the P40 Series and is suitable for use in various models of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

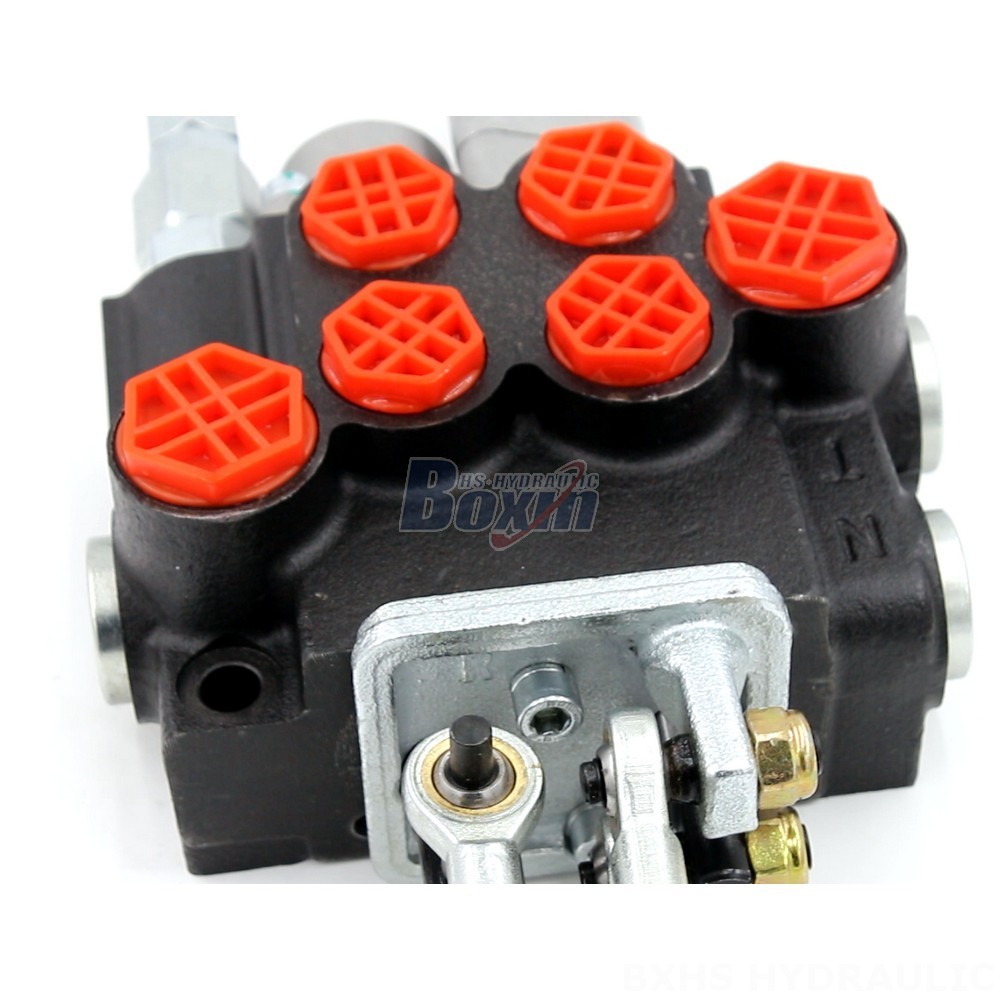

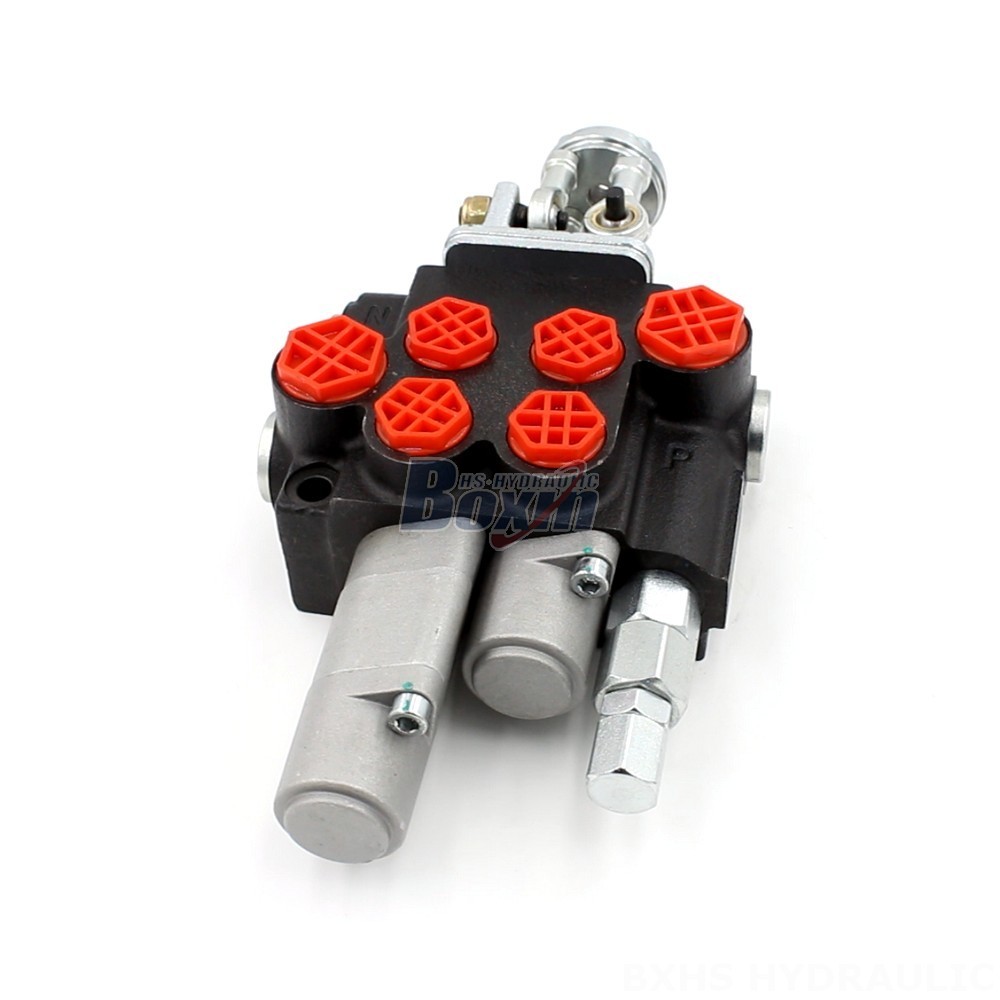

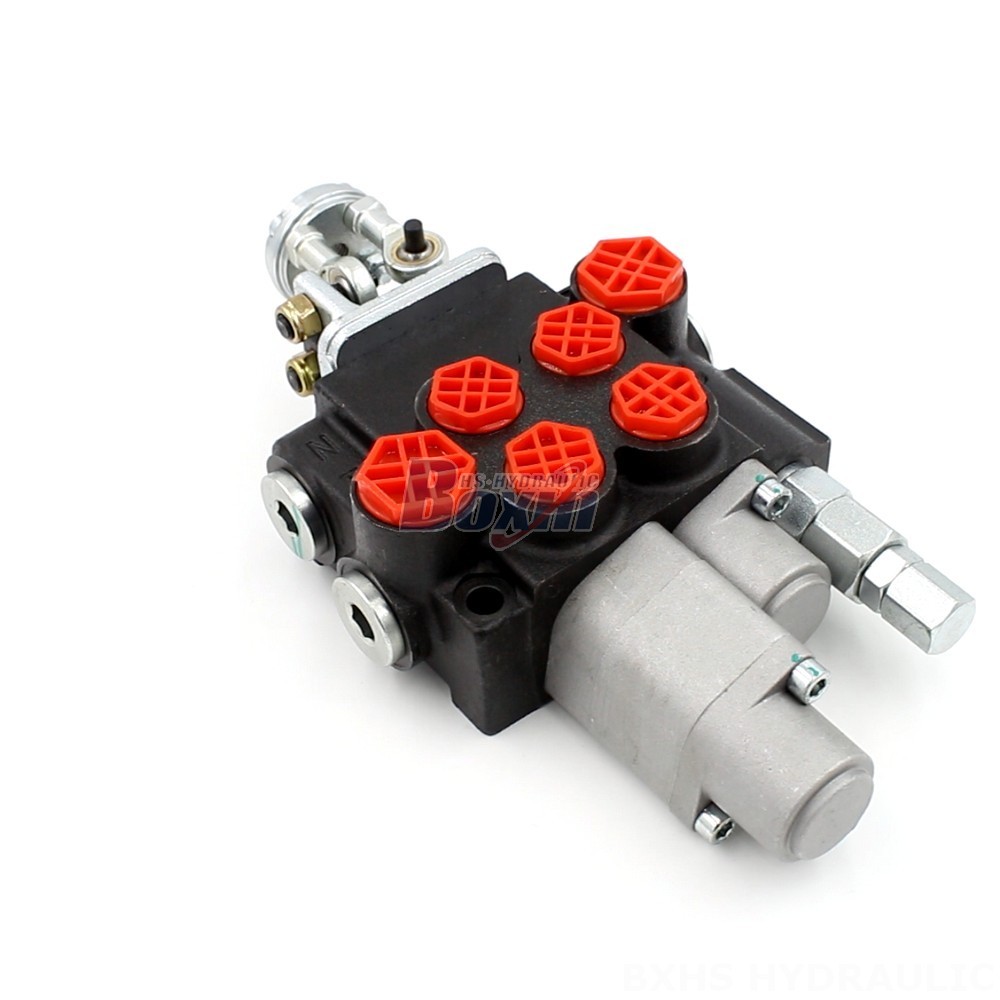

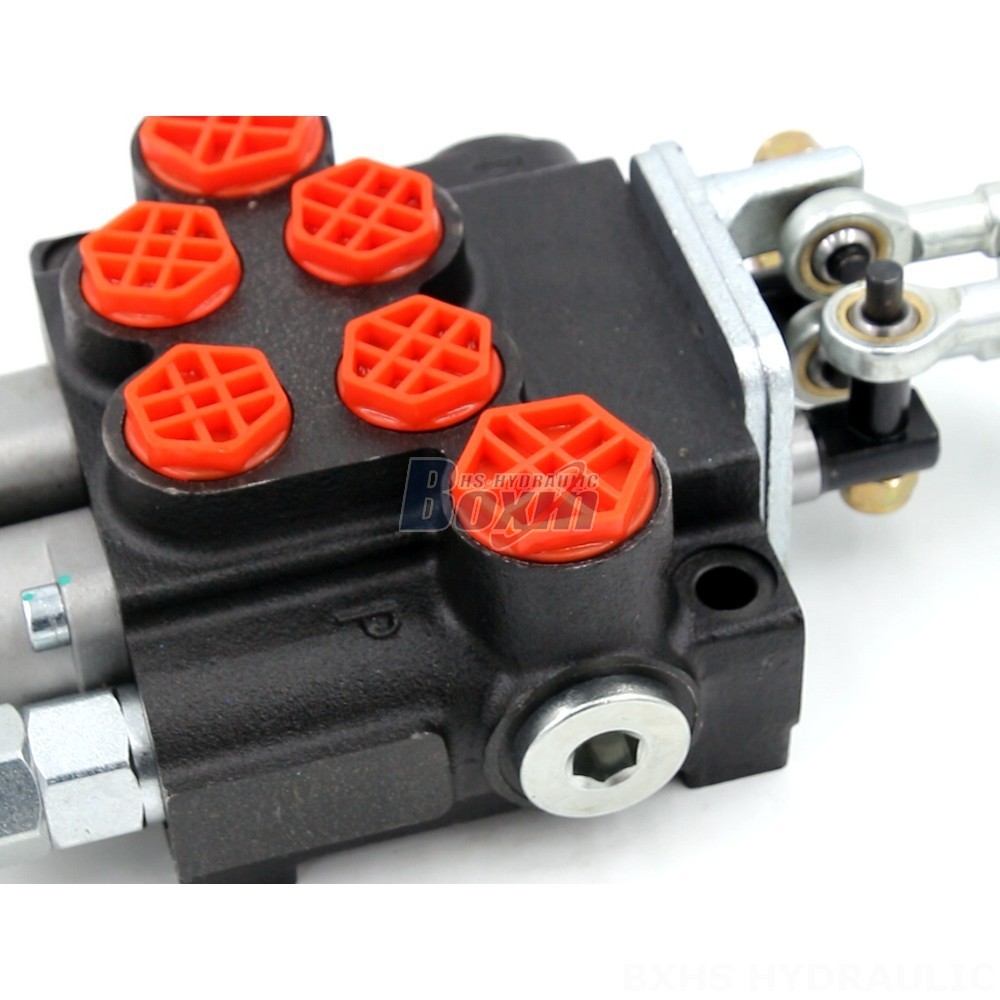

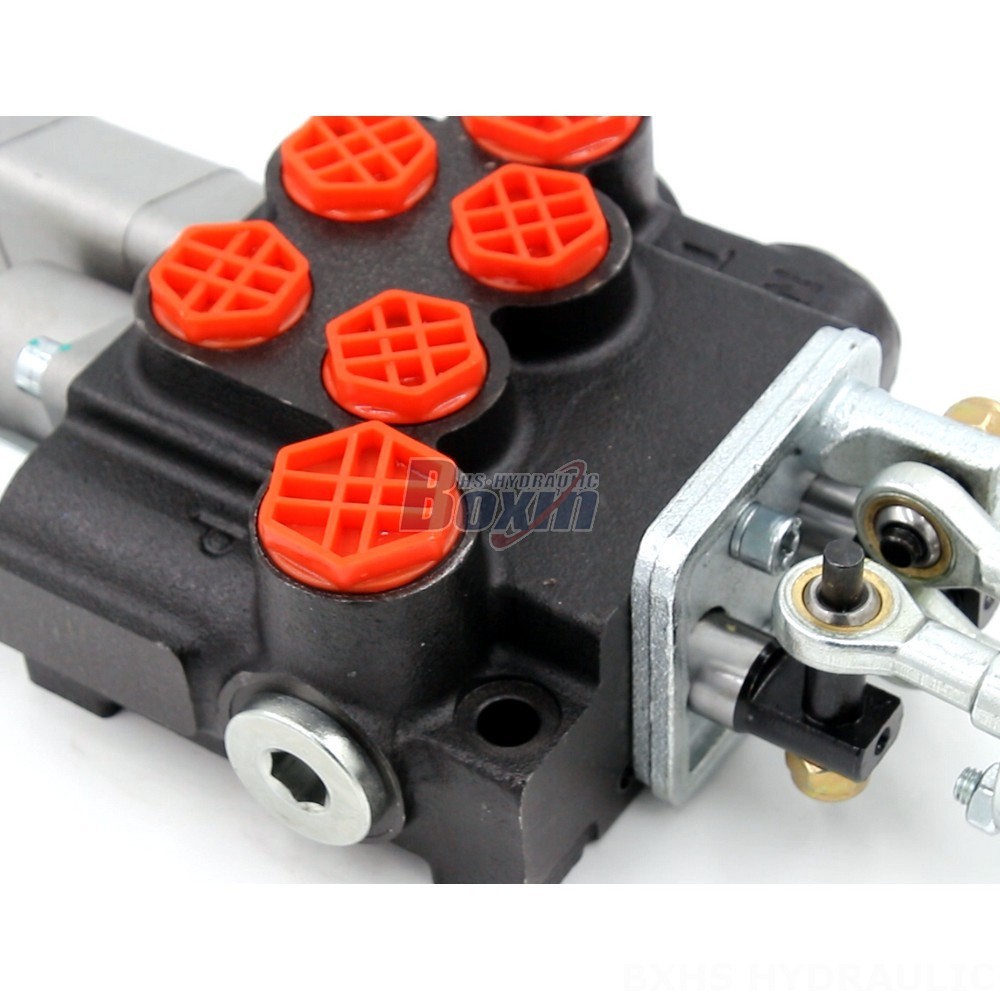

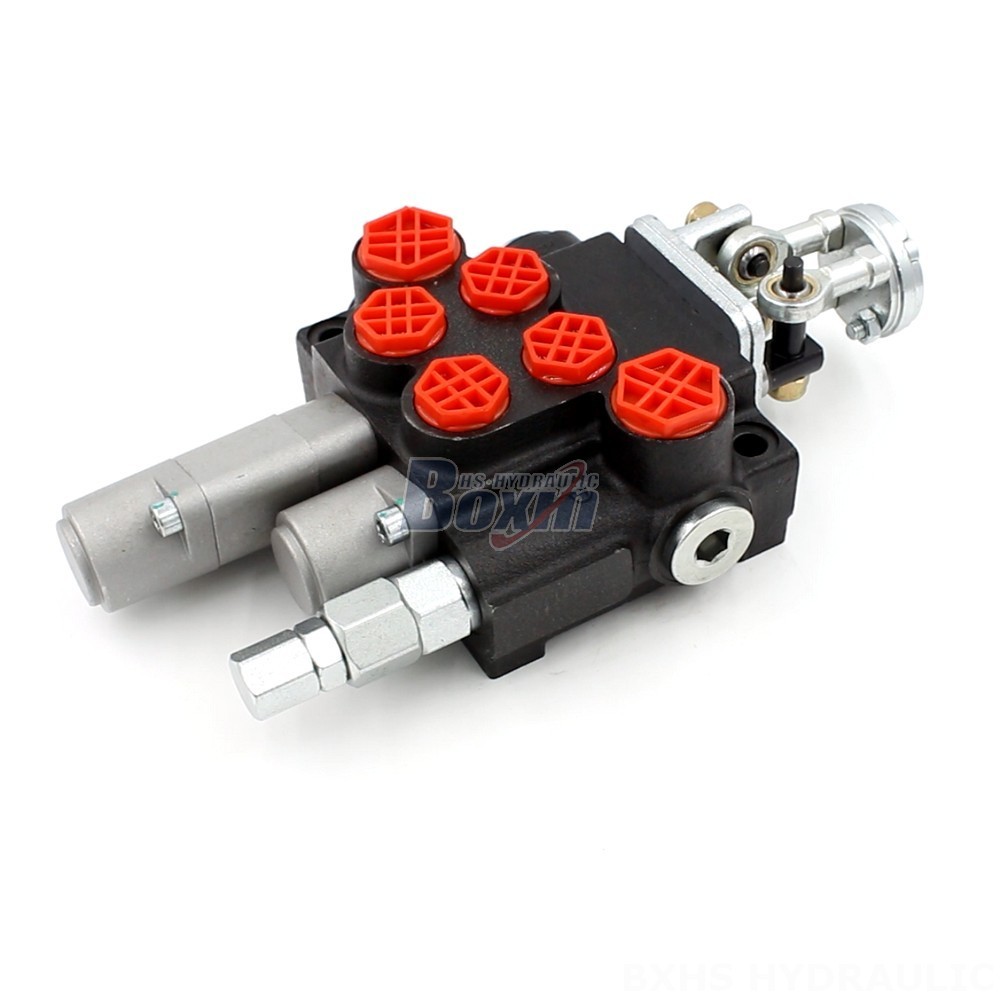

**P40-G12-G38-OT-QTW Hydraulic Directional Valve**
**Manufacturer: [Your Company Name]**
**Factory Direct Supply & Global Distribution**
The P40-G12-G38-OT-QTW Hydraulic Directional Valve is a high-quality product that is manufactured to meet the highest standards. It is designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
**Features:**
* 2-section, monoblock valve
* Rated flow: 40 L/min (10.5 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* 2 spool
* Manual and joystick control
* P40 Series
**Applications:**
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
**Benefits:**
* High quality and durability
* Factory direct supply and wholesale prices
* Global distribution
* Excellent customer service
**Contact us today to learn more about the P40-G12-G38-OT-QTW Hydraulic Directional Valve and how it can benefit your business.**
