P40-G12-G38-OT Hydraulic Directional Valve: Factory Direct & Customizable

控制方式:手控

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:24*21*13

Grossweight:6.60 kg

库存: 有货

771 次查看了此产品

P40-G12-G38-OT Hydraulic Directional Valve: Factory Direct & Customizable

P40-G12-G38-OT Hydraulic Directional Valve: Factory Direct & Customizable

P40-G12-G38-OT Hydraulic Directional Valve: Factory Direct & Customizable drawing image

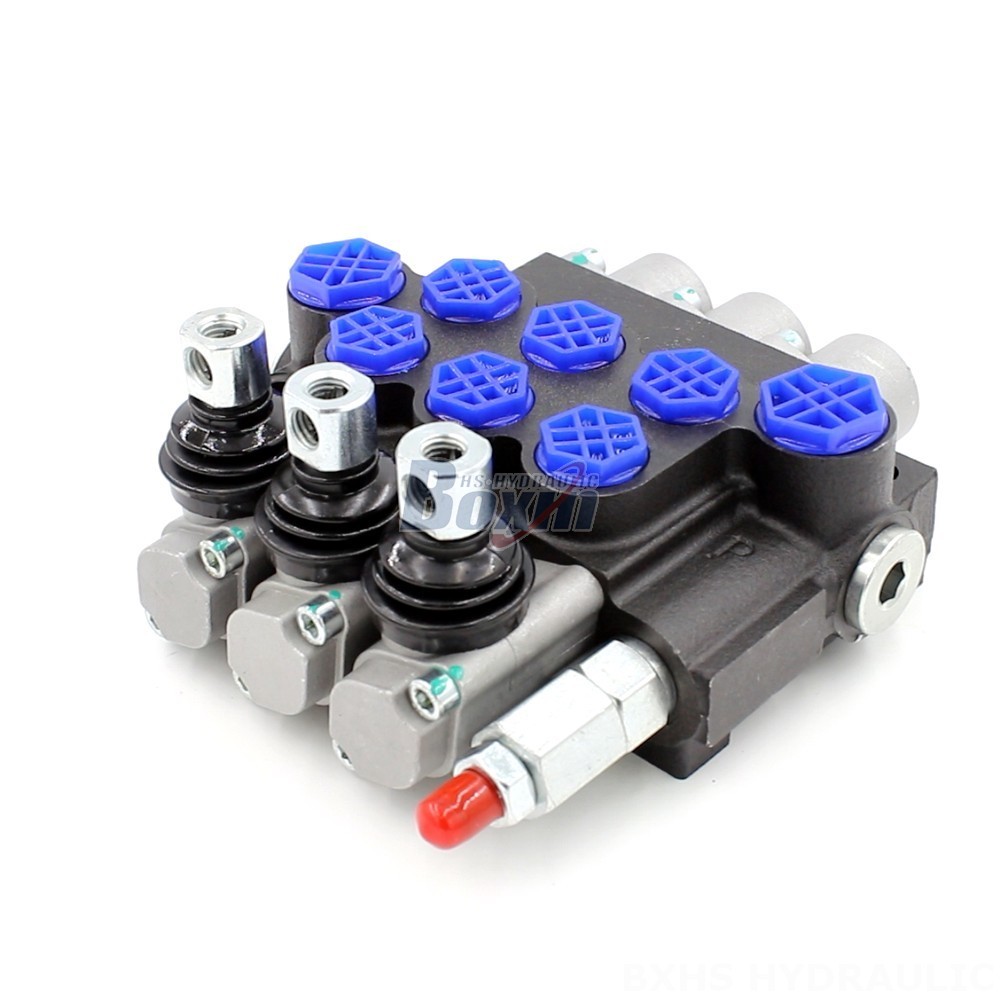

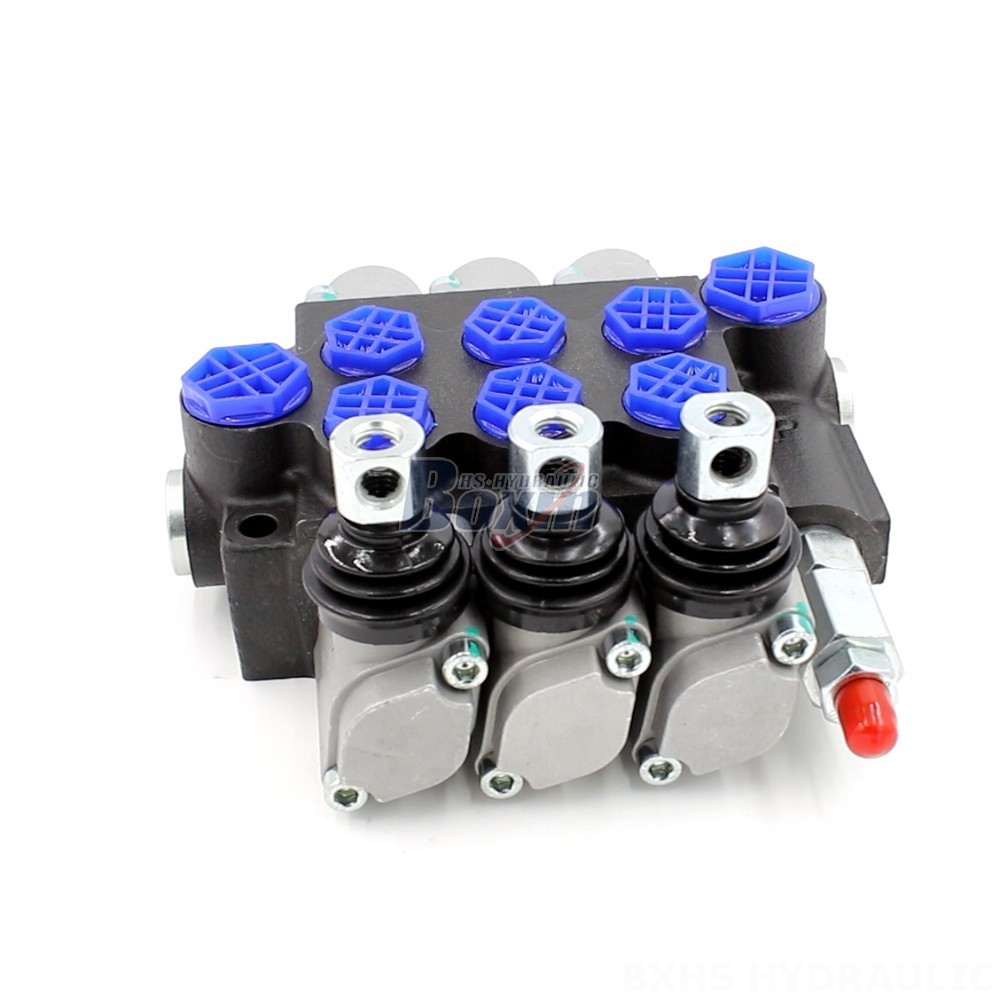

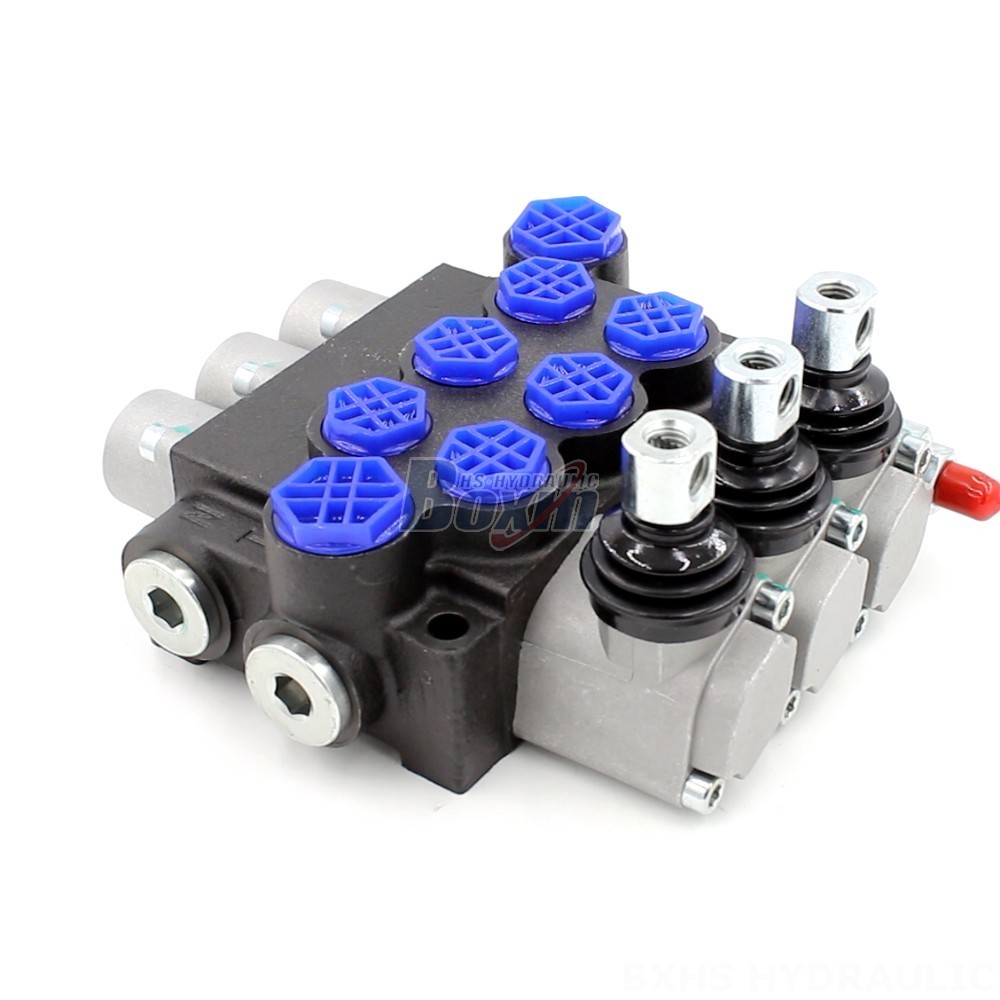

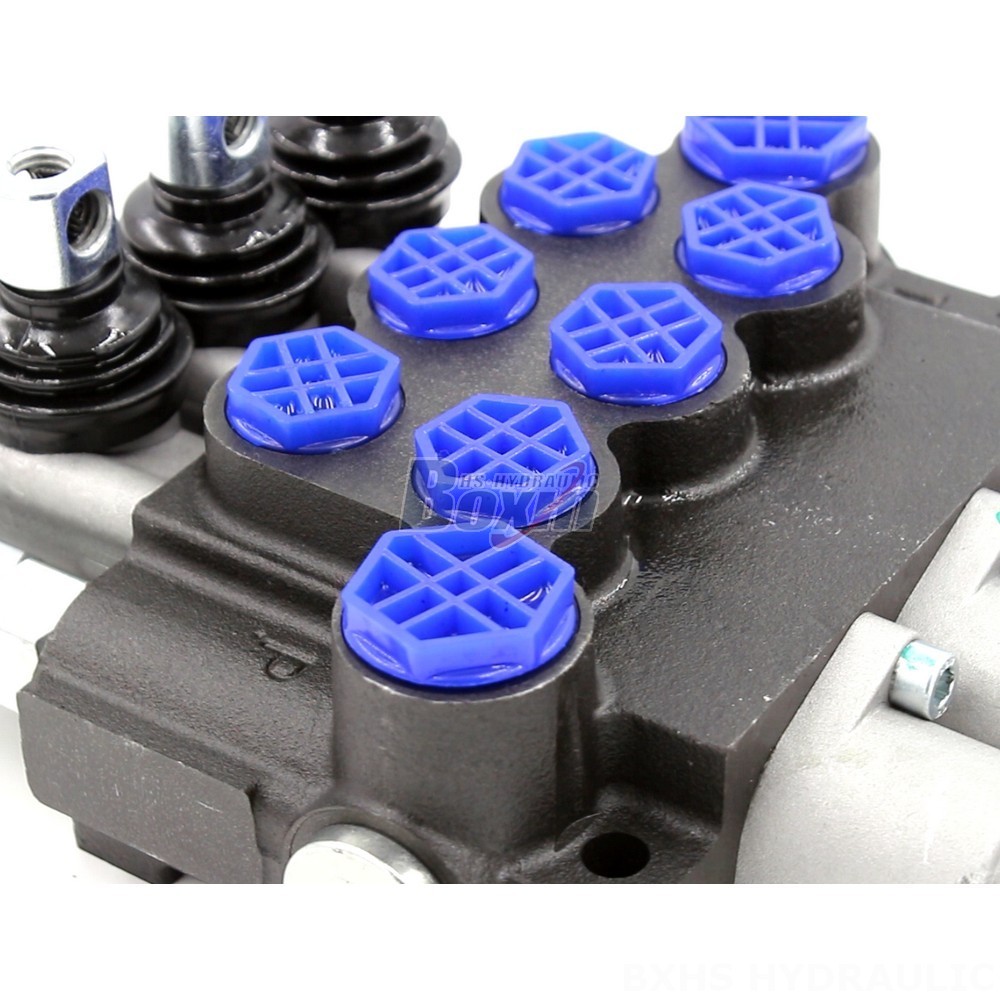

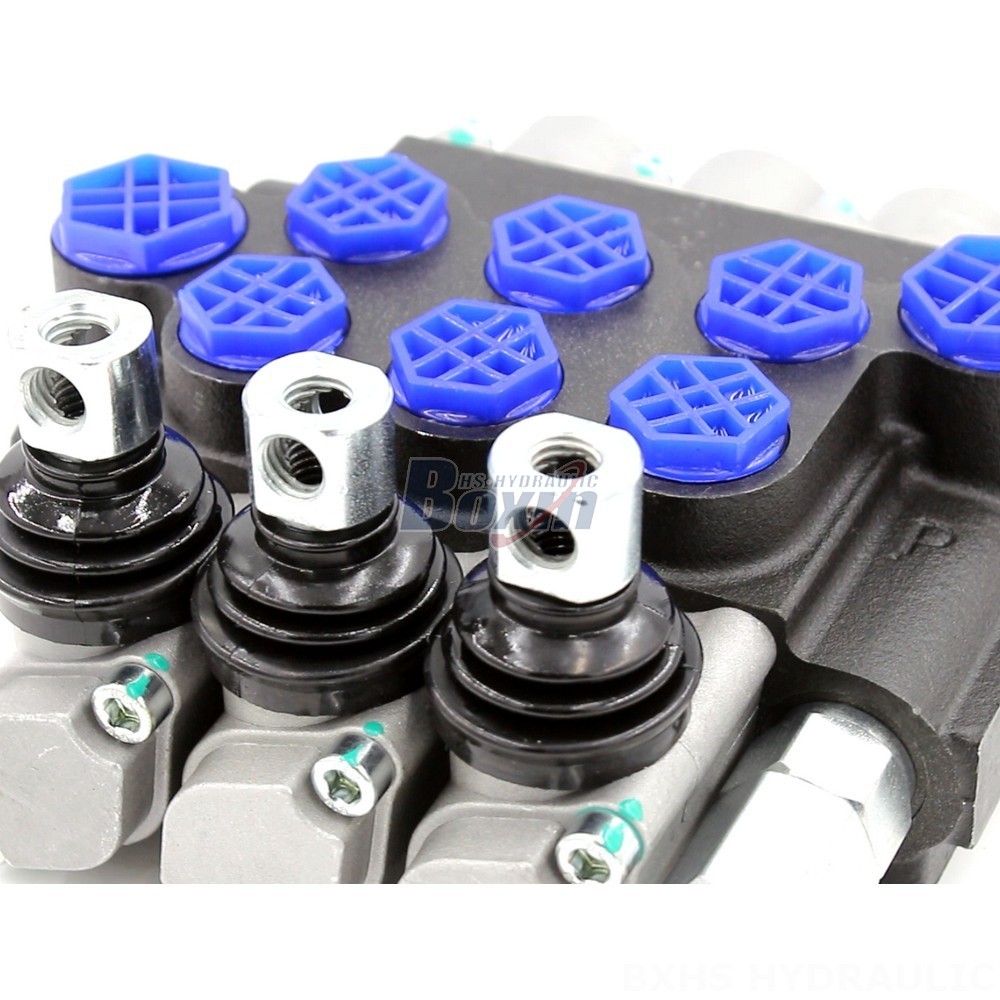

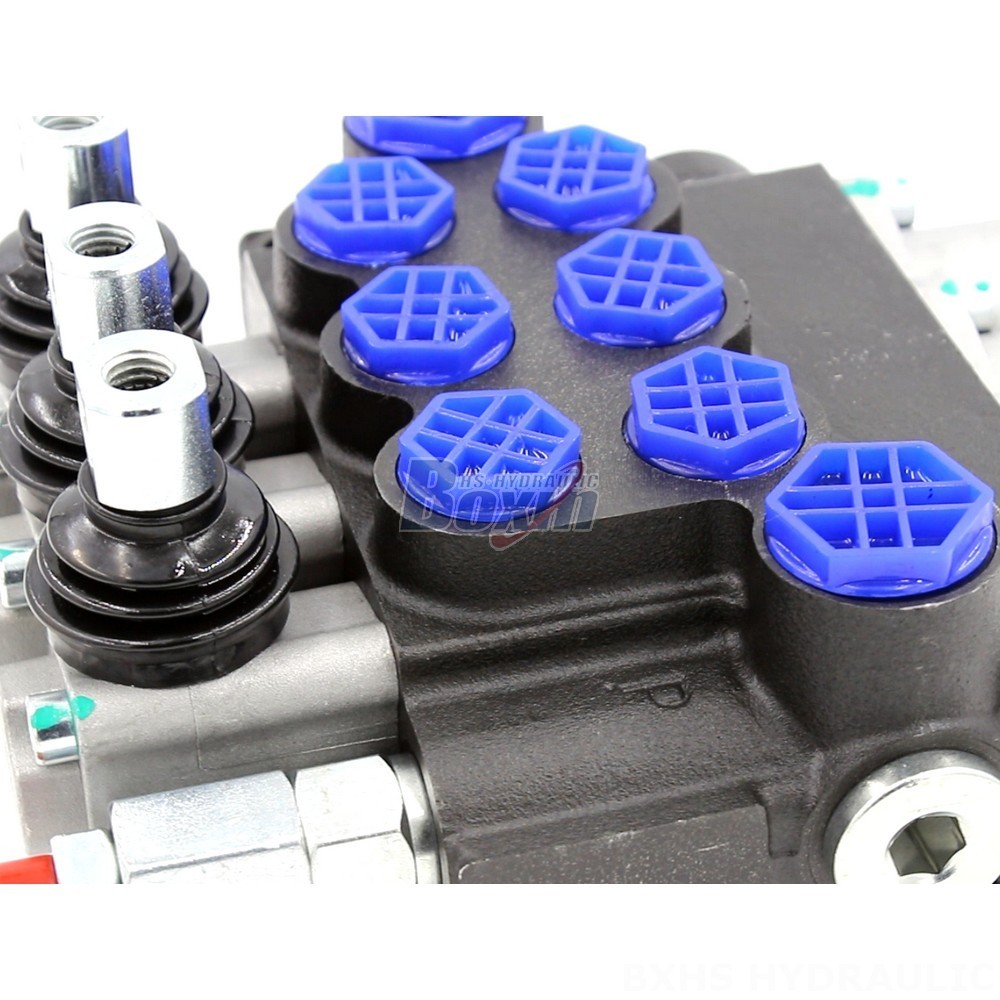

The P40-G12-G38-OT Hydraulic Directional Valve is a high-performance directional control valve designed for use in a wide range of hydraulic applications. With a rated flow rate of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40-G12-G38-OT Hydraulic Directional Valve features a robust monoblock construction for enhanced durability. Its manual control mechanism provides precise and responsive operation, while its three-section design allows for independent control of multiple hydraulic circuits. The valve's operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C ensure reliable performance in a variety of operating conditions. This valve is part of the P40 Series, known for its high quality and reliability. It is suitable for use in various applications, including telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
