Steering Unit P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

控制方式:手控

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*18*13

Grossweight:5.50 kg

库存: 有货

840 次查看了此产品

Steering Unit P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

Steering Unit P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

Steering Unit P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable drawing image

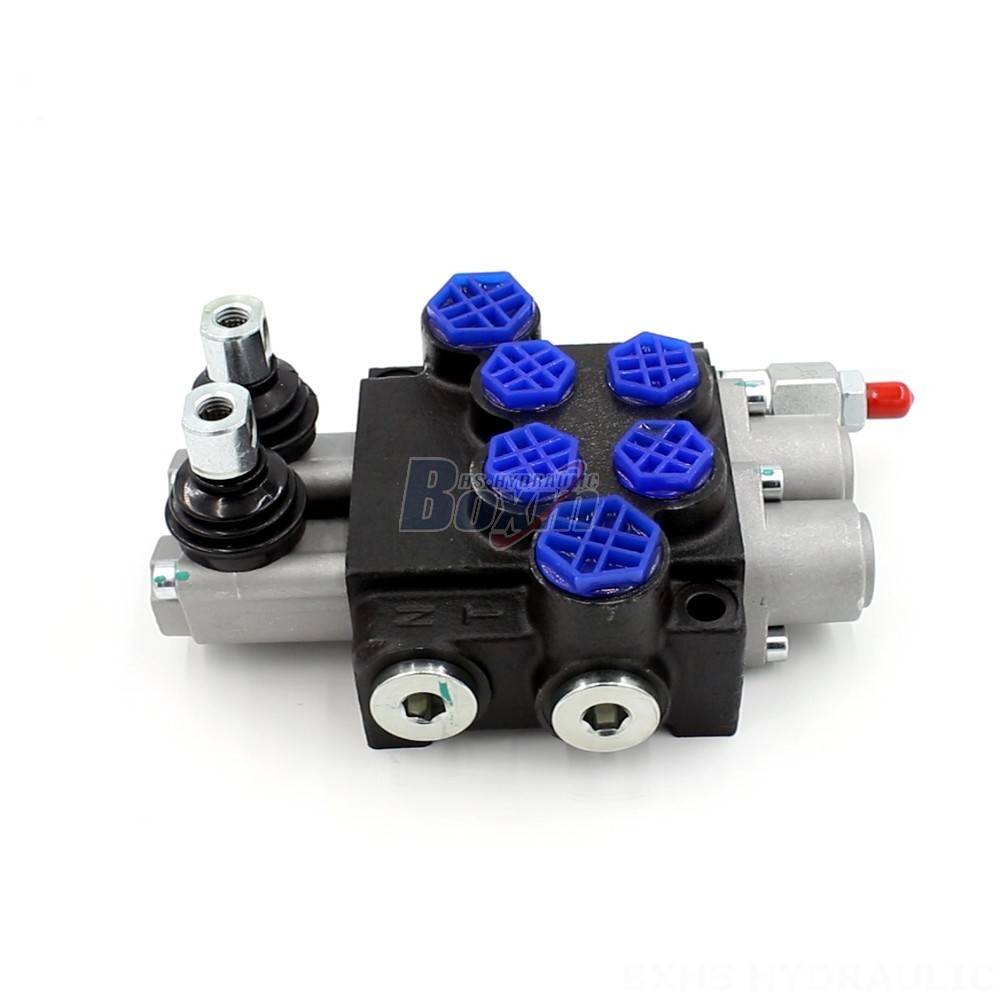

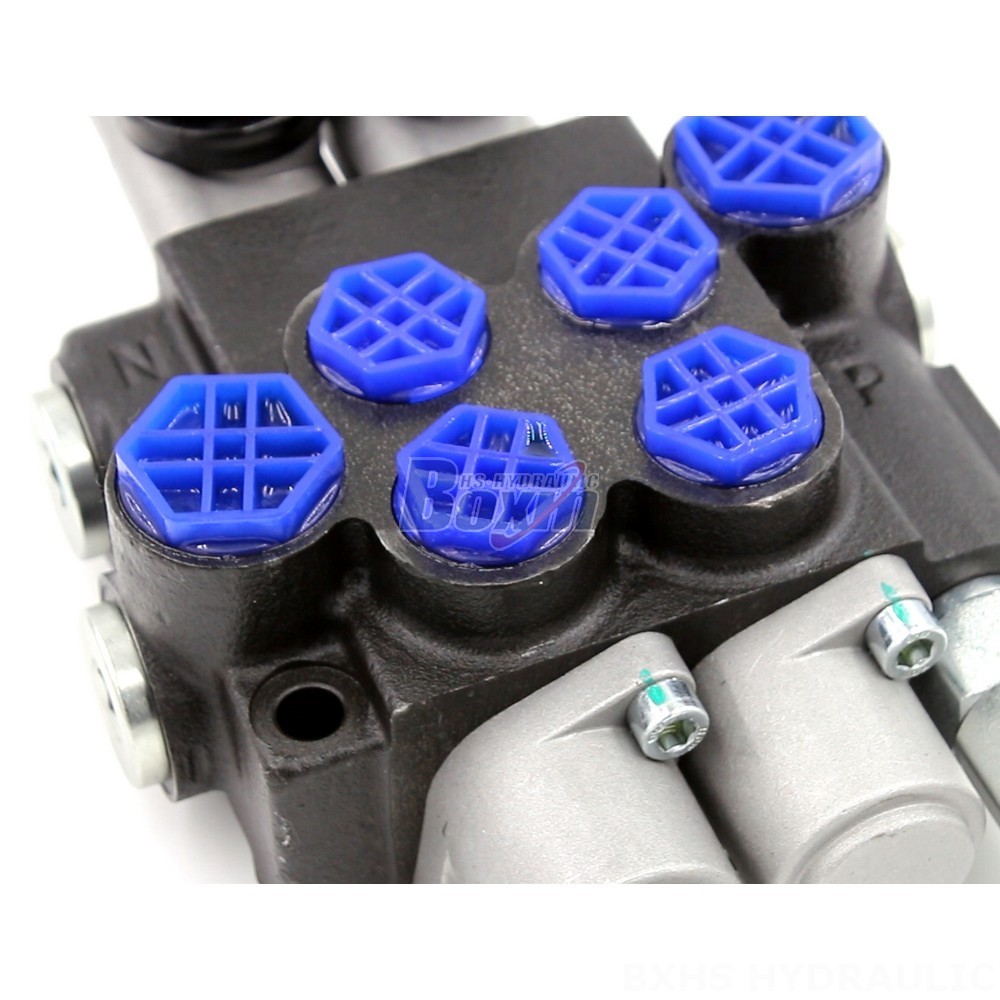

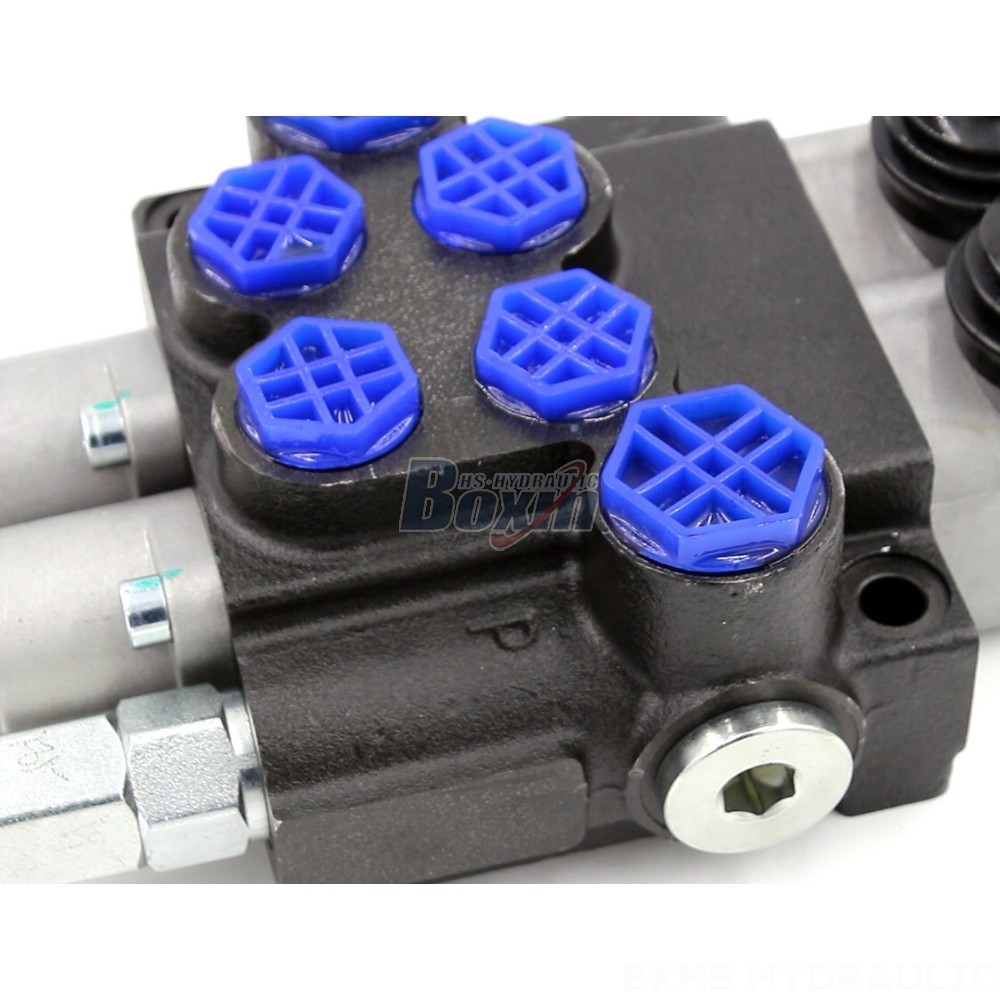

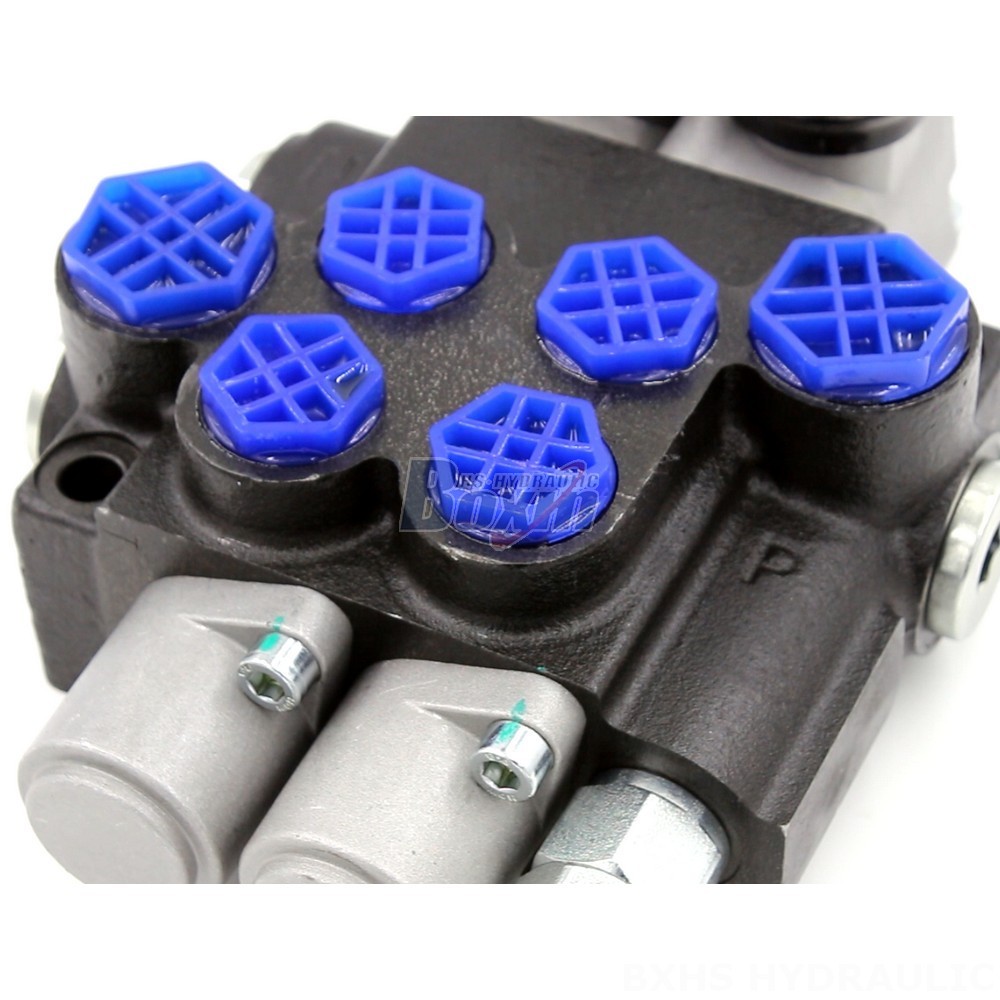

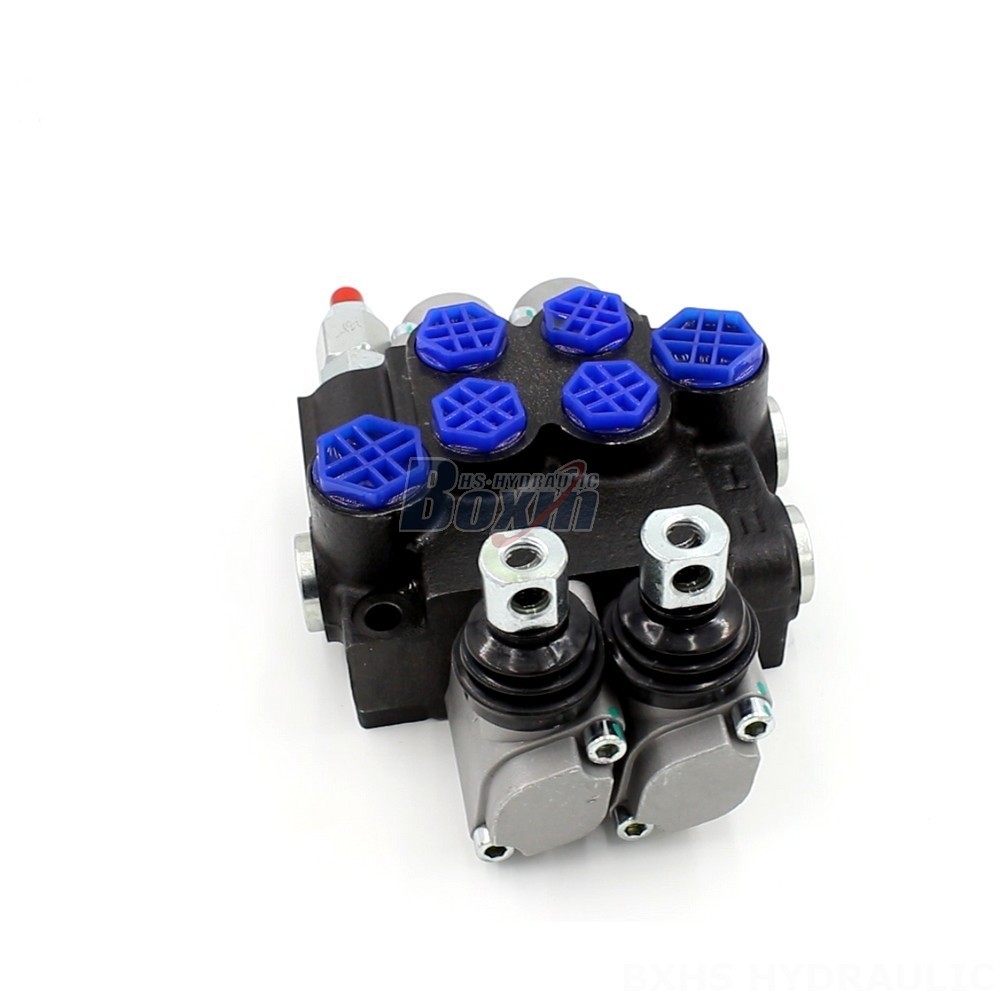

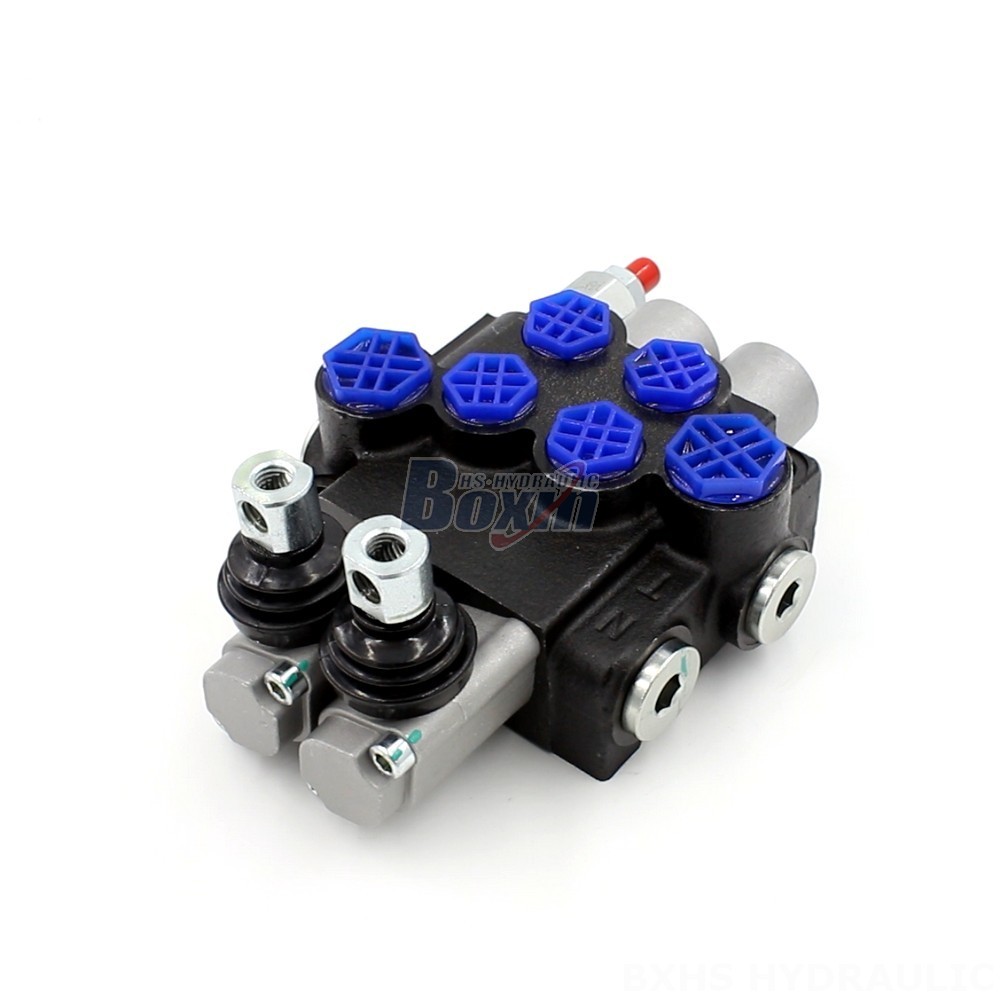

The Steering Unit P40-G12-G38-OT 2-Spool Directional Valve is a robust and reliable hydraulic valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control, a 40 L/min rated flow, and a maximum pressure of 250 bar, making it suitable for demanding operating conditions. Available for factory direct purchase and customization, this valve is perfect for OEM and ODM needs.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40-G12-G38-OT 2-Spool Directional Valve is a high-performance hydraulic component designed for precise steering control in various applications. This 2-section monoblock valve features a manual control method, providing operators with direct control over the steering system. With a rated flow of 40 L/min and a maximum pressure of 250 bar, the valve is capable of handling demanding workloads. Its wide operating viscosity range of 15 - 75 mm²/s ensures optimal performance across different operating temperatures. The valve's durable construction and robust design allow it to withstand harsh environments and demanding operating conditions. The P40 Series valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and other industrial vehicles. This versatile valve is available for factory direct purchase and offers customization options to meet specific requirements. As a manufacturer, we provide OEM and ODM services, offering wholesale pricing for bulk orders. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
