The P40-G12-G38 Monoblock Directional Valve is a versatile and high-performing component designed for demanding hydraulic applications in various industries, including material handling, construction, earth moving, agriculture, and industrial vehicles. It offers precise control with its manual operation, ensuring reliable and efficient system performance.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

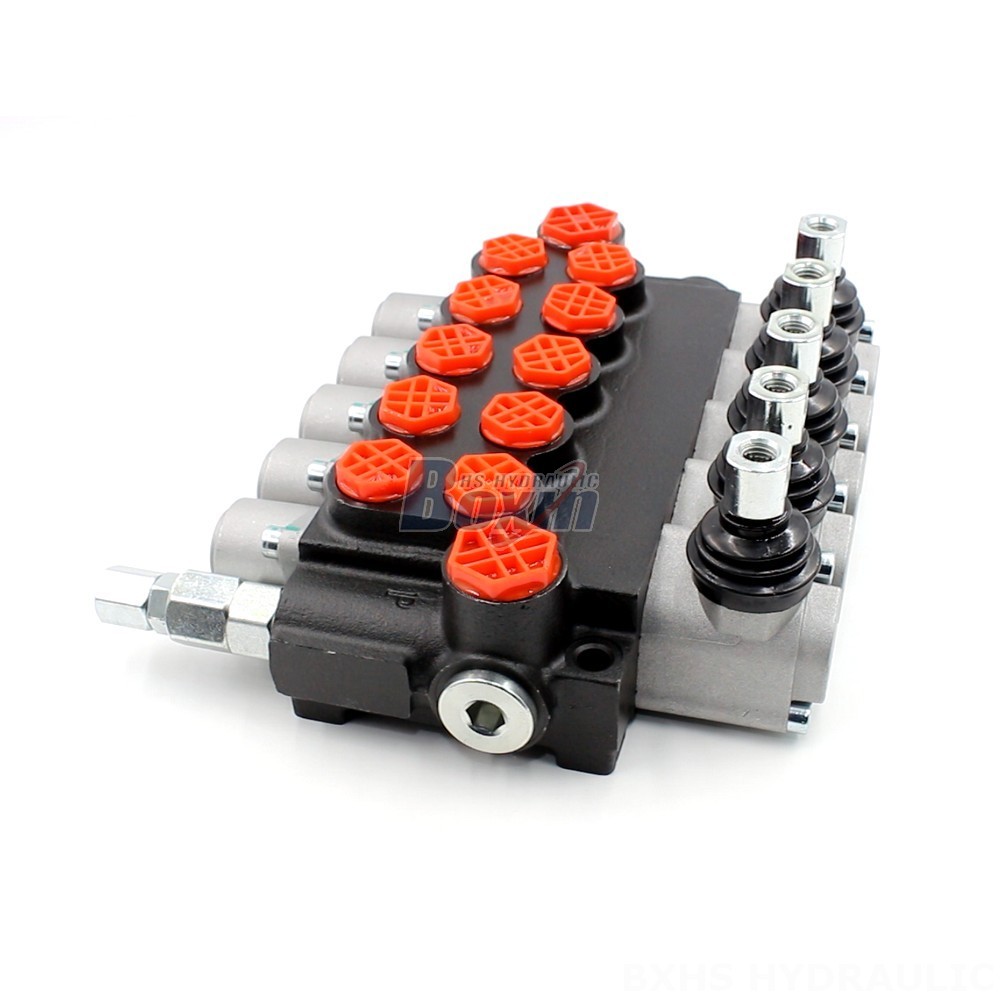

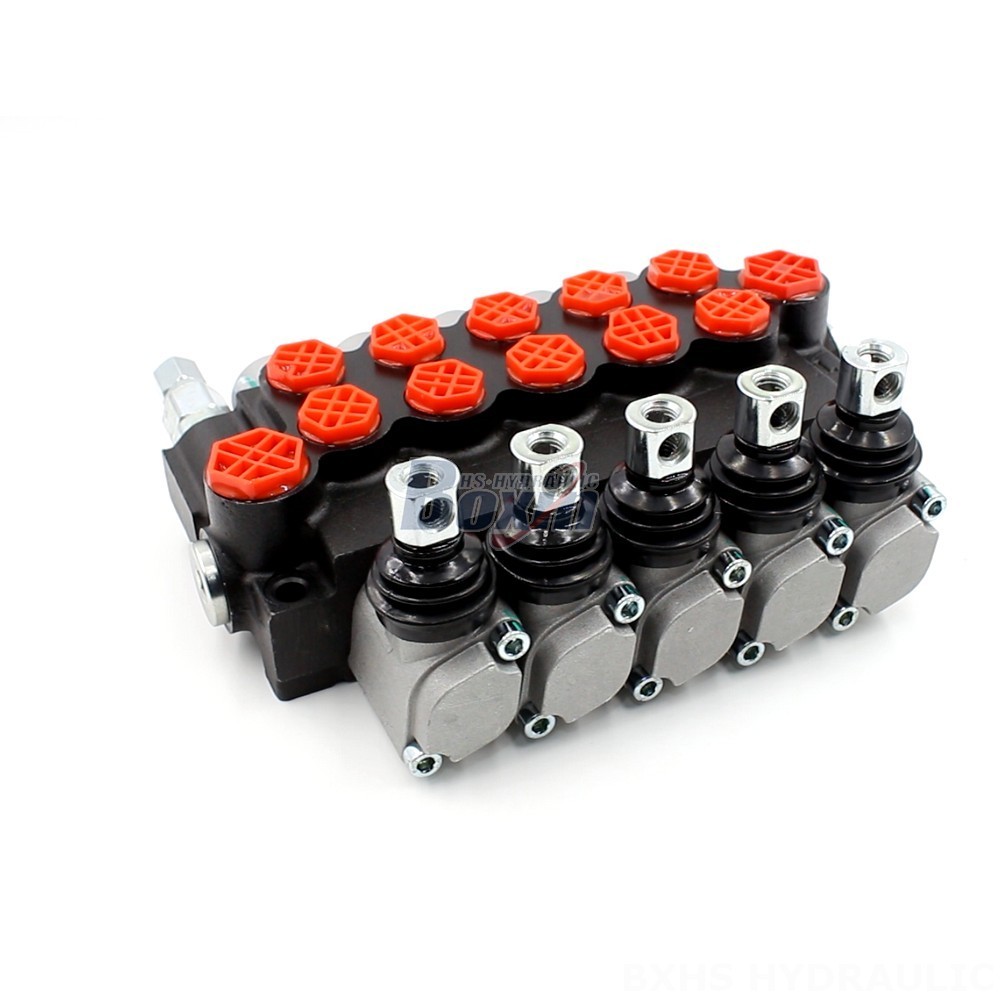

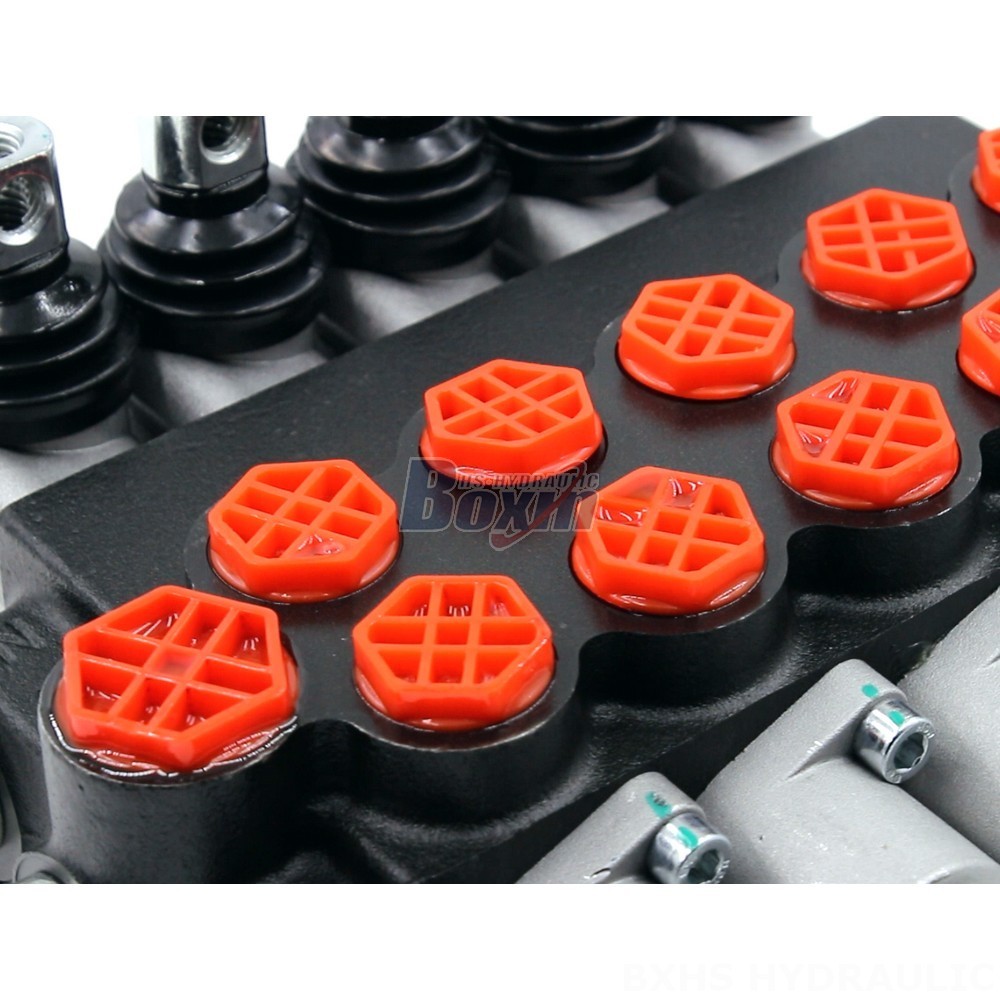

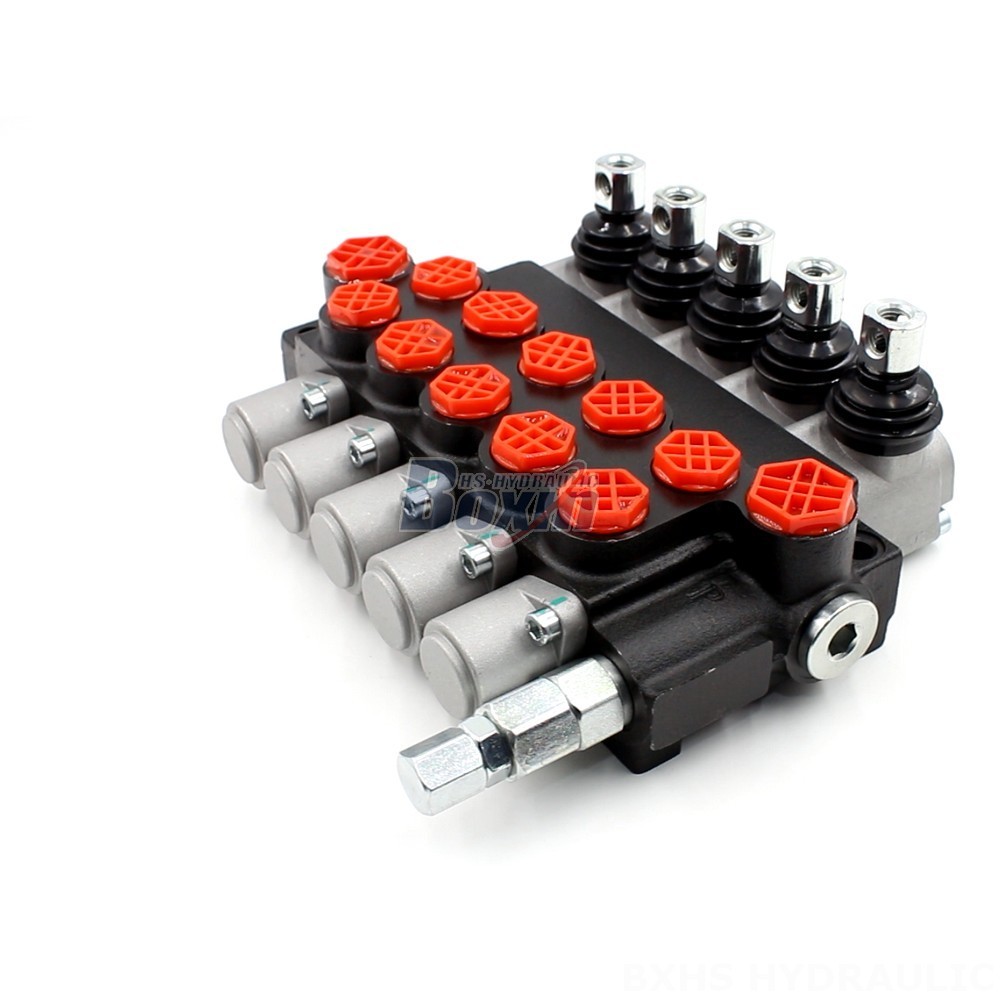

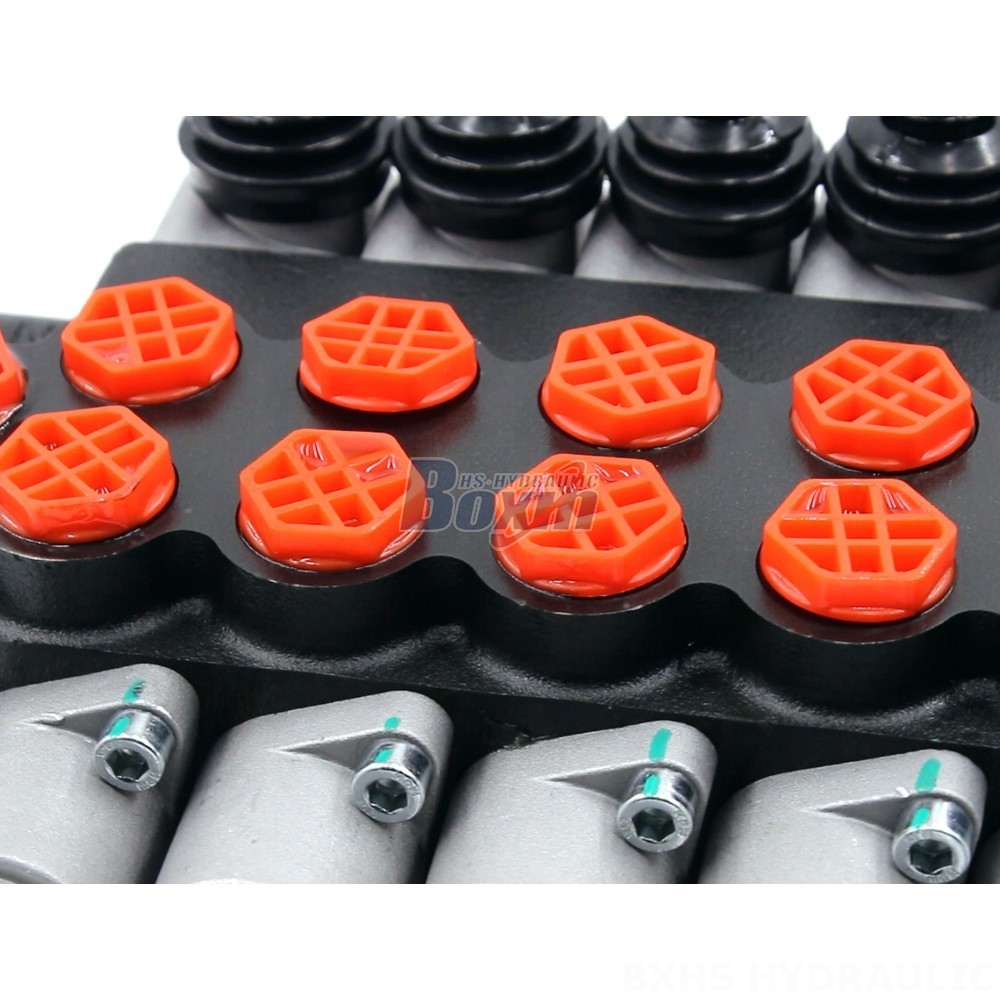

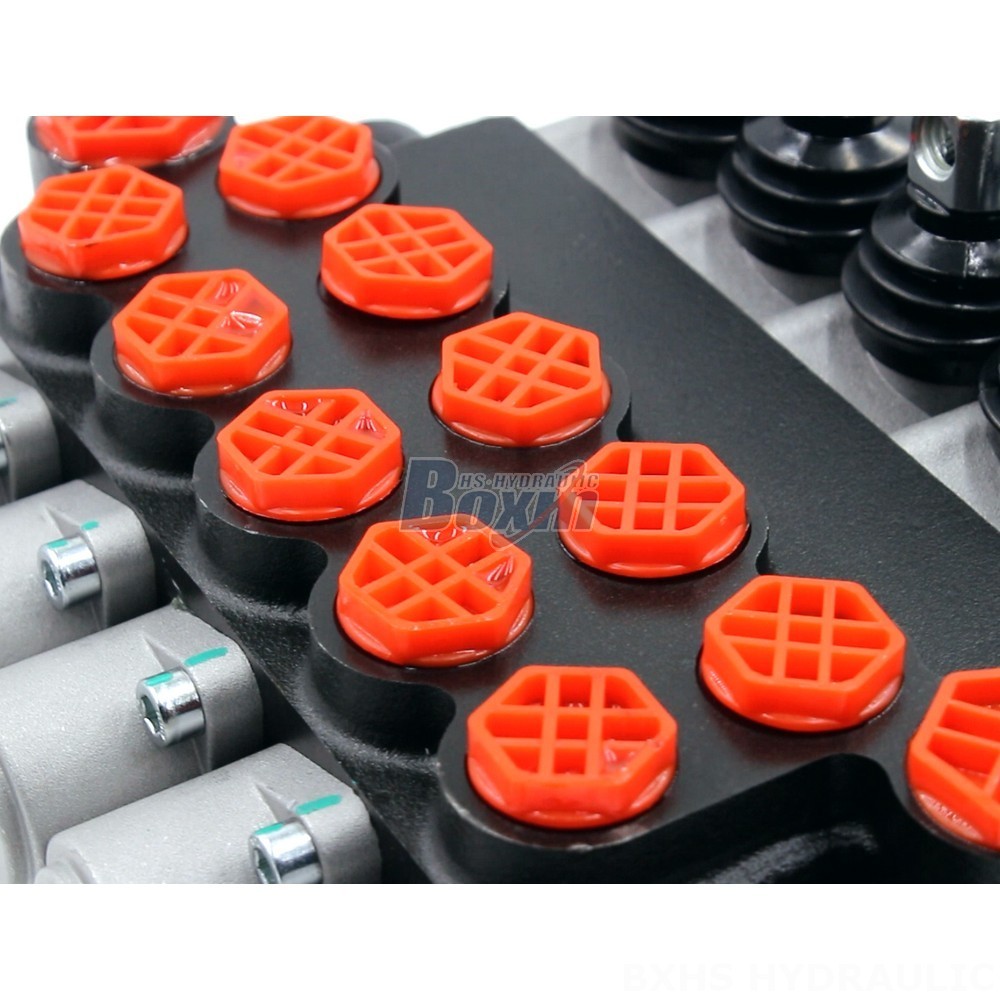

**P40-G12-G38 Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 5 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 5 Spool
**Series:** P40 Series
The P40-G12-G38 Monoblock Directional Valve is a robust and durable component, well-suited for applications requiring precise control and high pressure handling. Its versatile design makes it suitable for a wide range of hydraulic systems, providing reliable performance in demanding operating conditions.
**Key Features:**
* Manual control for precise operation
* Monoblock construction for enhanced durability
* High flow capacity of 40 L/min
* Maximum pressure rating of 250 bar
* Wide operating viscosity range for adaptability
* Temperature resistance from -40°C to +80°C
* 5 spool design for versatile control options
