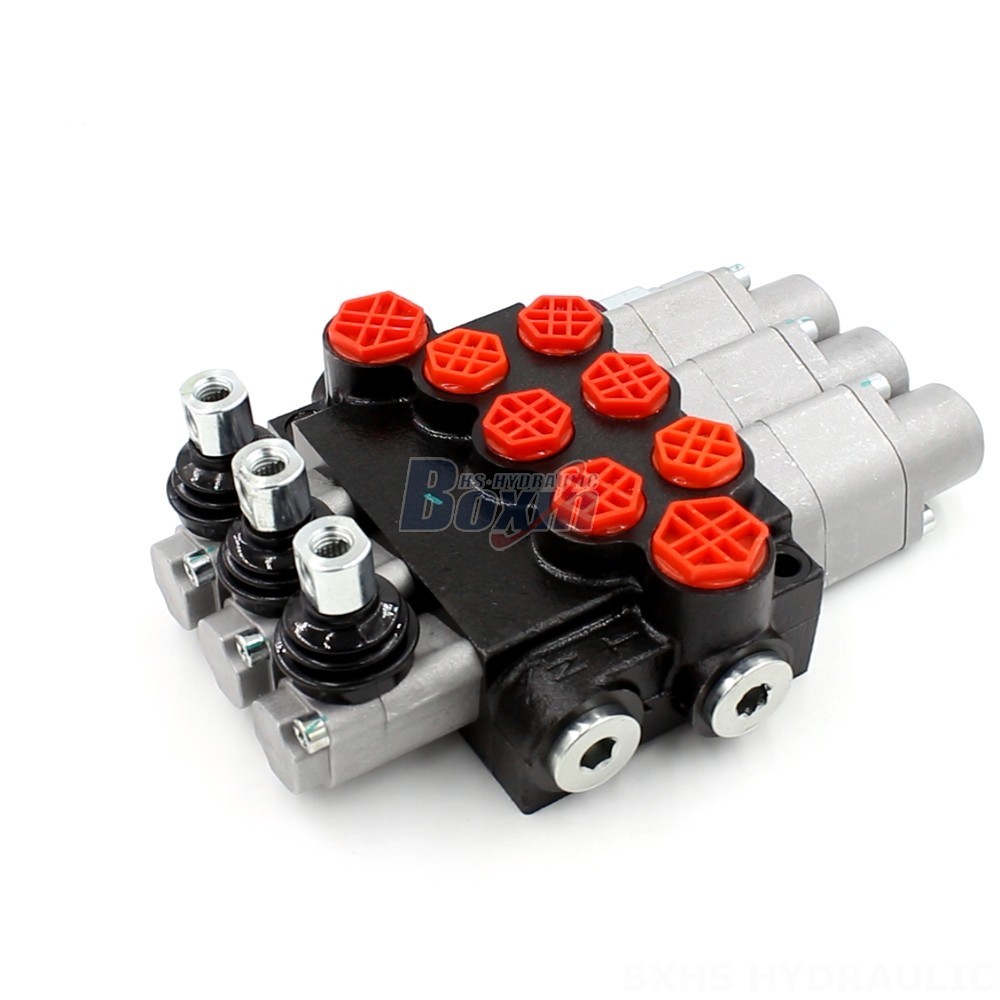

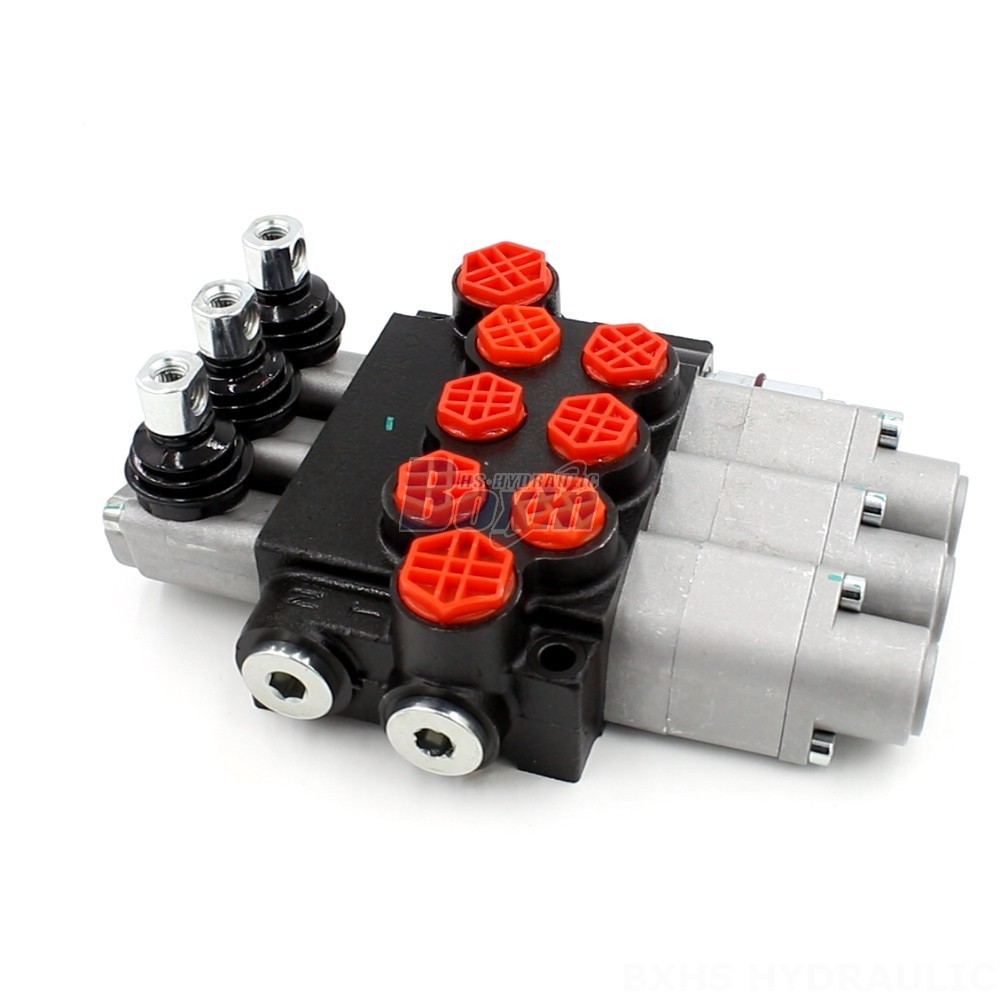

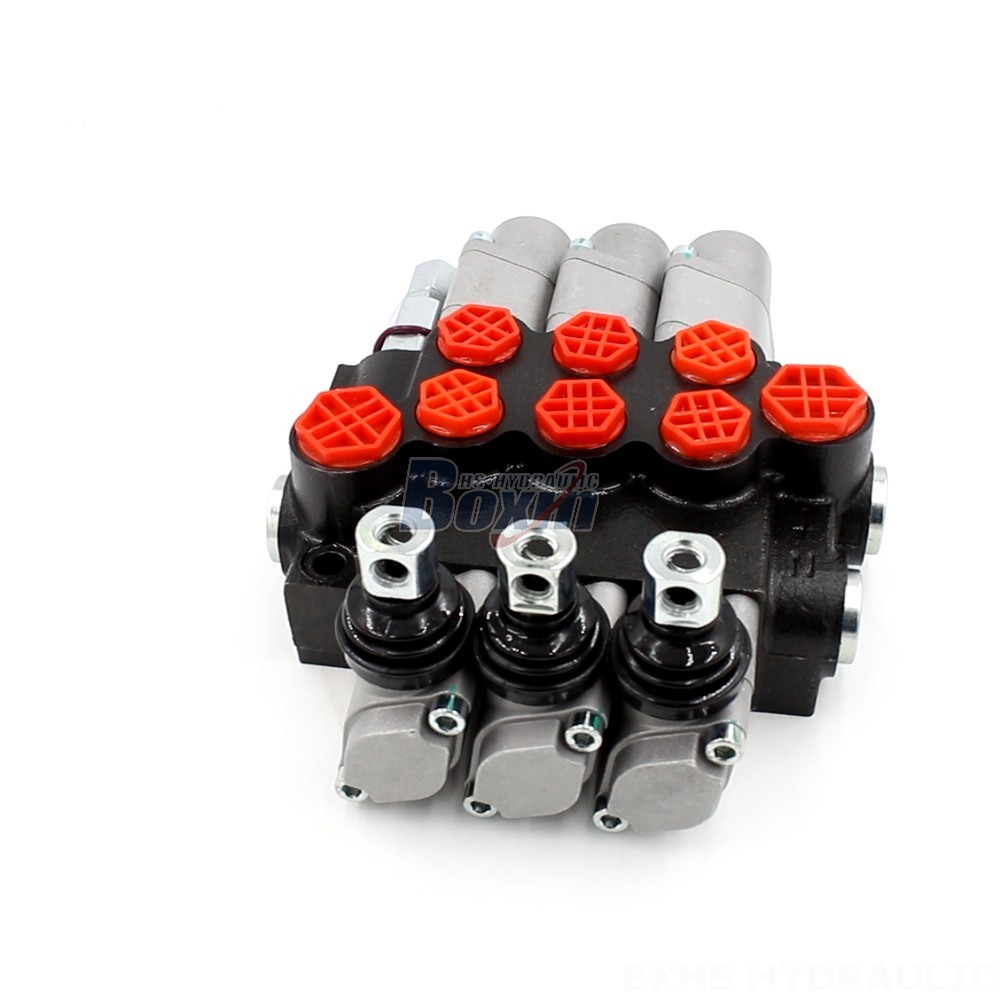

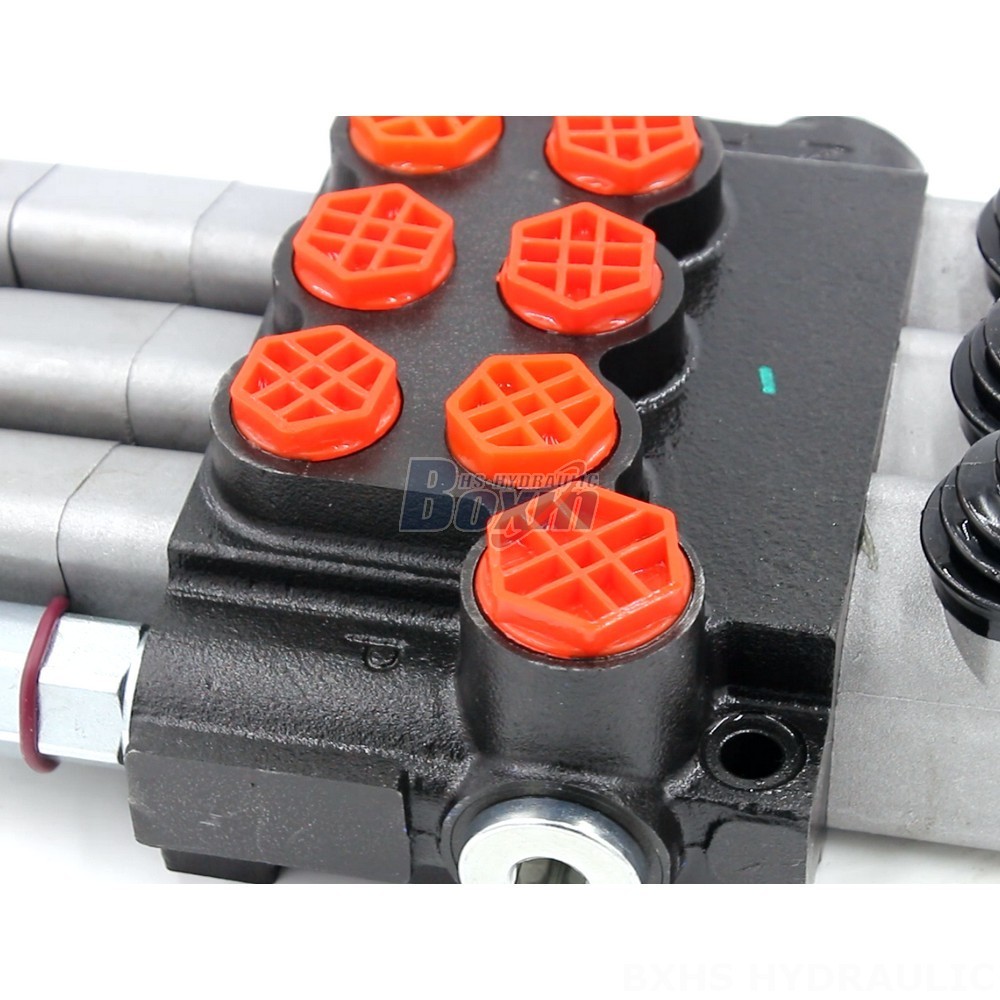

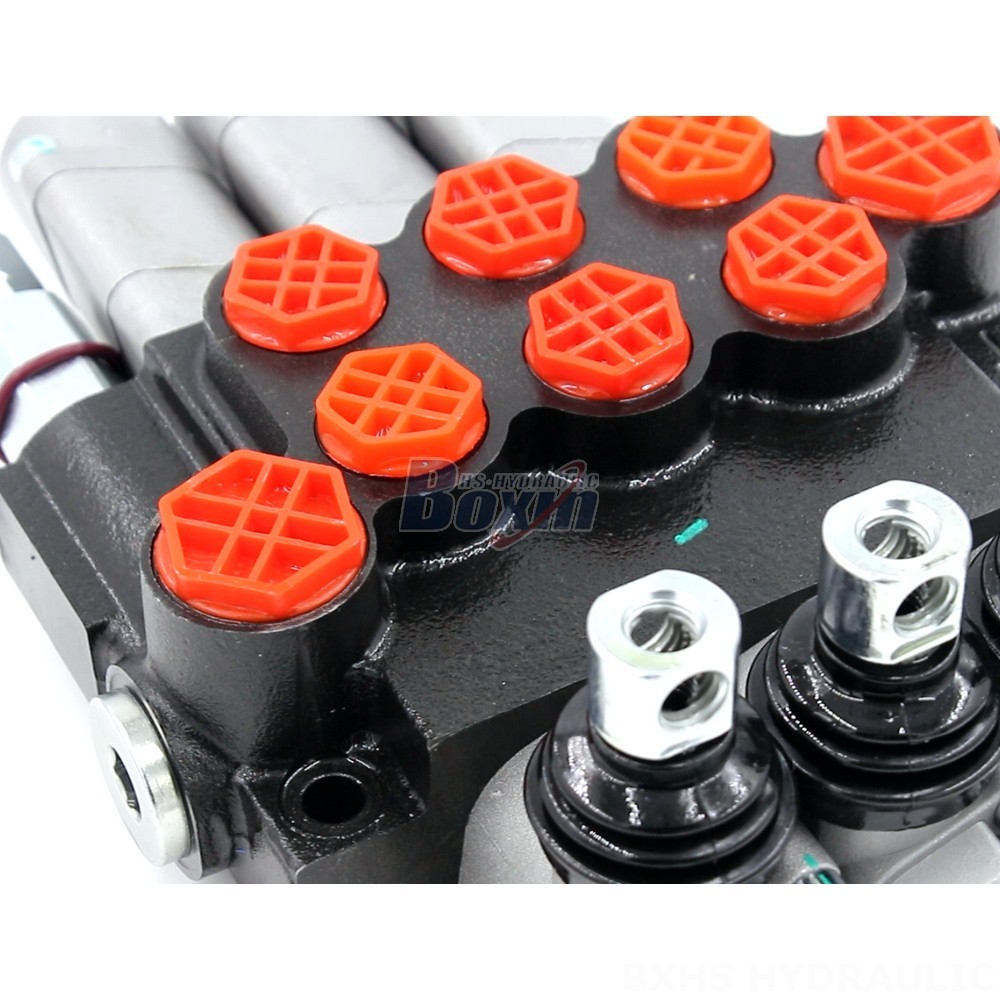

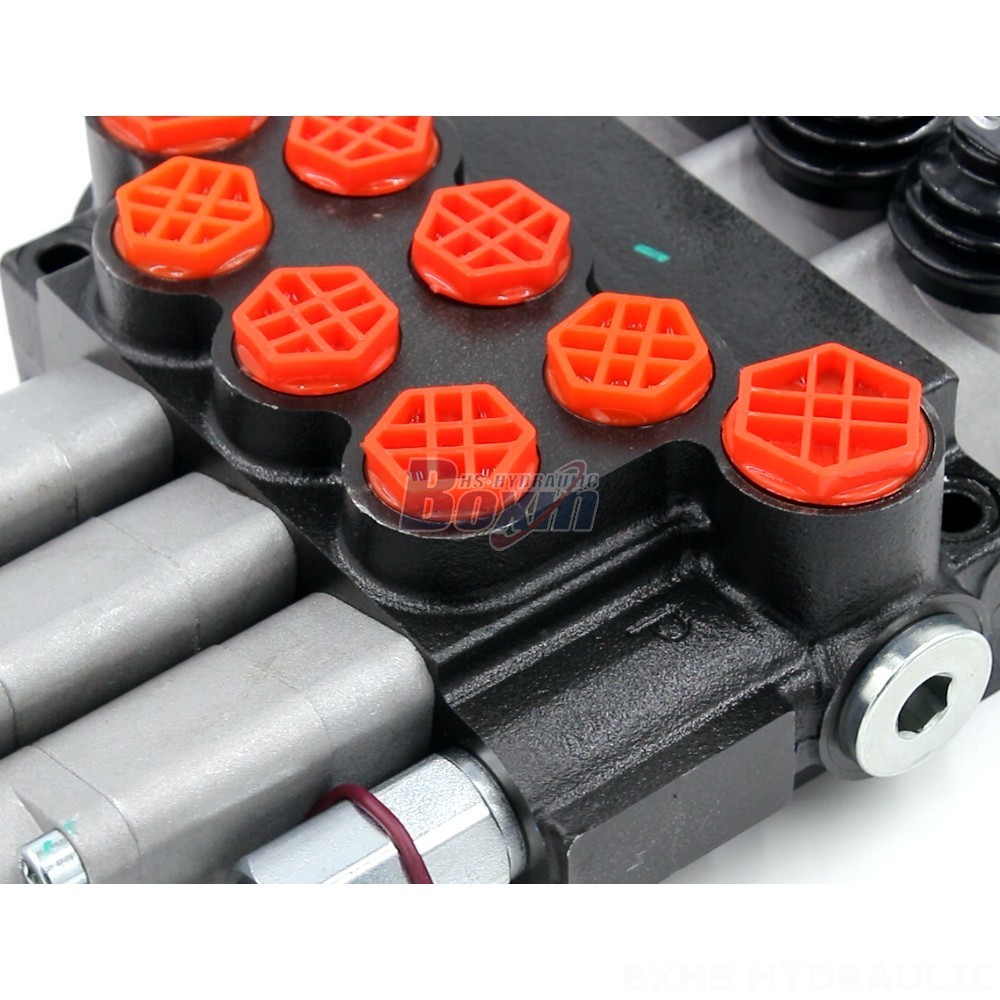

The P40-G12-G38-3QTW Industrial Directional Valve is a high-performance hydraulic solution designed for demanding applications in various industries. With its manual control, 3-section monoblock structure, and exceptional flow and pressure capabilities, it offers precise control and reliable performance in hydraulic systems.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
**Key Features:**
- Manual Control for Precise Operation
- 3-Section Monoblock Structure for Compact and Durable Design
- 40 L/min Rated Flow for Efficient Hydraulic Power Transmission
- 250 bar Maximum Pressure for High-Pressure Applications
- 15-75 mm²/s Operating Viscosity Range for Compatibility with Various Fluids
- -40°C to +80°C Ambient Temperature Range for Extreme Operating Conditions
- 3 Spool for Versatile Hydraulic Circuit Control
**Applications:**
- Material Handling Equipment
- Construction and Earth Moving Machinery
- Agricultural Vehicles
- Industrial Vehicles
**Compatible Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Mini Excavator
- Skid Steer Loader
- Compact Wheel Loader
- Wheel Loader
- Backhoe Loader
- Dumper
- Face Drill Rig
- Concrete Boom Pump
- Pave Roller
- Rotary Drilling
- Crusher
- Stone Cutter
