External And Internal Gear P40-DKL Valves: Direct from the Source for Cost-Effective Solutions

控制方式:电磁

路数:1 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40-DKL系列 单块式方向阀

Packagingsize:31*16*17

Grossweight:5.30 kg

库存: 有货

912 次查看了此产品

External And Internal Gear P40-DKL Valves: Direct from the Source for Cost-Effective Solutions

External And Internal Gear P40-DKL Valves: Direct from the Source for Cost-Effective Solutions

External And Internal Gear P40-DKL Valves: Direct from the Source for Cost-Effective Solutions drawing image

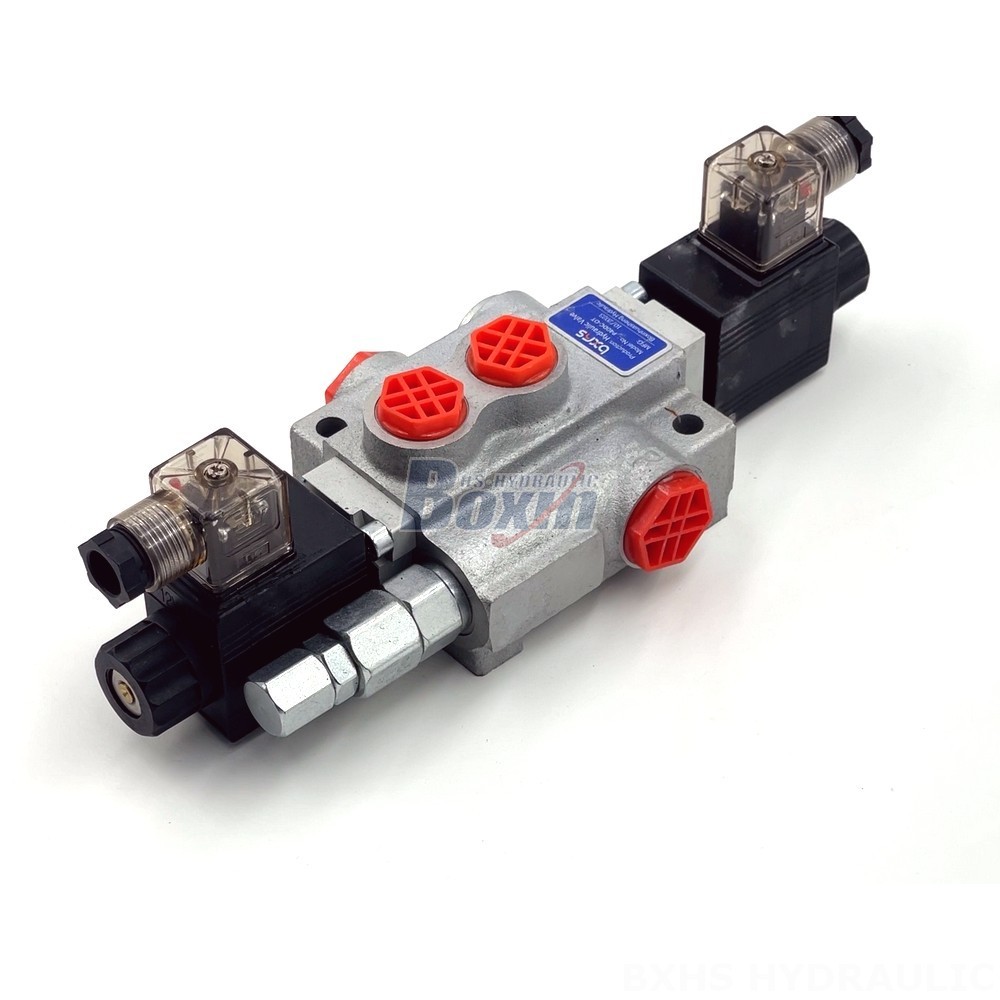

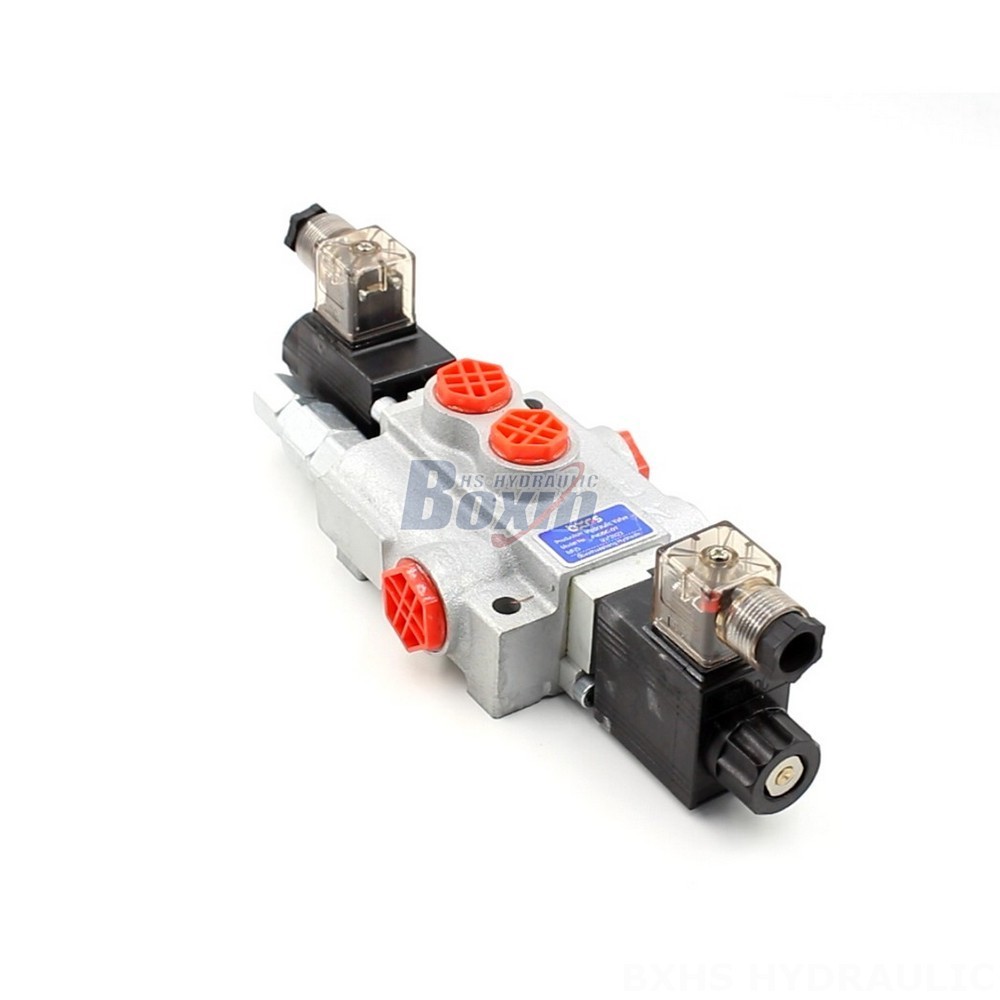

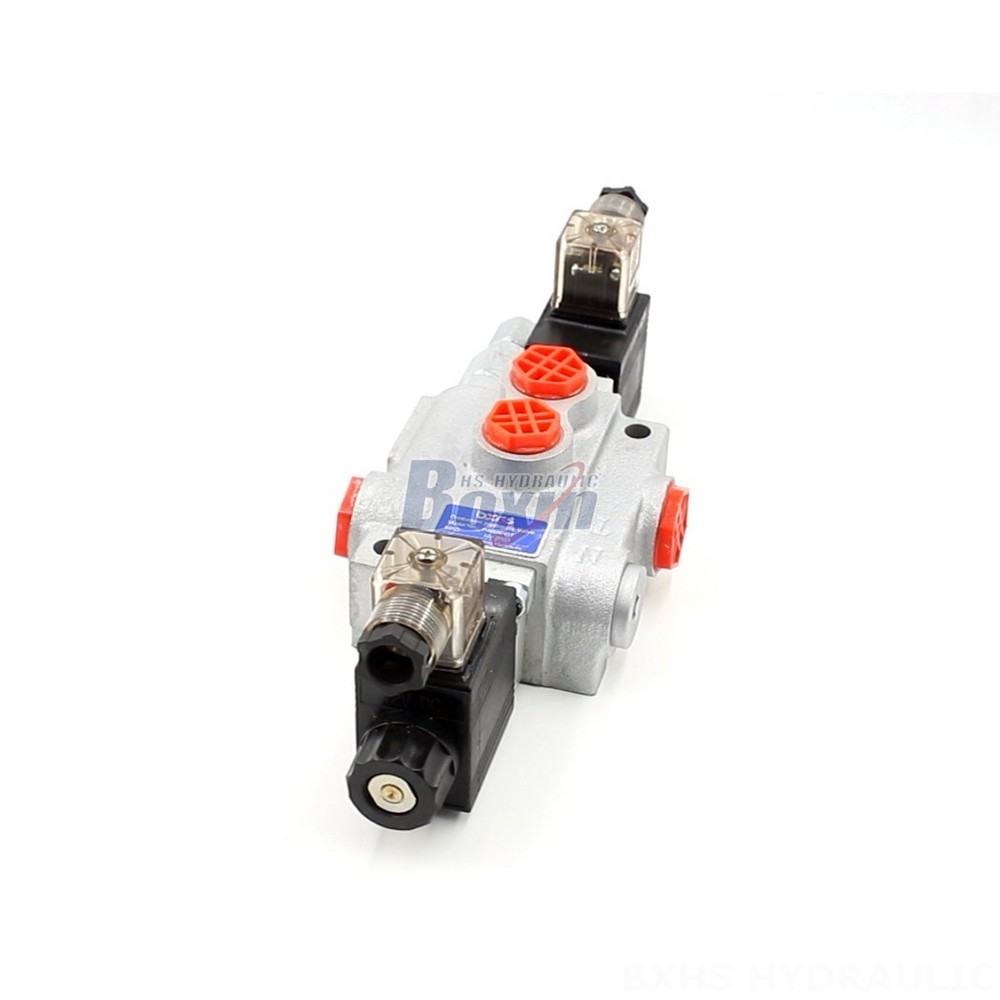

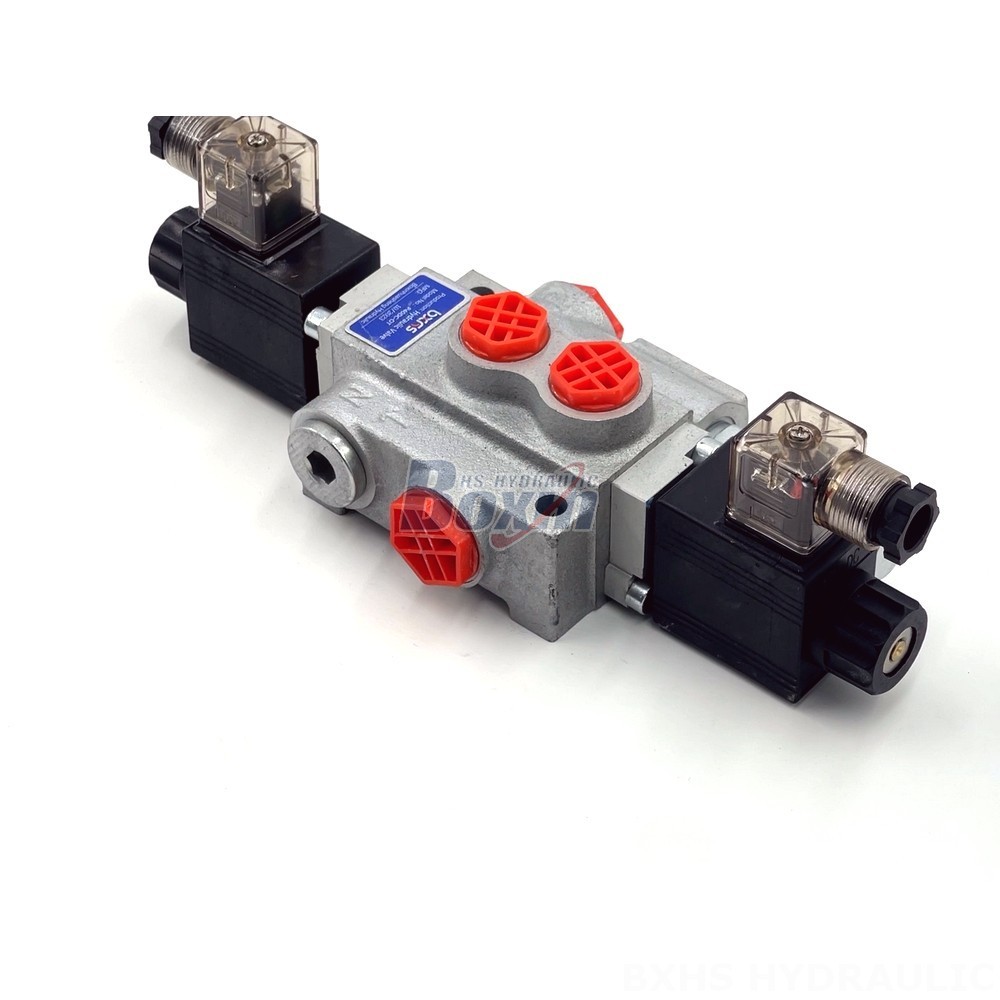

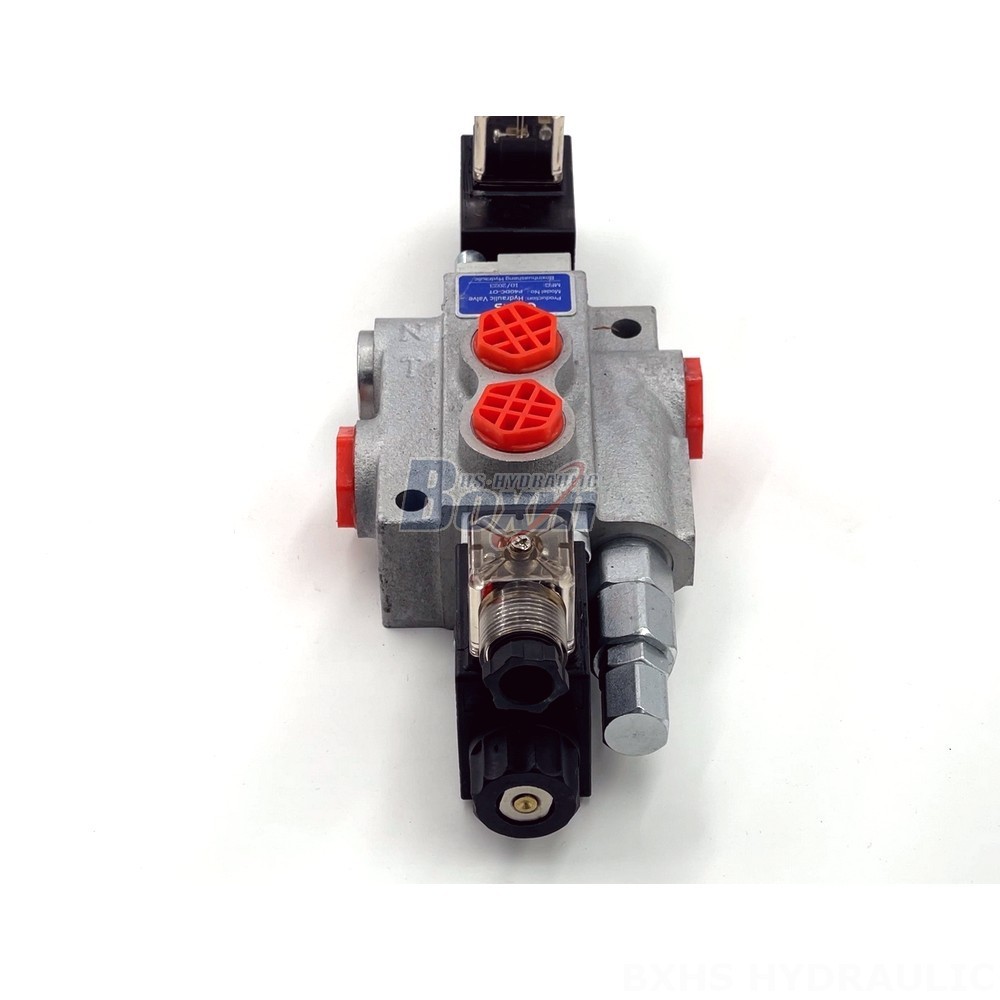

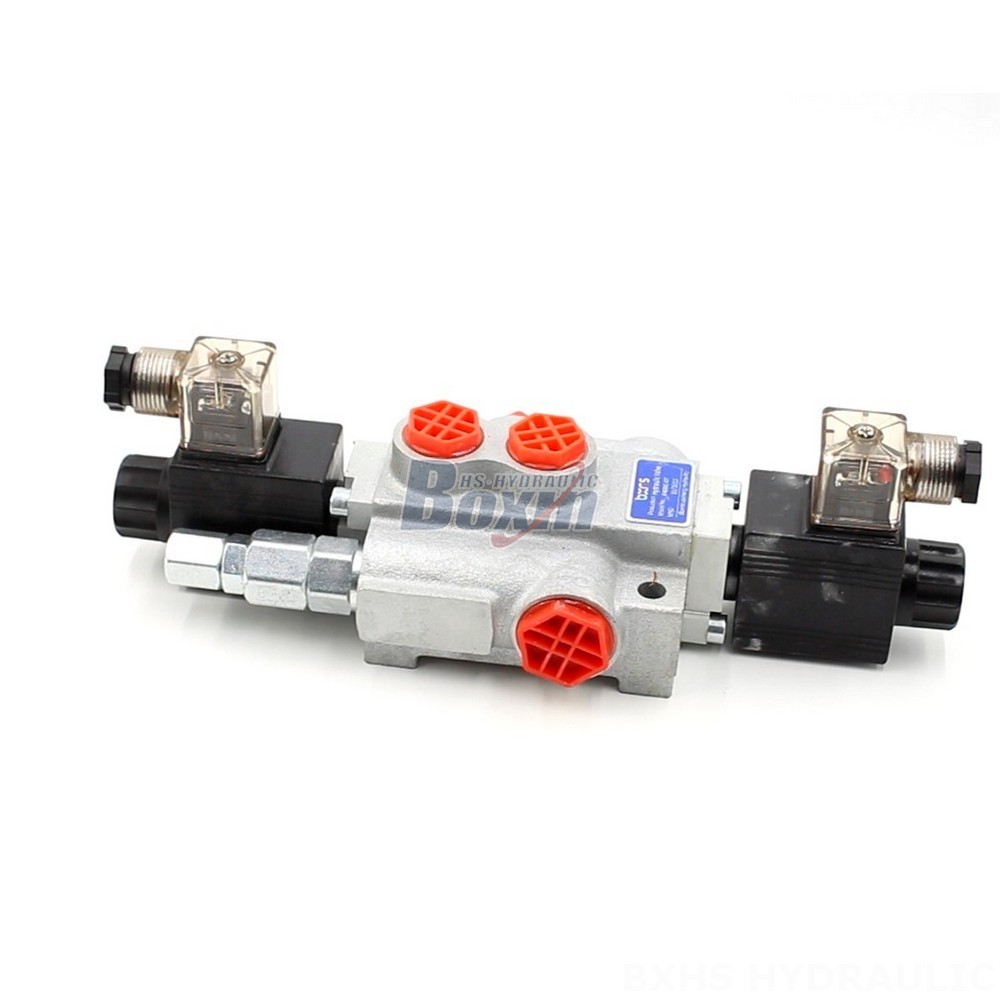

Our factory produces high-quality P40-DKL Series external and internal gear hydraulic valves, offering cost-effective solutions for various applications. These solenoid-controlled, monoblock valves are designed for construction, material handling, agriculture, and industrial vehicles.

P40-DKL系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

Our factory is a leading manufacturer of hydraulic products, specializing in P40-DKL Series external and internal gear hydraulic valves. We provide direct factory supply and wholesale options, enabling cost-effective solutions for your needs. These valves feature a compact monoblock design with solenoid control, ideal for diverse applications in construction, material handling, agriculture, and industrial vehicles. They are designed to handle demanding environments with a maximum pressure of 250 bar (3600 psi) and a rated flow of 40 L/min (10.5 US gpm). Our P40-DKL valves are compatible with various equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Contact us for more information and pricing.
