4 Spool Hydraulic Valve Monoblock P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable

控制方式:手控+一控二

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*18*13

Grossweight:5.20 kg

库存: 有货

960 次查看了此产品

4 Spool Hydraulic Valve Monoblock P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable

4 Spool Hydraulic Valve Monoblock P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable

4 Spool Hydraulic Valve Monoblock P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable drawing image

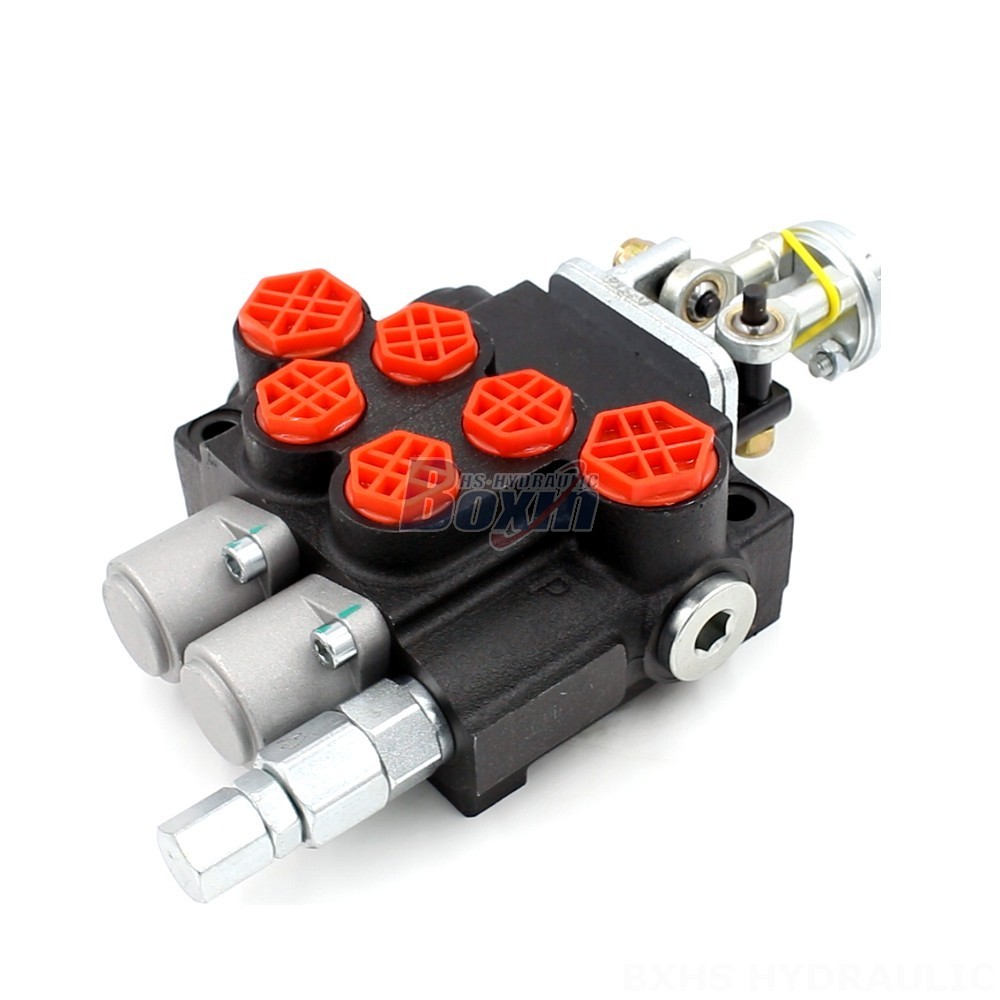

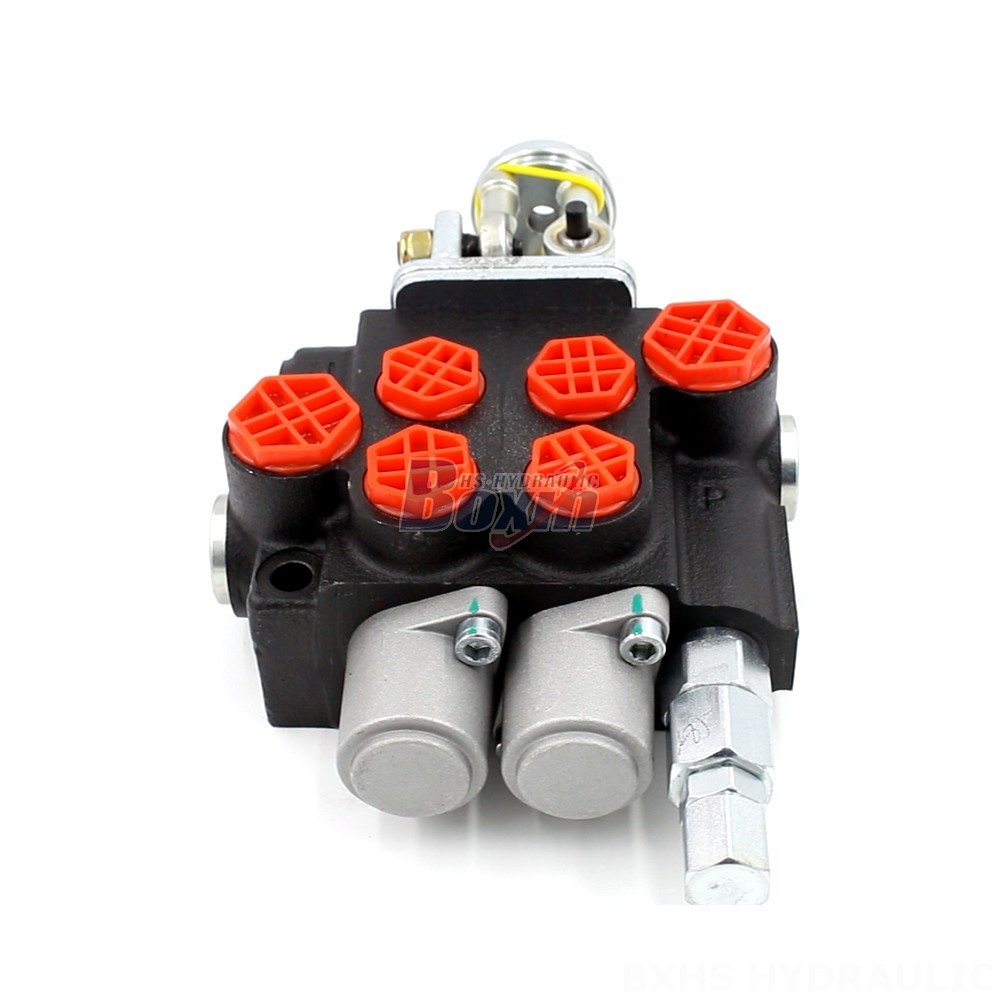

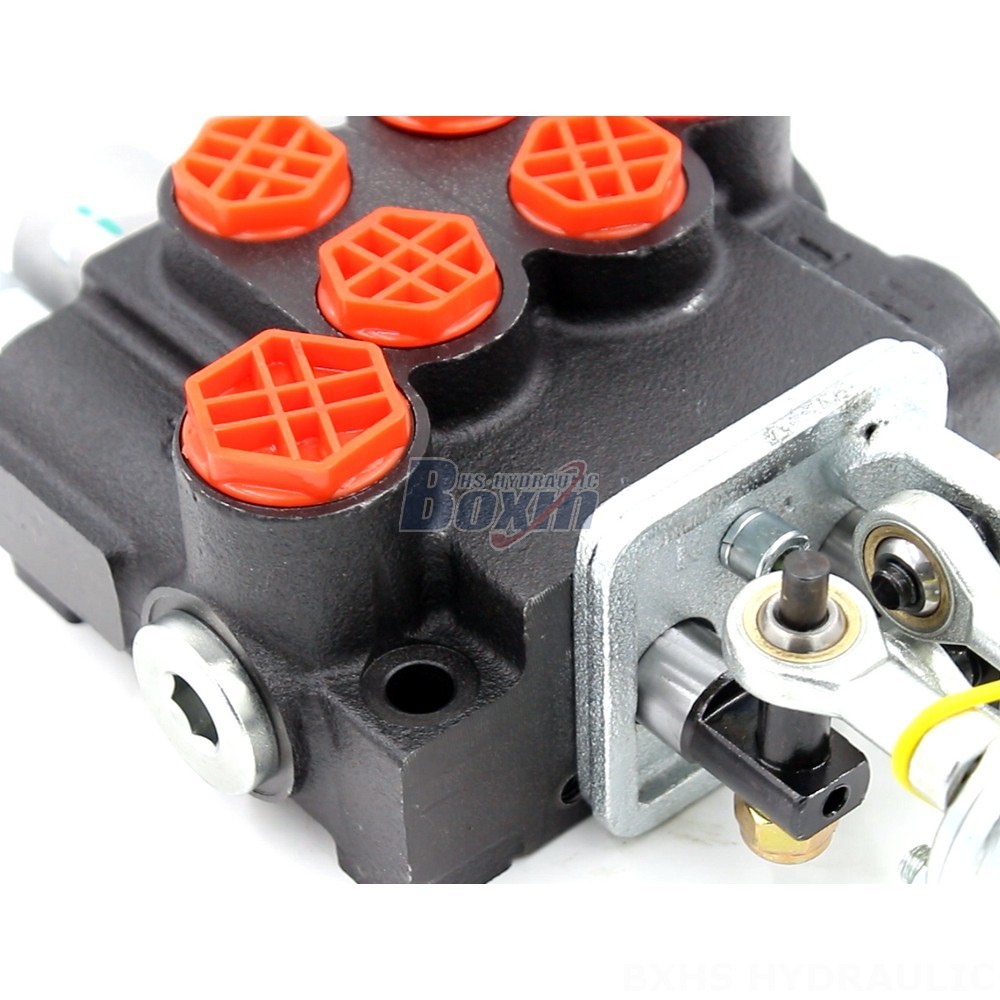

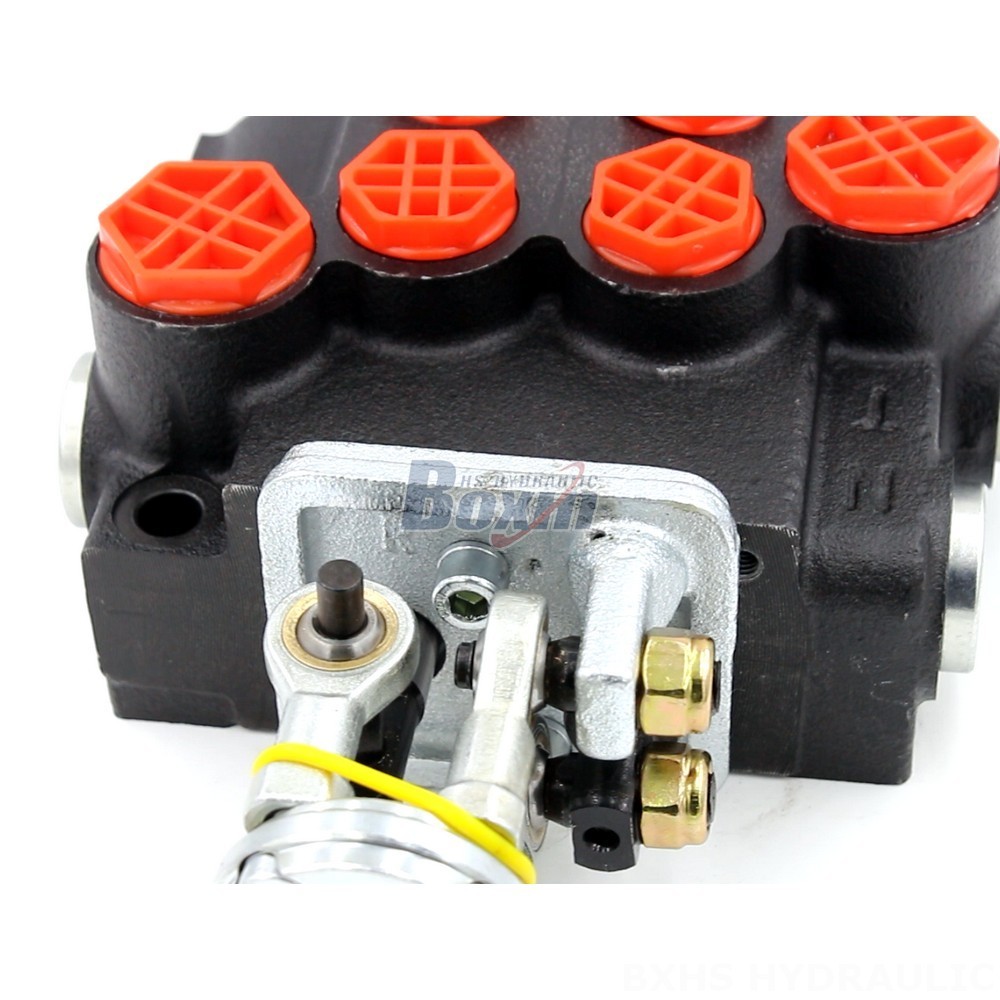

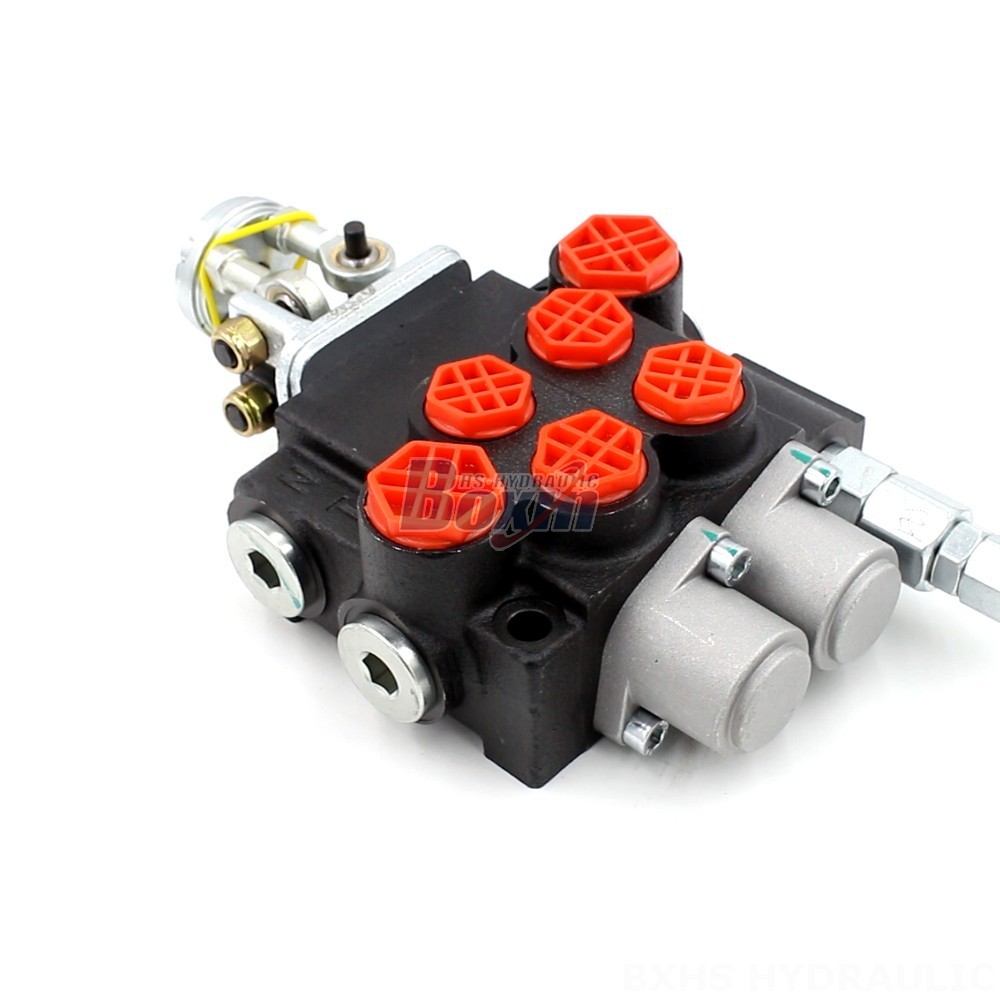

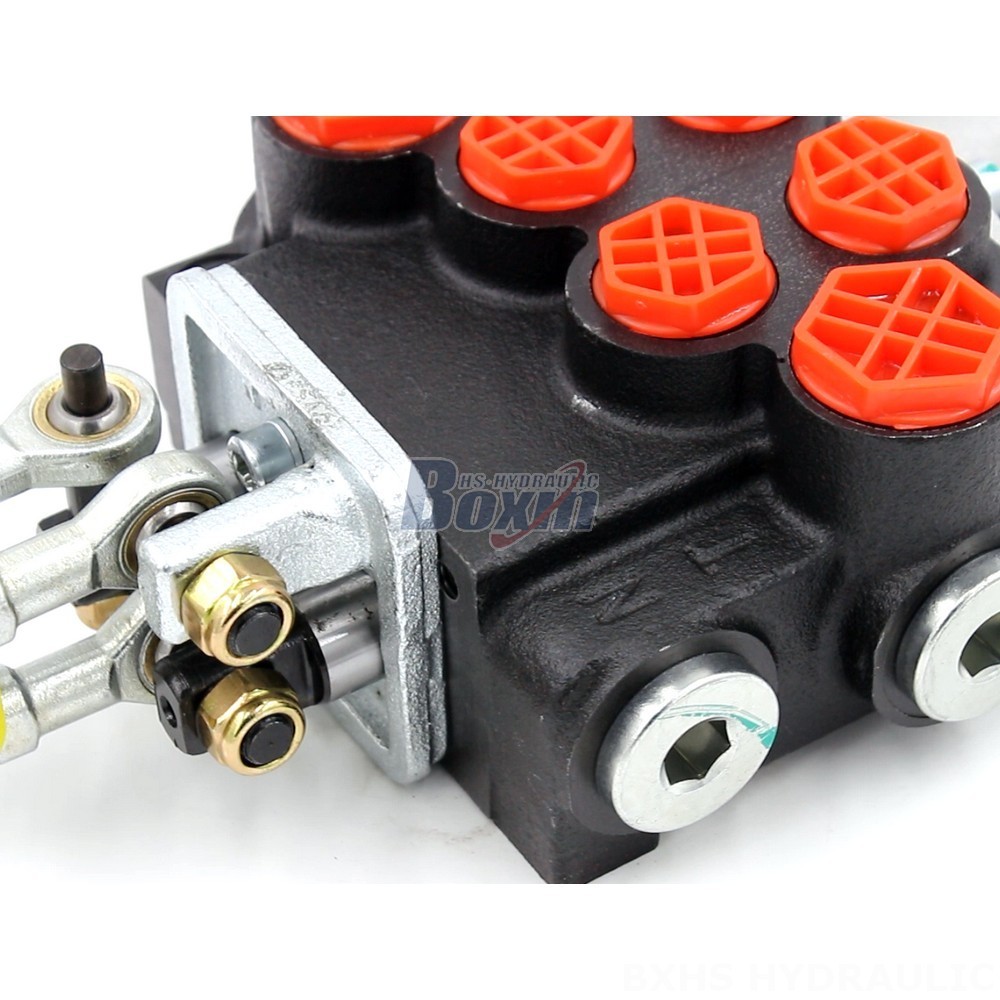

The P40-2OT is a 4 Spool Hydraulic Valve Monoblock in the P40 Series, designed for a variety of applications in construction, material handling, agriculture and industrial vehicles. This valve features 2 sections, a rated flow of 40 L/min and a maximum pressure of 250 bar. It's available with manual or joystick control and is customizable to meet your specific needs.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40-2OT is a high-performance 4 Spool Hydraulic Valve Monoblock designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It features a compact and robust design, offering superior reliability and durability. This valve offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of hydraulic systems. The P40-2OT comes with 2 sections and a choice of manual or joystick control, providing flexibility in operation. The valve features a Monoblock structure, ensuring leak-free performance and long service life. It can handle a wide range of operating viscosities, from 15 to 75 mm²/s, and is designed to withstand temperatures ranging from -40°C to +80°C. This valve is fully customizable, allowing you to specify the spool configuration, control method, and other features to meet your specific requirements. The P40-2OT is suitable for use in various vehicles and equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
