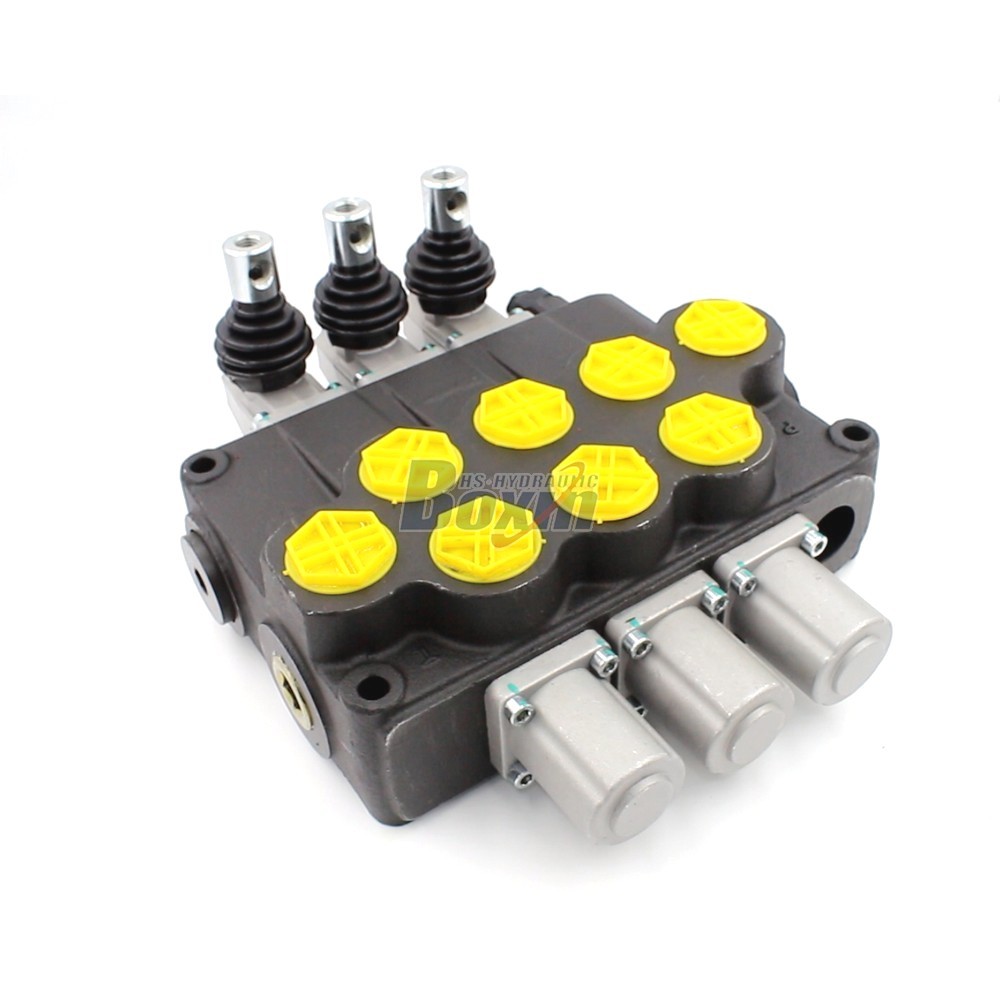

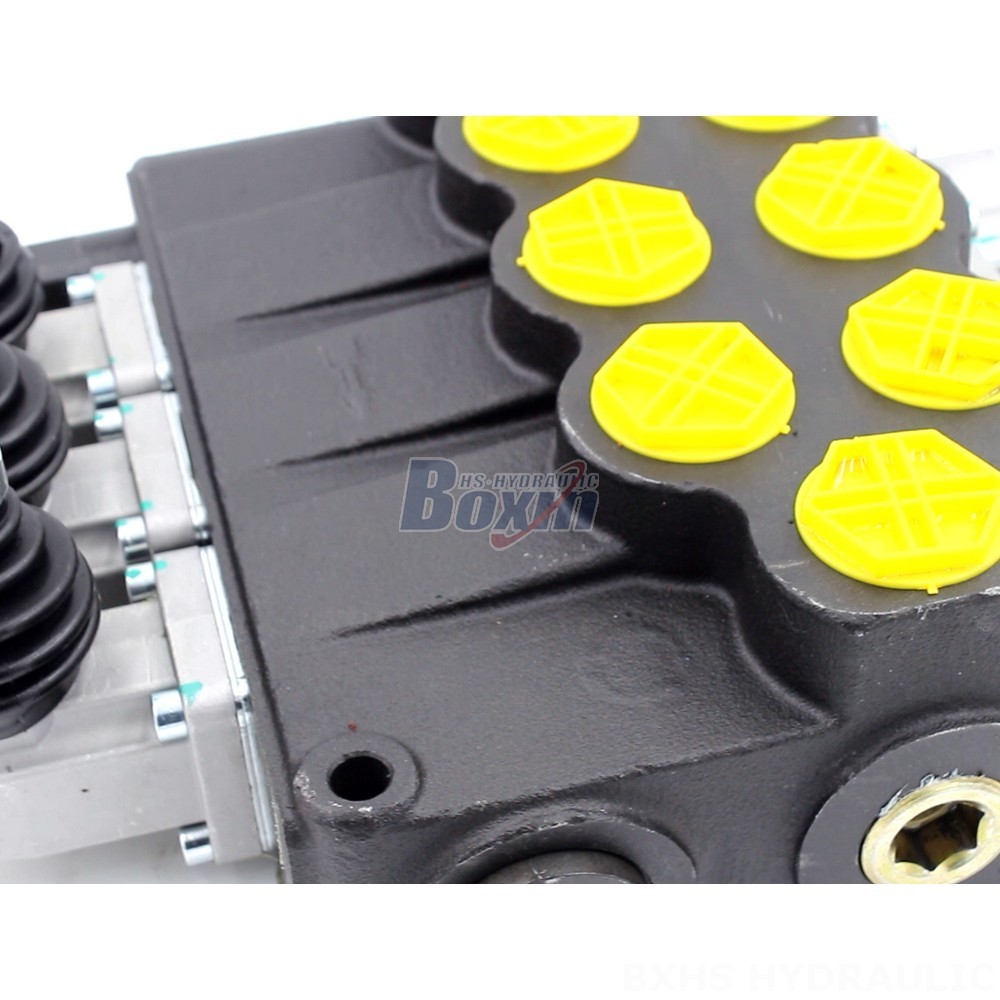

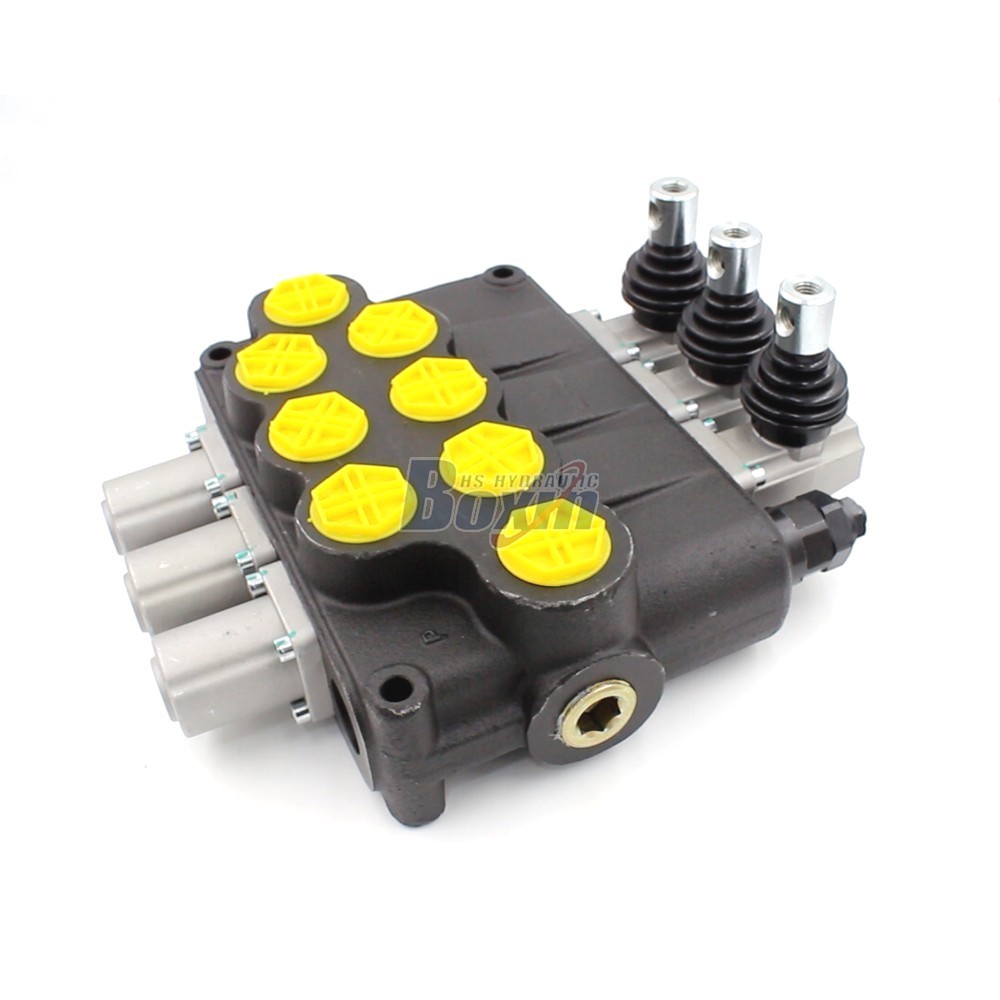

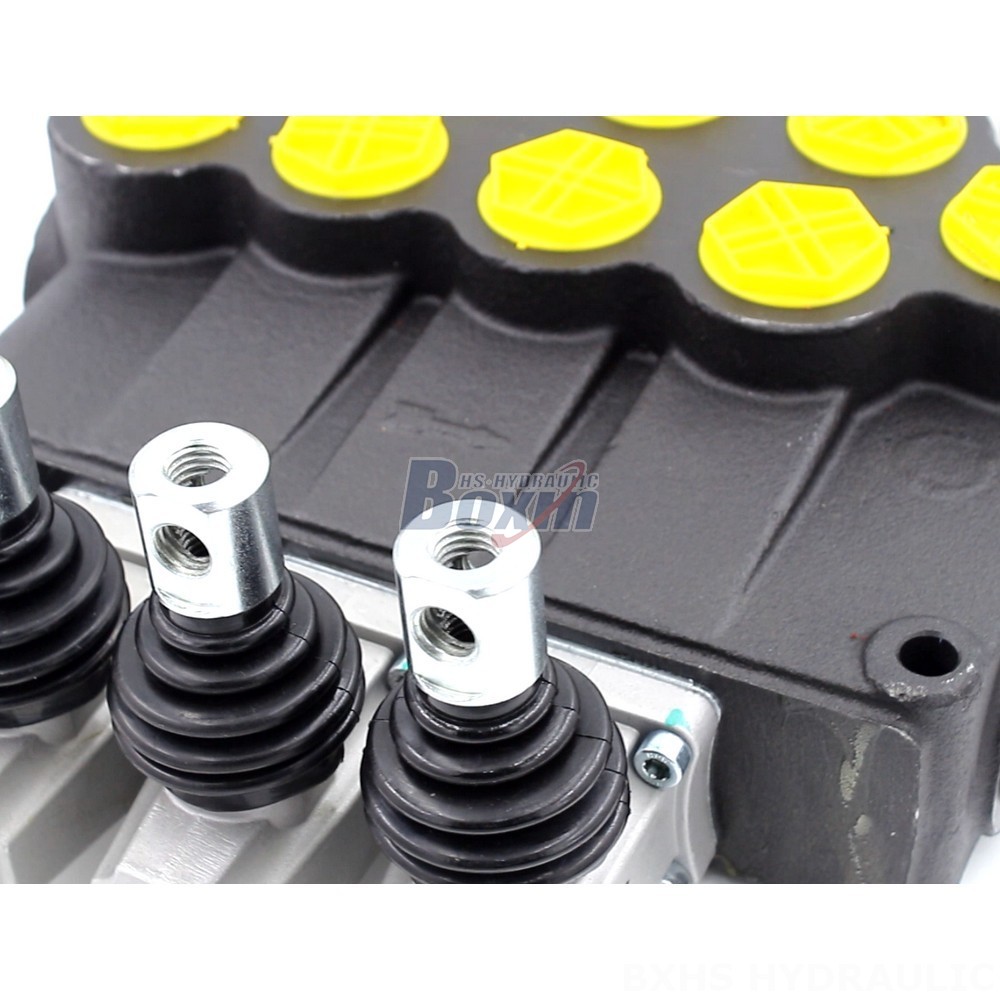

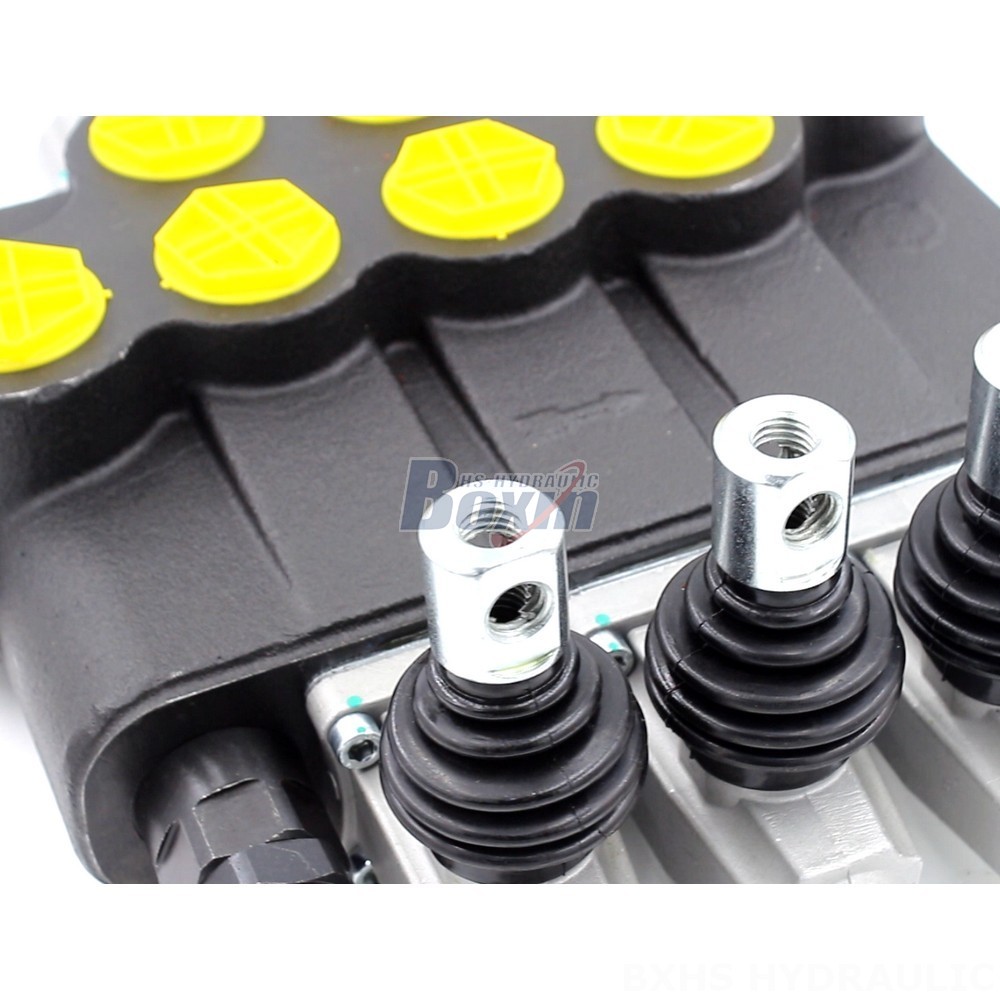

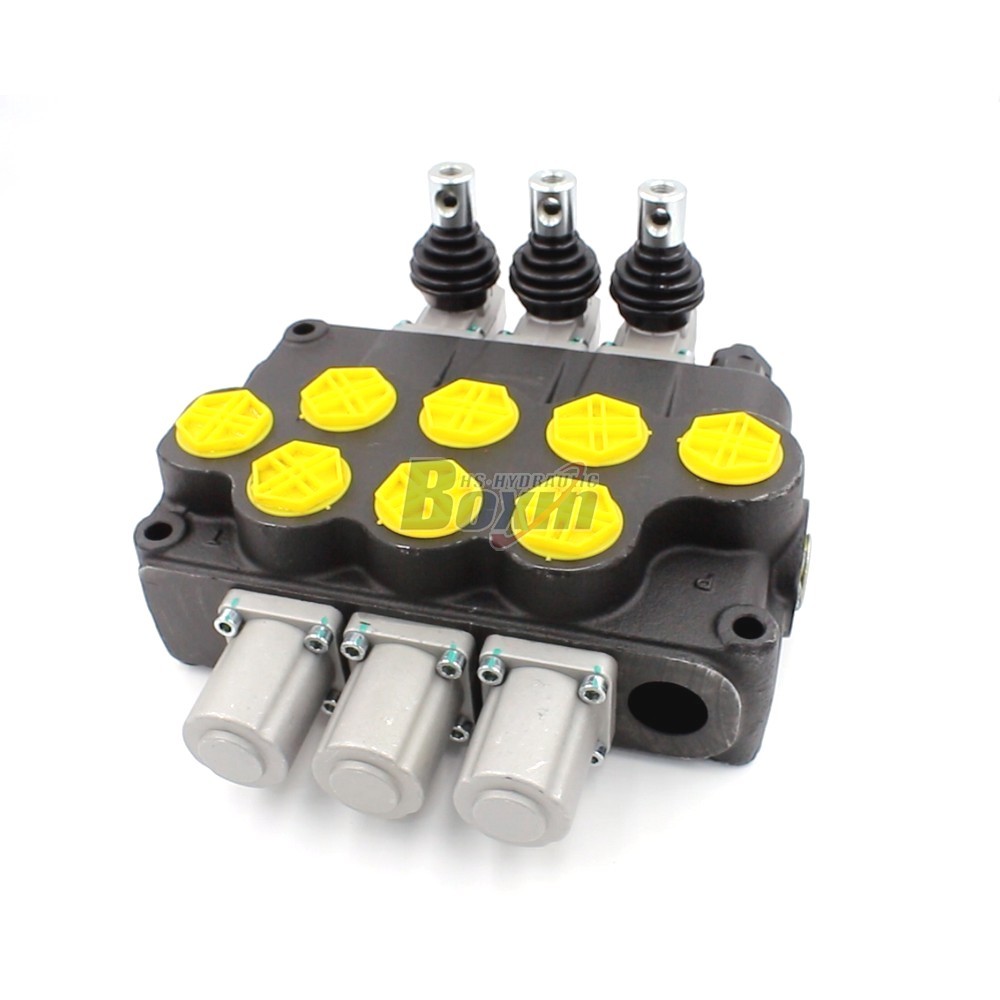

The P120-G1-OT Hydraulic Control Valve is a high-quality, high-performance valve designed for use in a wide range of industrial applications. With its manual control, 3 section design, and monoblock valve construction, this valve offers precise control and durability. The valve has a rated flow of 120 L/min (31.7 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F).
| P120系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹 |
| 出油口 | G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**P120-G1-OT Hydraulic Control Valve: Industry-Leading Quality and Performance**
**Control Method:** Manual
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** P120 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,WHEEL LOADER,BACKHOE LOADER,DUMPER
The P120-G1-OT Hydraulic Control Valve is a high-performance valve designed for use in a wide range of industrial applications. With its manual control, 3 section design, and monoblock valve construction, this valve offers precise control and durability. The valve has a rated flow of 120 L/min (31.7 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F).
**Key Features:**
* Manual control for precise operation
* 3 section design for versatility
* Monoblock valve construction for durability
* Rated flow of 120 L/min (31.7 US gpm)
* Maximum pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* 3 Spool
* P120 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,WHEEL LOADER,BACKHOE LOADER,DUMPER
