Introducing our Original Equipment Manufacturer (OEM) SD5 Valves, engineered to deliver assured quality and performance. These valves are meticulously crafted to meet the demands of various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |

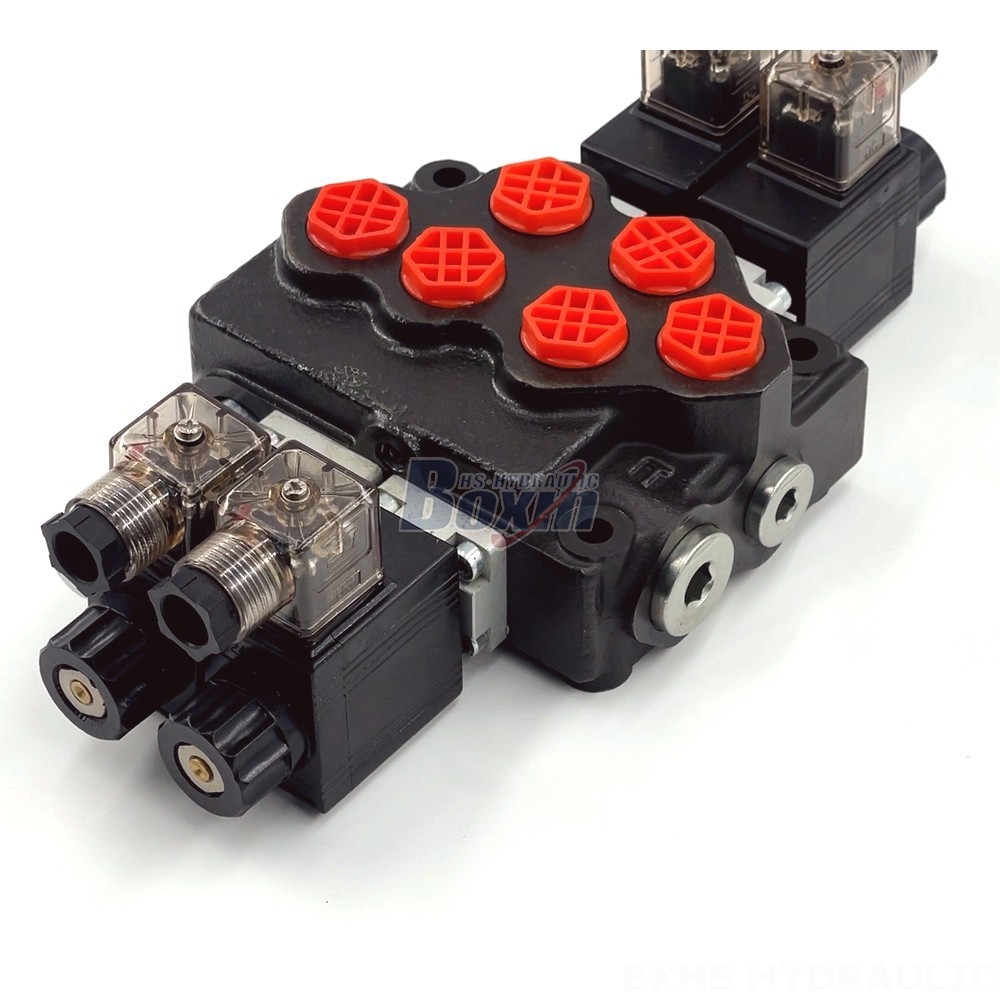

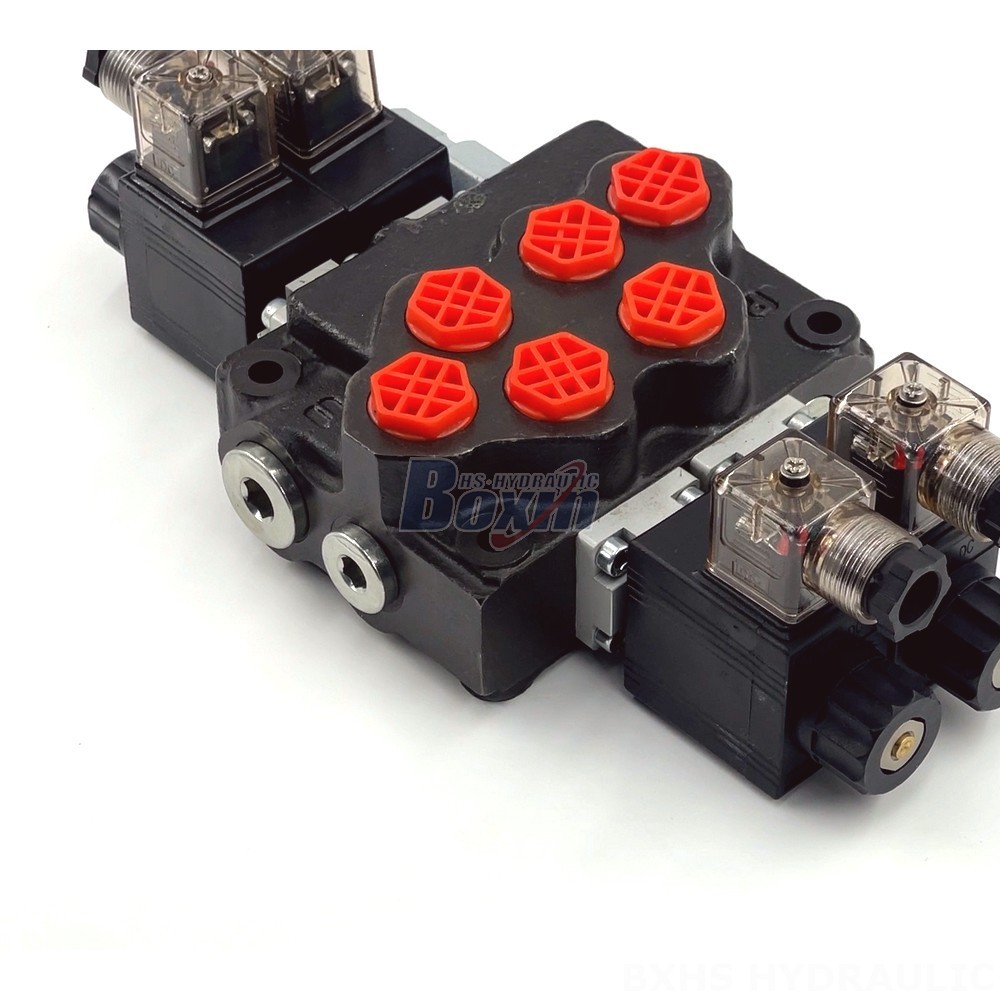

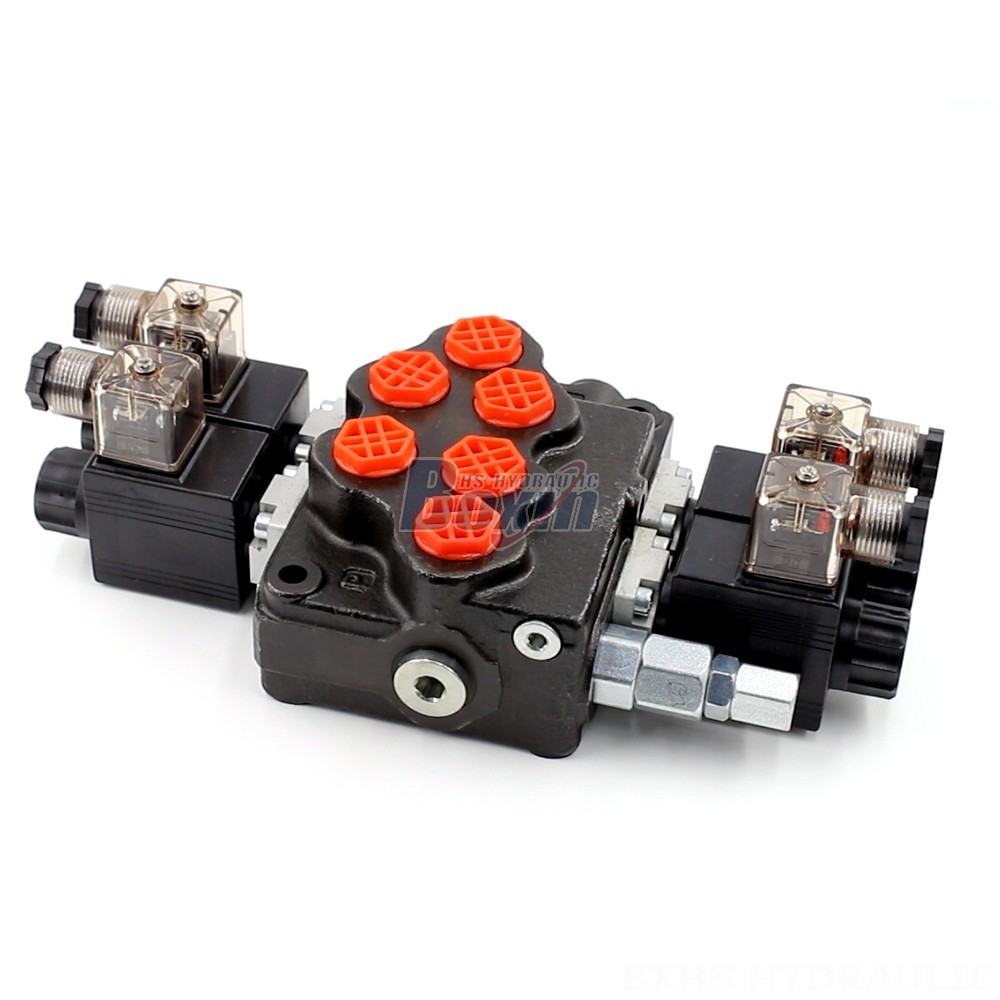

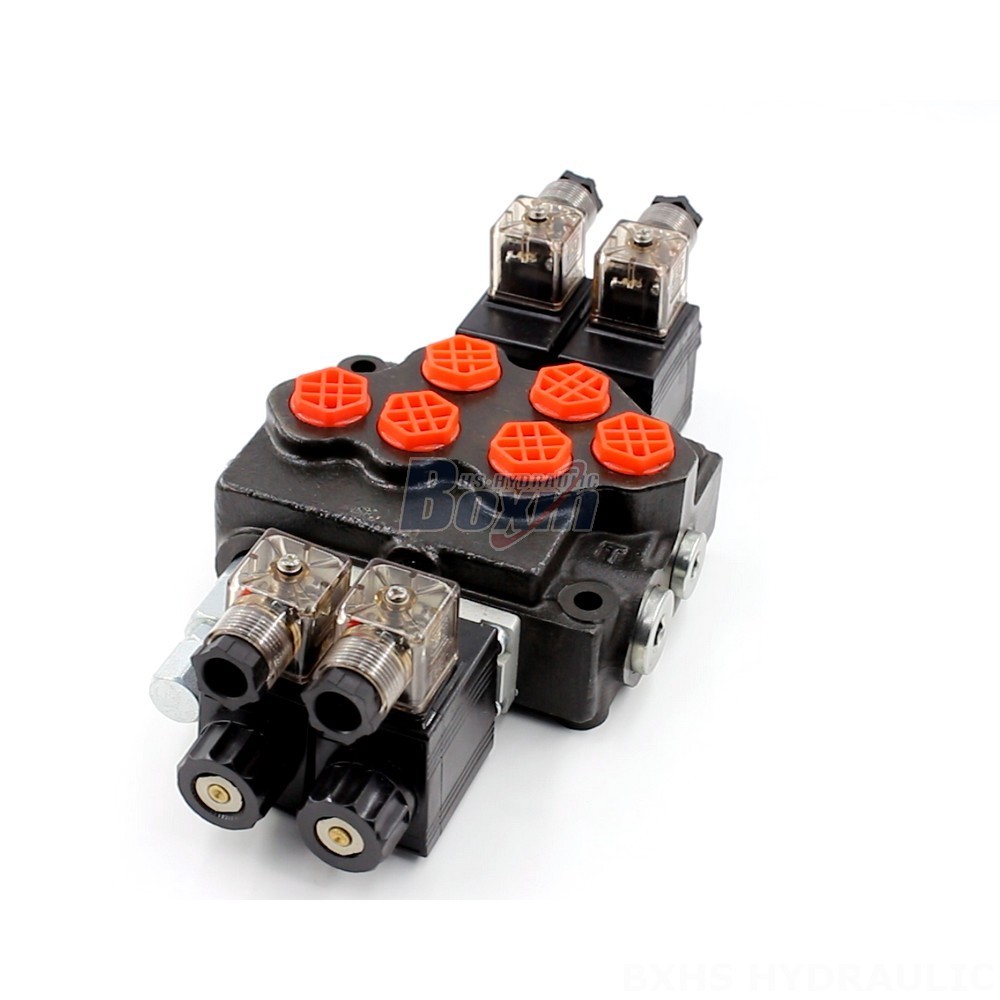

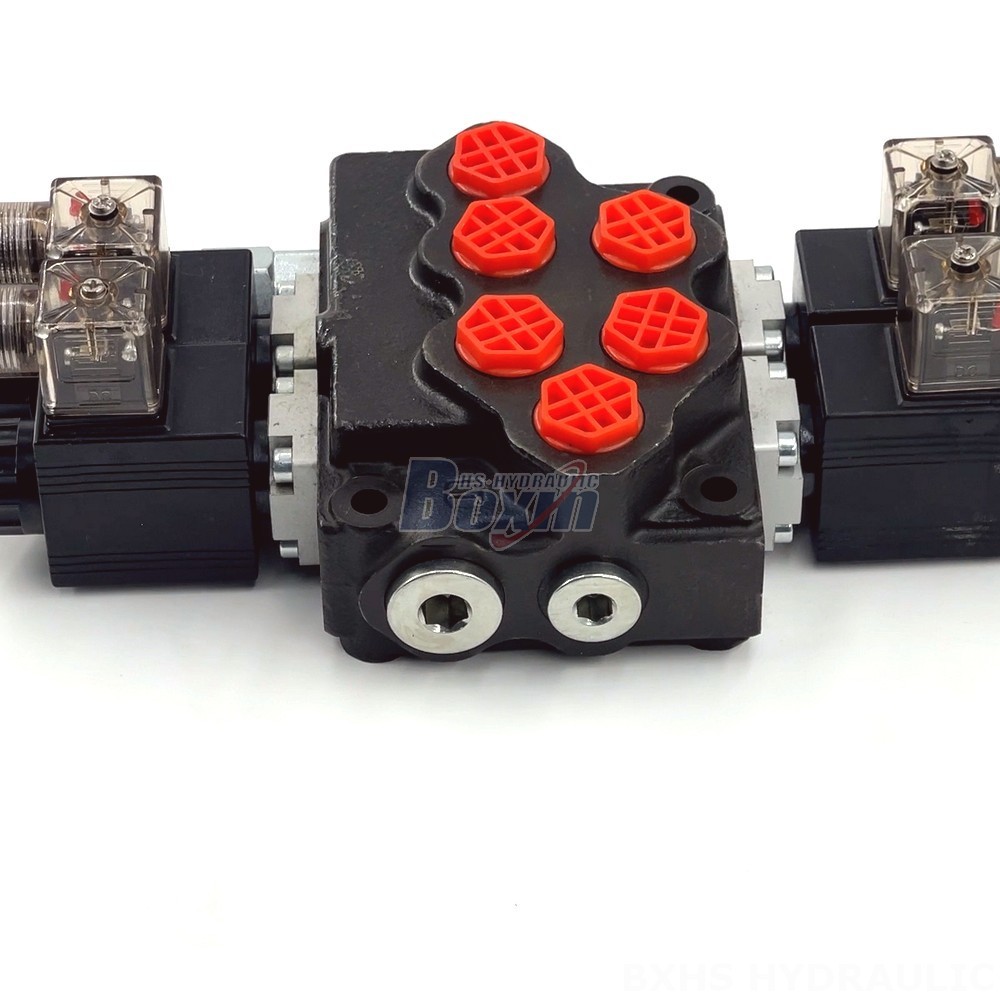

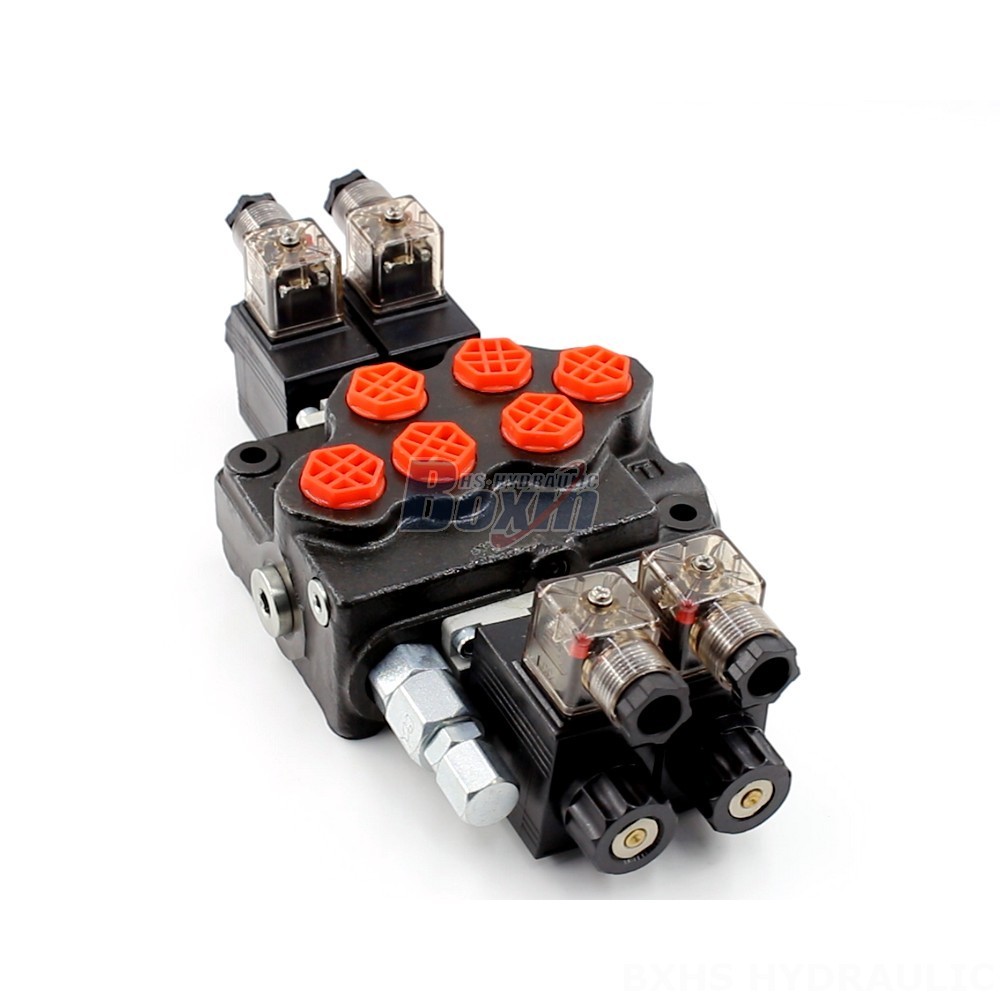

Our SD5 Valves feature solenoid control for precise operation, a compact monoblock design for space efficiency, and a rated flow rate of 40 L/min (10.5 US gpm) to handle medium-flow applications. They can withstand pressures up to 305 bar (4400 psi) and operate within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). The operating temperature range spans from -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in various environments.
As a manufacturer, we offer OEM services, allowing you to customize our valves to meet your specific requirements. Our factory supply and wholesale options ensure cost-effective solutions and timely delivery. Contact us to explore partnership opportunities as a distributor, wholesaler, agent, or trader, and elevate your hydraulic system offerings with our high-quality SD5 Valves.
