Hydraulic Control Pressure Reducing Valve OEM P40 Solenoid 2 Spool Monoblock Directional Valves

控制方式:电磁

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:30*18*12

Grossweight:6.50 kg

库存: 有货

1206 次查看了此产品

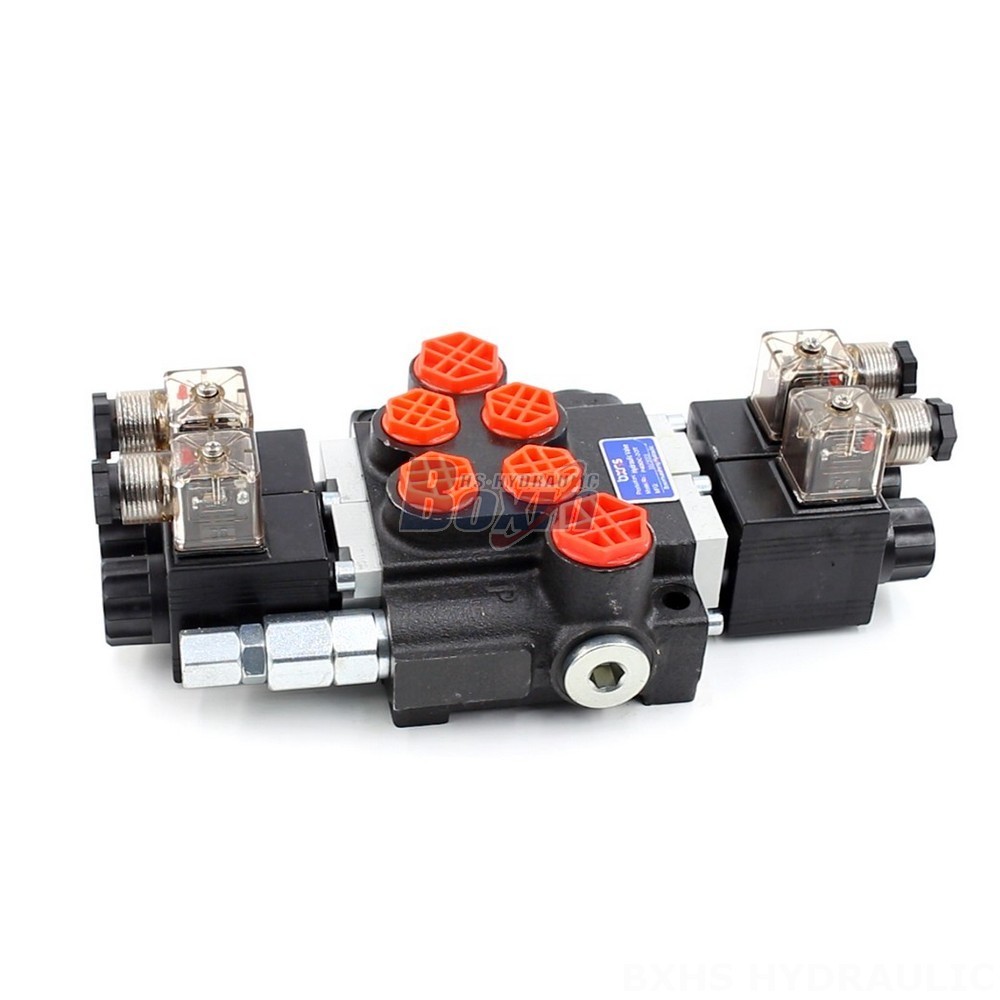

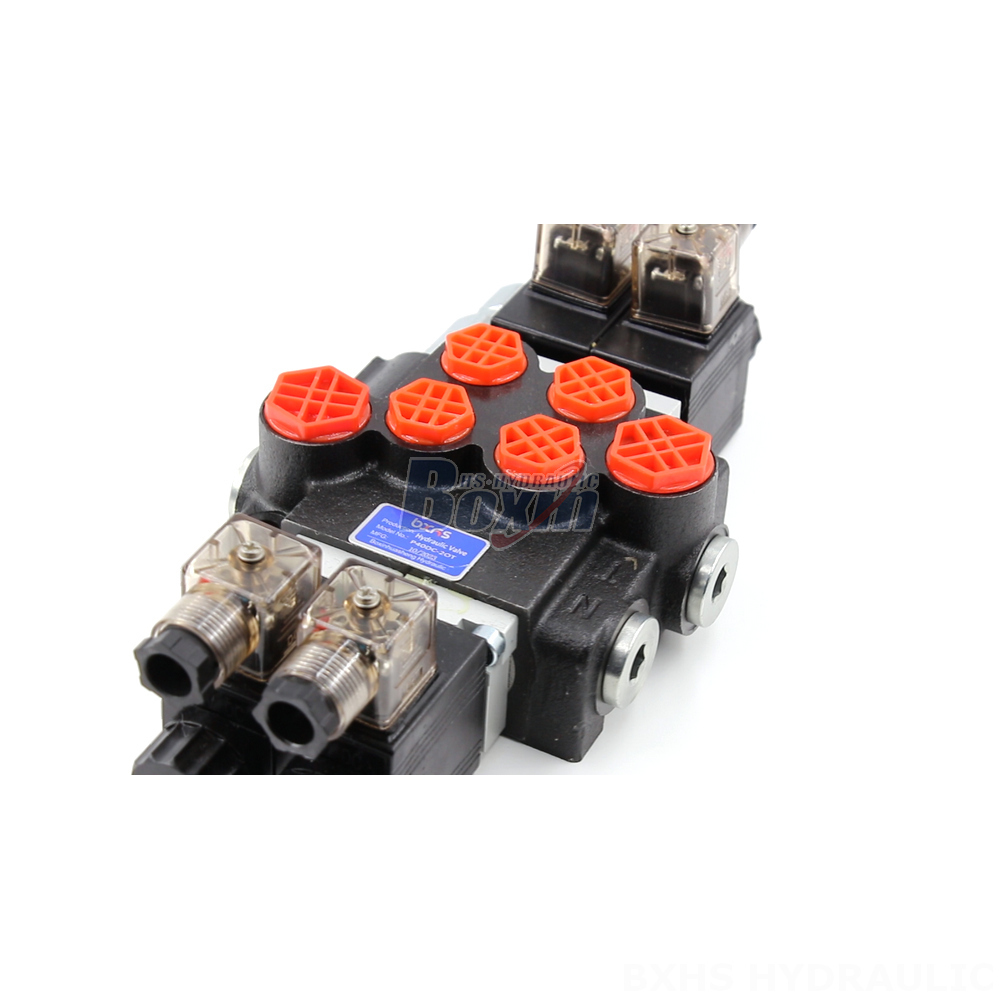

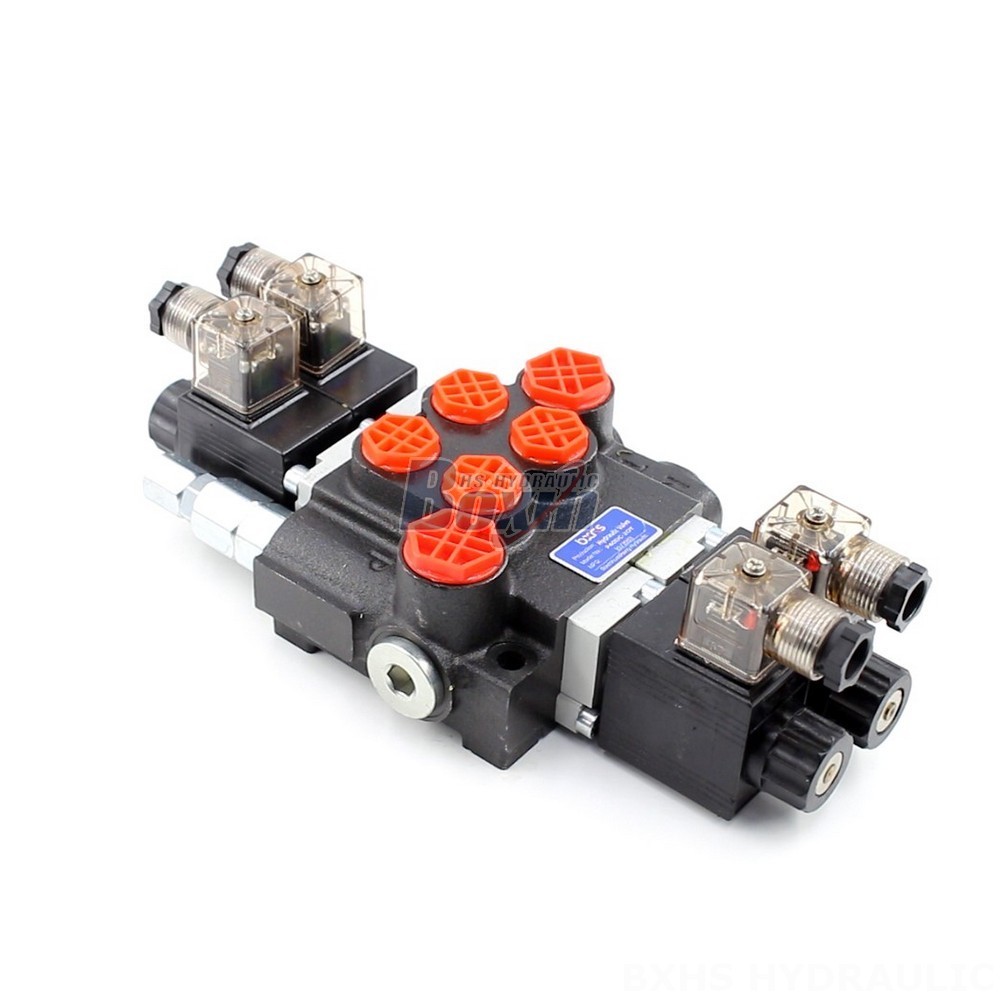

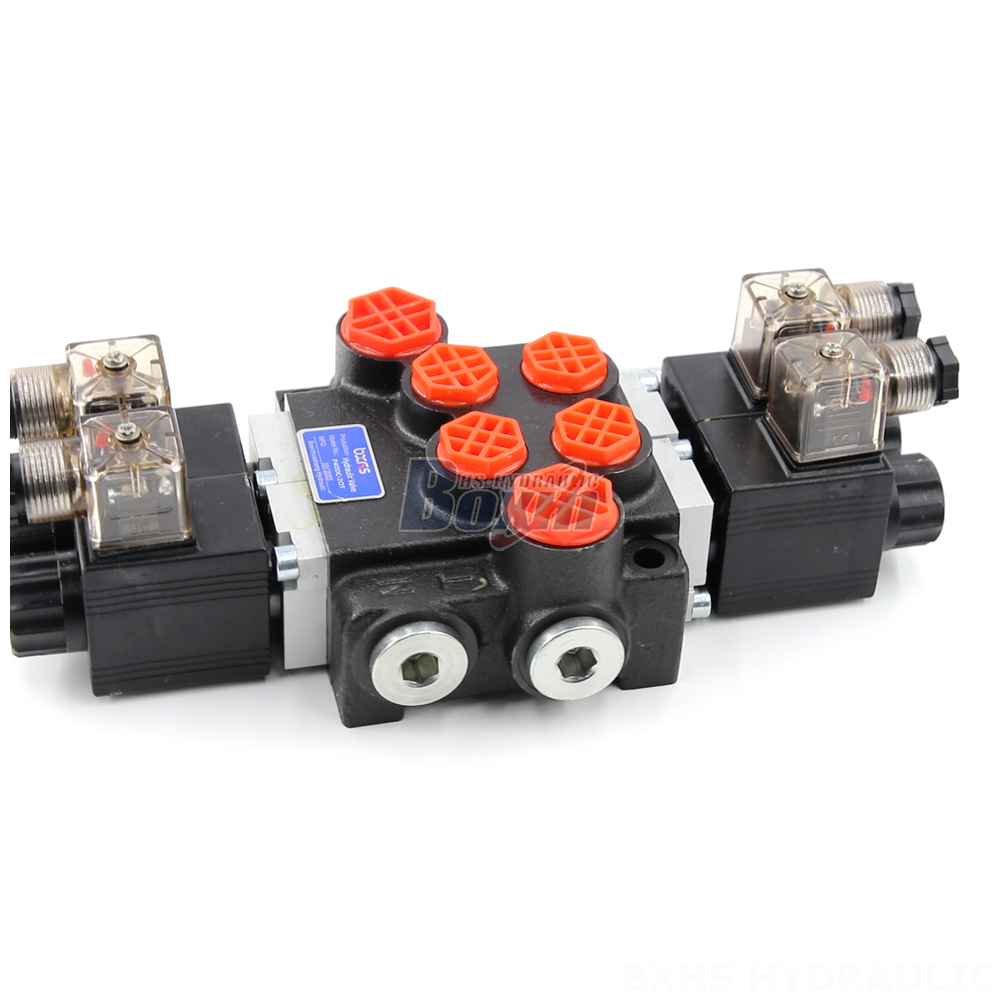

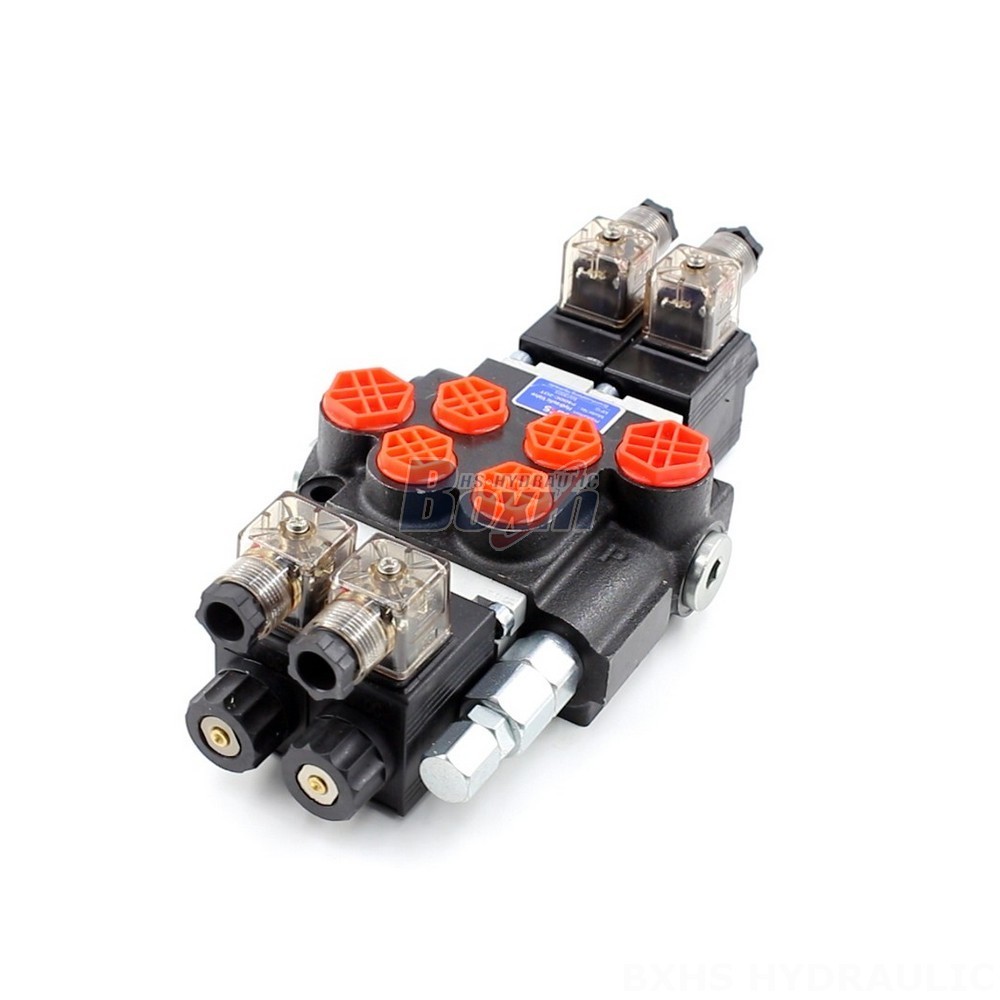

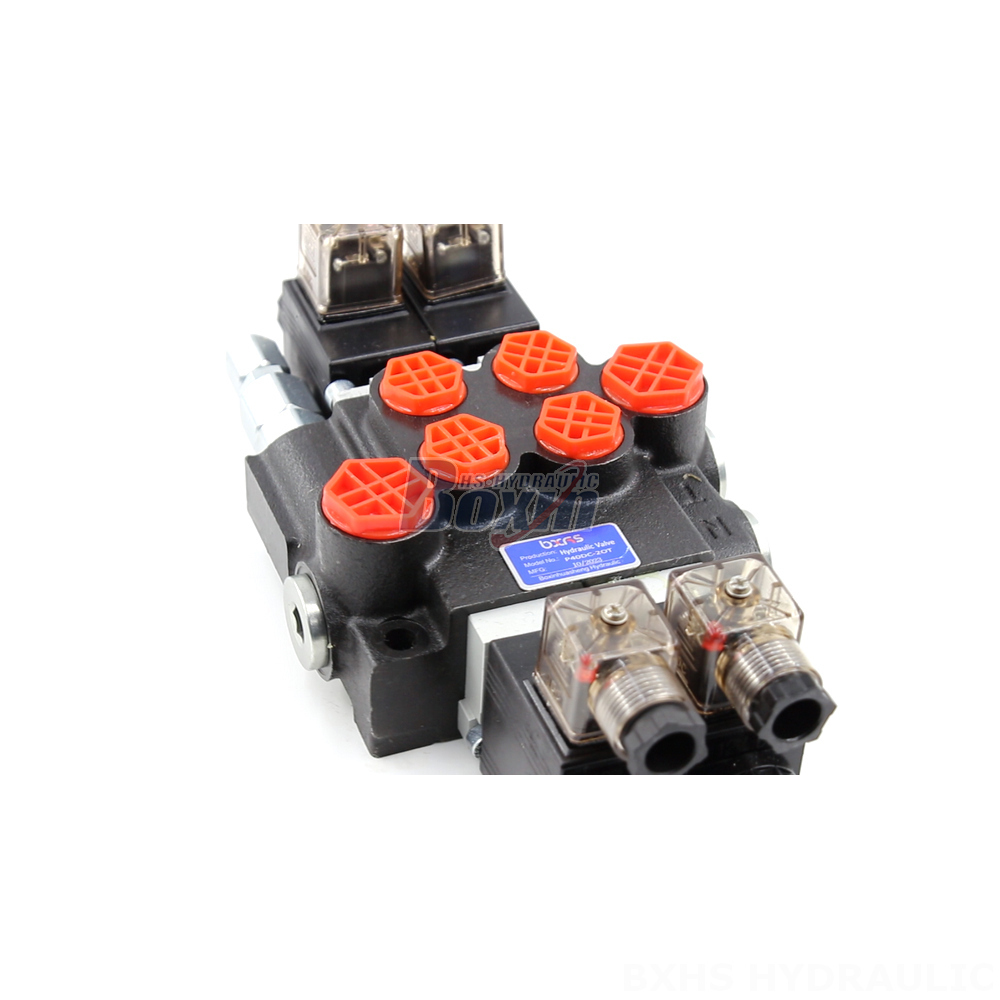

Hydraulic Control Pressure Reducing Valve OEM P40 Solenoid 2 Spool Monoblock Directional Valves

Hydraulic Control Pressure Reducing Valve OEM P40 Solenoid 2 Spool Monoblock Directional Valves

Hydraulic Control Pressure Reducing Valve OEM P40 Solenoid 2 Spool Monoblock Directional Valves drawing image

The P40 Series Hydraulic Control Pressure Reducing Valve is a high-performance solenoid-operated, monoblock directional valve designed for demanding applications in material handling, construction, and agriculture. With its 2 spool design and 40 L/min flow rate, this valve is ideal for controlling hydraulic systems in a wide range of equipment.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

This P40 Series Hydraulic Control Pressure Reducing Valve is a robust and reliable solution for controlling hydraulic systems. It features a solenoid control method, a 2-section monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm). This valve can withstand a maximum pressure of 250 bar (3600 psi) and operates efficiently within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for a wide range of applications, it's suitable for use in various types of equipment like telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. Its compact design and durable construction make it a reliable and versatile choice for various hydraulic applications.
