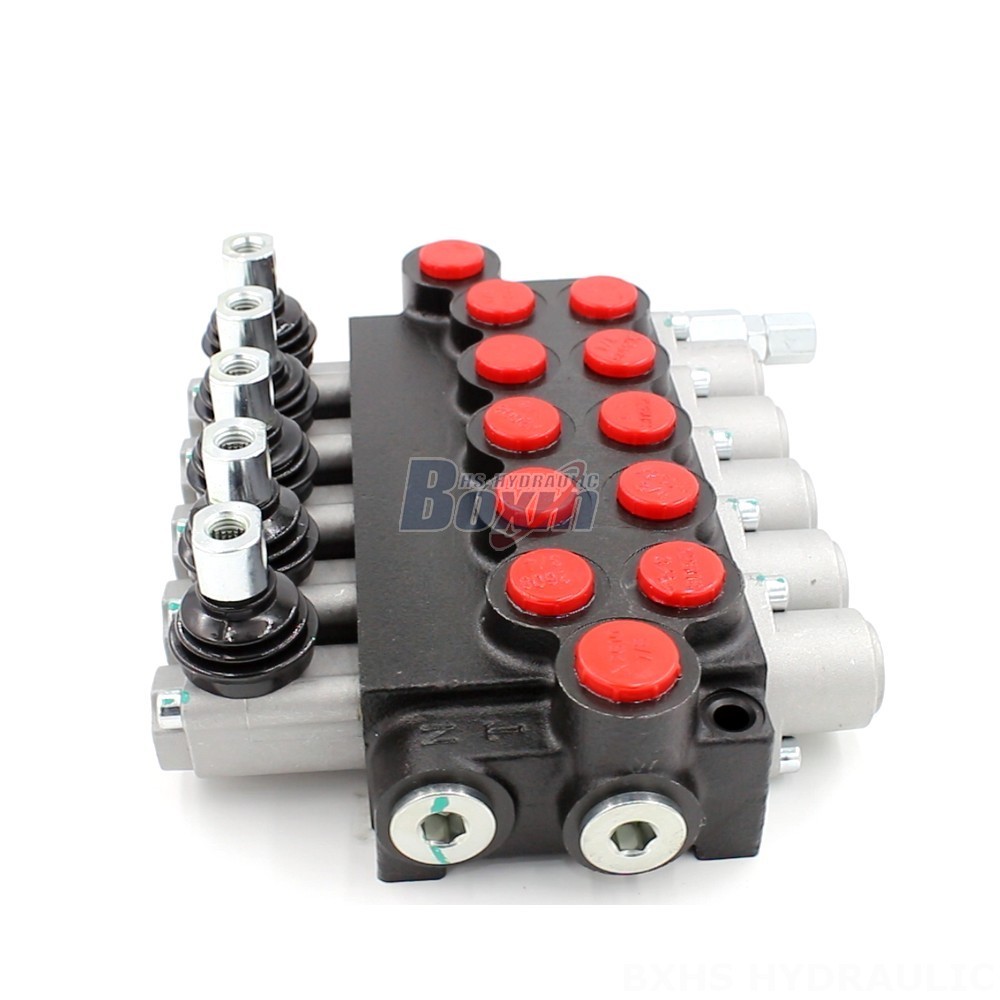

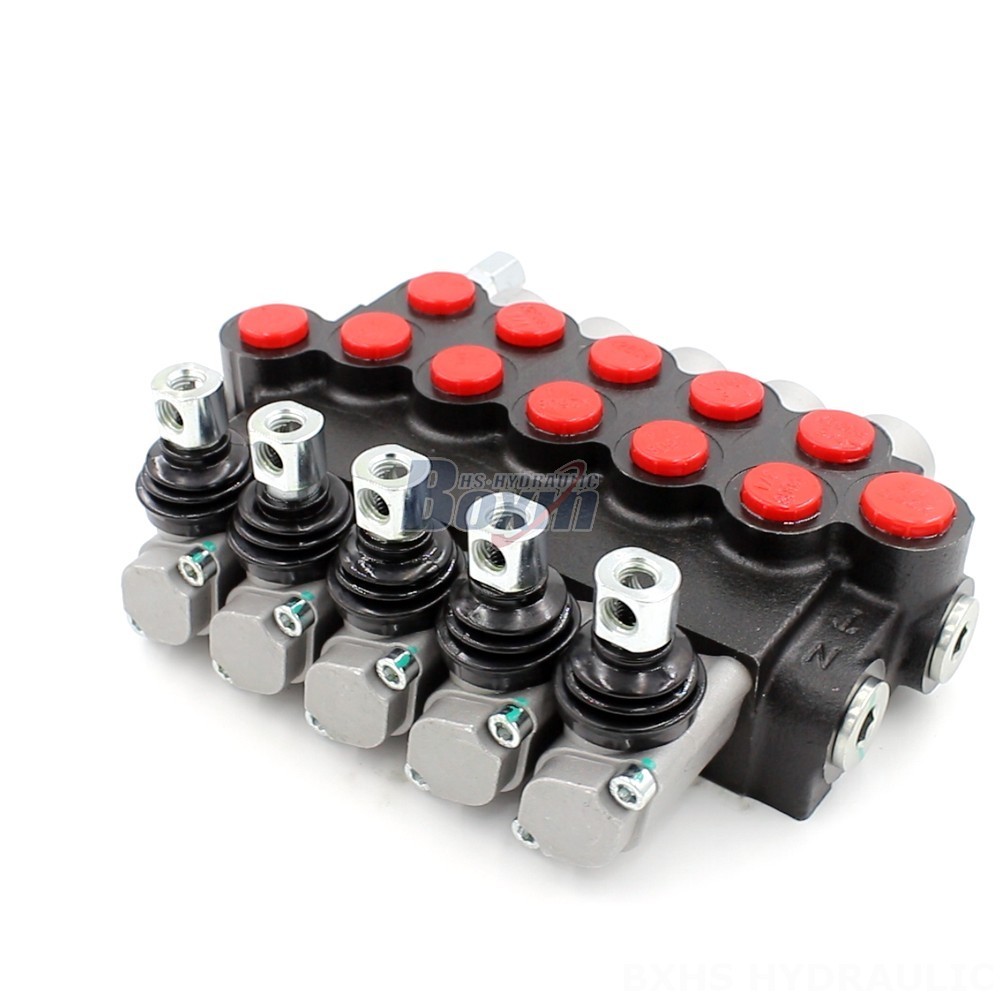

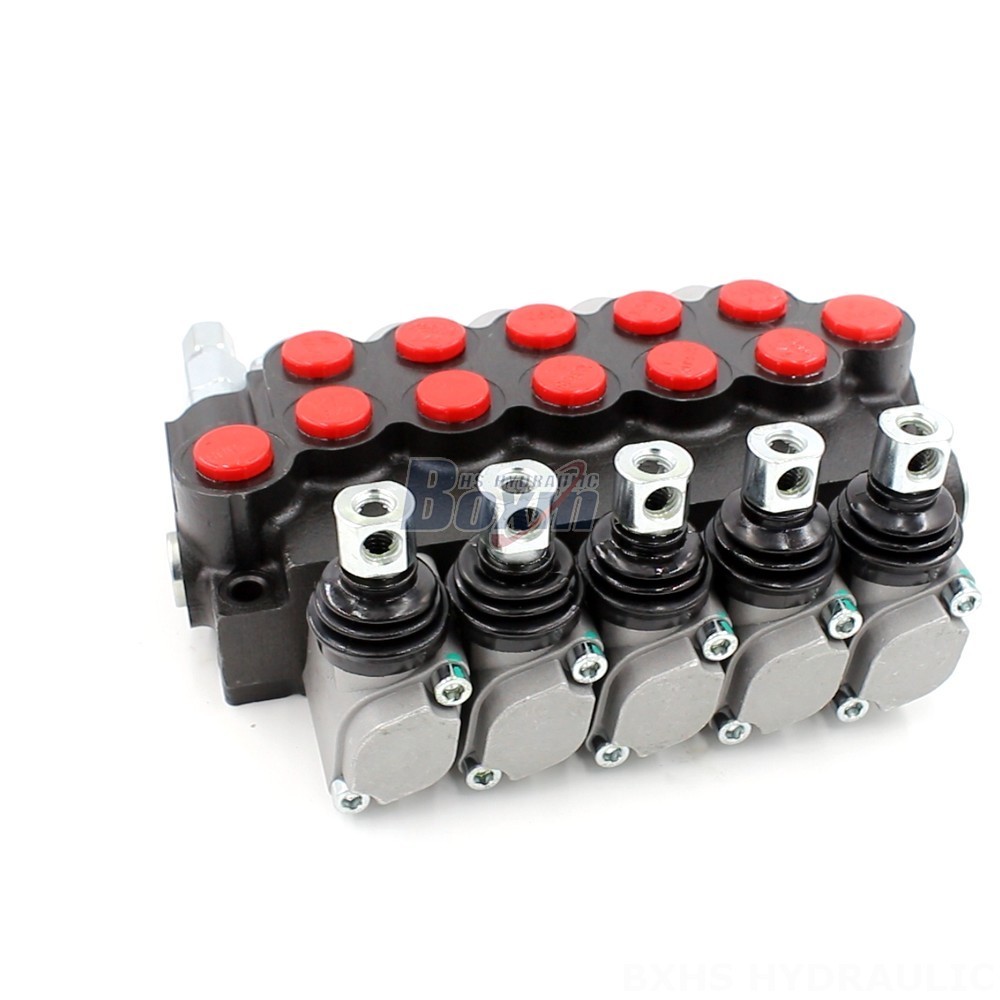

Introducing our Monoblock Directional Valve, the ultimate solution for reliable and efficient fluid control in demanding applications. With its robust monoblock construction and manual control, this valve delivers exceptional performance and durability.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
**Monoblock Directional Valve: Precision Fluid Control**
- **Manual Control:** Provides precise and responsive operation.
- **5 Section:** Handles multiple hydraulic circuits with ease.
- **40 L/min Flow Rate:** Supports high-volume fluid flow.
- **250 bar Max Pressure:** Withstands demanding pressure requirements.
- **Wide Viscosity Range (15-75 mm²/s):** Suitable for various fluid types and temperatures.
- **Durable Construction:** Monoblock design ensures strength and longevity.
- **Versatile Applications:** Ideal for material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, wheel loaders, and more.
