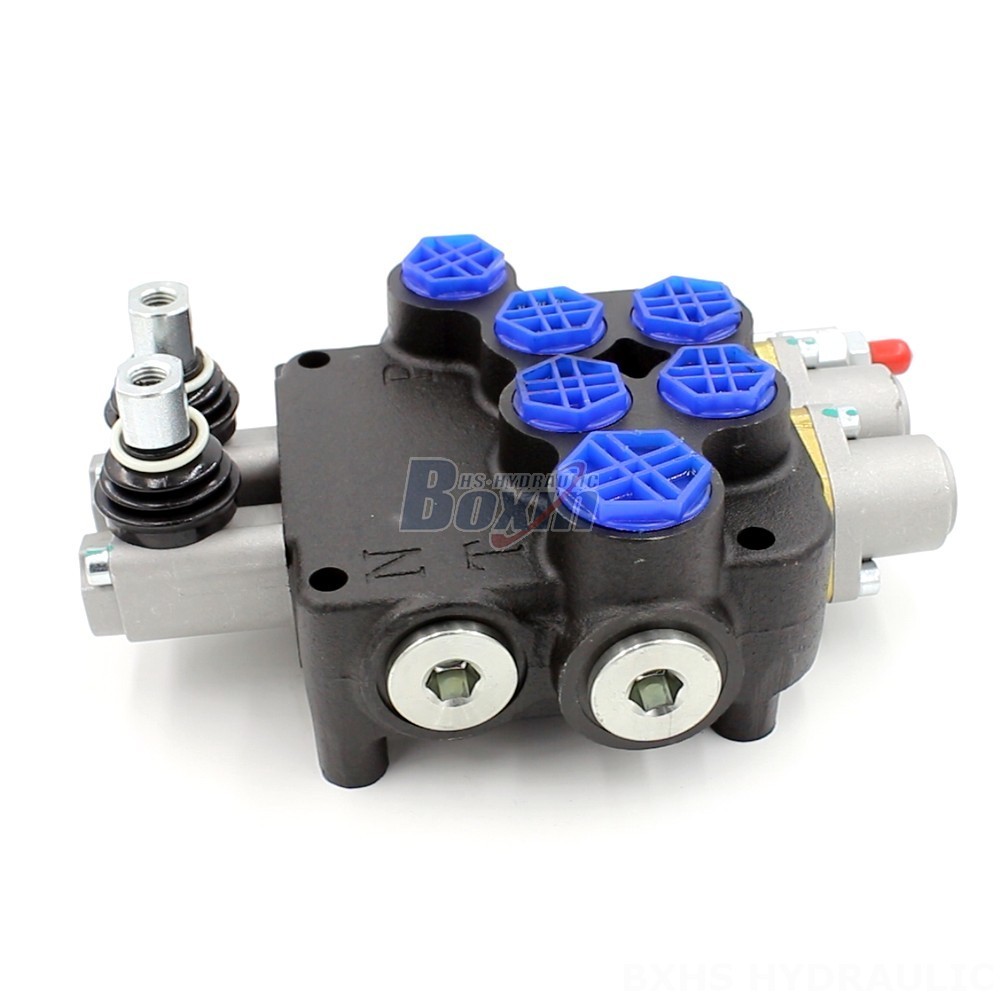

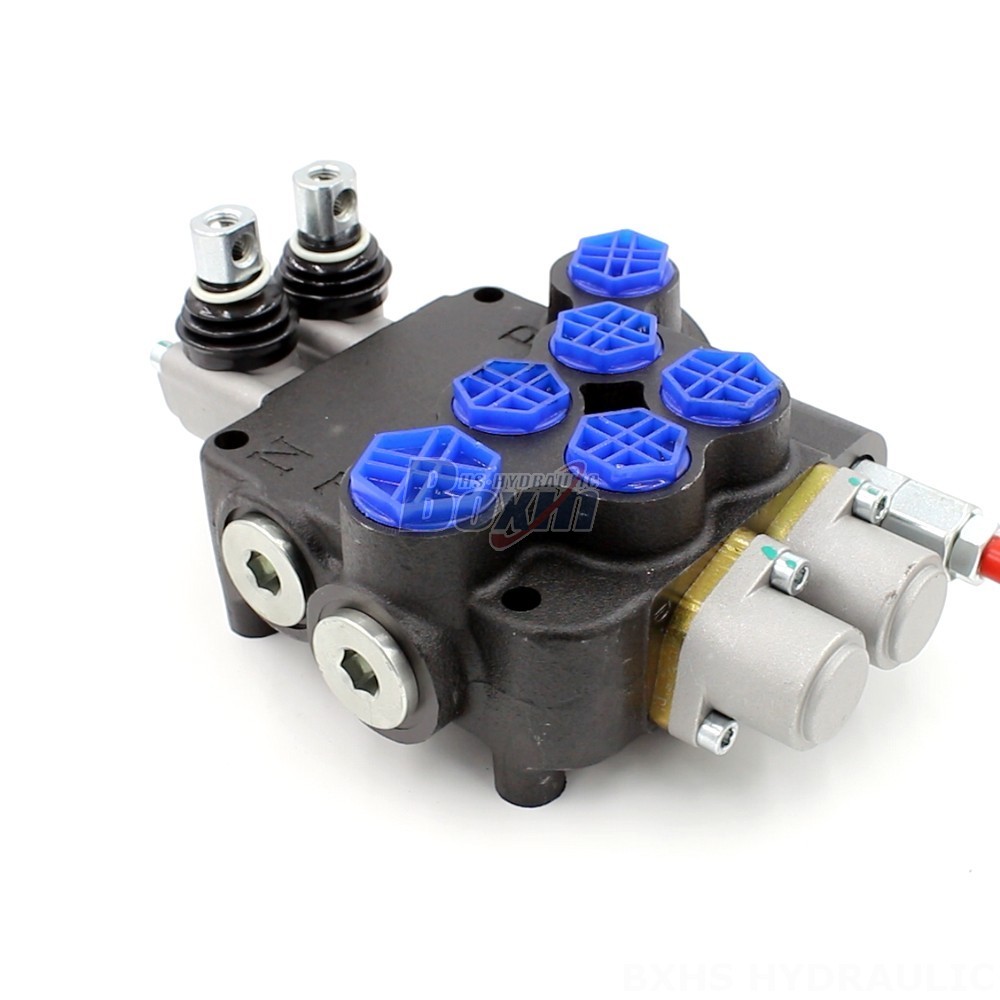

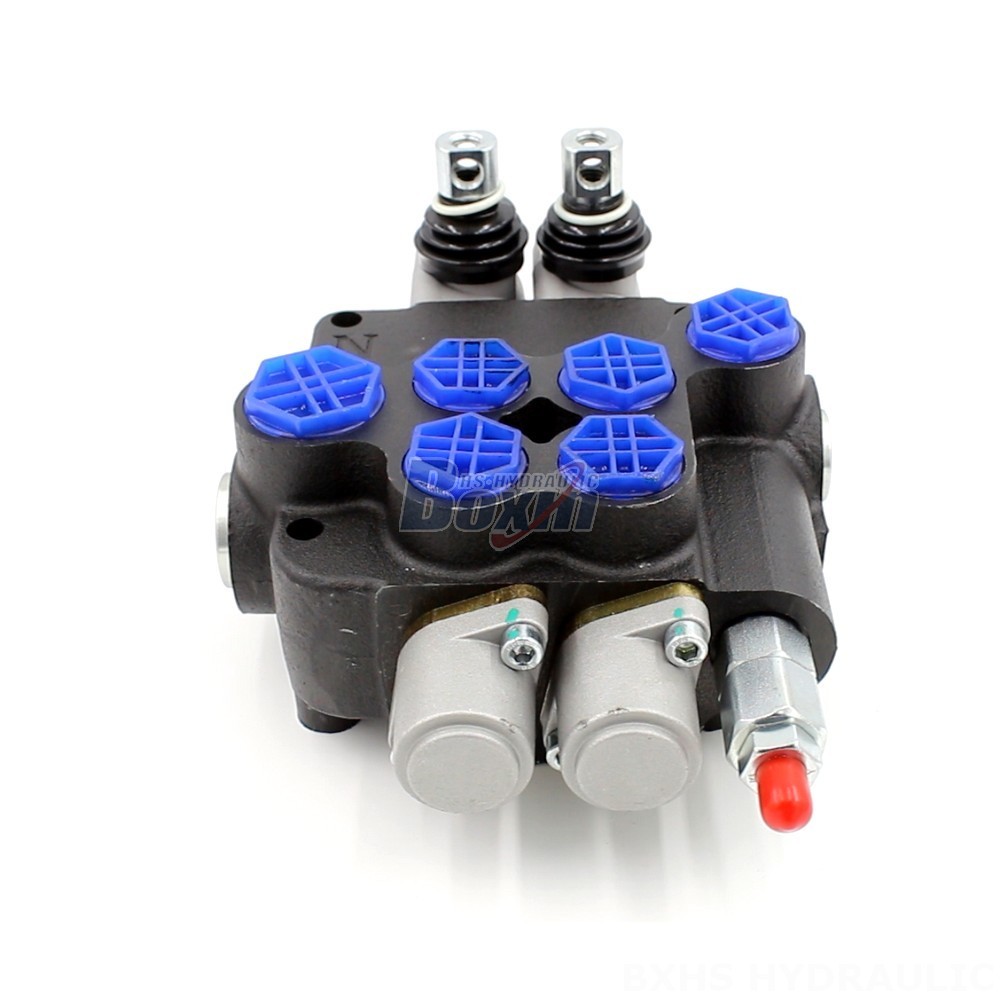

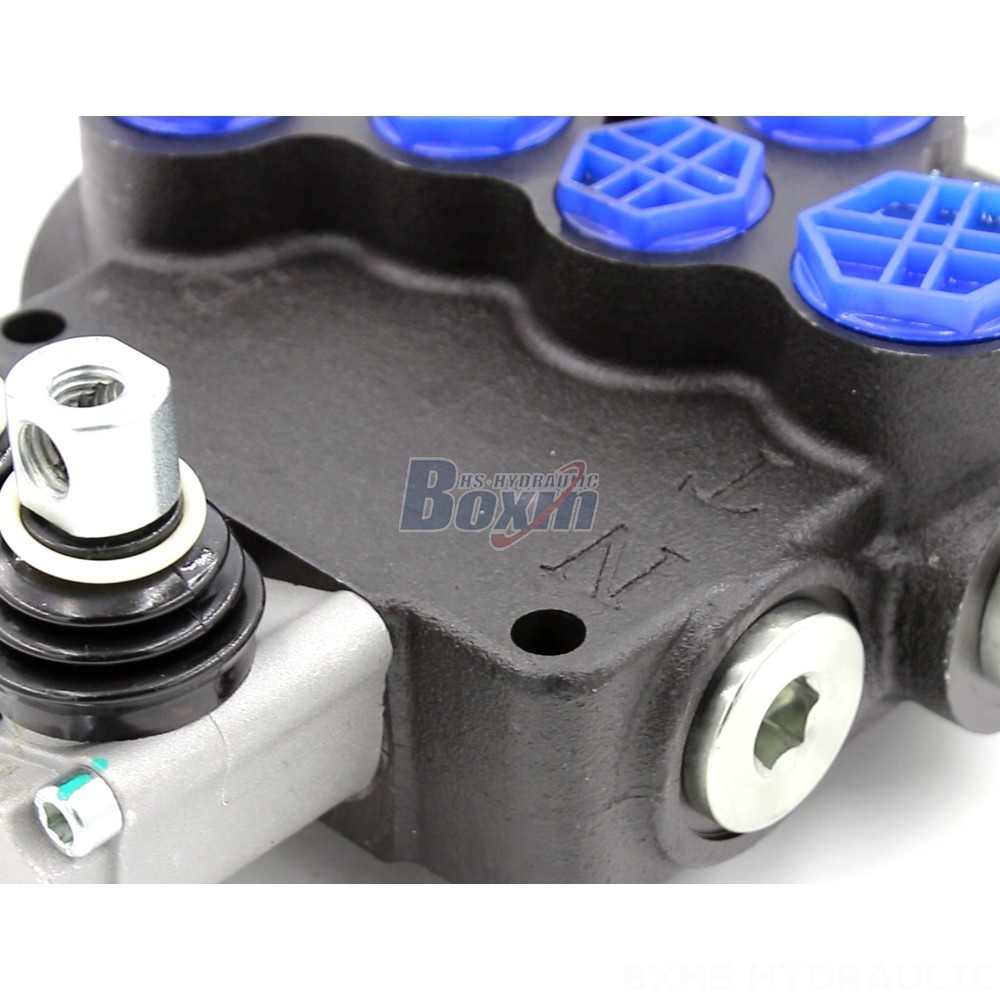

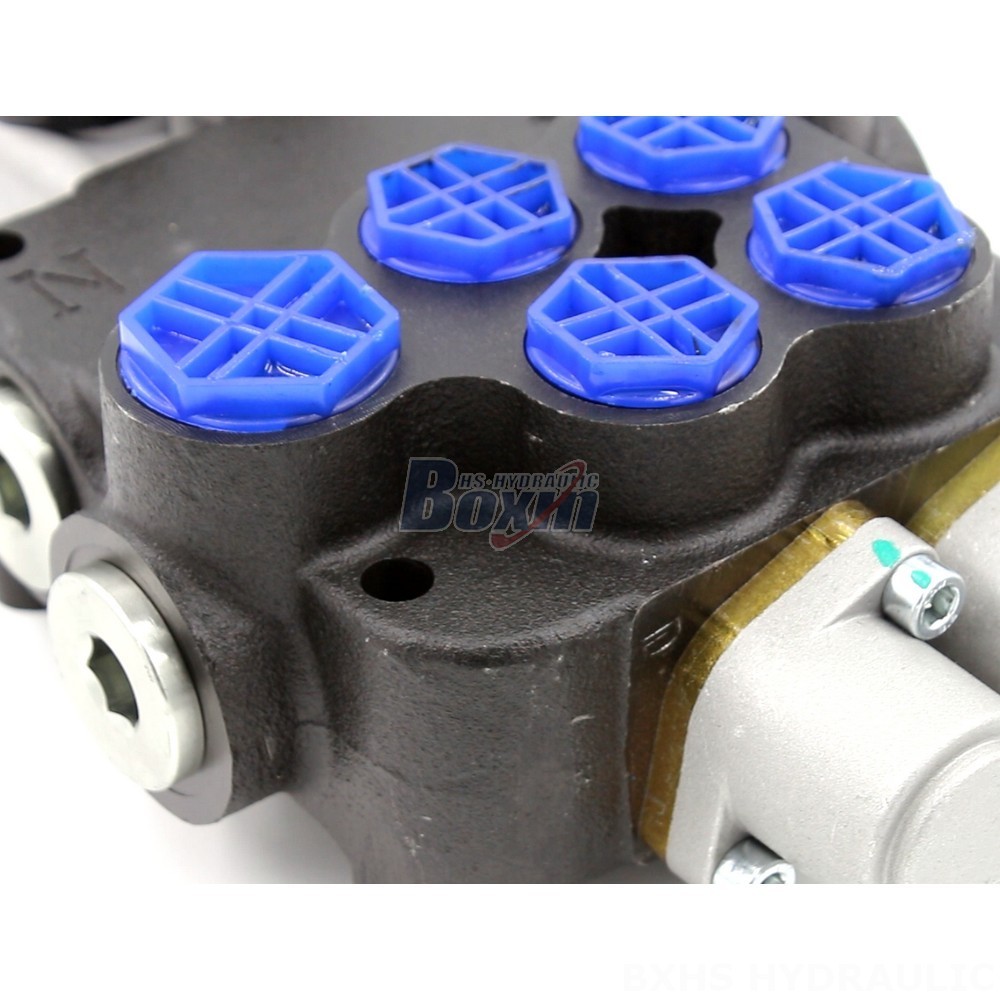

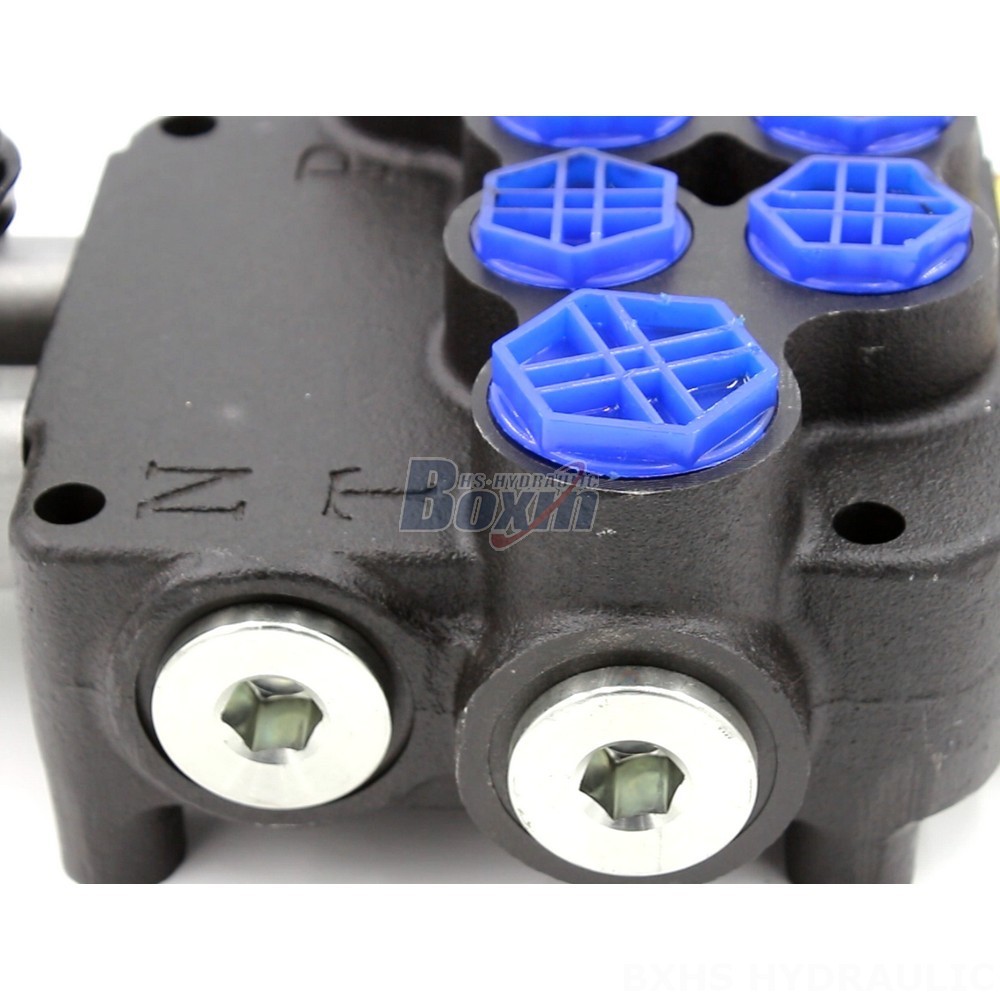

Steering Control Valve Monoblock Directional Valve P80-G12-G38-QW: Compact and Robust Design

控制方式:手控

路数:2 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:26*18*11

Grossweight:8.00 kg

库存: 有货

916 次查看了此产品

Steering Control Valve Monoblock Directional Valve P80-G12-G38-QW: Compact and Robust Design

Steering Control Valve Monoblock Directional Valve P80-G12-G38-QW: Compact and Robust Design

Steering Control Valve Monoblock Directional Valve P80-G12-G38-QW: Compact and Robust Design drawing image

The P80-G12-G38-QW steering control valve is a compact and robust monoblock directional valve designed for demanding applications in material handling, construction, and agriculture. It features a manual control method, 2 sections, and a rated flow of 80 L/min. The valve is suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, and excavators.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

This P80 Series steering control valve is a high-performance, compact, and robust monoblock directional valve designed for demanding applications. With its manual control method and 2 sections, it provides precise and reliable control of hydraulic systems. The valve features a rated flow of 80 L/min and a maximum pressure of 250 bar. It is suitable for a wide range of applications, including material handling, construction, and agriculture. The valve's compact and robust design makes it ideal for use in tight spaces and demanding environments. Its high flow rate and pressure rating ensure reliable performance under heavy loads. The valve is compatible with various machines and equipment, such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, backhoe loaders, and skip loaders.
