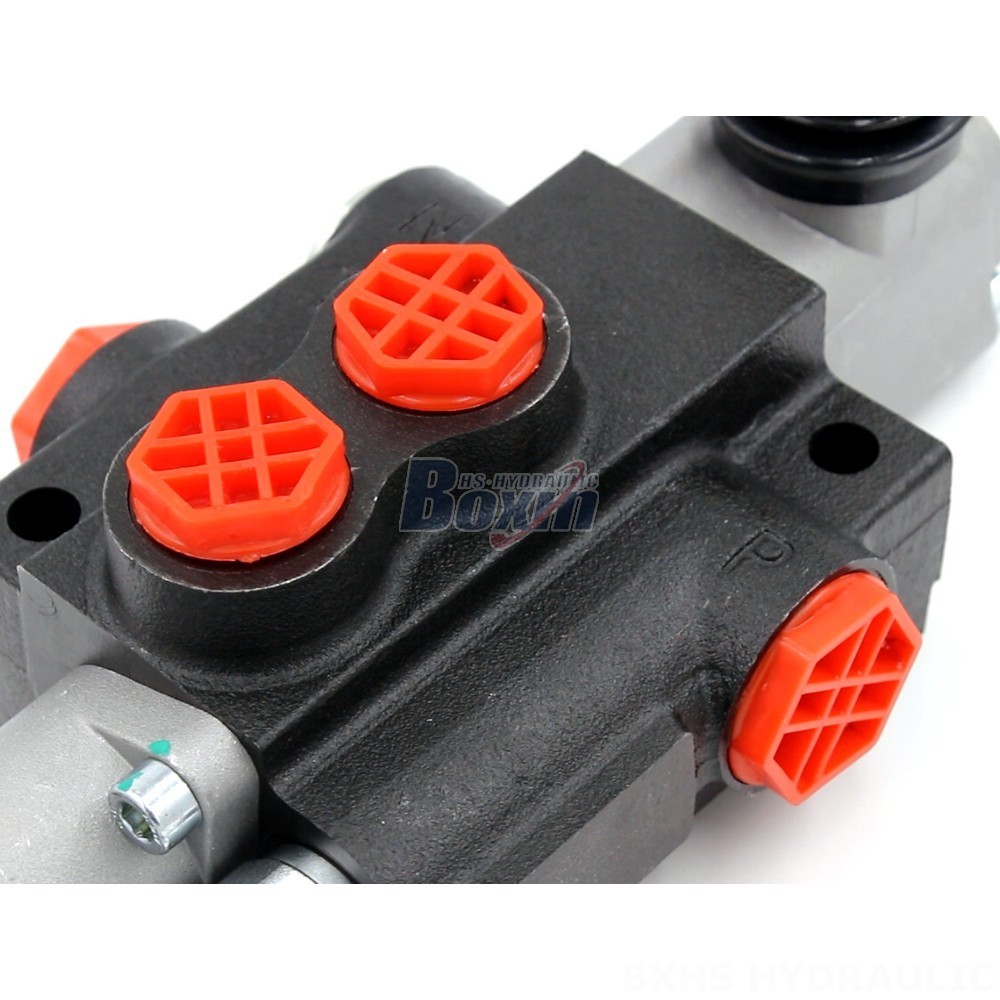

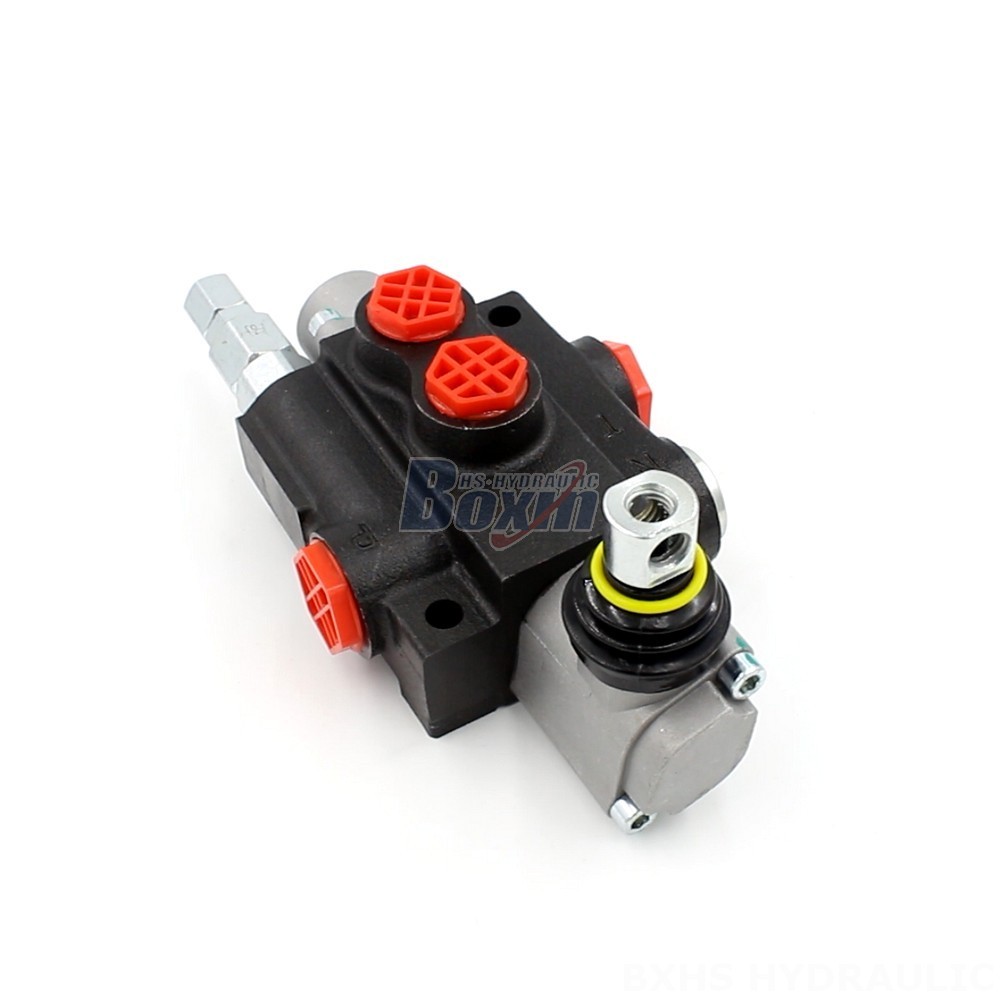

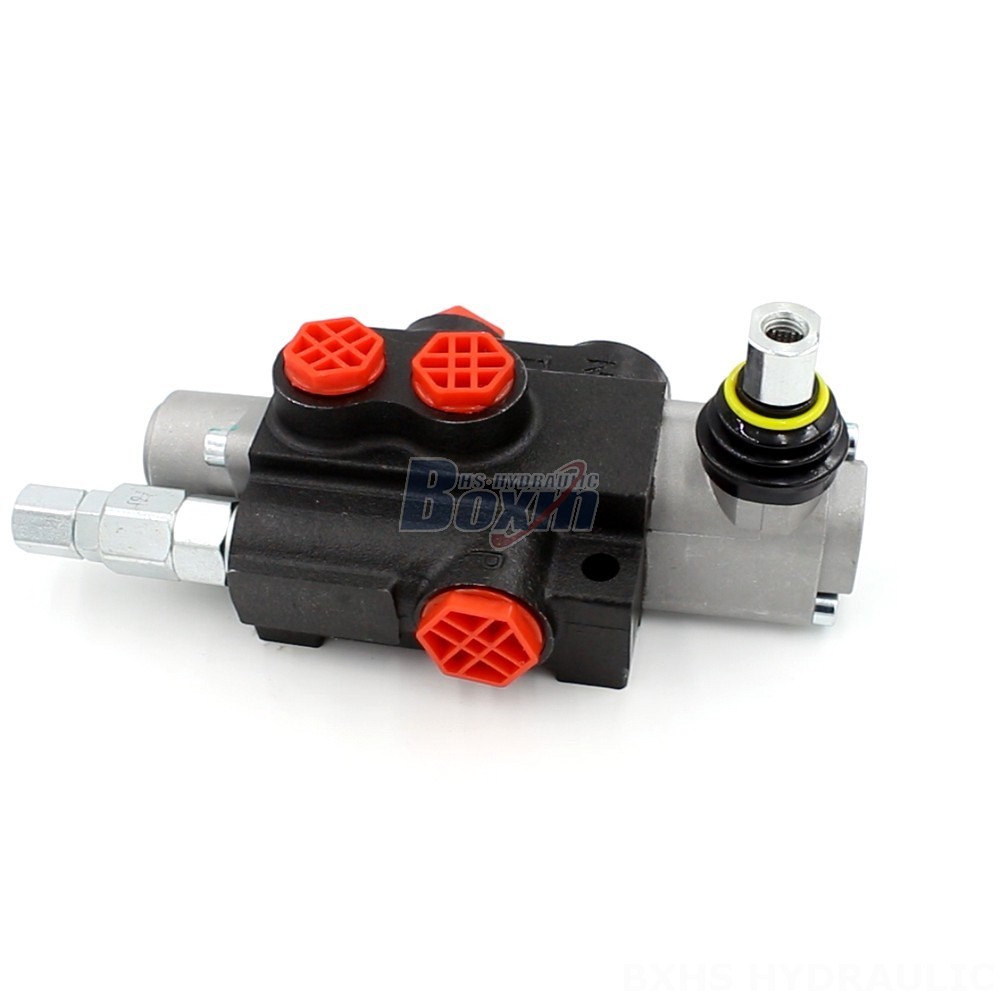

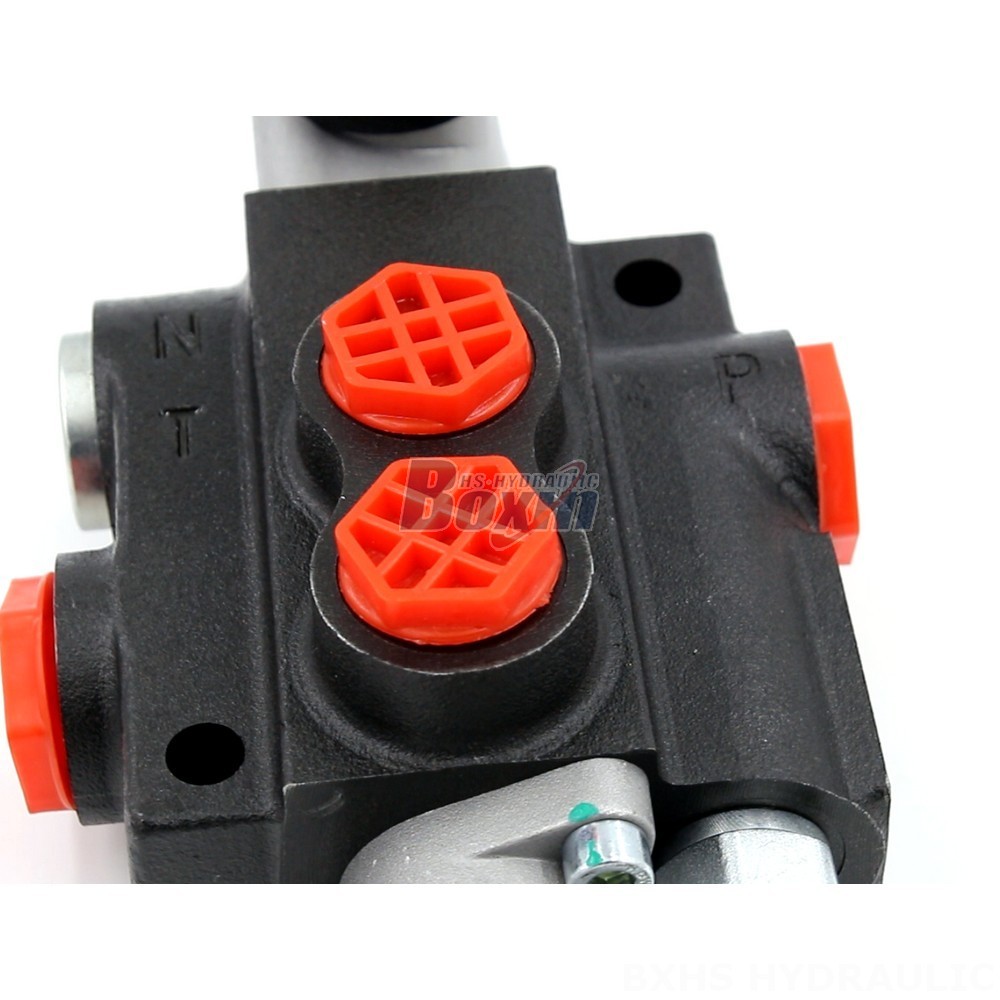

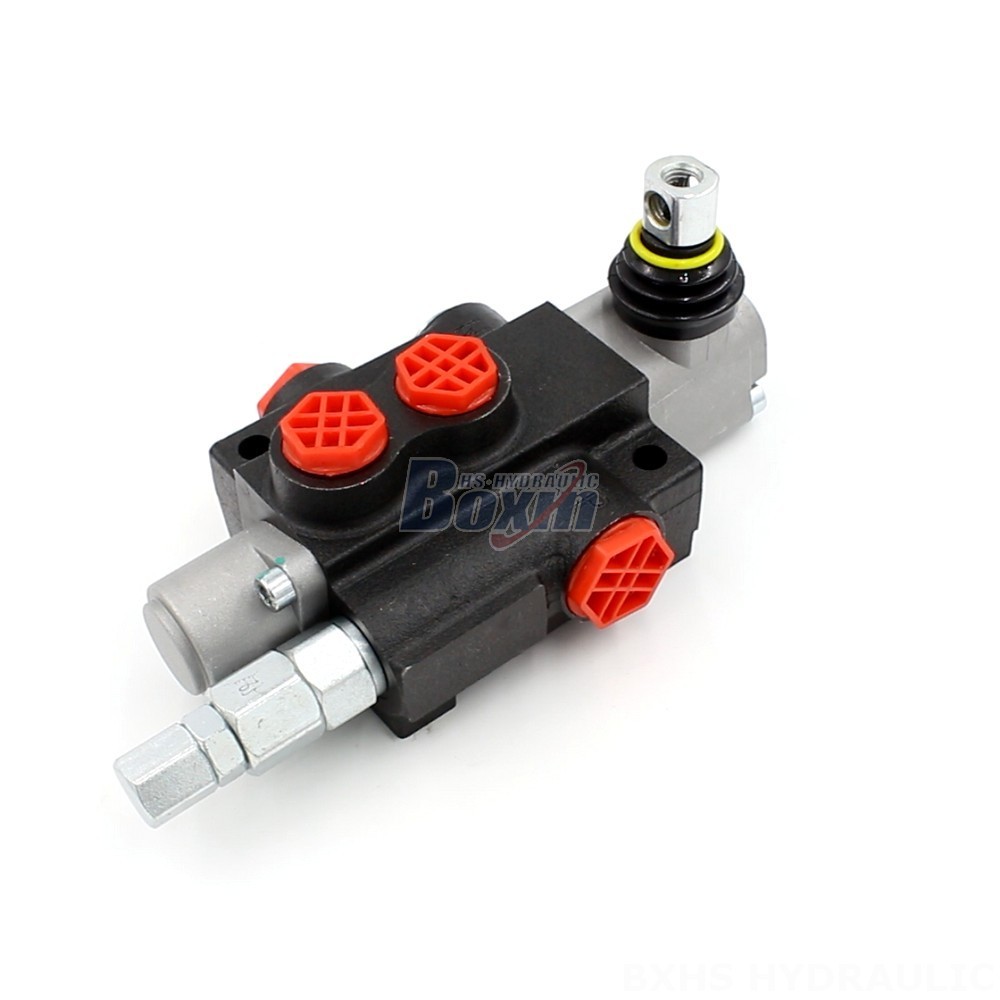

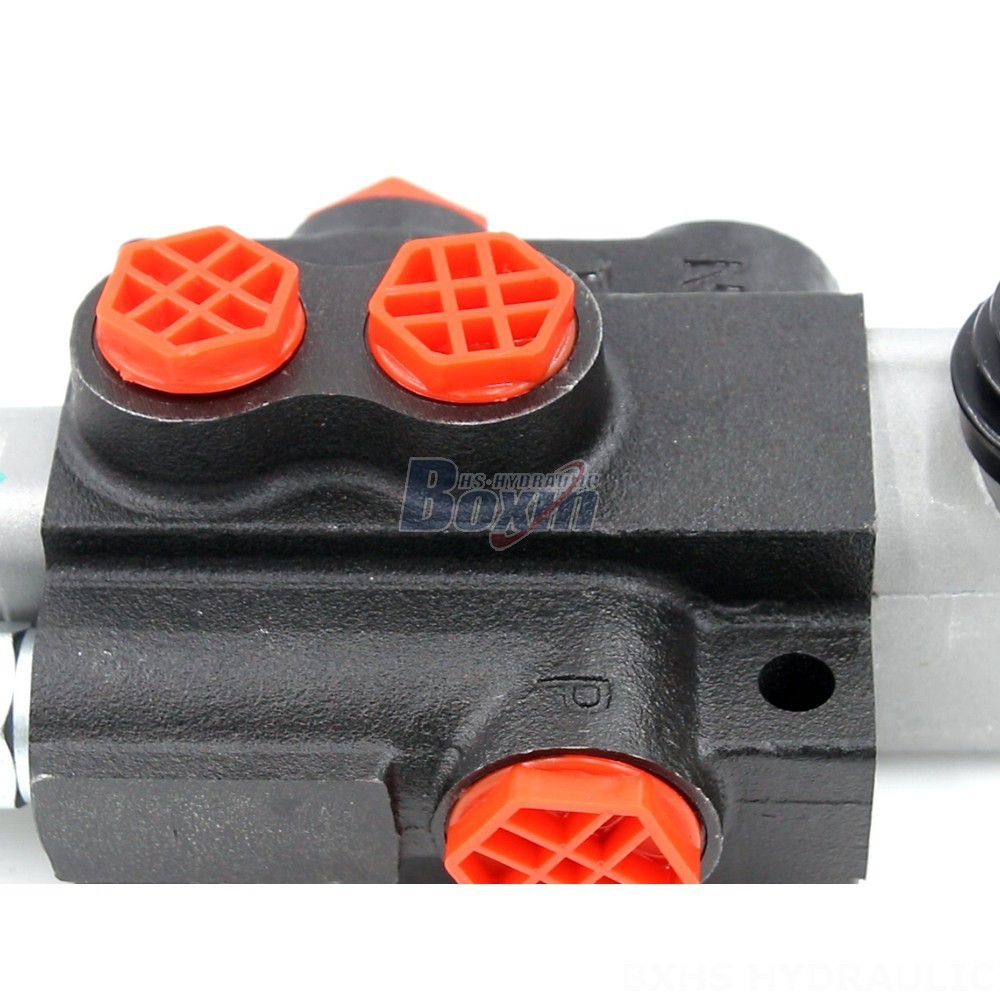

Introducing the P40-OW Monoblock Directional Valve, an innovative and reliable solution for your fluid power needs. This valve boasts a compact monoblock design, ensuring durability and space efficiency. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers excellent performance in diverse applications.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-OW Monoblock Directional Valve features manual control and a single section design, providing precise and efficient operation. Its operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C ensure compatibility with various fluids and environments. The valve's single spool design simplifies maintenance and reduces complexity.
This valve is widely applicable in industries such as material handling, construction and earth moving, agriculture, and industrial vehicles. It is particularly suitable for use in equipment like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
The P40-OW Monoblock Directional Valve is customizable to meet specific requirements, making it an ideal choice for OEMs and end-users seeking a reliable and efficient solution for their hydraulic systems.
