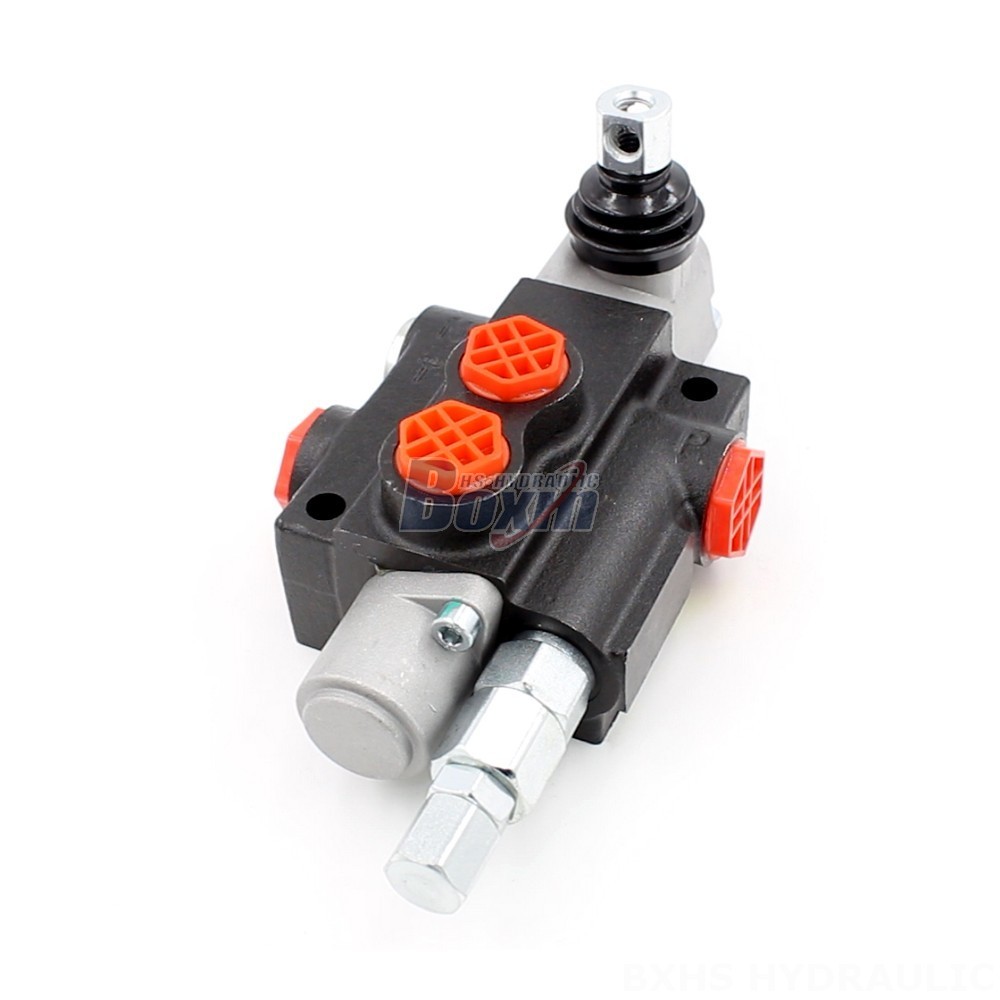

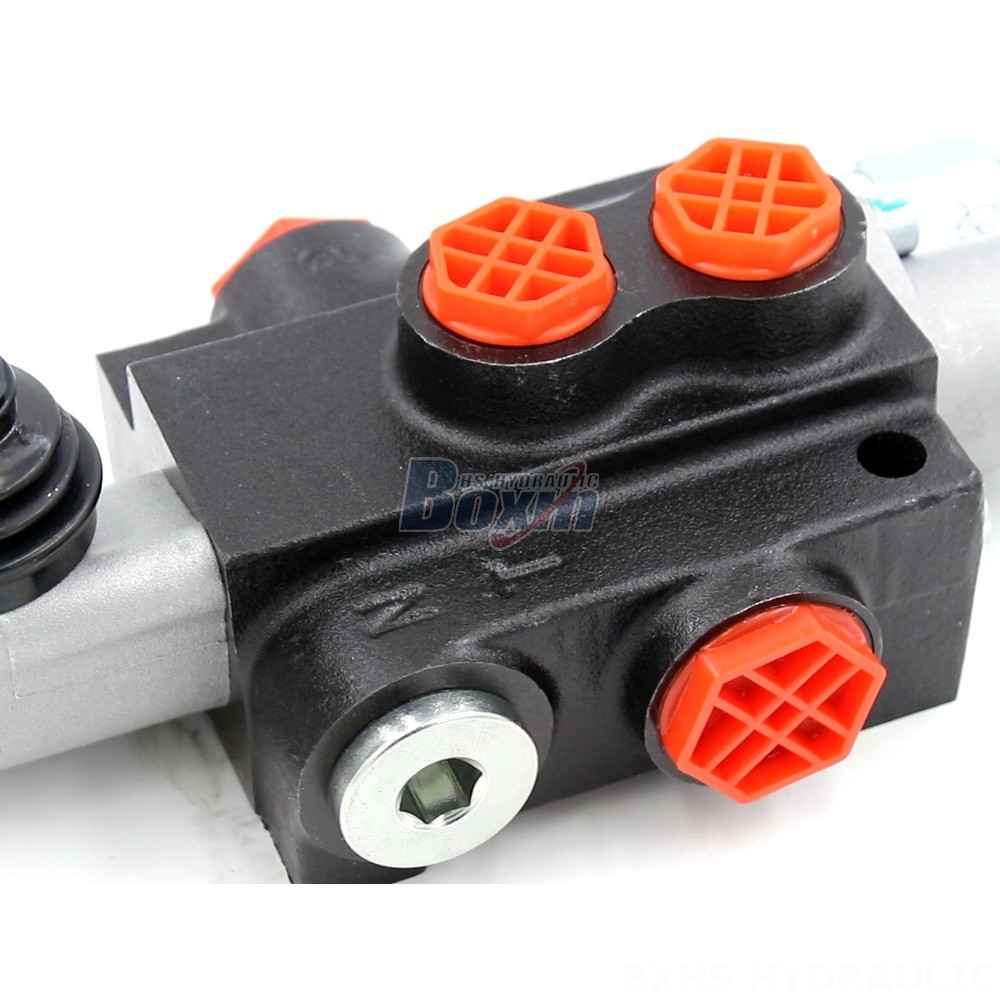

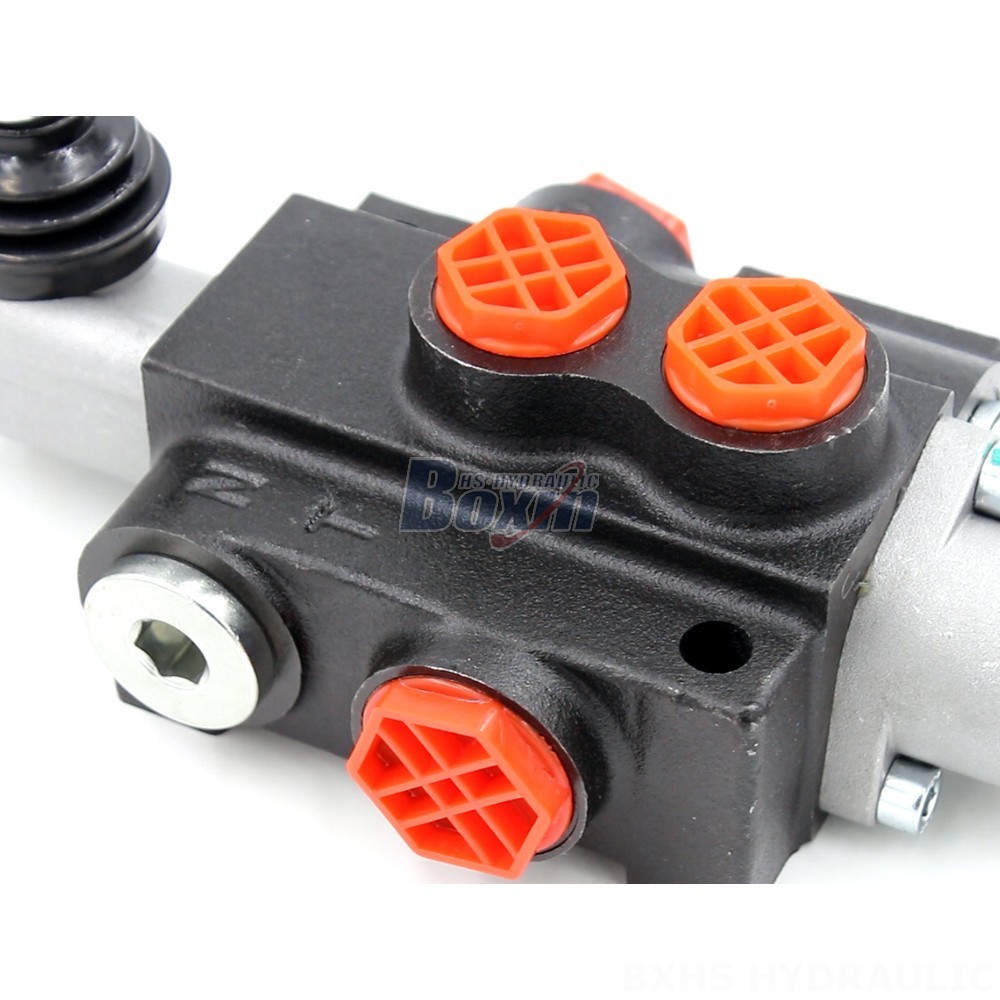

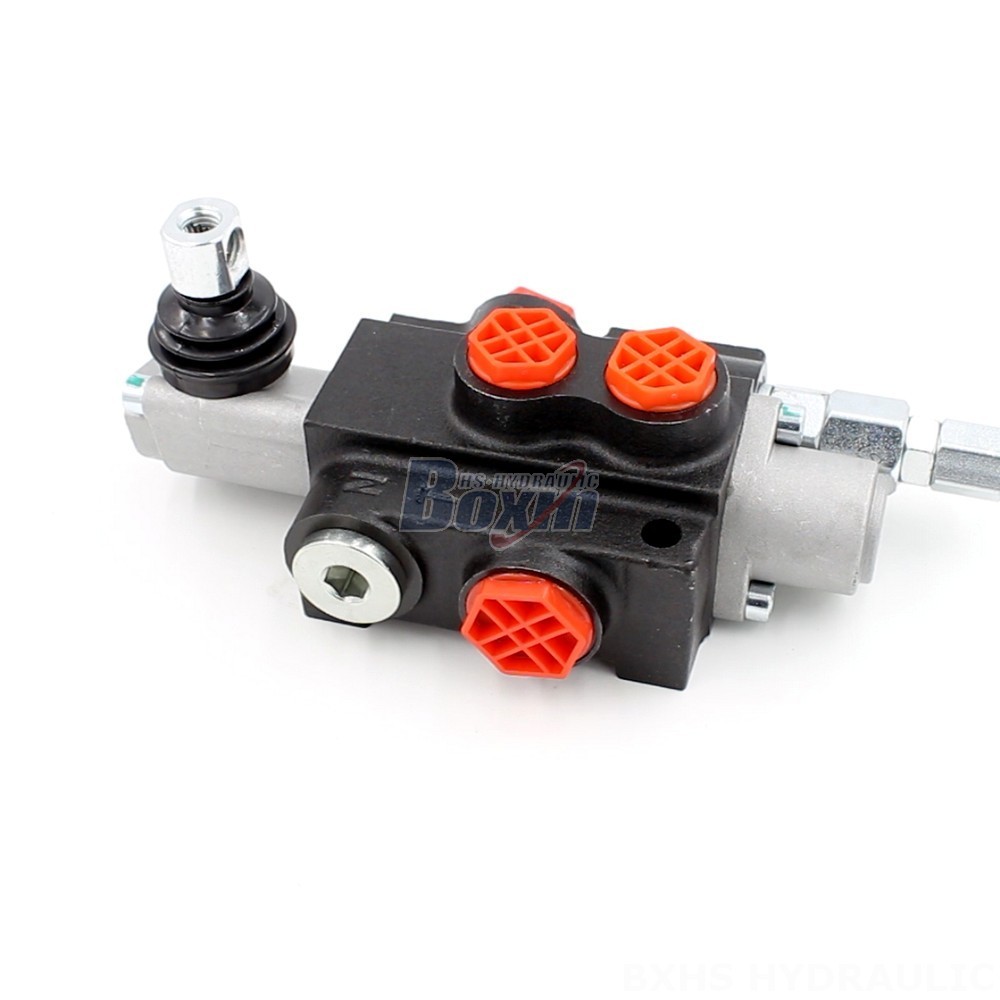

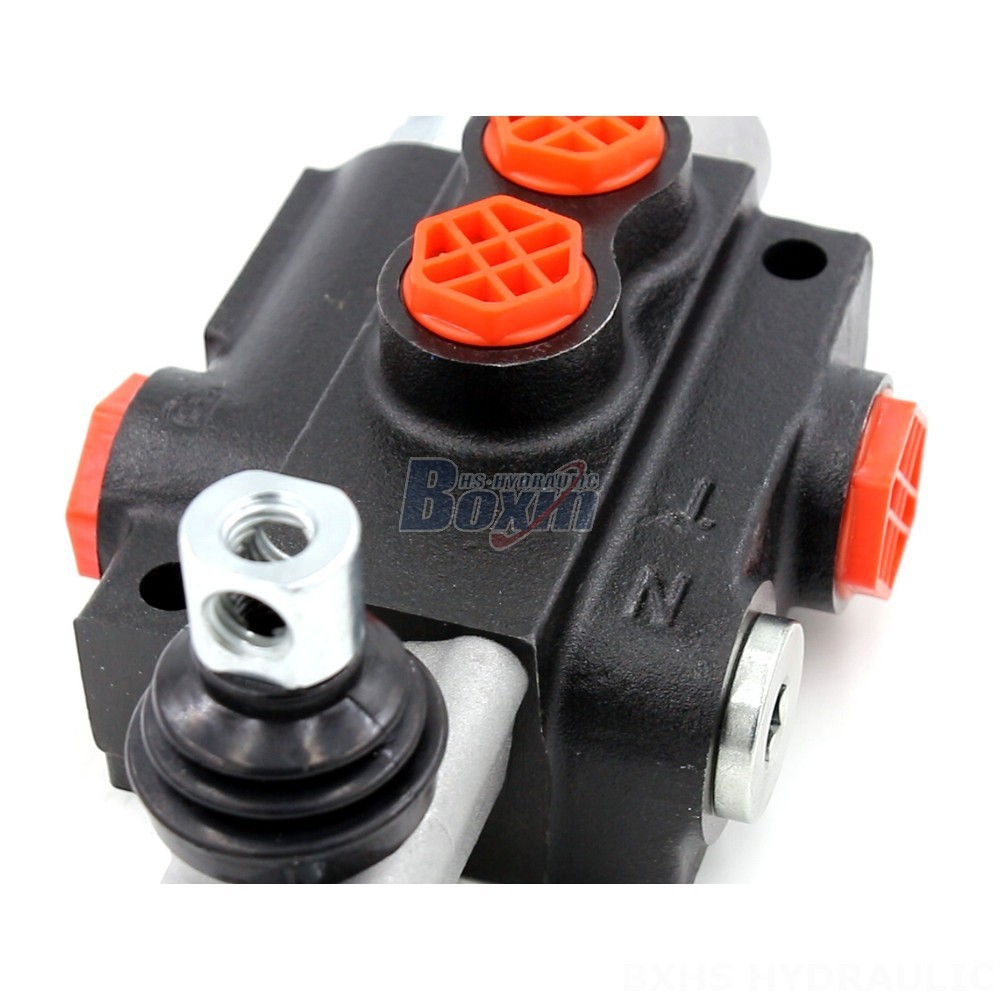

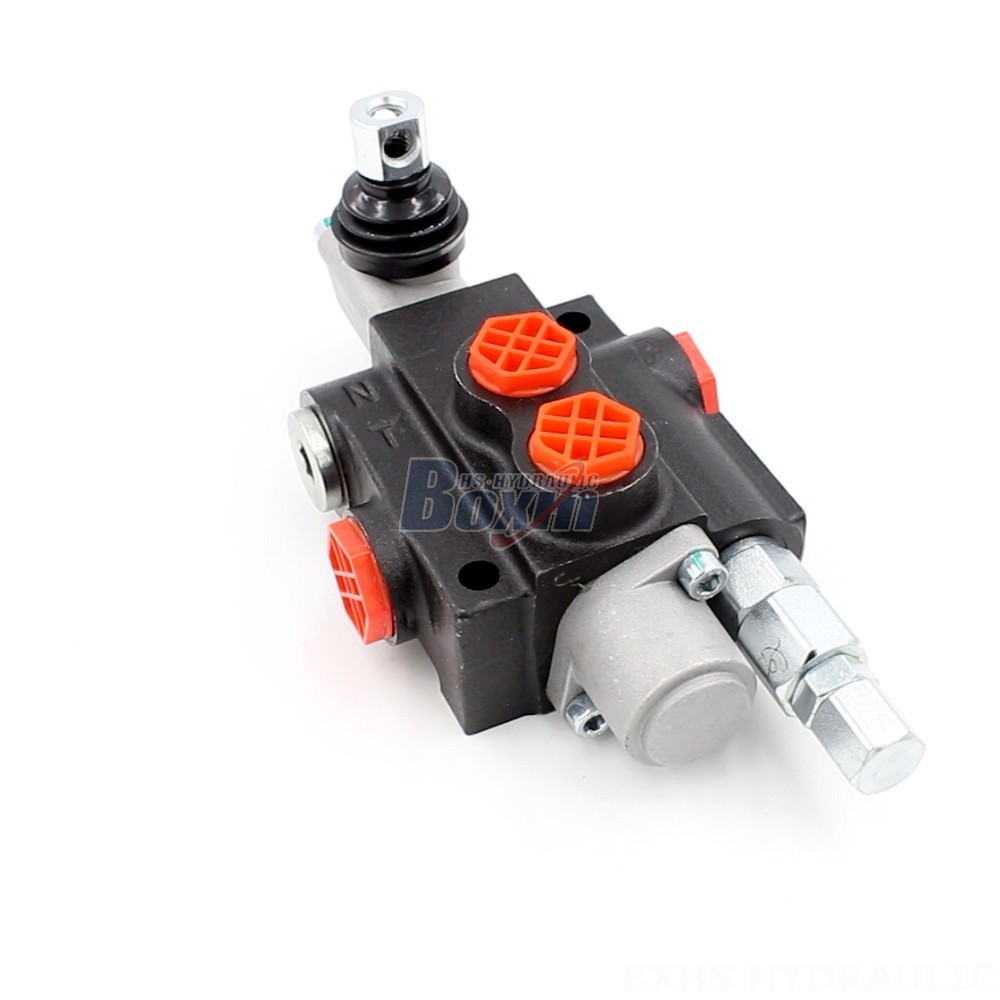

The P40-OT Wood Splitter Control Valve is a high-performance, manual directional control valve designed for demanding applications in construction, material handling, and agriculture. This robust monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for powering various hydraulic systems in heavy-duty machinery.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This P40-OT Wood Splitter Control Valve is a reliable and durable hydraulic component that delivers superior performance in challenging environments. Its monoblock construction ensures exceptional strength and longevity, while its manual control offers precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for powering a wide range of hydraulic systems in construction equipment, material handling machinery, and agricultural vehicles. The P40-OT is specifically designed for applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its robust construction and high flow rate make it an ideal choice for heavy-duty applications where reliability and performance are paramount.
