Pressure Compensated Control Valve Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

控制方式:手控

路数:1 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*16*11

Grossweight:3.00 kg

库存: 有货

974 次查看了此产品

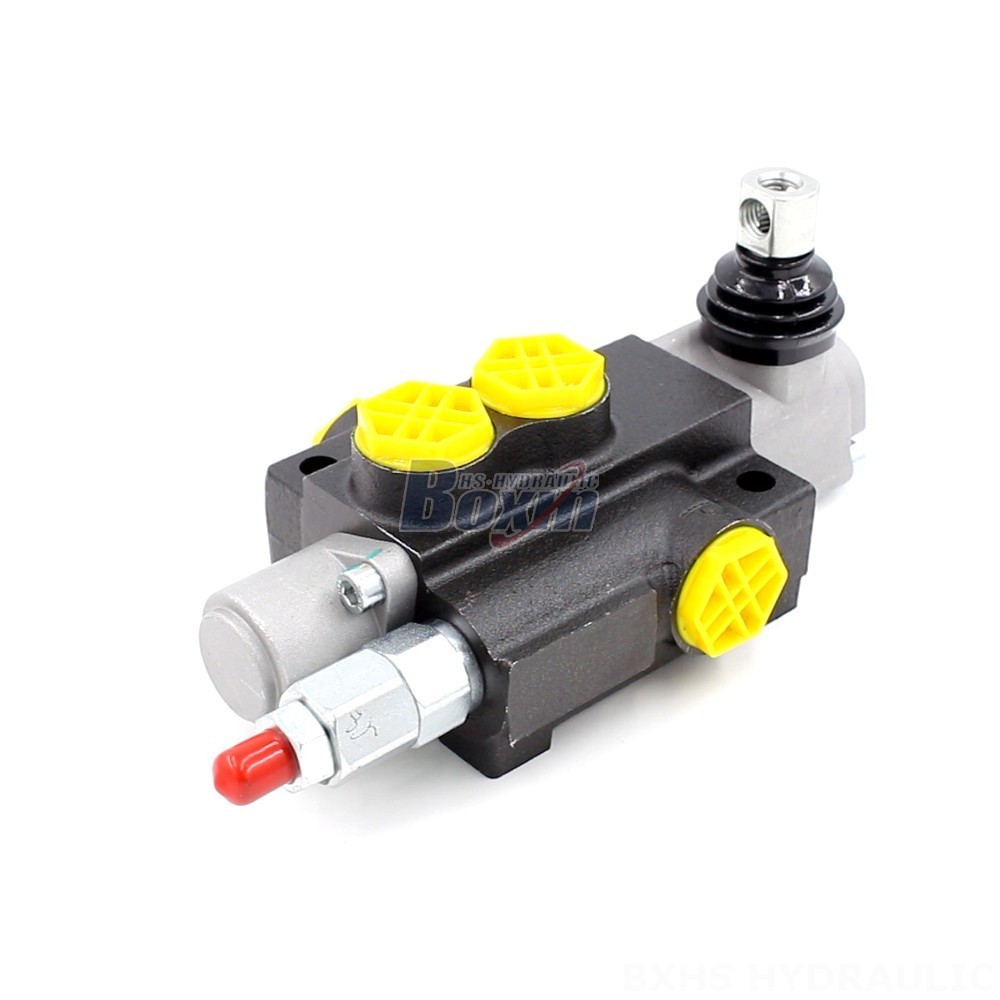

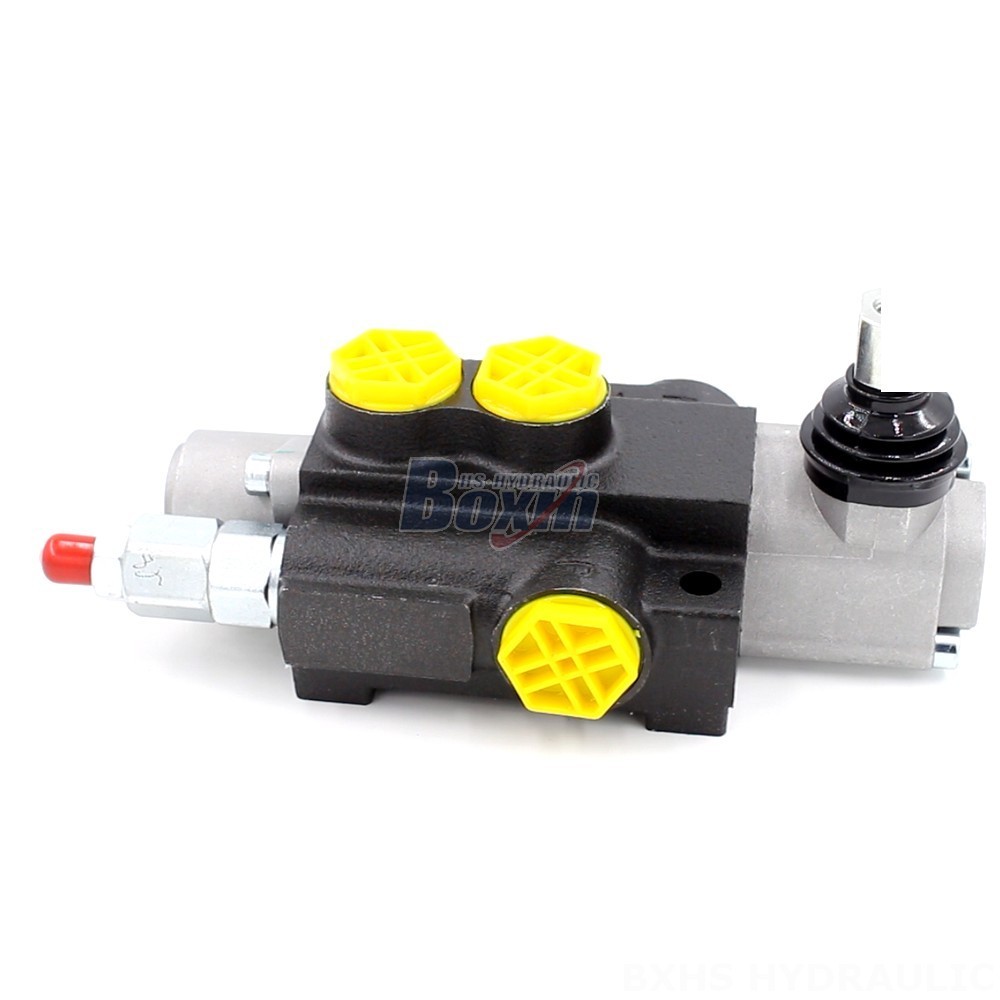

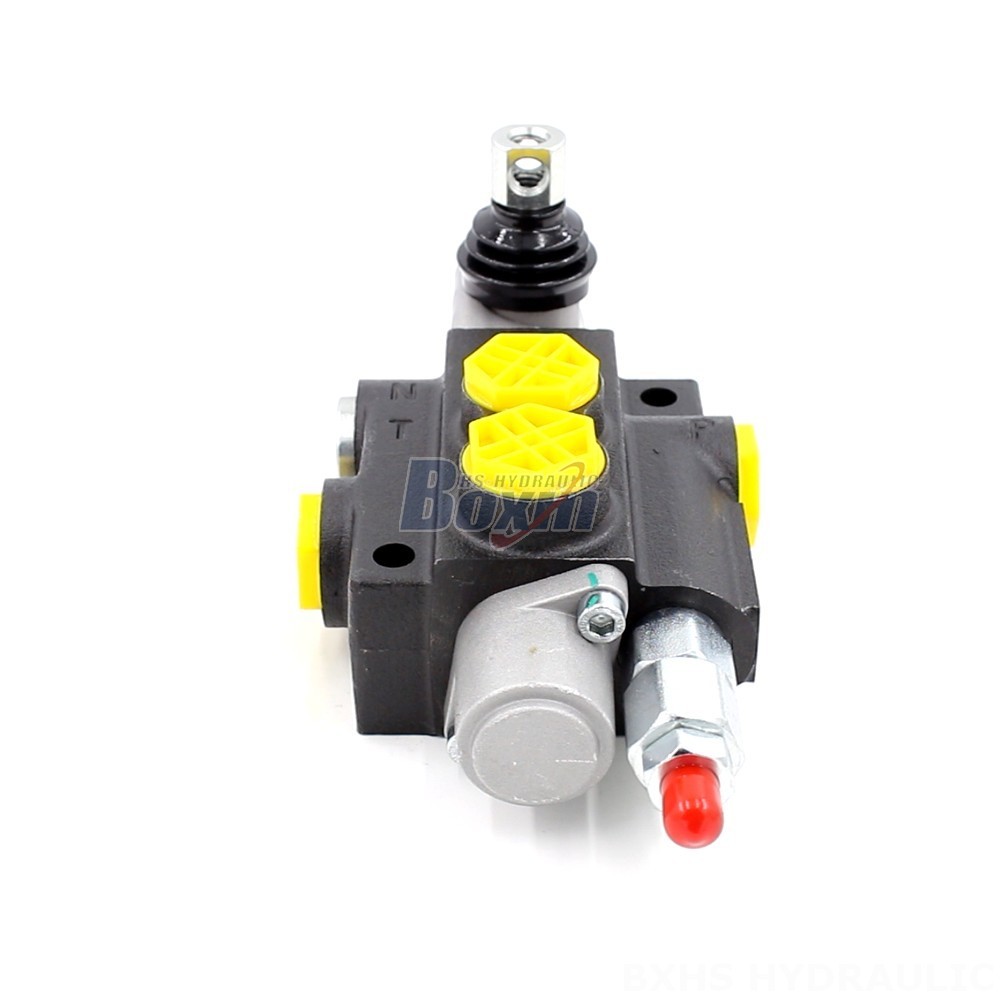

Pressure Compensated Control Valve Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

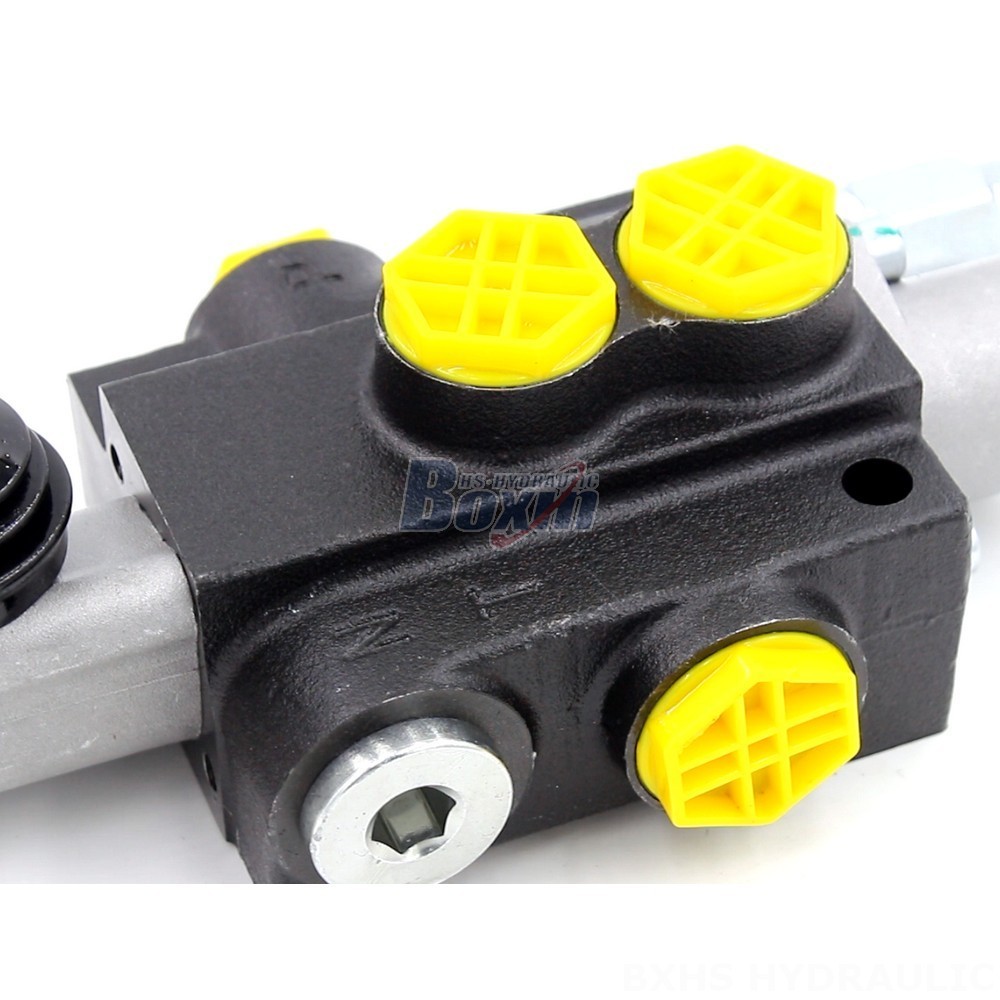

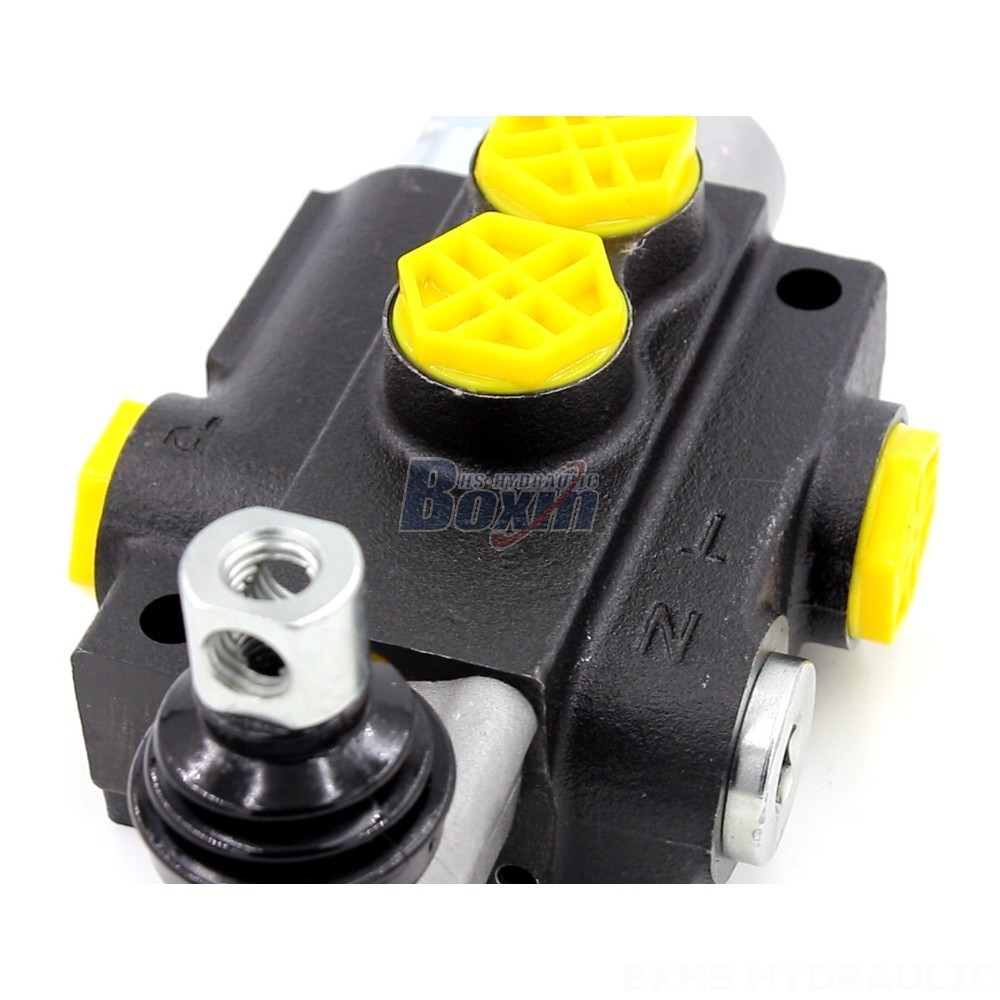

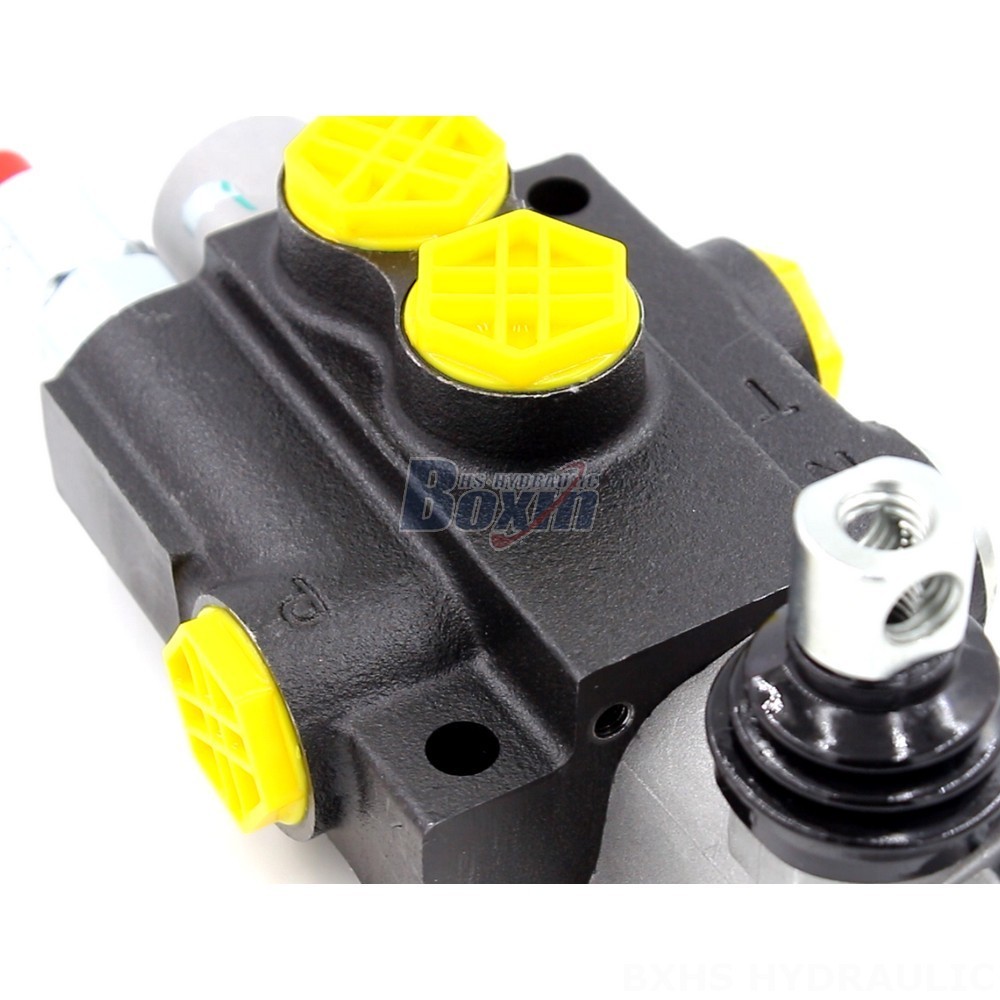

Pressure Compensated Control Valve Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Pressure Compensated Control Valve Monoblock Directional Control Valve | P40-G12-1OT Hydraulics drawing image

This P40 Series Pressure Compensated Control Valve is a monoblock directional control valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for use in material handling, construction, earthmoving, agriculture, and industrial vehicle applications.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40-G12-1OT Hydraulics is a high-performance, manual control, monoblock directional control valve designed for demanding applications. This valve offers pressure compensation, ensuring consistent performance across varying loads and pressures. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for a wide range of hydraulic systems. Its compact design and robust construction make it ideal for use in material handling, construction, earthmoving, agriculture, and industrial vehicle applications. The valve is compatible with a variety of equipment including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
