The P40-G12-G38-OT-OT-OT Monoblock Valve is an essential component for various hydraulic systems in machinery found in industries like material handling, construction, and agriculture. It offers precise flow control and reliable performance under demanding operating conditions, enabling seamless equipment operation.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

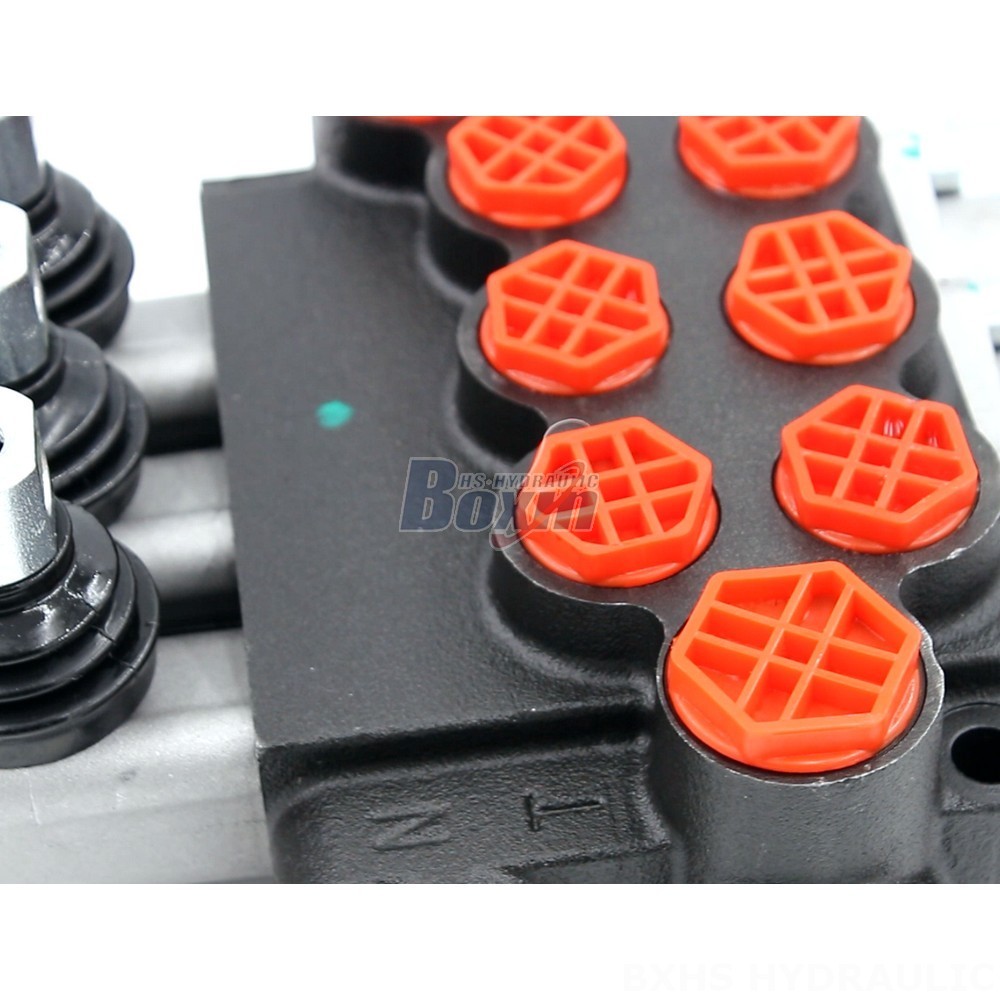

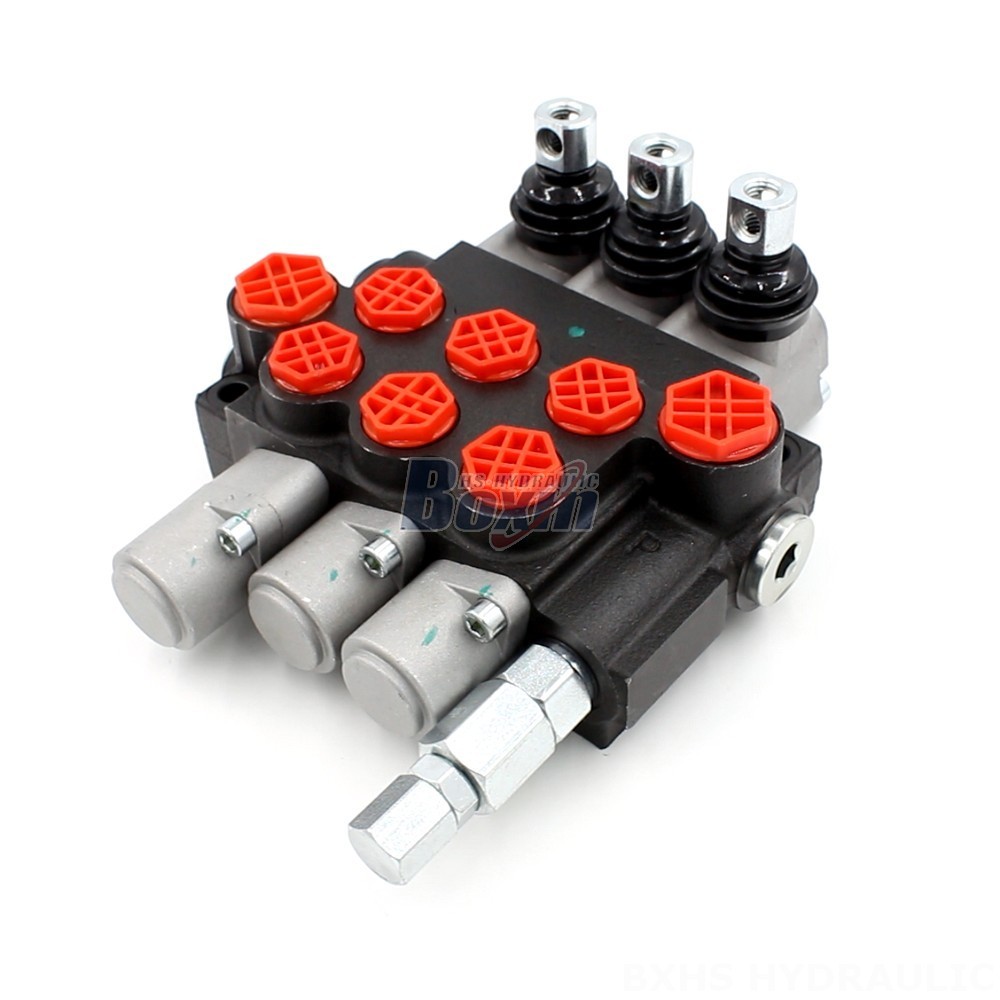

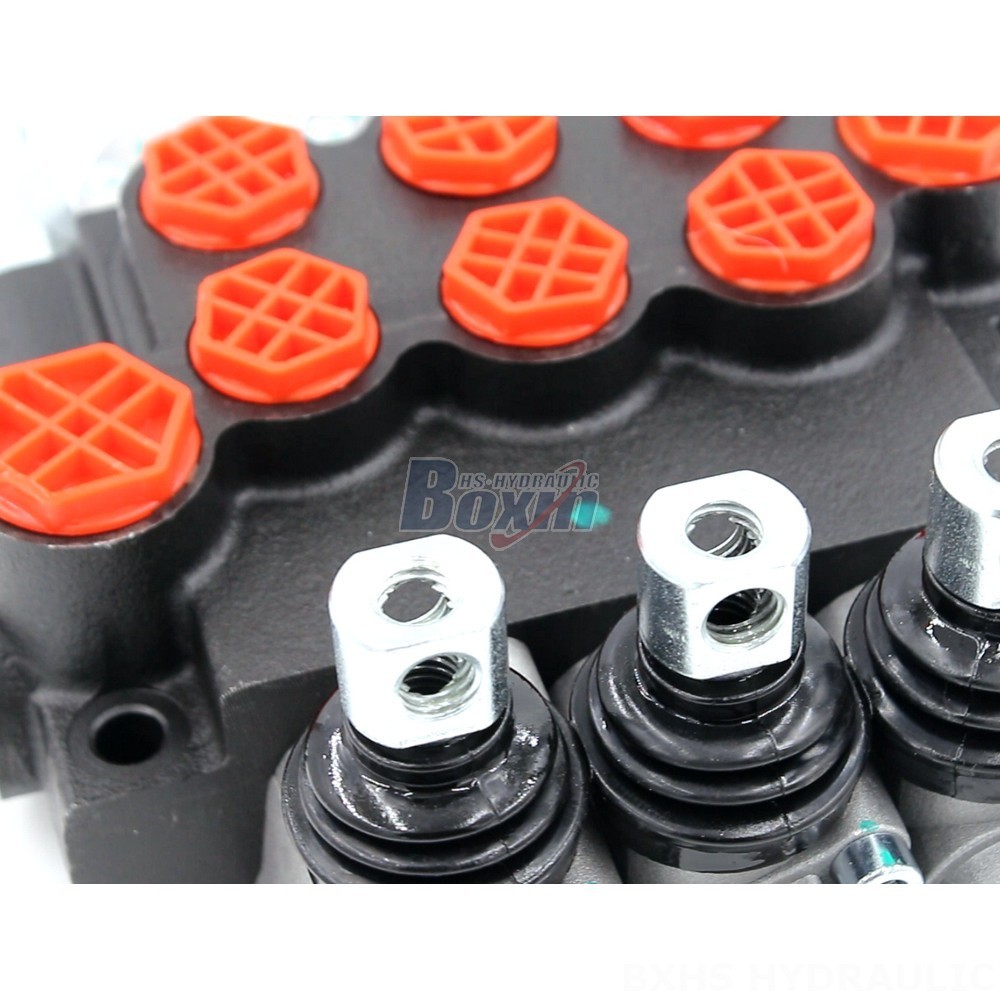

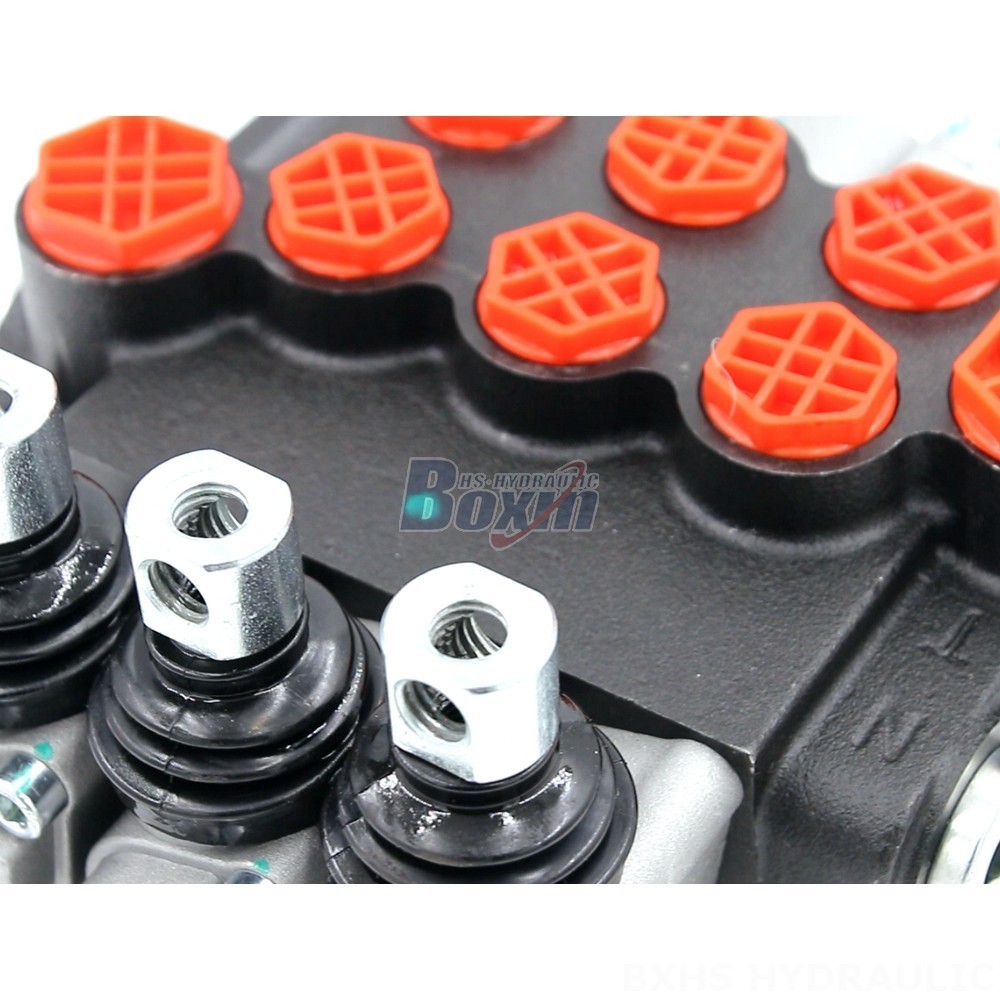

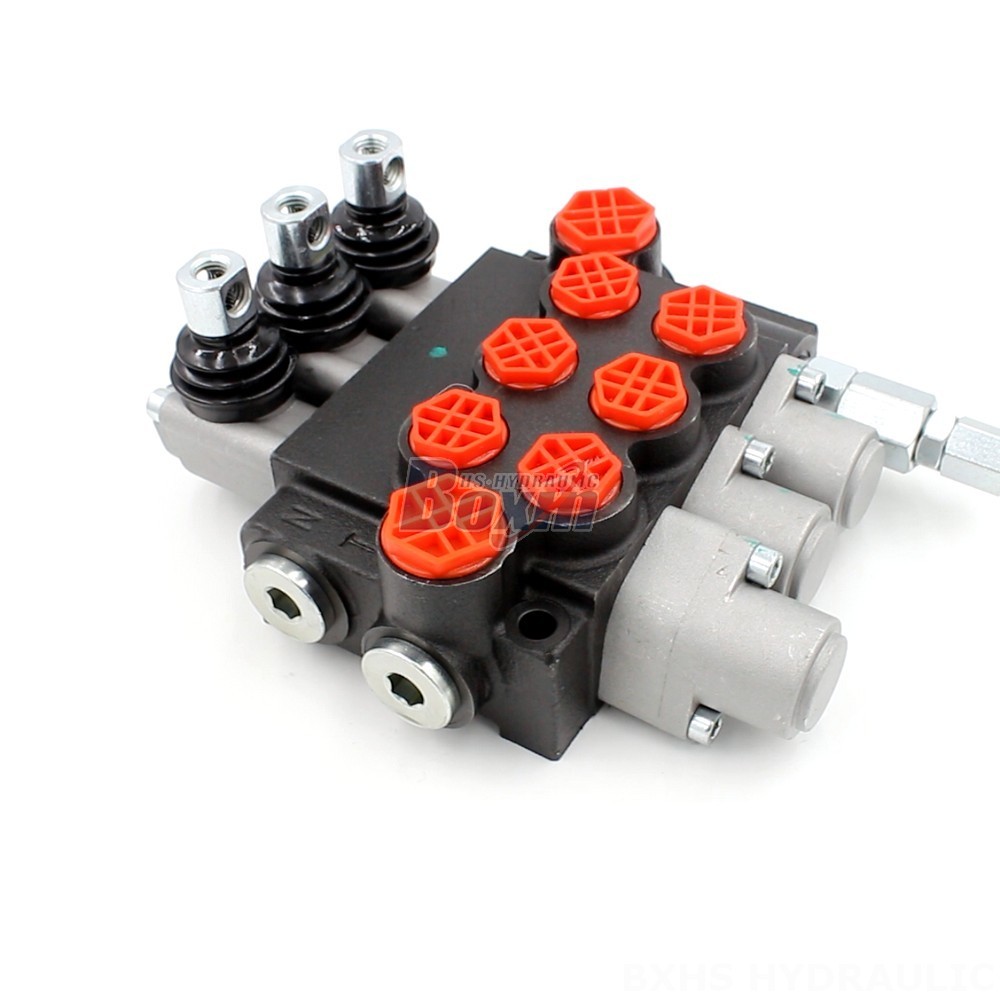

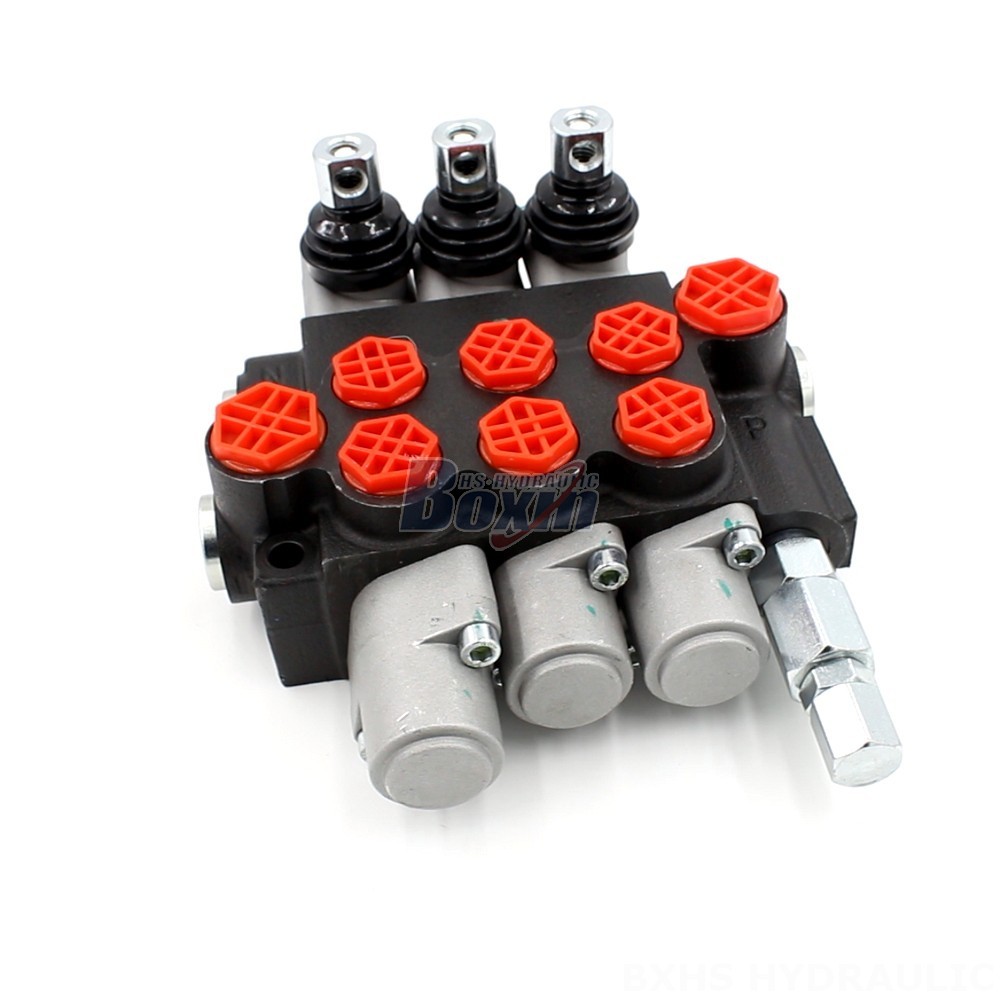

**P40-G12-G38-OT-OT-OT Monoblock Valves**
* **Control Method:** Manual
* **Section:** 3
* **Structure Type:** Monoblock valve
* **Rated Flow:** 40 L/min (10.5 US gpm)
* **Max Pressure:** 250 bar (3600 psi)
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Spool:** 3 Spool
* **Series:** P40 Series
As a renowned manufacturer, we take pride in providing high-quality P40-G12-G38-OT-OT-OT Monoblock Valves, catering to the global market. Our commitment to precision engineering and rigorous testing ensures that each valve meets the highest industry standards.
Our factory-direct supply chain model eliminates intermediaries, allowing us to offer competitive pricing and timely delivery. Whether you're a distributor, wholesaler, or end-user, we invite you to explore our extensive range of hydraulic components and solutions. Contact us today for tailored quotes and customized services to meet your specific application requirements.
