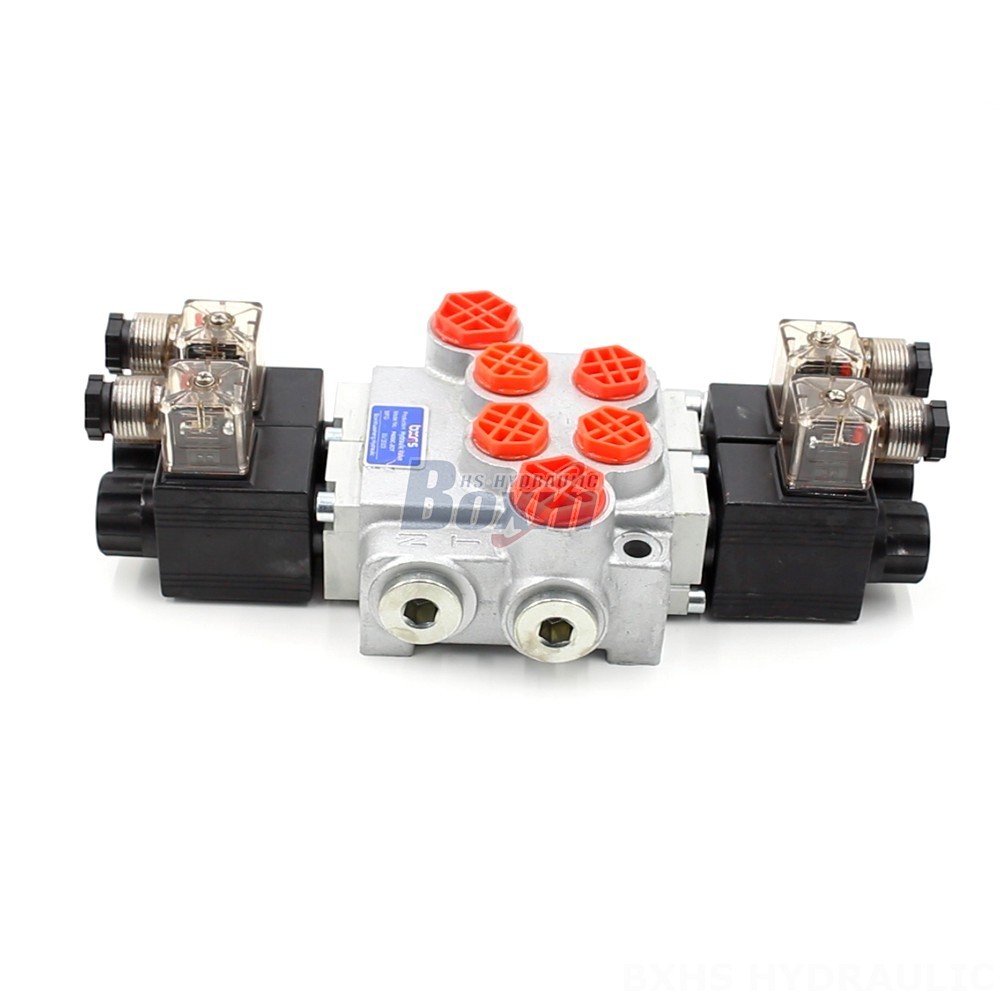

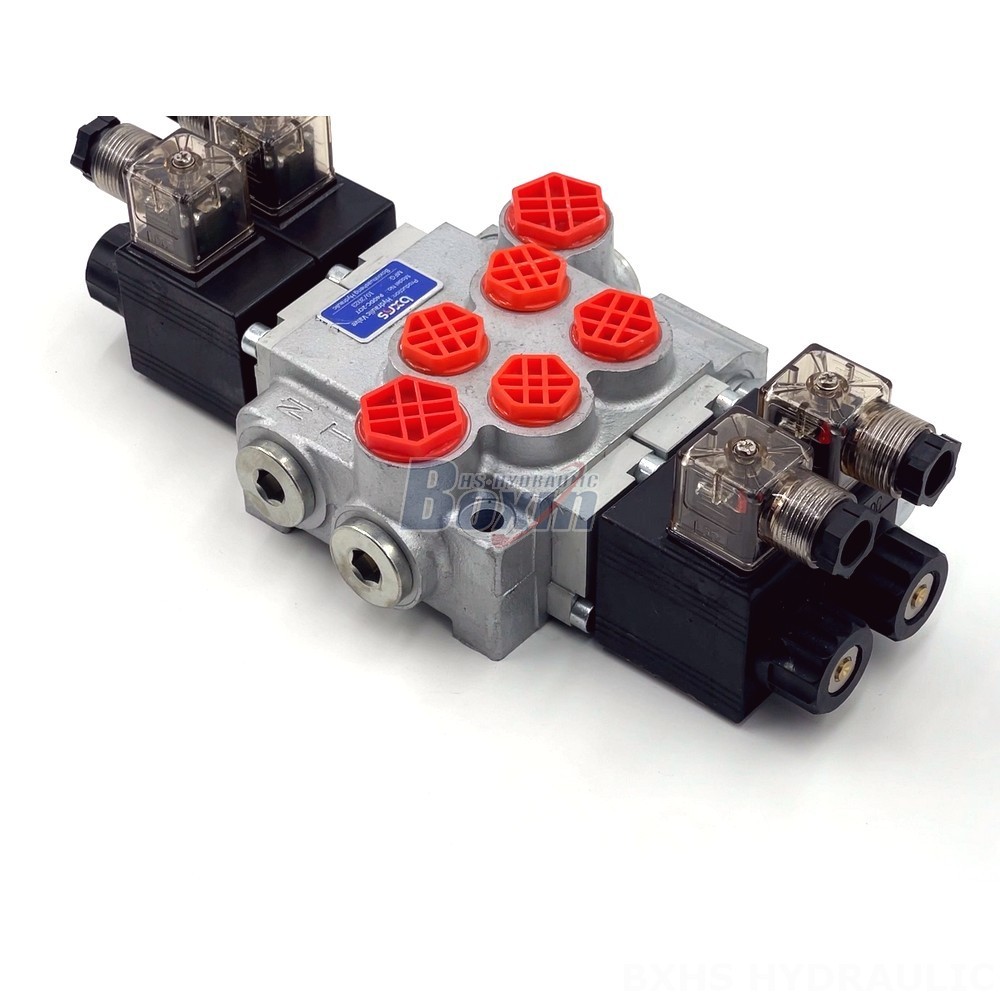

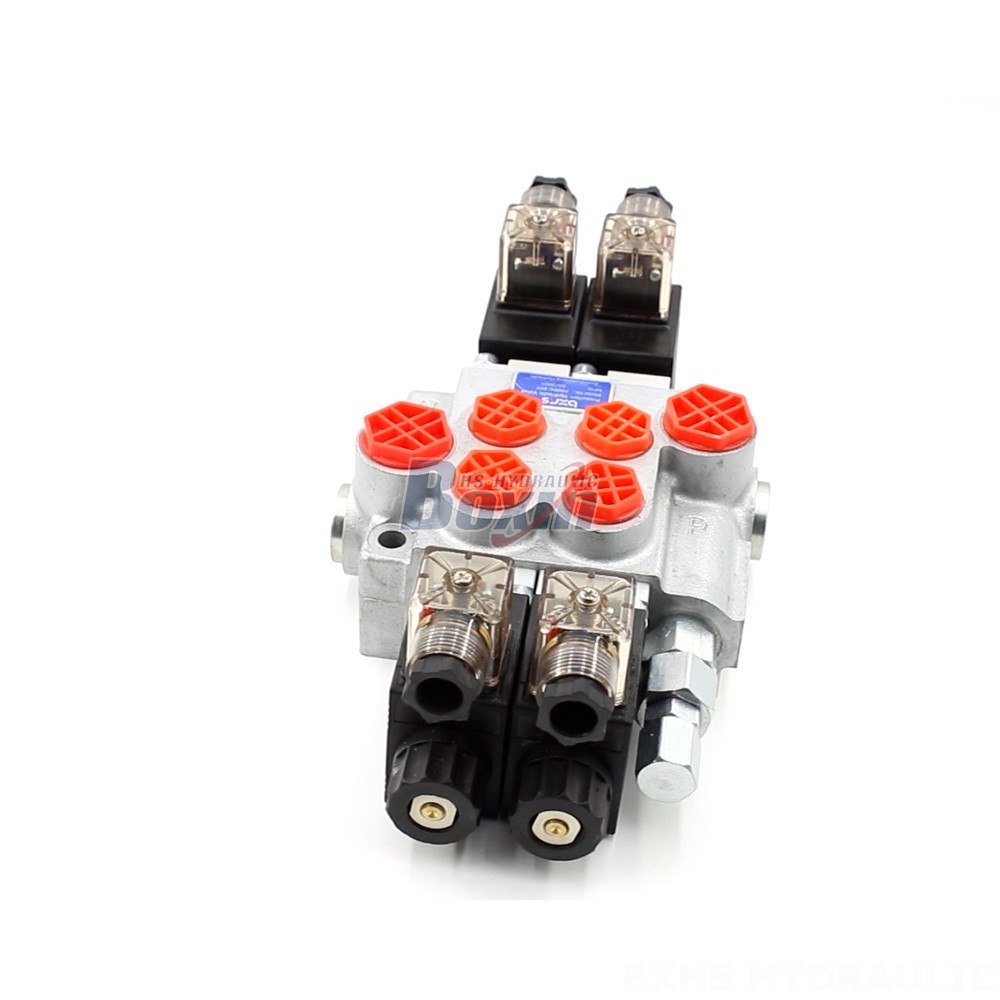

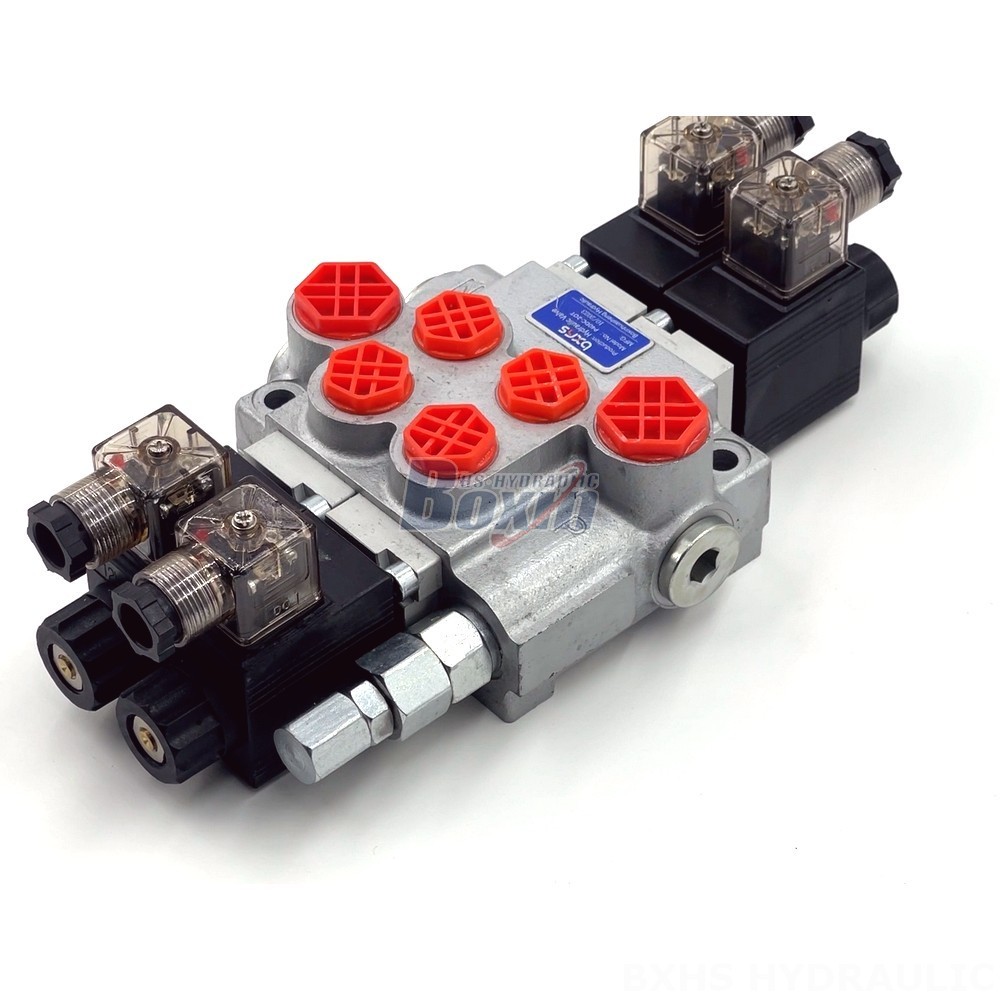

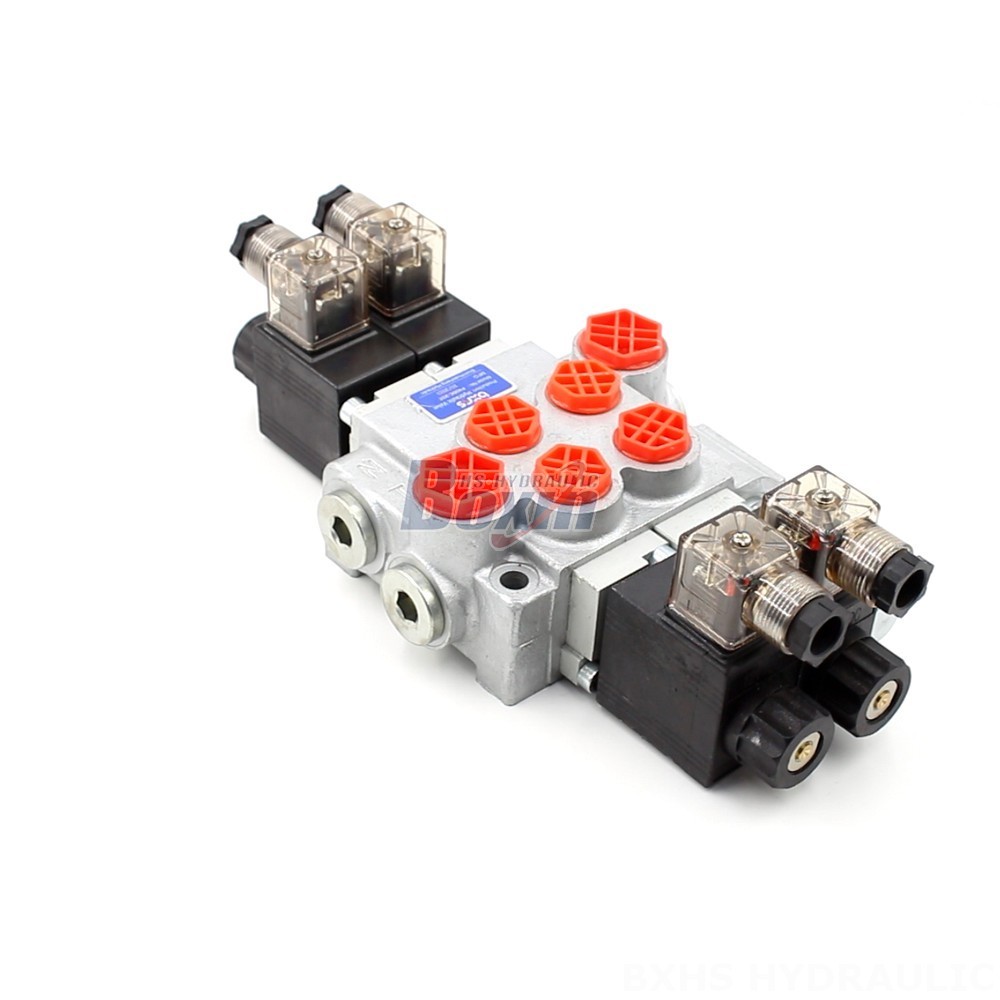

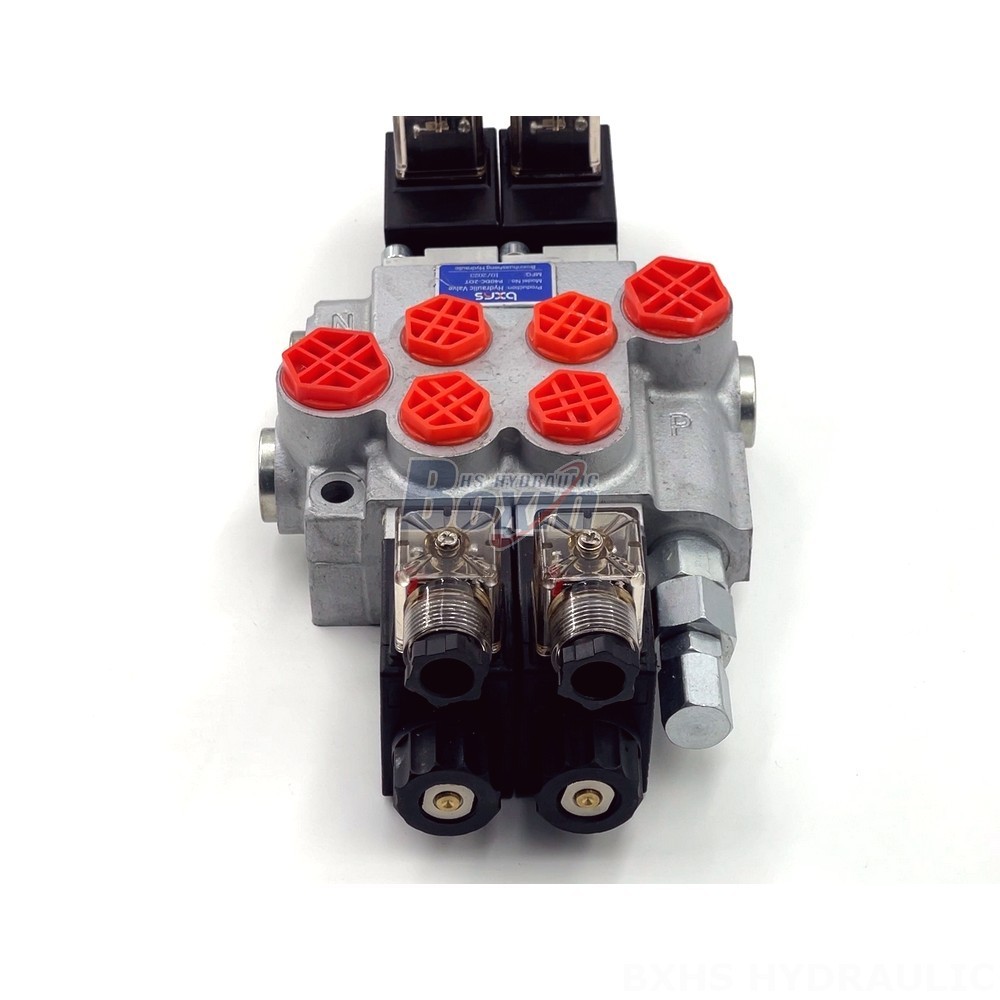

The P40-DKL Monoblock Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its solenoid control, 2 section design, 40 L/min rated flow, and 250 bar max pressure, this valve offers precise and reliable control of hydraulic systems. It operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
| P40-DKL系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features:**
* Solenoid control for precise and responsive operation
* 2 section design for versatile flow control
* 40 L/min rated flow to handle demanding hydraulic systems
* 250 bar max pressure for high-pressure applications
* 15 - 75 mm²/s operating viscosity range for compatibility with various fluids
* -40°C to +80°C ambient temperature range for reliable performance in diverse environments
* 2 spool for efficient flow management
* Rugged construction for durability and long service life
* CE certified and ISO standard compliant for quality assurance
**Applications:**
The P40-DKL Monoblock Valve is widely used in a variety of industries, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**About Us:**
As a leading manufacturer and supplier of hydraulic products, we offer a comprehensive range of valves, pumps, cylinders, and other components. Our products are manufactured to the highest standards and are widely used in various industries worldwide. We provide exceptional customer service, competitive pricing, and timely delivery.
