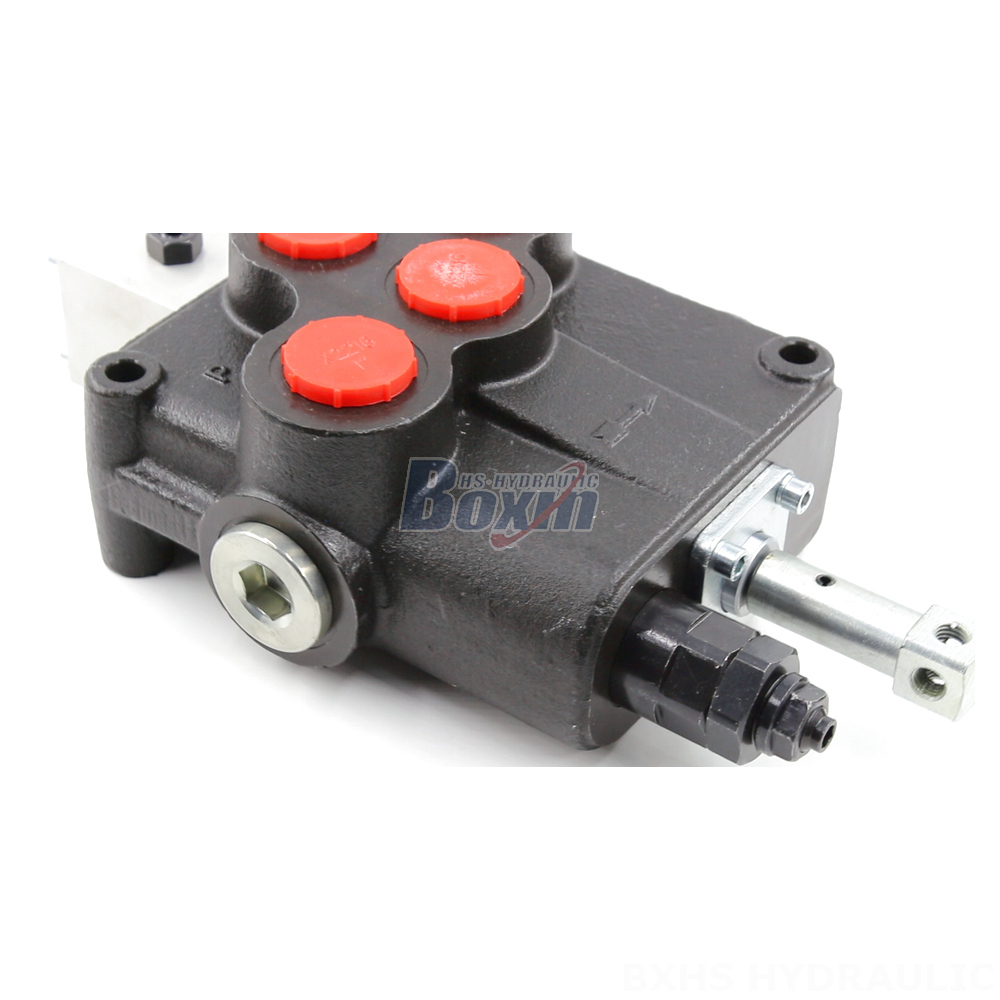

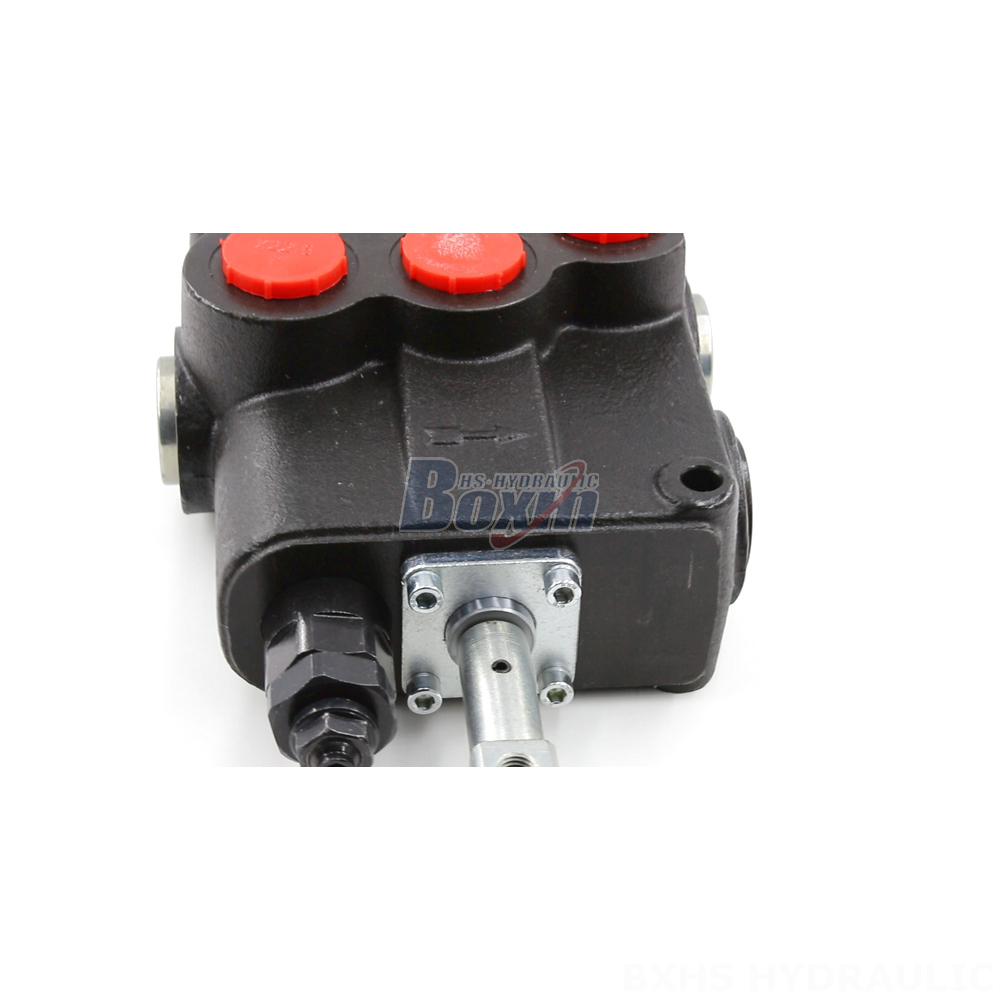

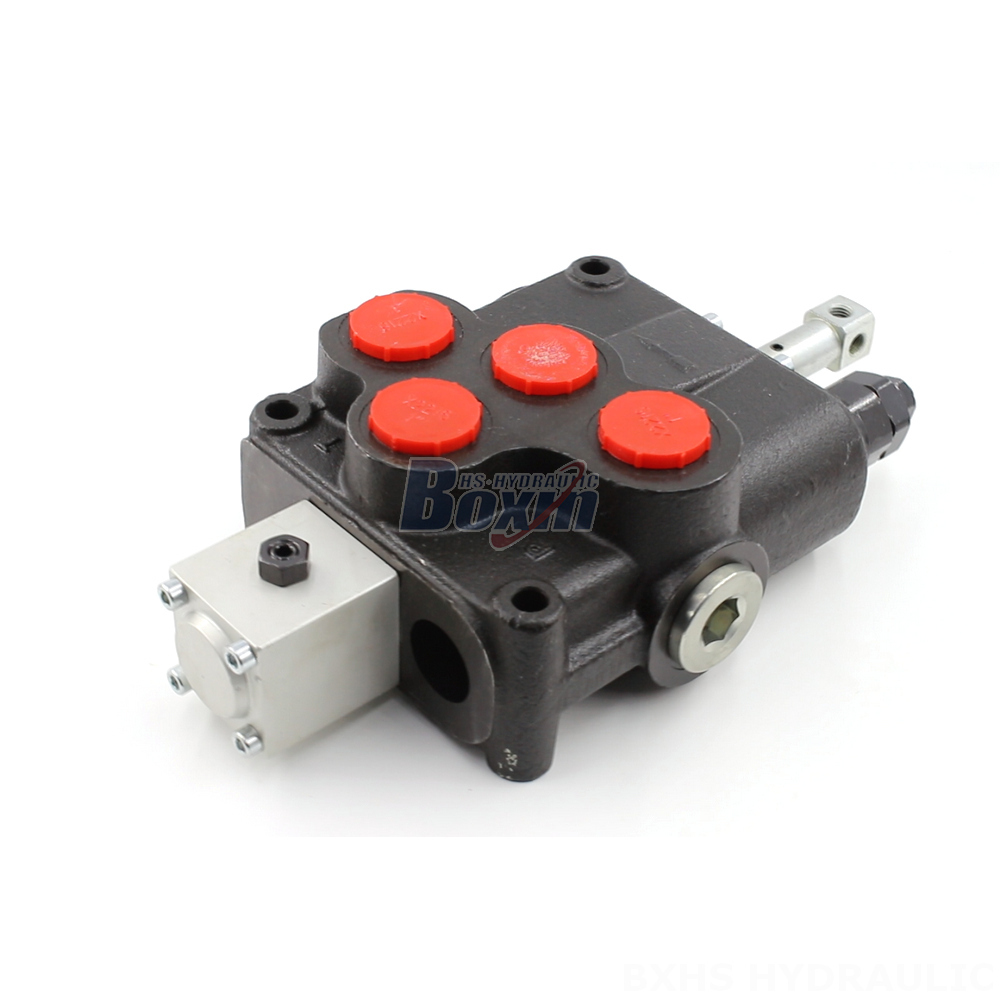

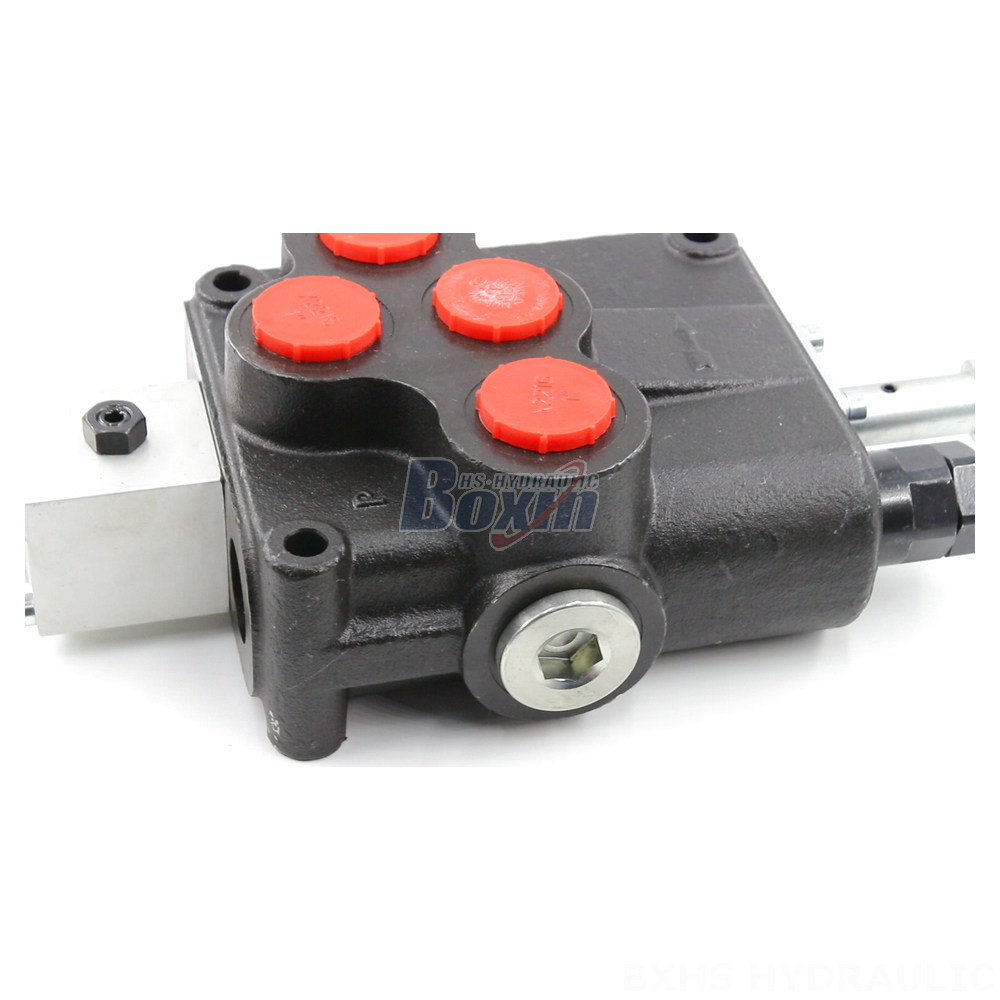

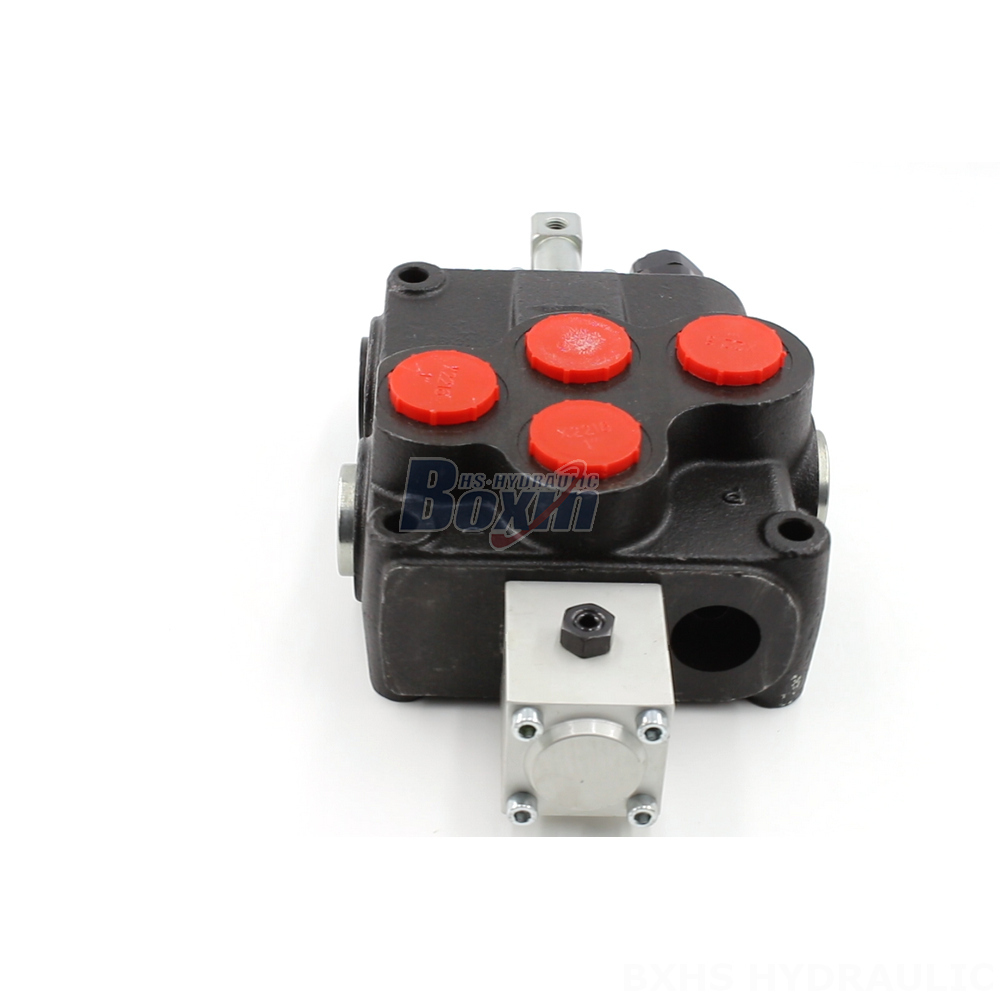

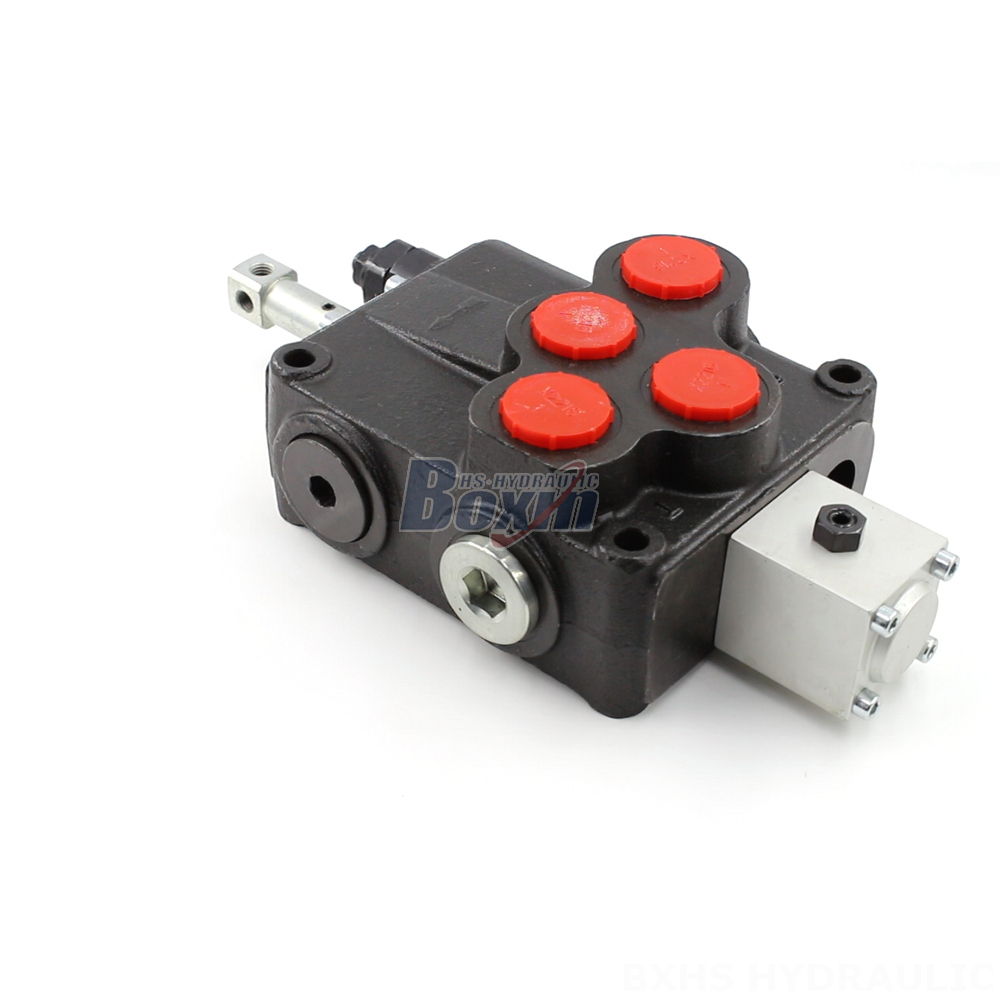

The SD18 Series Log Splitter Hydraulic Lever Manual Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, manual control, and a rated flow of 120 L/min (31.7 US gpm) at a maximum pressure of 315 bar (4600 psi). Ideal for use in telehandlers, forklifts, cranes, stackers, backhoes, seeding machines, harvesters, balers, skip loaders, and wood splitters.
| SD18系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G1/2接口, G1接口, SAE 16接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G1接口, SAE 16接头 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
This SD18 Series hydraulic valve is a manual, monoblock directional valve specifically designed for log splitting applications. It offers a single section with one spool, providing efficient and reliable control of hydraulic flow. The valve features a rated flow of 120 L/min (31.7 US gpm) and a maximum operating pressure of 315 bar (4600 psi), ensuring it can handle demanding tasks. Its robust construction and wide operating viscosity range (-40°C to +80°C/-40°F to +176°F) make it suitable for various environments. The SD18 Series is an excellent choice for manufacturers and distributors seeking a high-quality, reliable, and efficient hydraulic valve for their log splitting equipment.
