The P80-U78-4OT series is a 4-section, manual monoblock directional valve designed for exceptional performance in demanding applications. Suitable for a wide range of industries, including material handling, construction, and agriculture, this valve offers exceptional control and reliability with a rated flow of up to 80 L/min, a max pressure of 250 bar, and a broad operating viscosity range.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |

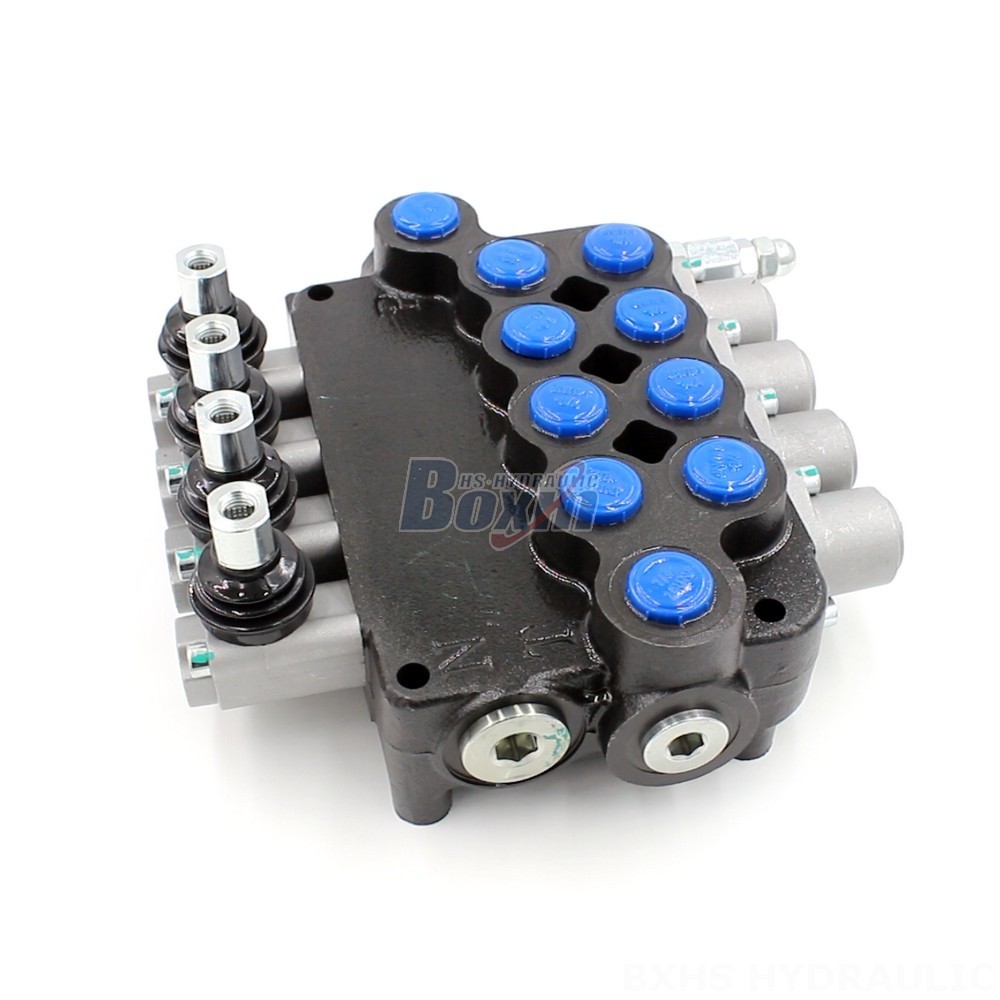

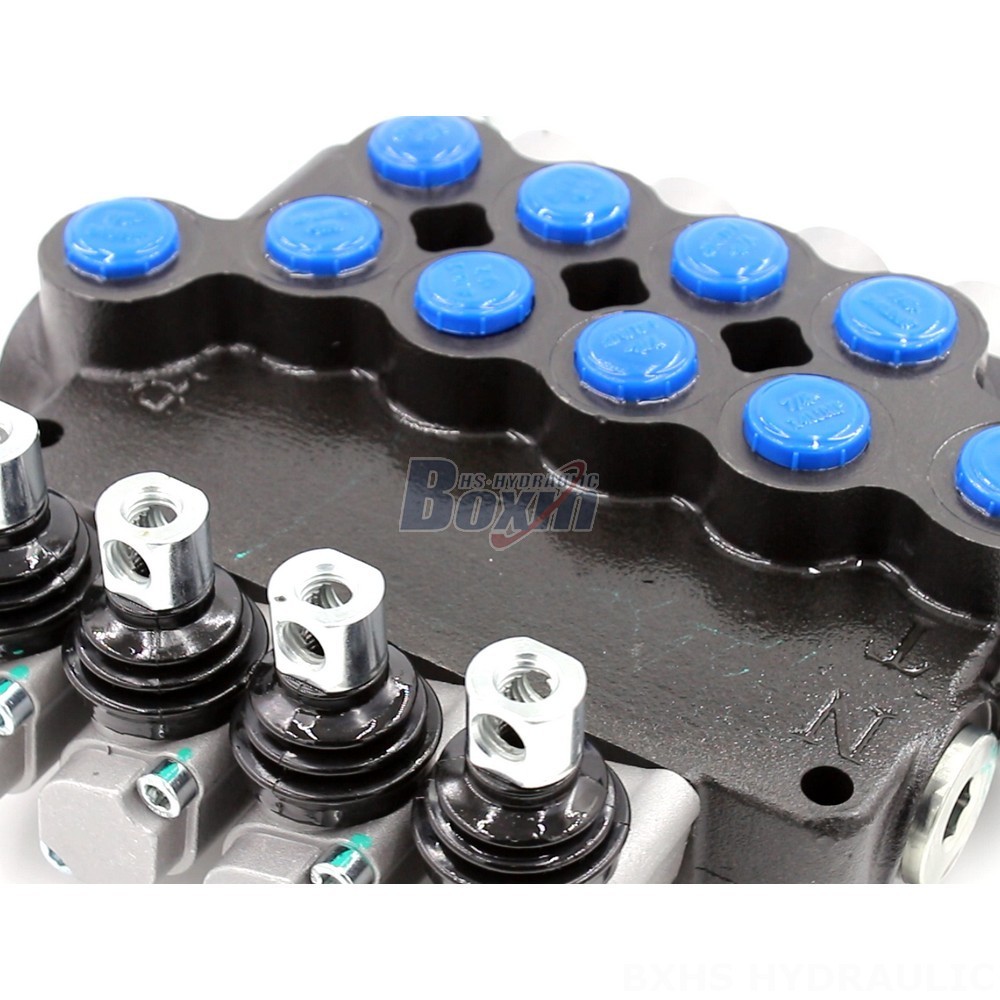

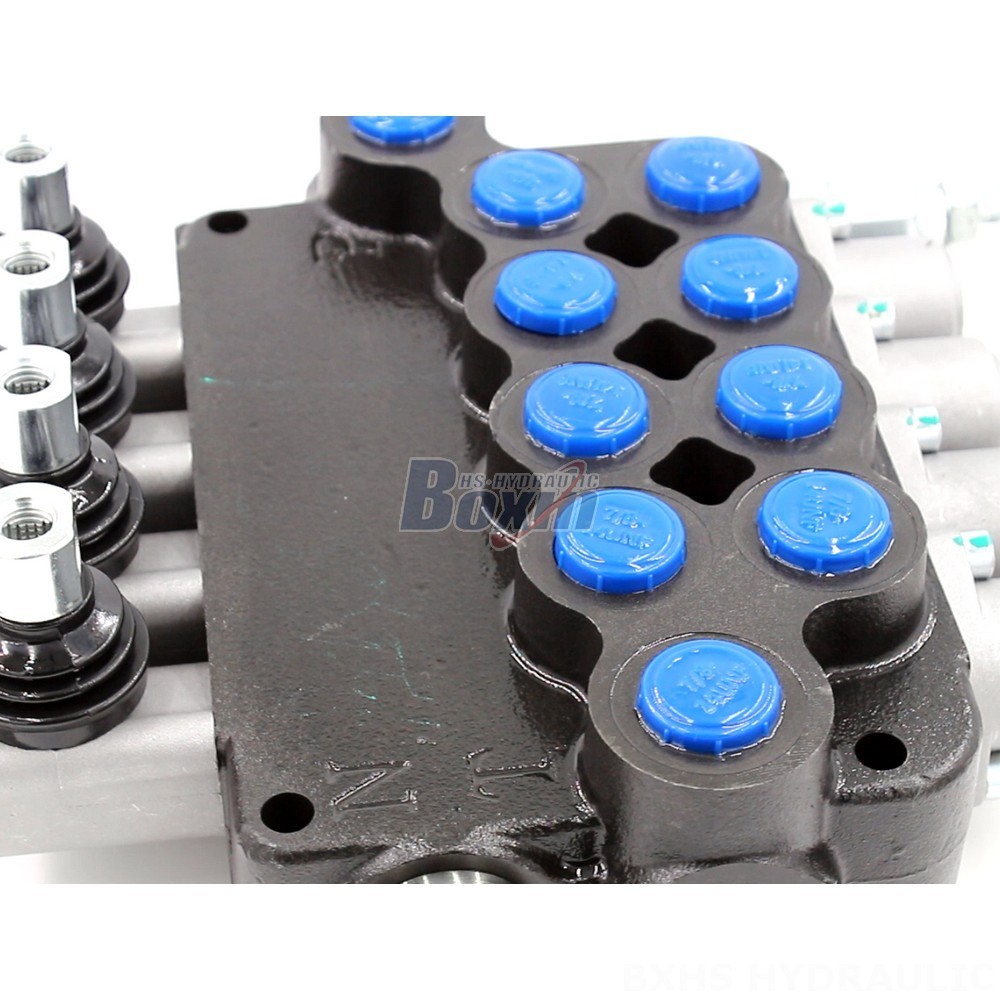

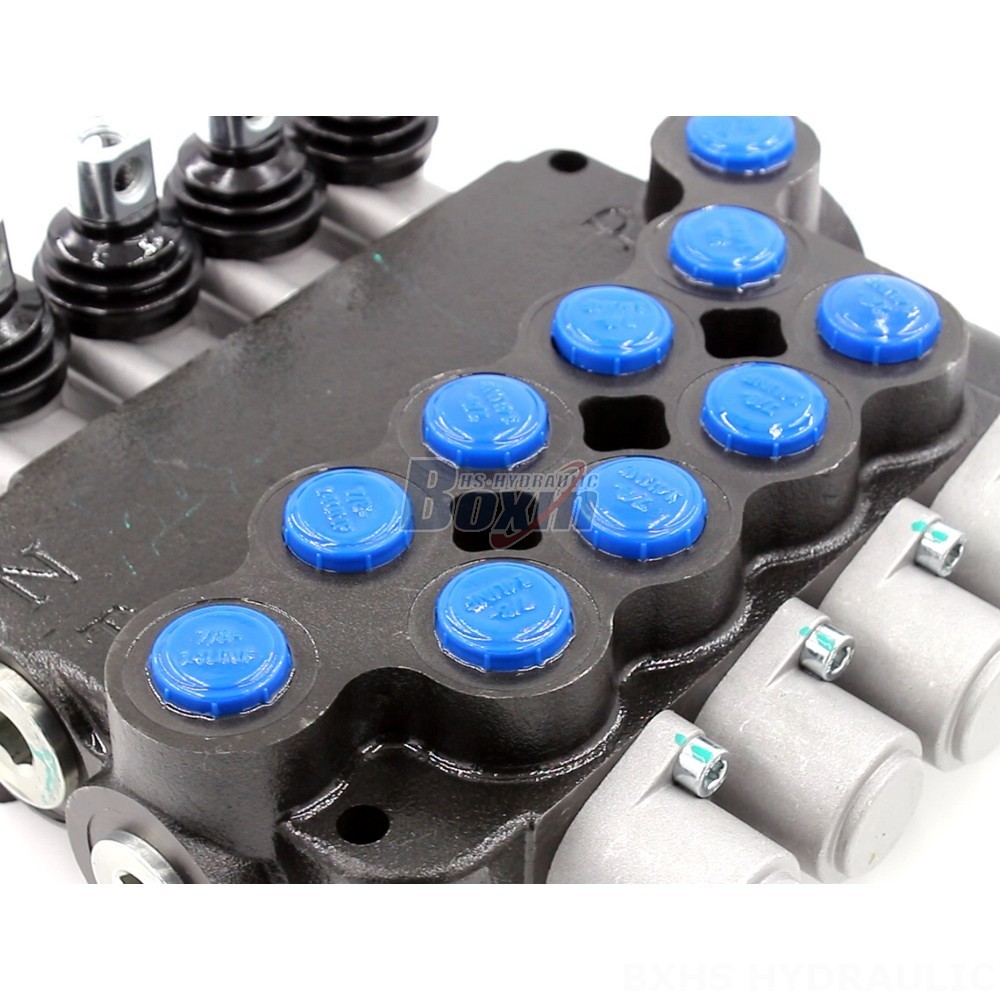

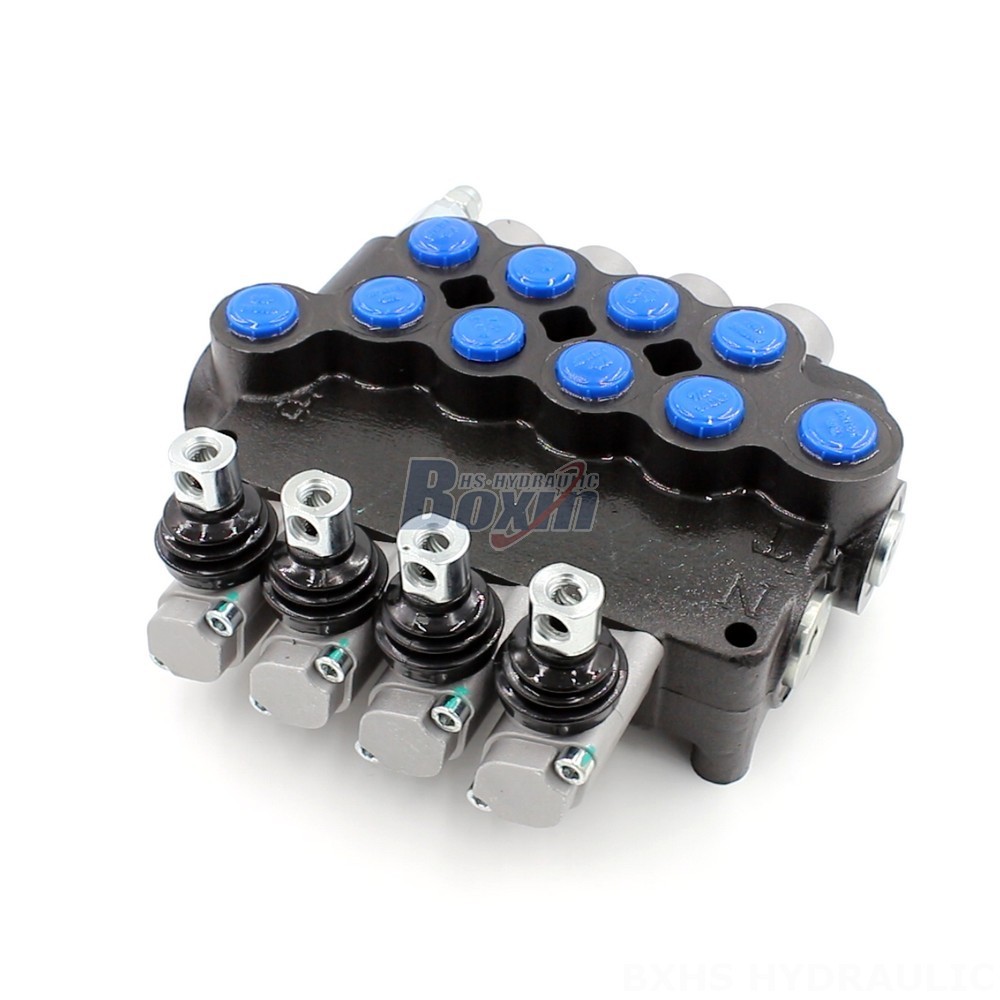

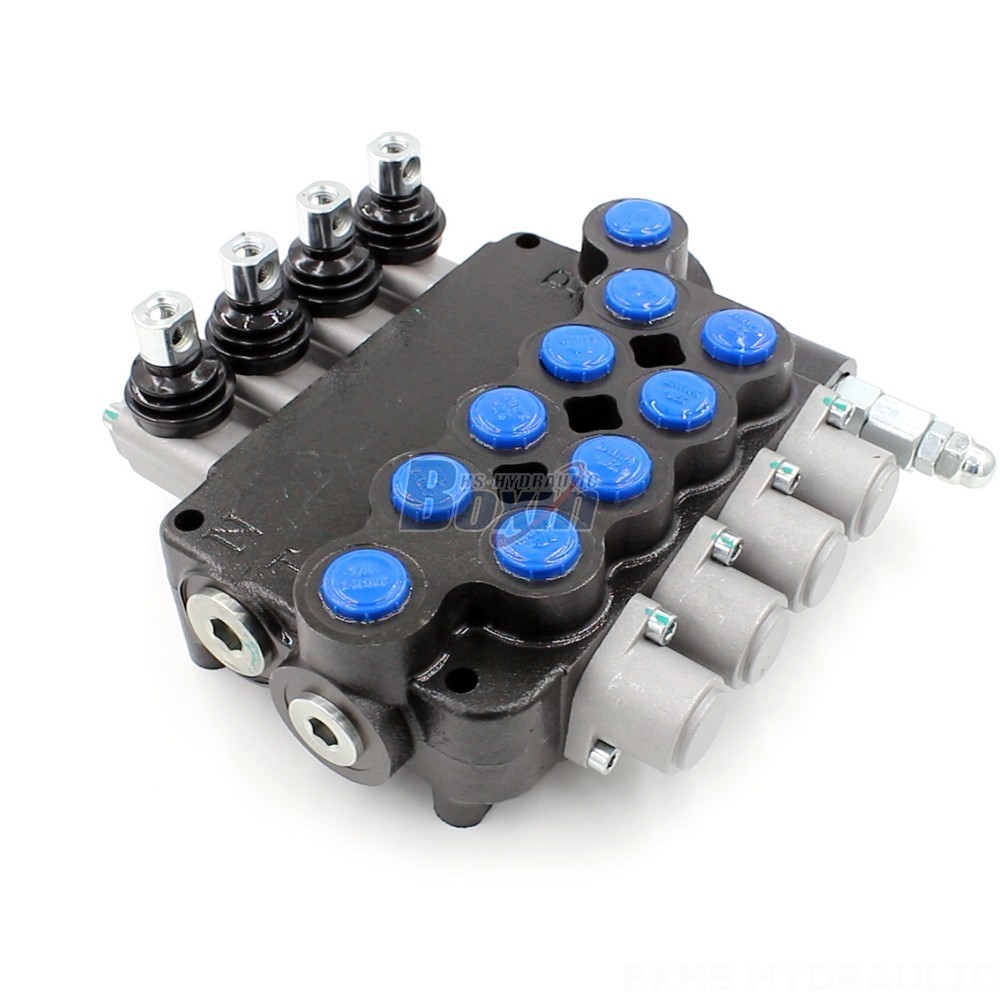

**P80-U78-4OT Series Manual Monoblock Directional Valve: Engineered for Performance**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** P80 Series
**Key Features:**
- Robust and durable monoblock construction
- High flow capacity and pressure rating
- Precise and reliable manual control
- Versatile design suitable for a variety of applications
**Applications:**
- Material Handling Equipment (Forklifts, Telehandlers)
- Construction and Earth Moving Machinery (Excavators, Loaders)
- Agricultural Vehicles (Tractors, Harvesters)
- Industrial Vehicles (Aerial Platforms, Compact Loaders)
