24v Hydraulic Distributor Manual Monoblock Directional Valve - P80-U116-U78 | Wholesale & OEM

控制方式:手控

路数:2 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:SAE 10接头

出油口:SAE 12接头

接口尺寸:SAE 10接头

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:26*18*11

Grossweight:8.00 kg

库存: 有货

826 次查看了此产品

24v Hydraulic Distributor Manual Monoblock Directional Valve - P80-U116-U78 | Wholesale & OEM

24v Hydraulic Distributor Manual Monoblock Directional Valve - P80-U116-U78 | Wholesale & OEM

24v Hydraulic Distributor Manual Monoblock Directional Valve - P80-U116-U78 | Wholesale & OEM drawing image

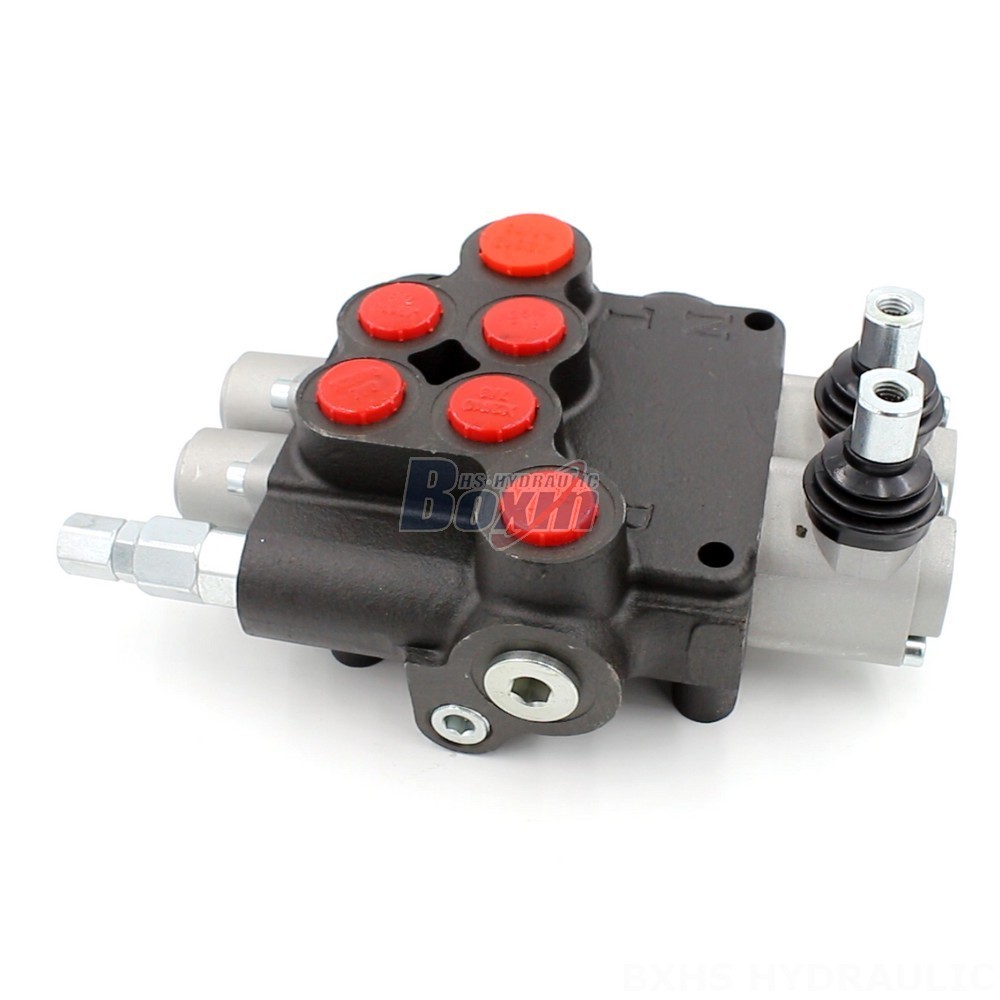

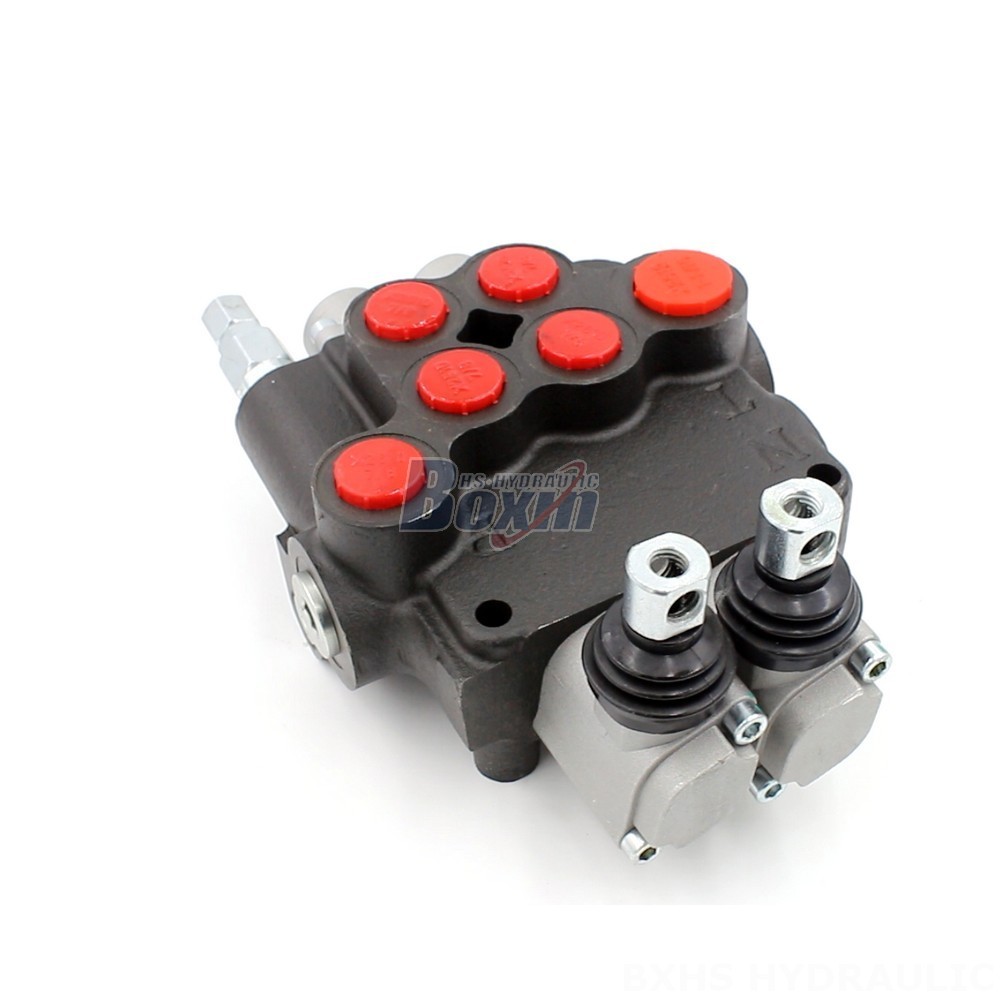

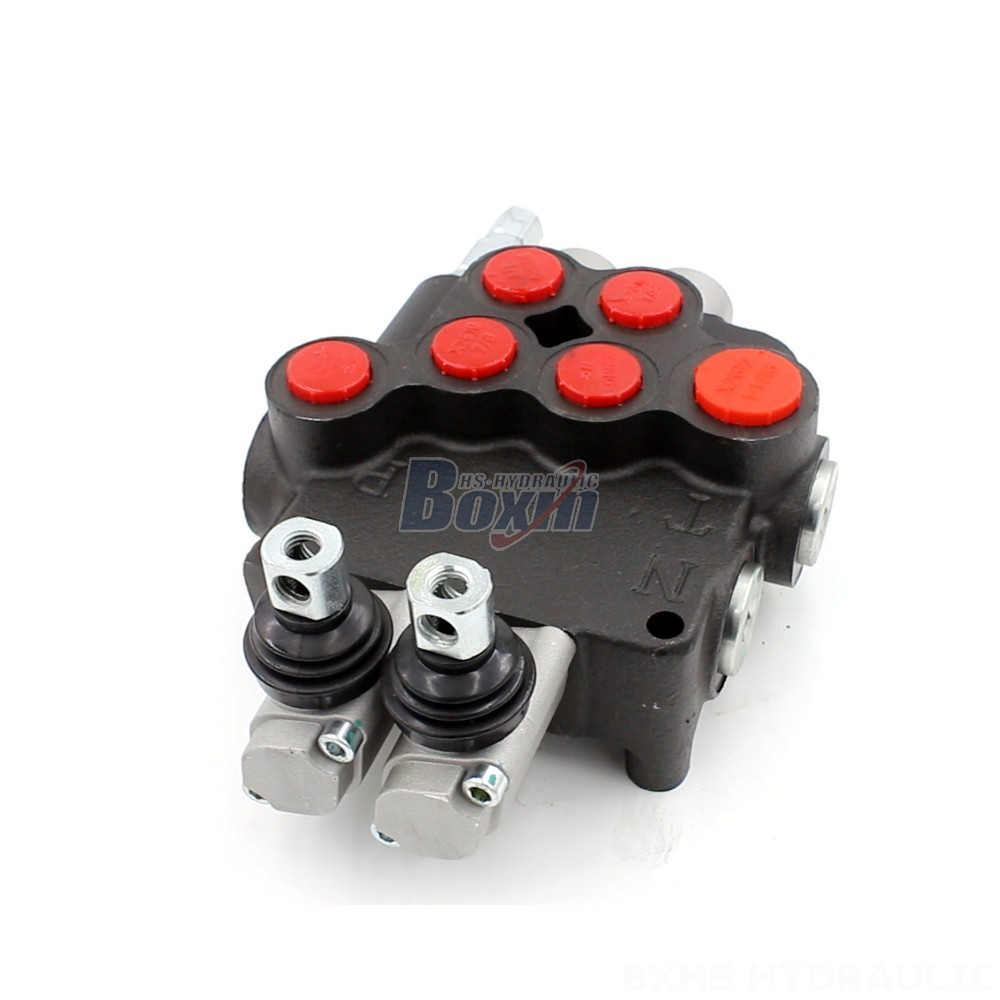

The P80-U116-U78 is a 24V hydraulic distributor, manual monoblock directional valve with 2 sections. It features a rated flow of 80 L/min, max pressure of 250 bar, and is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

This 24V hydraulic distributor is a manual monoblock directional valve, part of the P80 series, designed for demanding applications. With its 2 sections and 80 L/min rated flow, it provides efficient control of hydraulic systems in a wide range of equipment. Operating at a maximum pressure of 250 bar and a viscosity range of 15-75 mm²/s, the valve offers reliable performance in various environments. The valve is suitable for use in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This versatile valve is available for wholesale and OEM applications.
