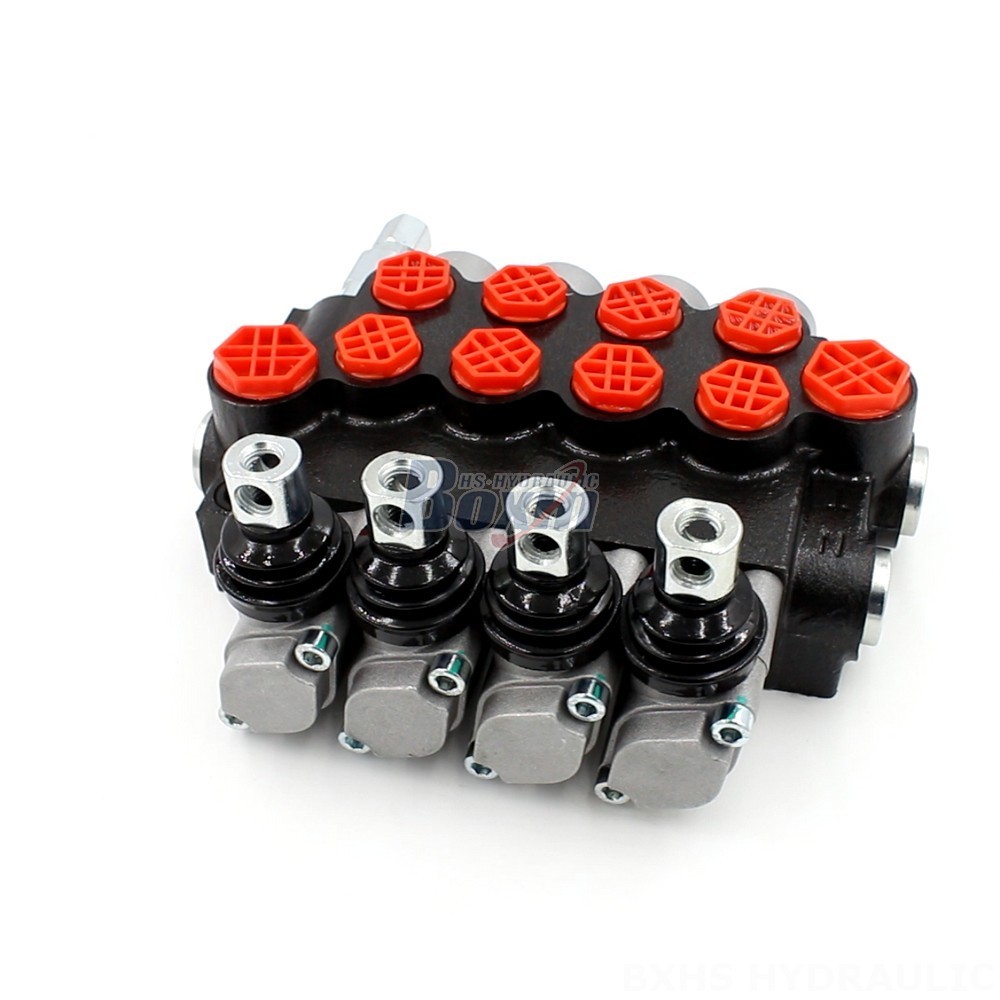

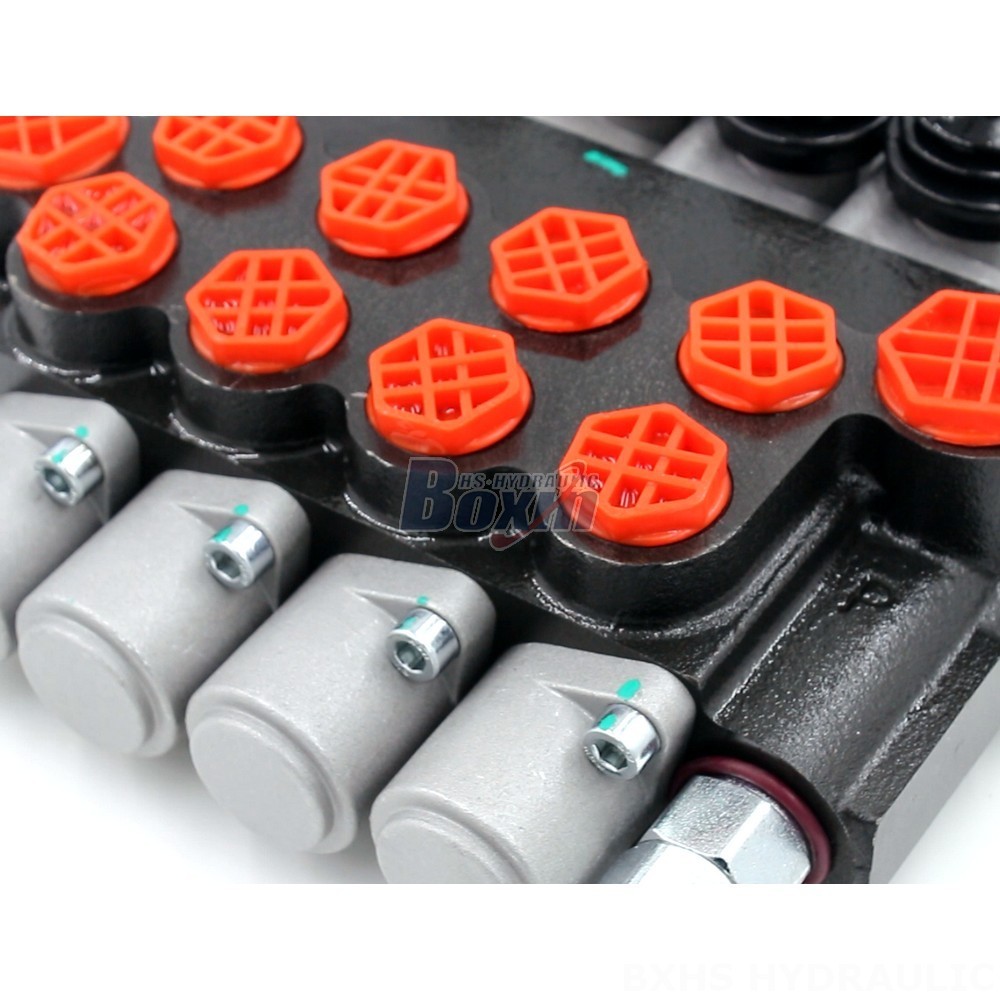

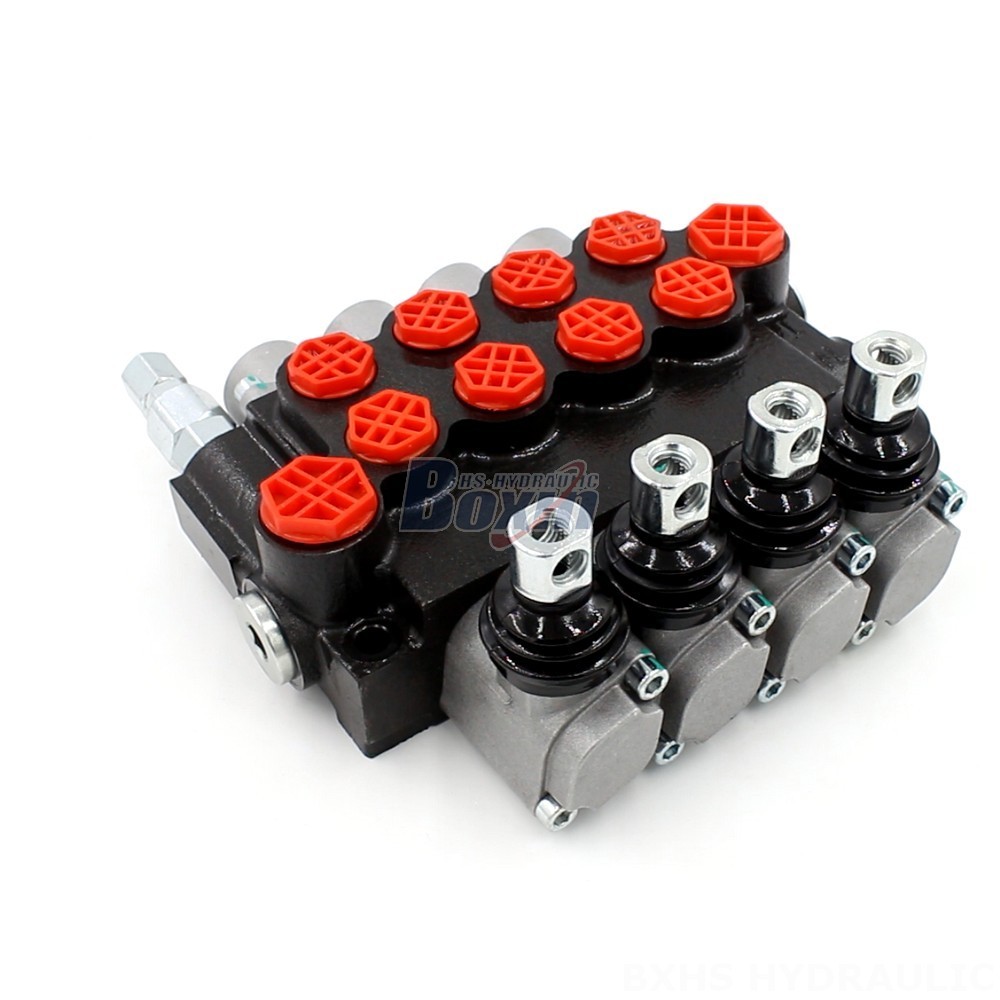

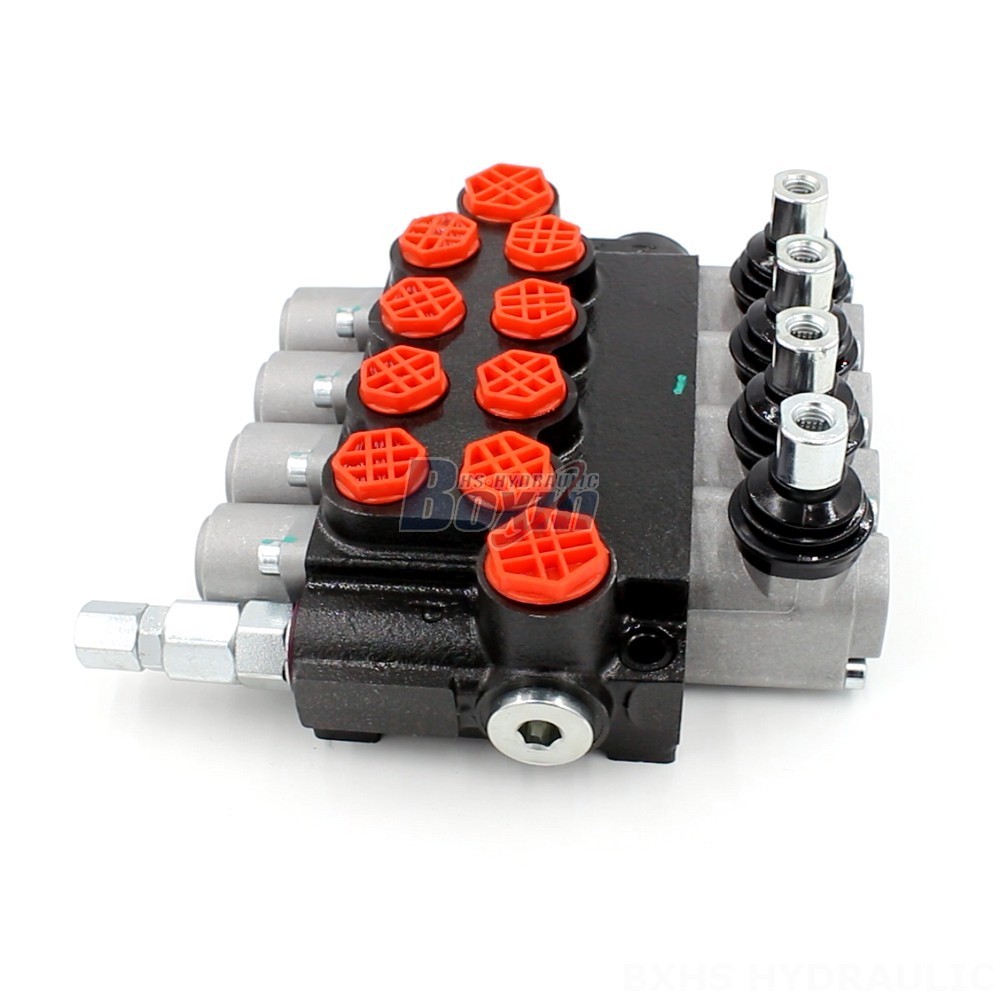

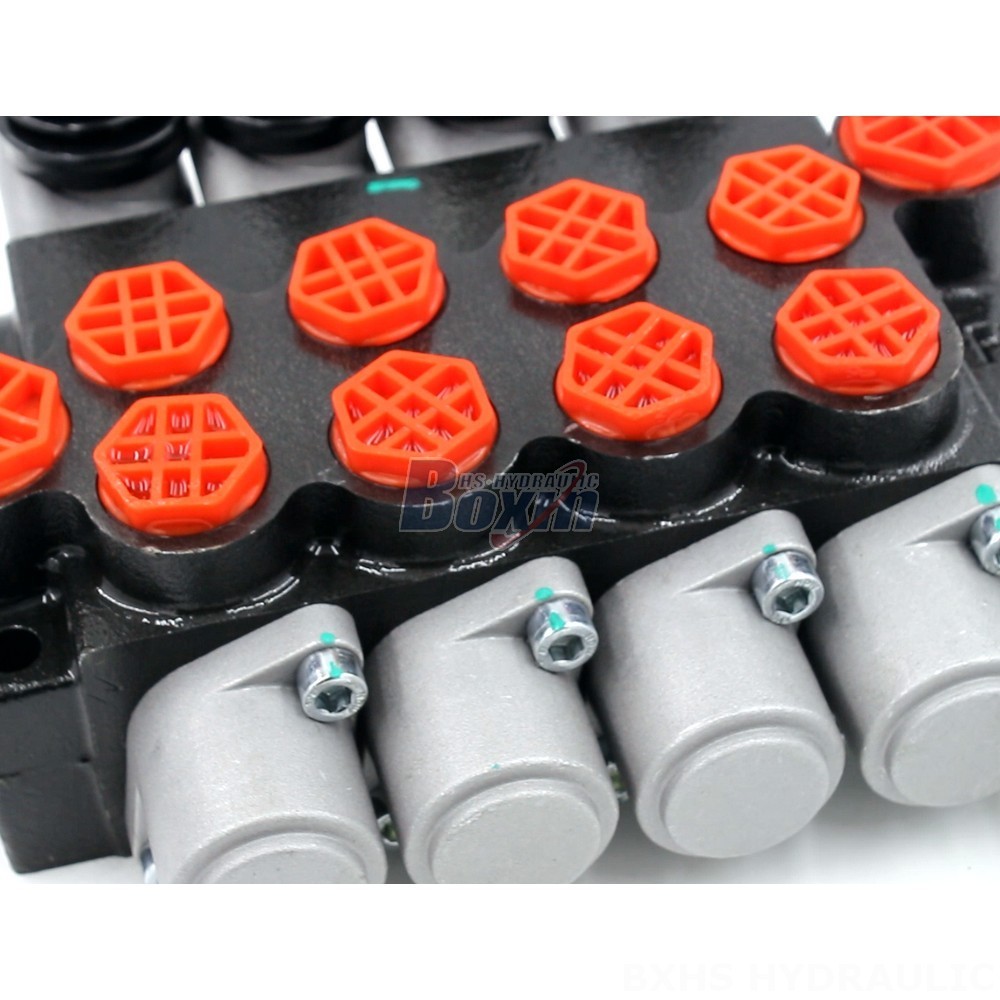

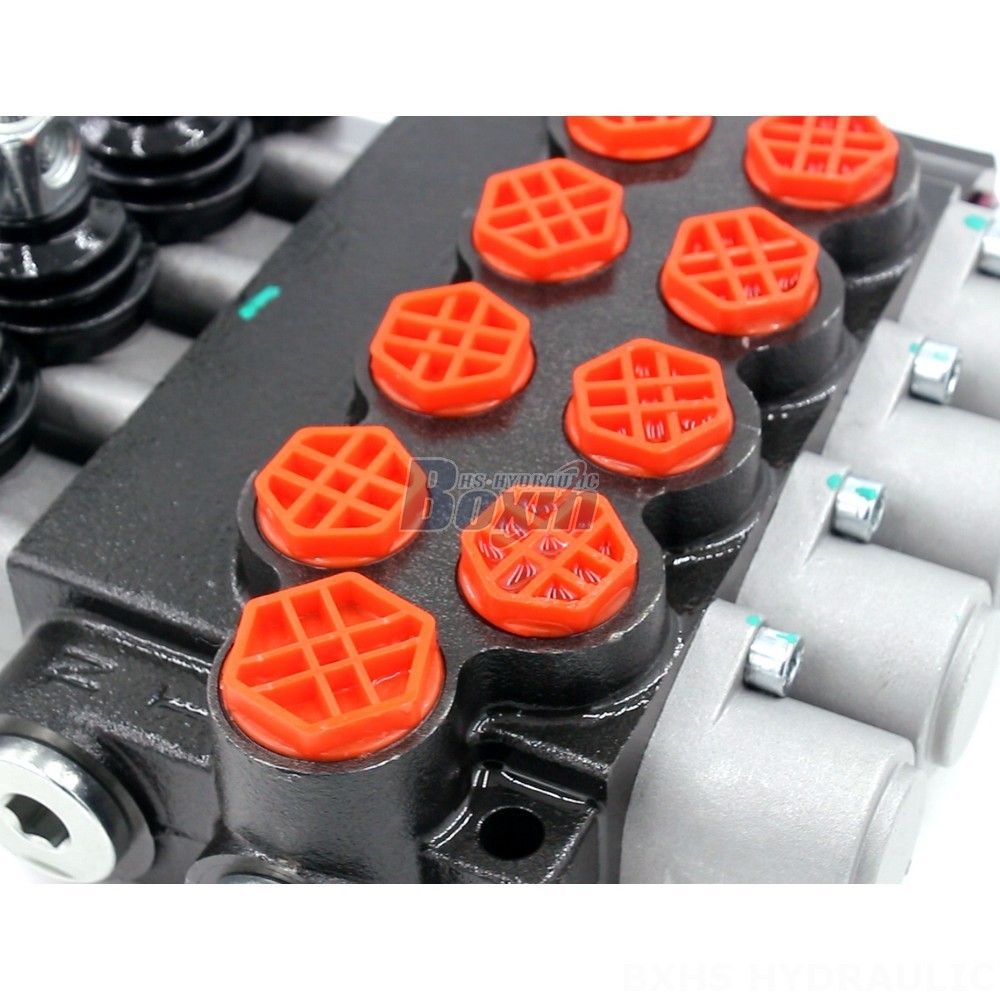

This Hydrolic Fluid Control Manual Monoblock Directional Valve is a powerful and versatile component designed for heavy-duty applications in various industries. With a 4-section design, 40 L/min flow rate, and 250 bar pressure rating, it offers reliable and precise control for material handling, construction, agriculture, and industrial vehicles.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-G12-G38-OT Hydrolic Fluid Control Manual Monoblock Directional Valve is a robust and efficient hydraulic control solution for demanding applications. Its 4-section design enables independent control of multiple hydraulic functions. The valve is capable of handling a maximum flow rate of 40 L/min and can withstand pressures up to 250 bar, ensuring reliable operation even in extreme conditions. The manual control mechanism provides precise and intuitive operation. This versatile valve is ideal for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. Its wide operating viscosity range and temperature range ensure optimal performance in diverse environments.
