12v Electric Hydraulic Valve Manual Monoblock Directional Valve - P120 Series | Wholesale & OEM

控制方式:手控

路数:2 联

额定流量:120 升/分钟 (31.7 美制加仑/分钟)

最大压力:250 bar (3600 psi)

进油口:G1接口

出油口:G1接口

接口尺寸:G1接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P120系列 单块式方向阀

Packagingsize:30*39*17

Grossweight:19.00 kg

库存: 有货

1211 次查看了此产品

12v Electric Hydraulic Valve Manual Monoblock Directional Valve - P120 Series | Wholesale & OEM

12v Electric Hydraulic Valve Manual Monoblock Directional Valve - P120 Series | Wholesale & OEM

12v Electric Hydraulic Valve Manual Monoblock Directional Valve - P120 Series | Wholesale & OEM drawing image

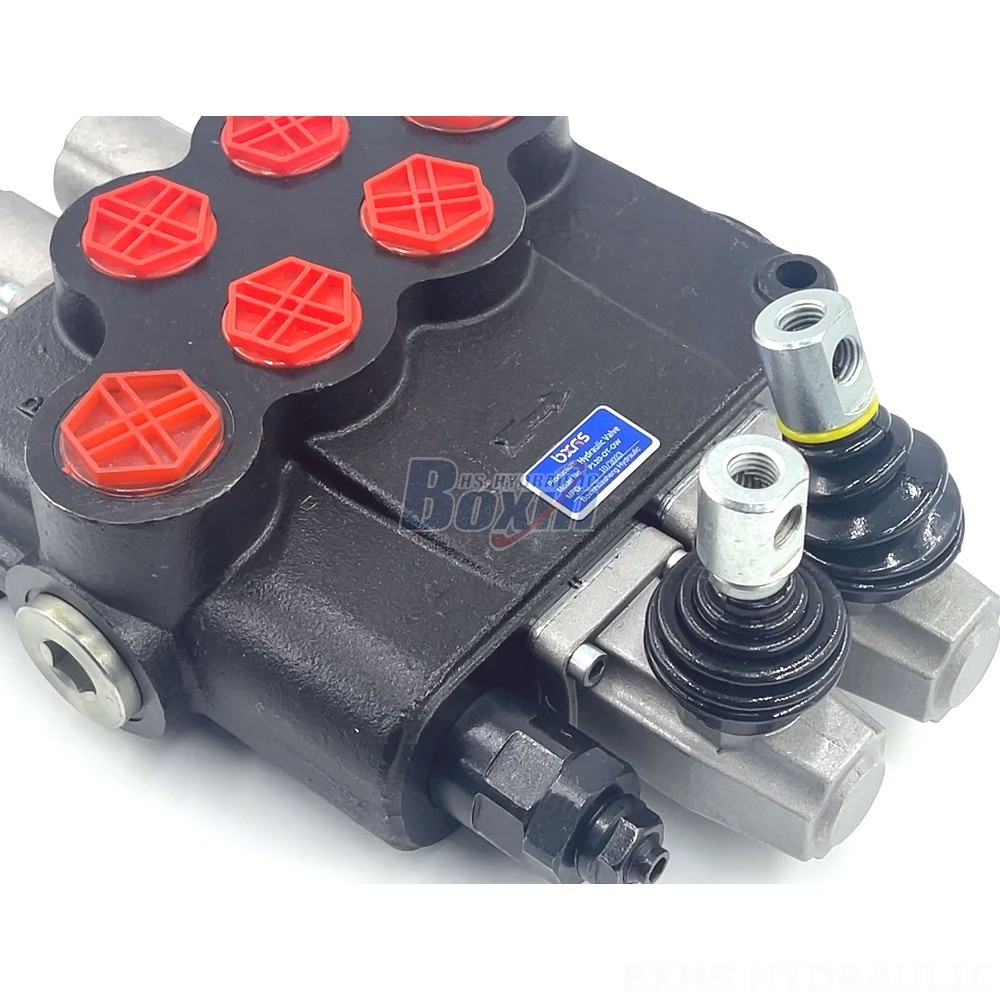

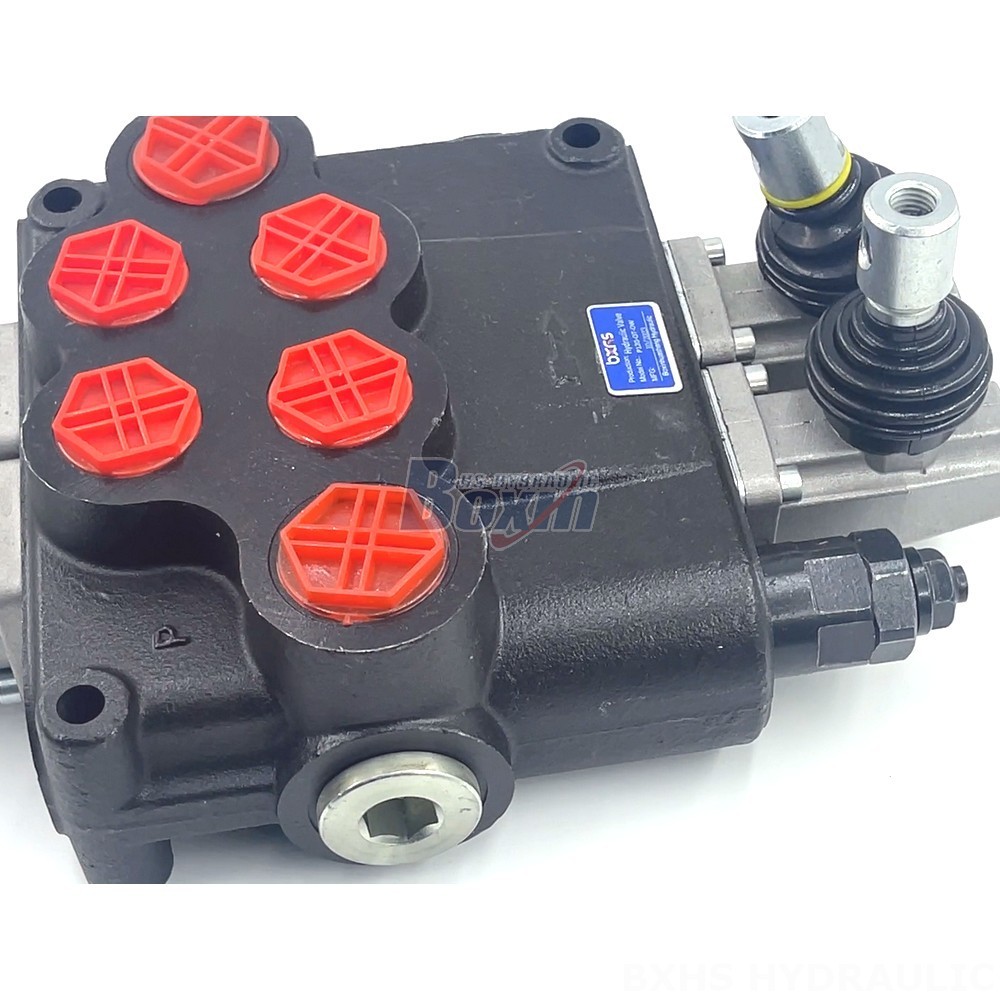

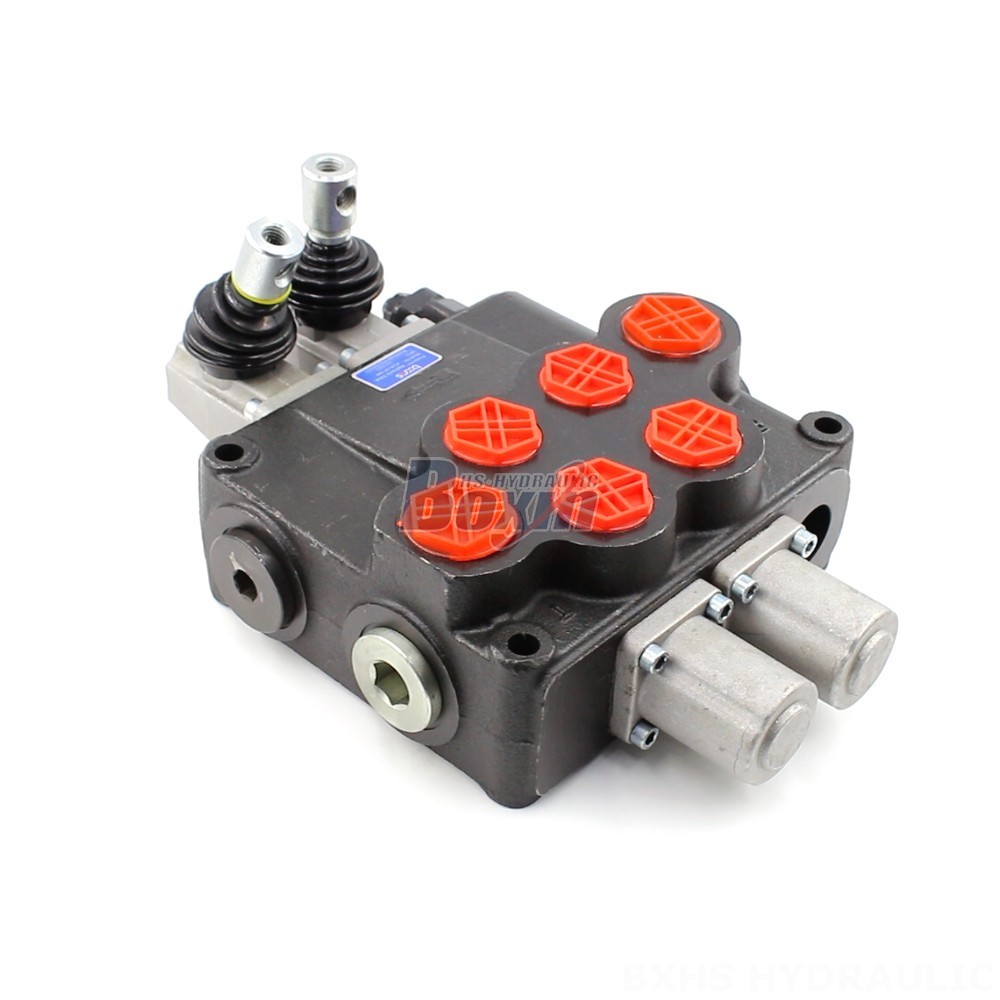

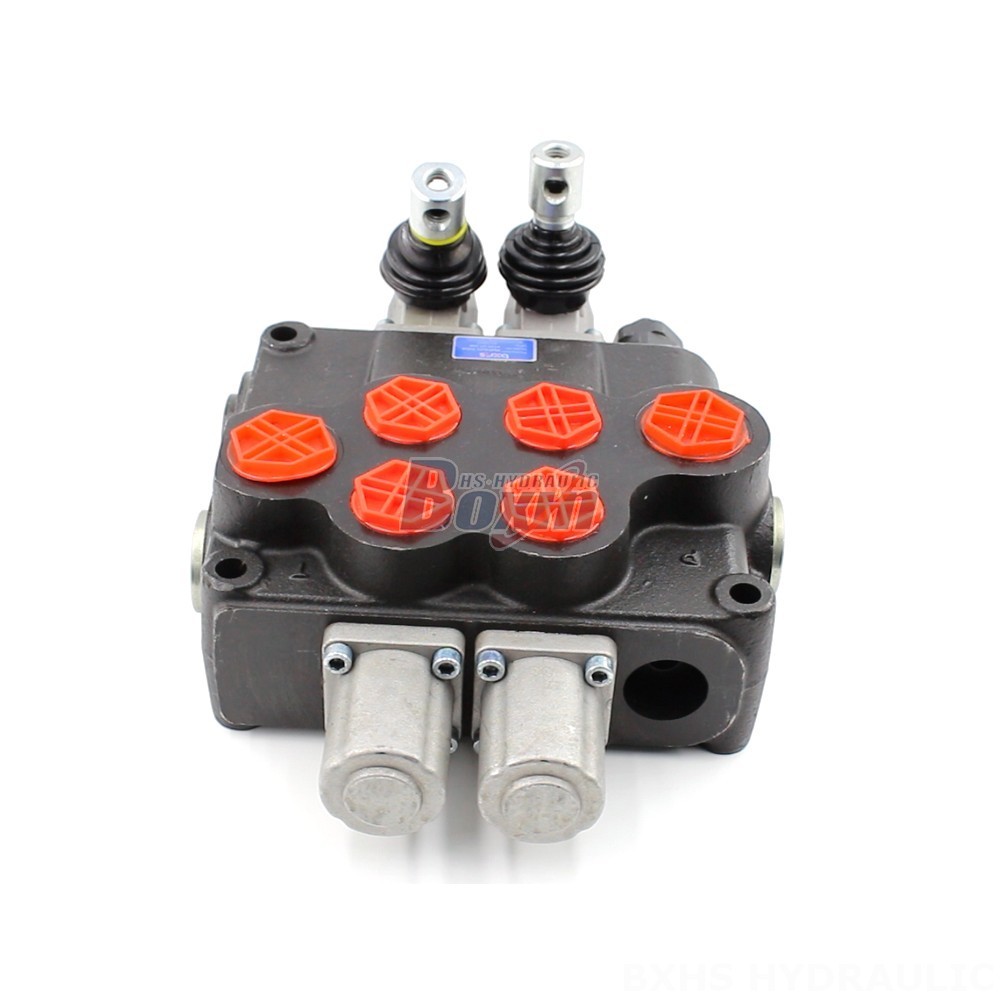

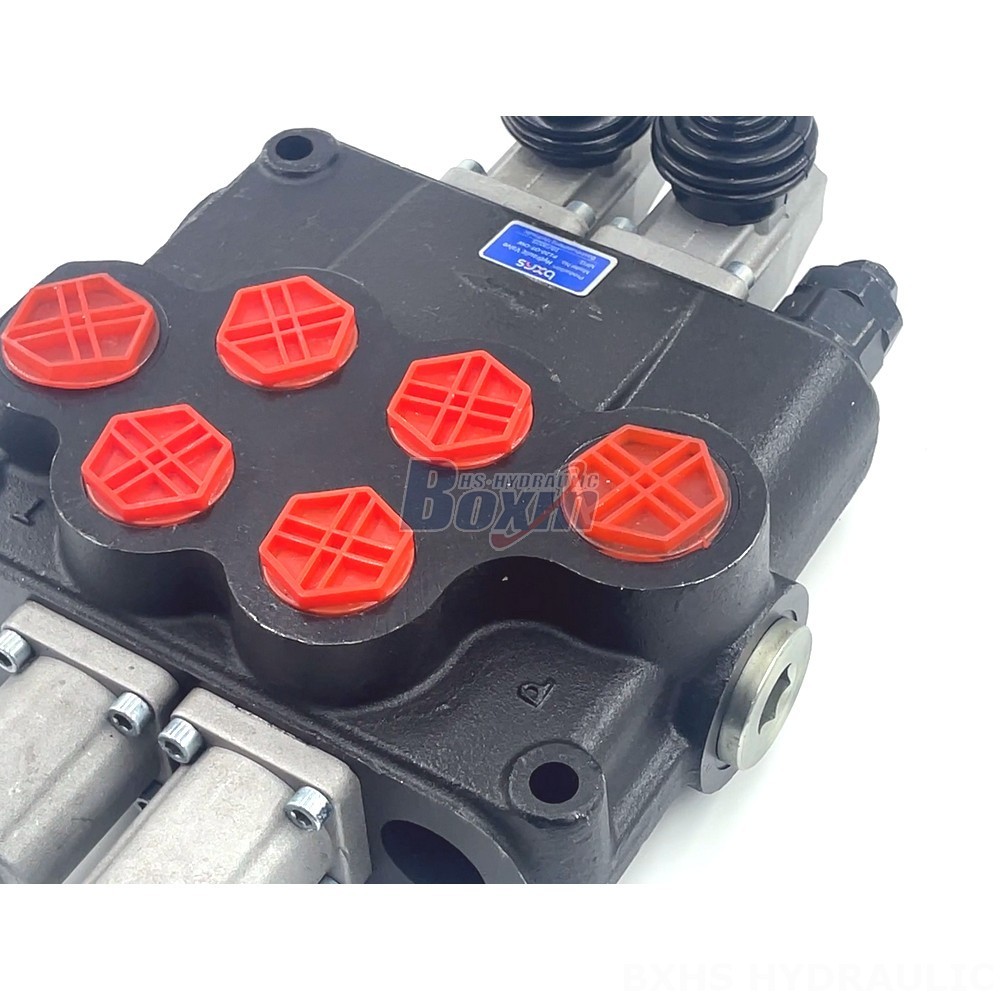

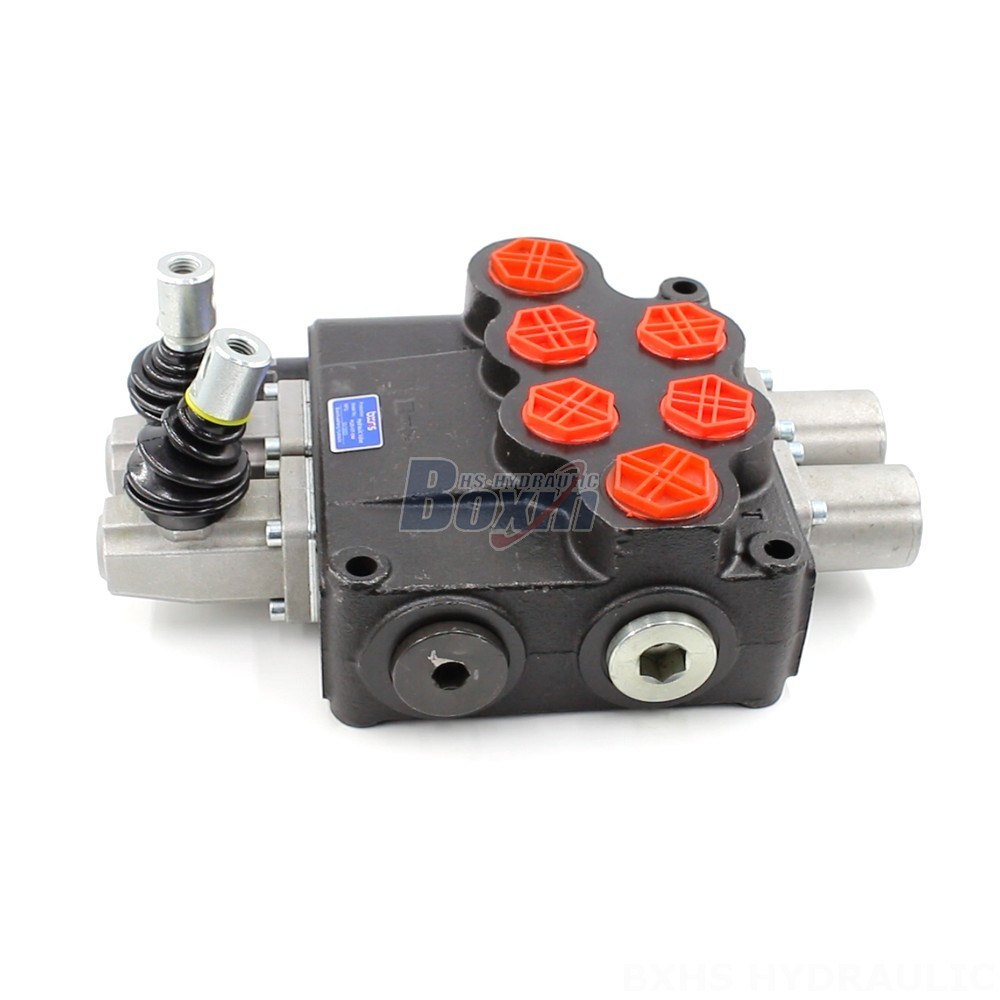

The P120 Series 12v Electric Hydraulic Valve is a manual monoblock directional valve designed for a wide range of applications, including construction, agriculture, and material handling. This 2-section valve features a rated flow of 120 L/min and a maximum pressure of 250 bar, making it ideal for use in telehandlers, forklifts, excavators, and other heavy-duty equipment.

P120系列 单块式方向阀 参数
控制方式 手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联
额定流量 120 升/分钟 (31.7 美制加仑/分钟)
最大压力 250 bar (3600 psi)
进油口 G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹
出油口 G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹
接口尺寸 G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹
联数 1联, 2联, 3联, 4联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

This 12v Electric Hydraulic Valve from the P120 series is a reliable and durable solution for your hydraulic system needs. With a manual control method, 2 sections, and a monoblock structure, this valve offers precise control over hydraulic fluid flow. Featuring a rated flow of 120 L/min and a maximum pressure of 250 bar, the valve is well-suited for a variety of applications, including material handling, construction, and agriculture. Its robust design ensures long-term performance even in demanding environments. Available for wholesale and OEM orders, this valve can be customized to meet your specific requirements. Its versatility makes it an ideal choice for various heavy-duty equipment, such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
