Bxhs Hydraulic Manual and Joystick Valve | P40-2OT Series | Key Features & Applications

控制方式:手控+一控二

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*18*13

Grossweight:5.20 kg

库存: 有货

976 次查看了此产品

Bxhs Hydraulic Manual and Joystick Valve | P40-2OT Series | Key Features & Applications

Bxhs Hydraulic Manual and Joystick Valve | P40-2OT Series | Key Features & Applications

Bxhs Hydraulic Manual and Joystick Valve | P40-2OT Series | Key Features & Applications drawing image

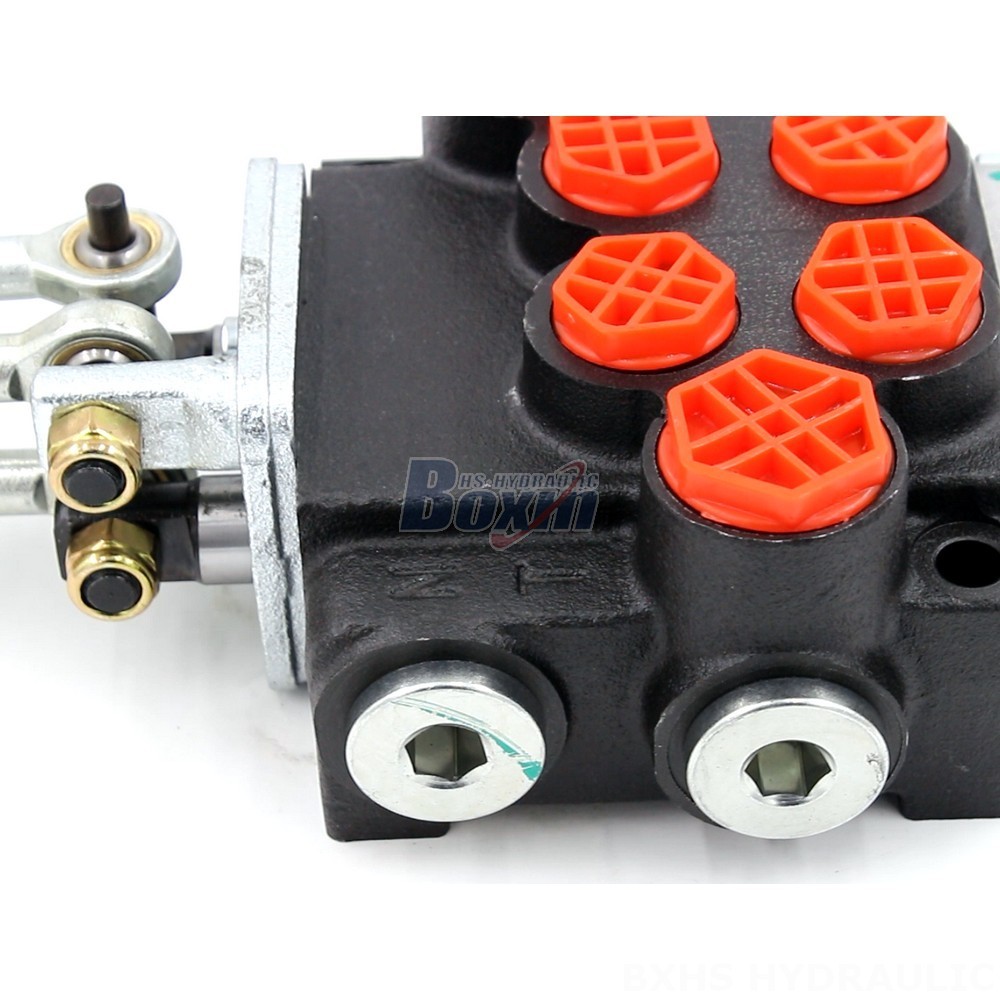

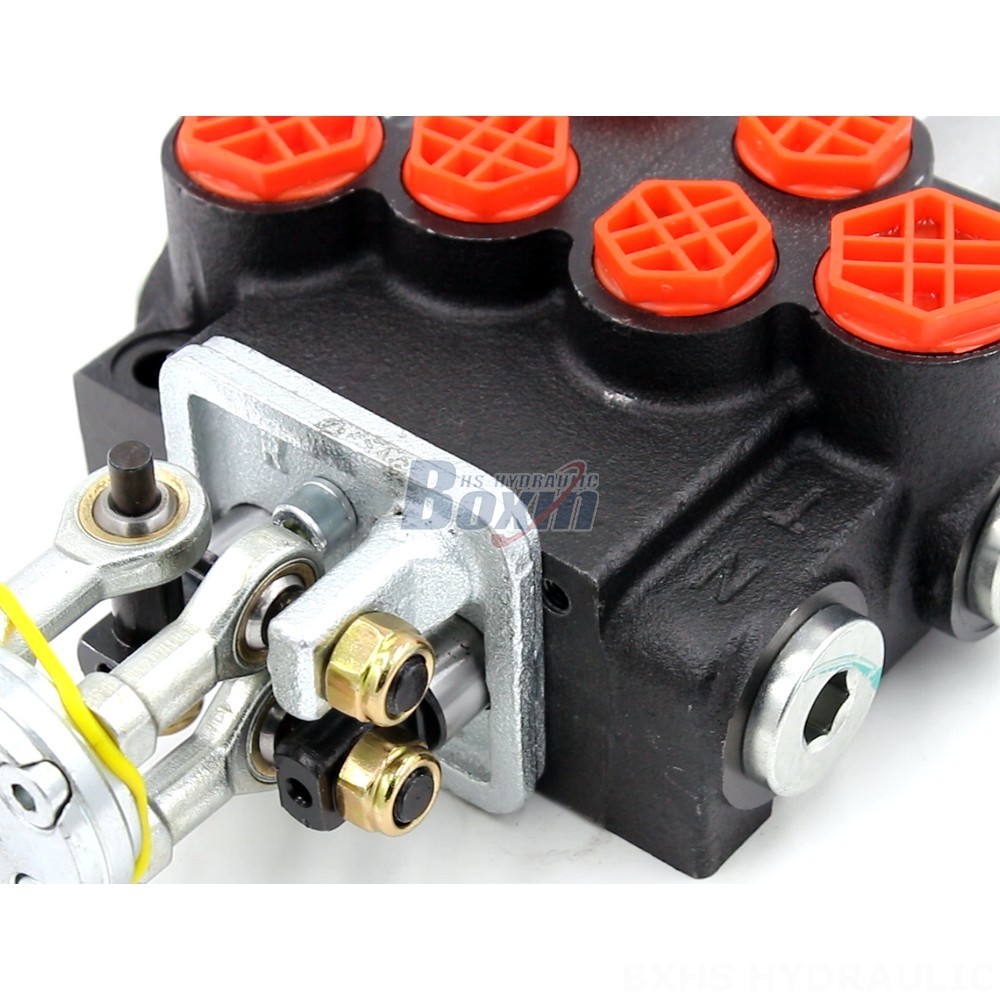

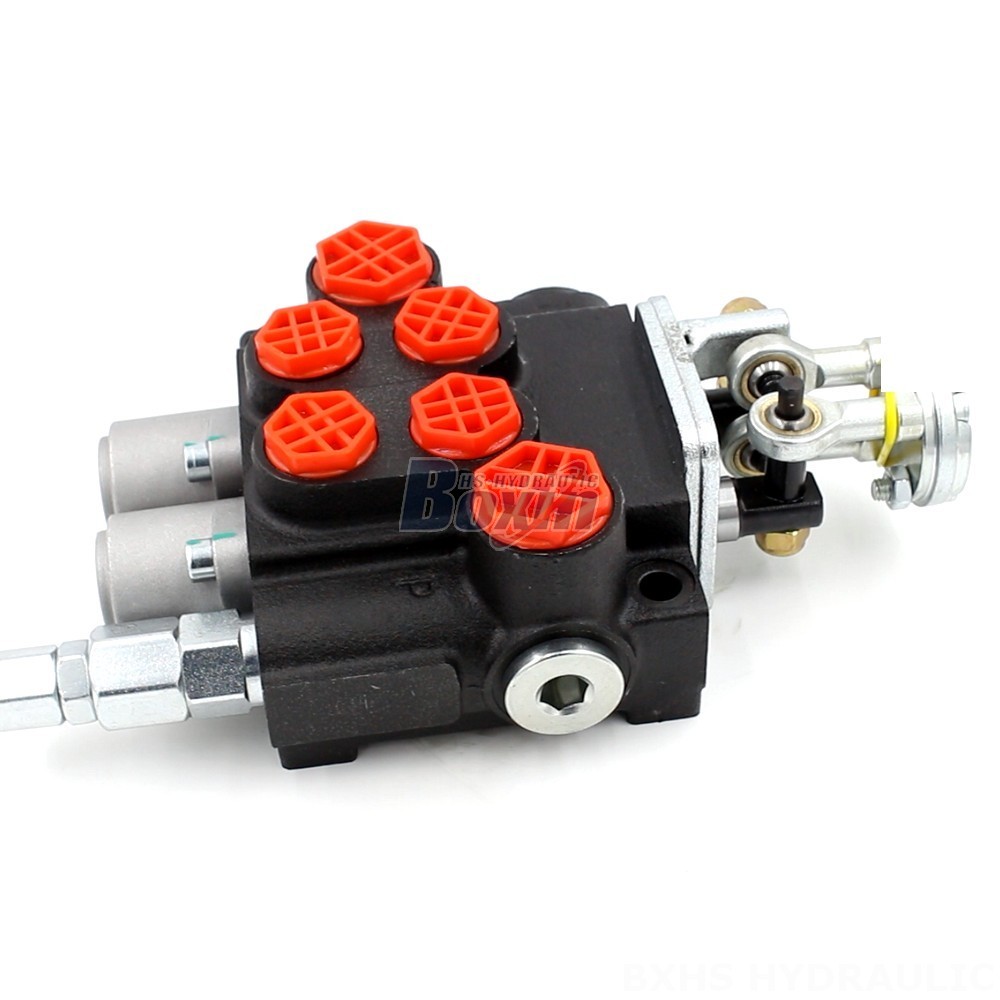

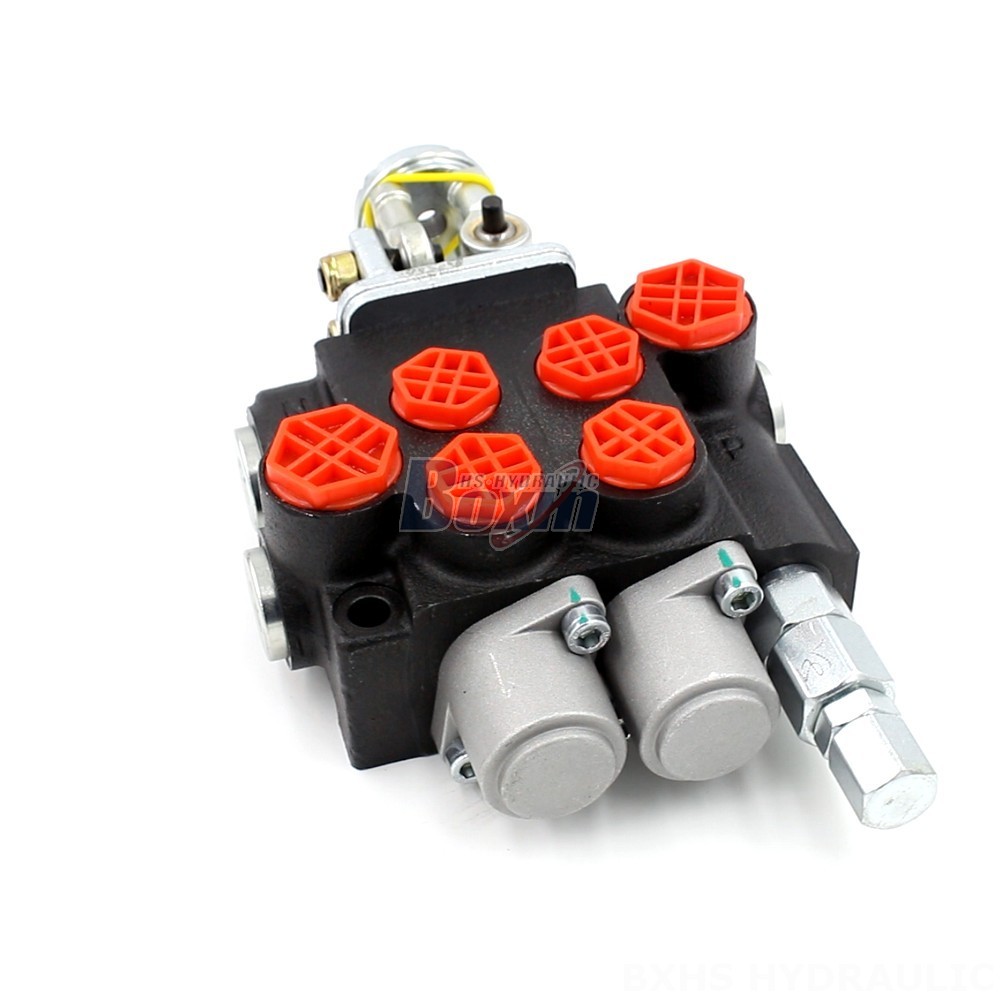

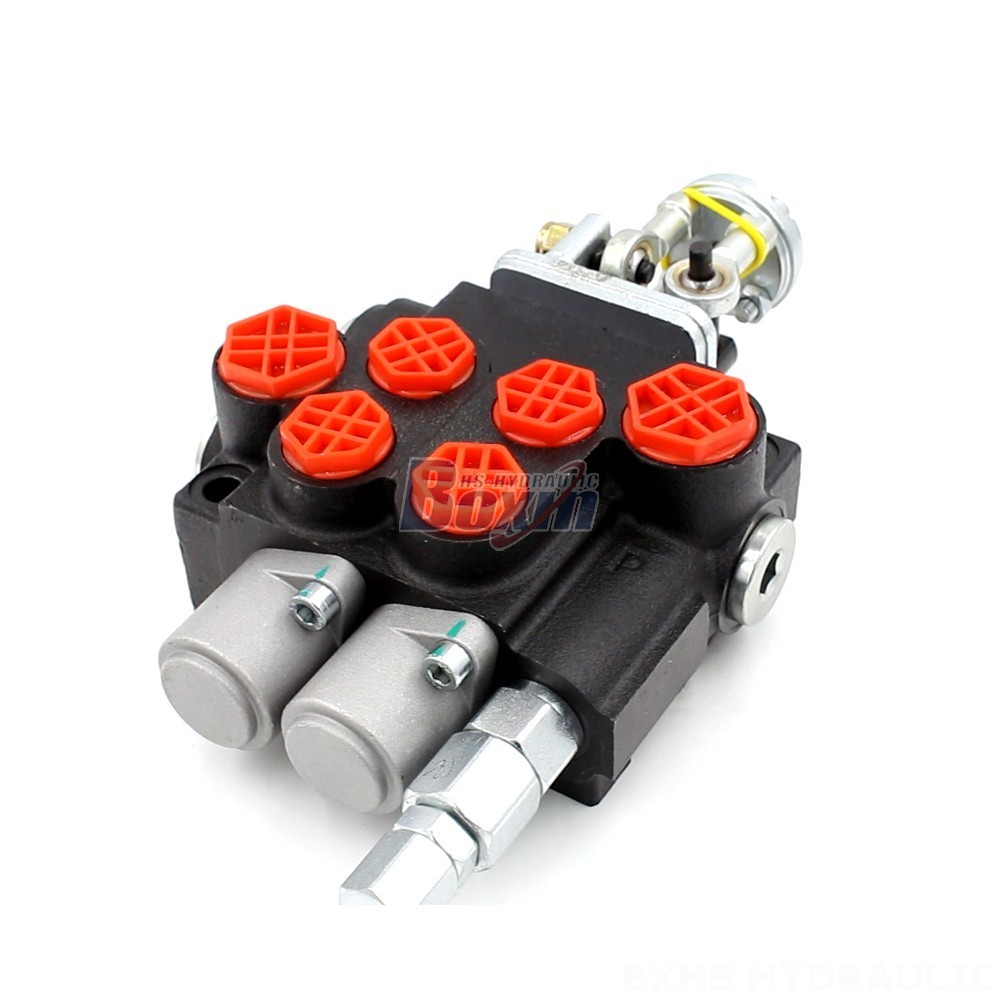

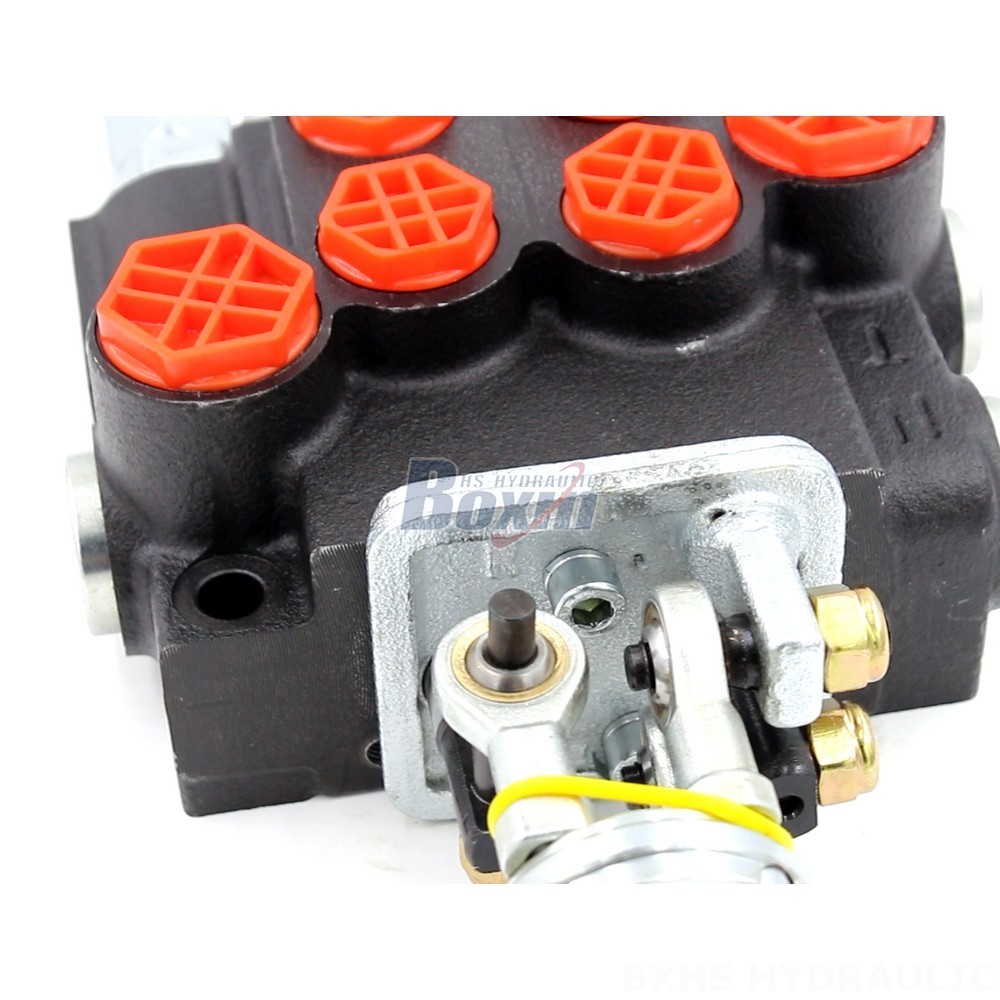

The Bxhs P40-2OT Series Hydraulic Manual and Joystick Valve is a 2-section monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. Ideal for various applications in material handling, construction, and industrial vehicles.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The Bxhs P40-2OT Series is a robust and versatile hydraulic valve designed for demanding applications in material handling, construction, and industrial vehicles. This 2-section monoblock valve features a manual and joystick control method, offering precise and reliable control. It boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment. The valve operates within a viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 2-spool design, the P40-2OT Series provides flexibility and adaptability, ensuring compatibility with various machine types. This valve is specifically designed for applications in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
