Looking for a reliable and customizable directional valve? Our P40-U78-U34-2OT-YW series directional valve is designed to meet your specific requirements. With its versatile design and robust construction, it's ideal for a wide range of hydraulic applications.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

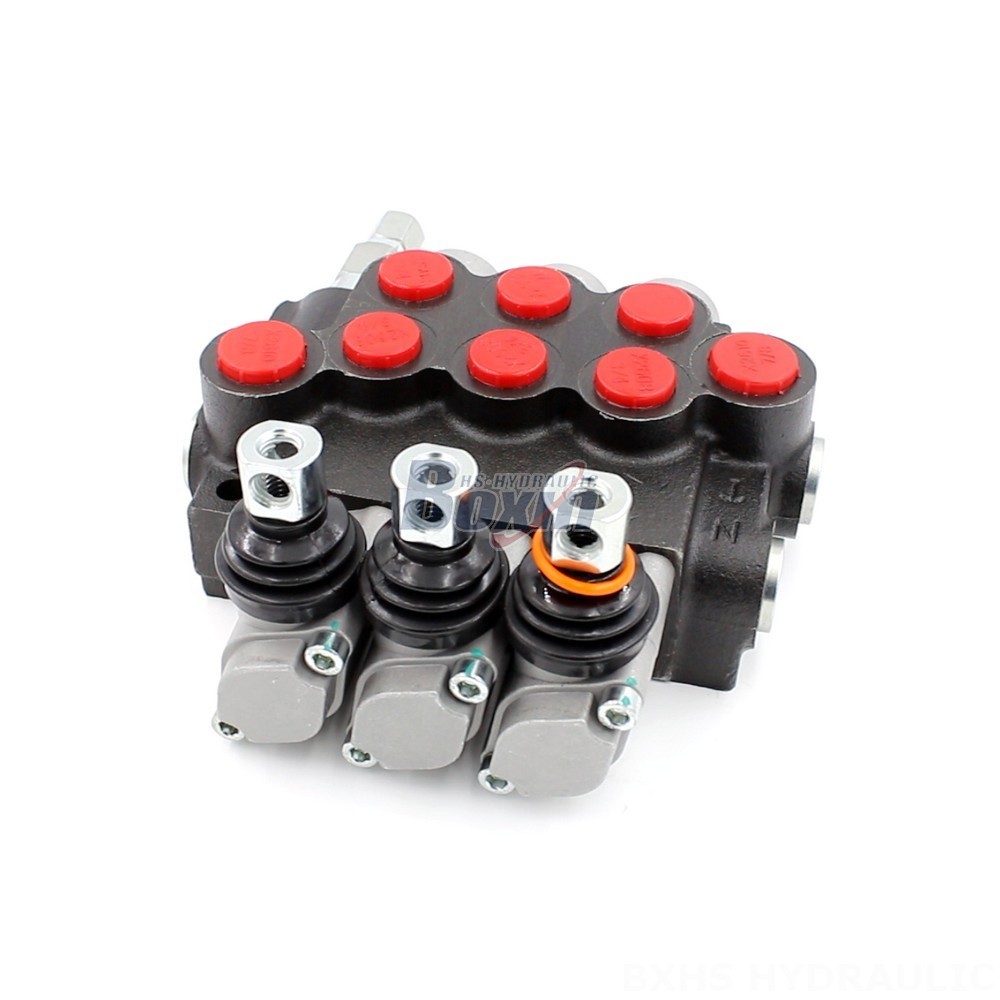

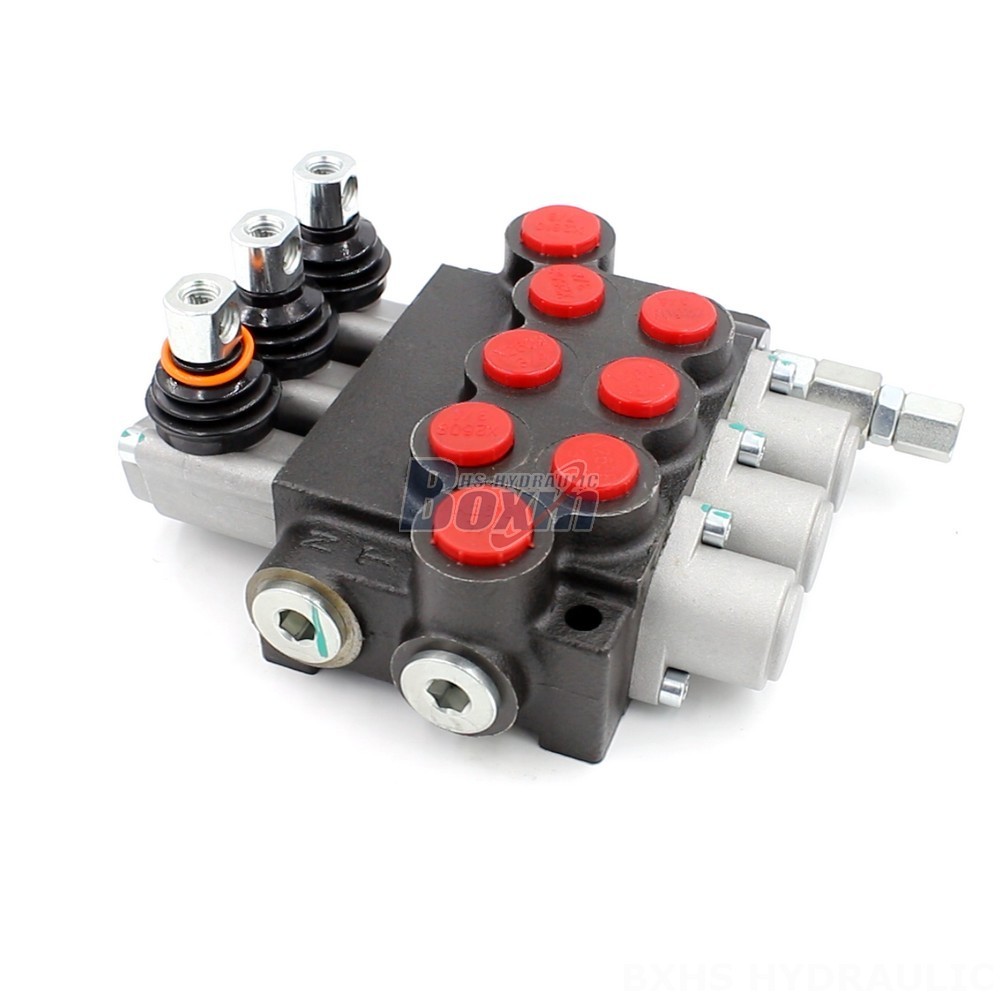

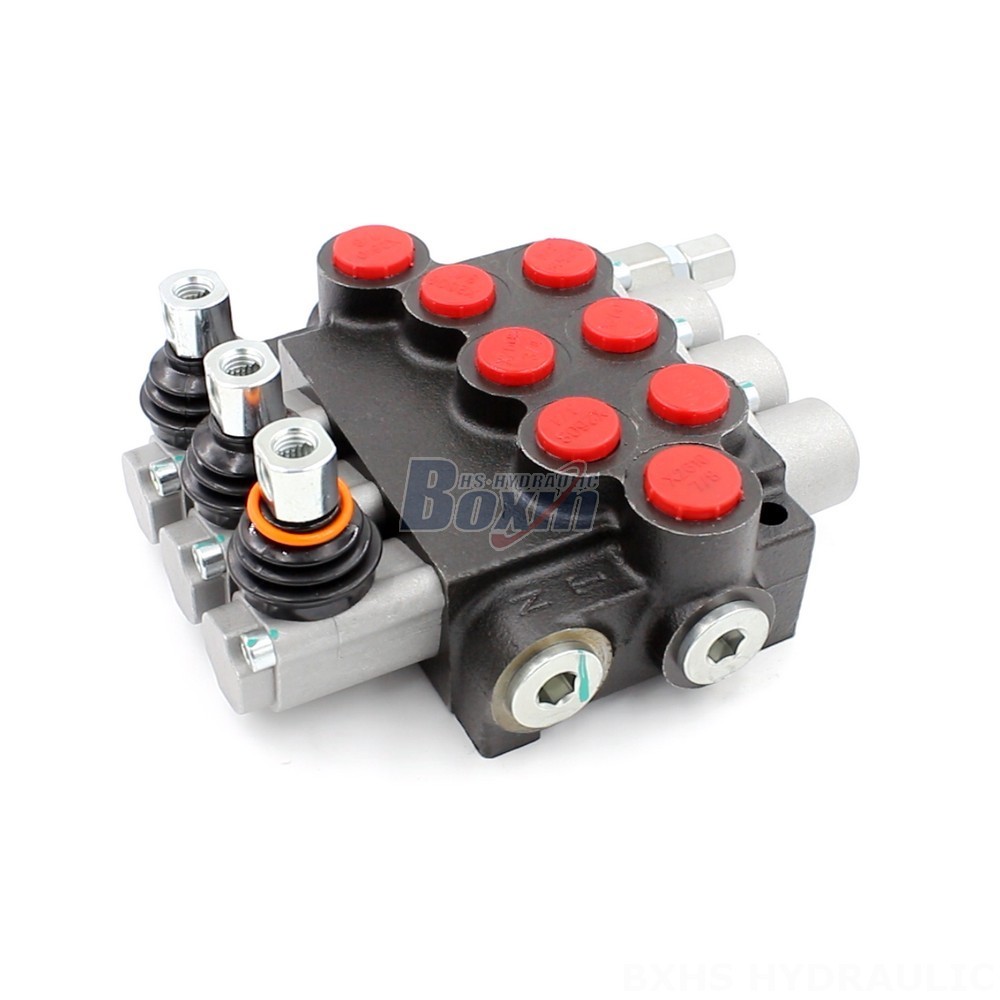

**P40-U78-U34-2OT-YW Series Directional Valve**
**OEM/ODM and Customization Services**
We offer flexible OEM/ODM and customization services to tailor the valve to your specific needs. Whether you require custom porting, pressure ratings, or spool configurations, our experienced engineers can work with you to develop the perfect solution.
**Key Features**
- Control Method: Manual
- Section: 3 Section
- Structure Type: Monoblock valve
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 3 Spool
- Series: P40 Series
- Application Area: Material handling, construction and earth moving, agriculture, industrial vehicles
- Applicable Model: Telehandler, forklift, all terrain crane, stacker, aerial platform, motor grader, mini-excavator, skid steer loader, backhoe loader, tractor and front-end loader
