Tractor Joy Stick Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

控制方式:手控

路数:1 联

额定流量:80 L/min (21.2 US gpm)

最大压力:19 MPa (145 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G3/4接口

品牌:BXHS

所属类别:伐木机多路阀

产品系列:P81系列 伐木机多路阀

Packagingsize:27*16*12

Grossweight:4.80 kg

库存: 有货

1556 次查看了此产品

Tractor Joy Stick Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Tractor Joy Stick Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Tractor Joy Stick Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable drawing image

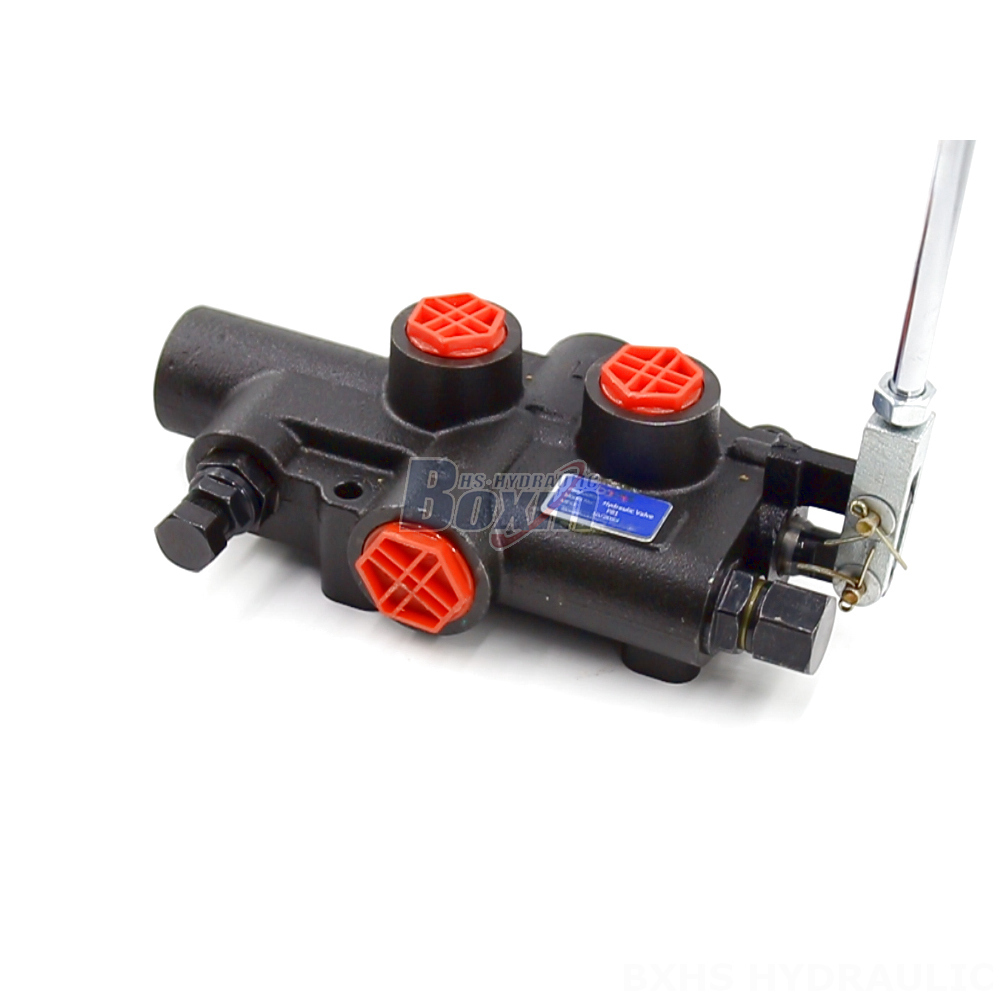

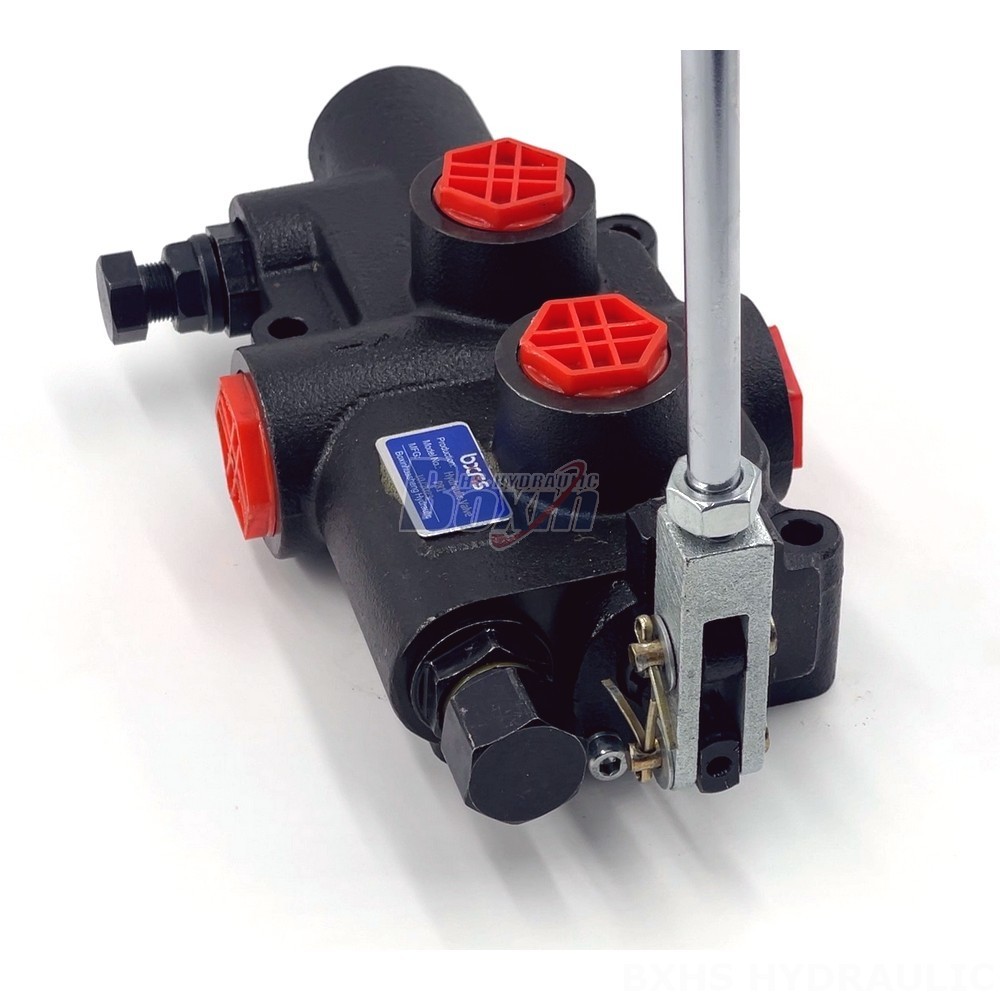

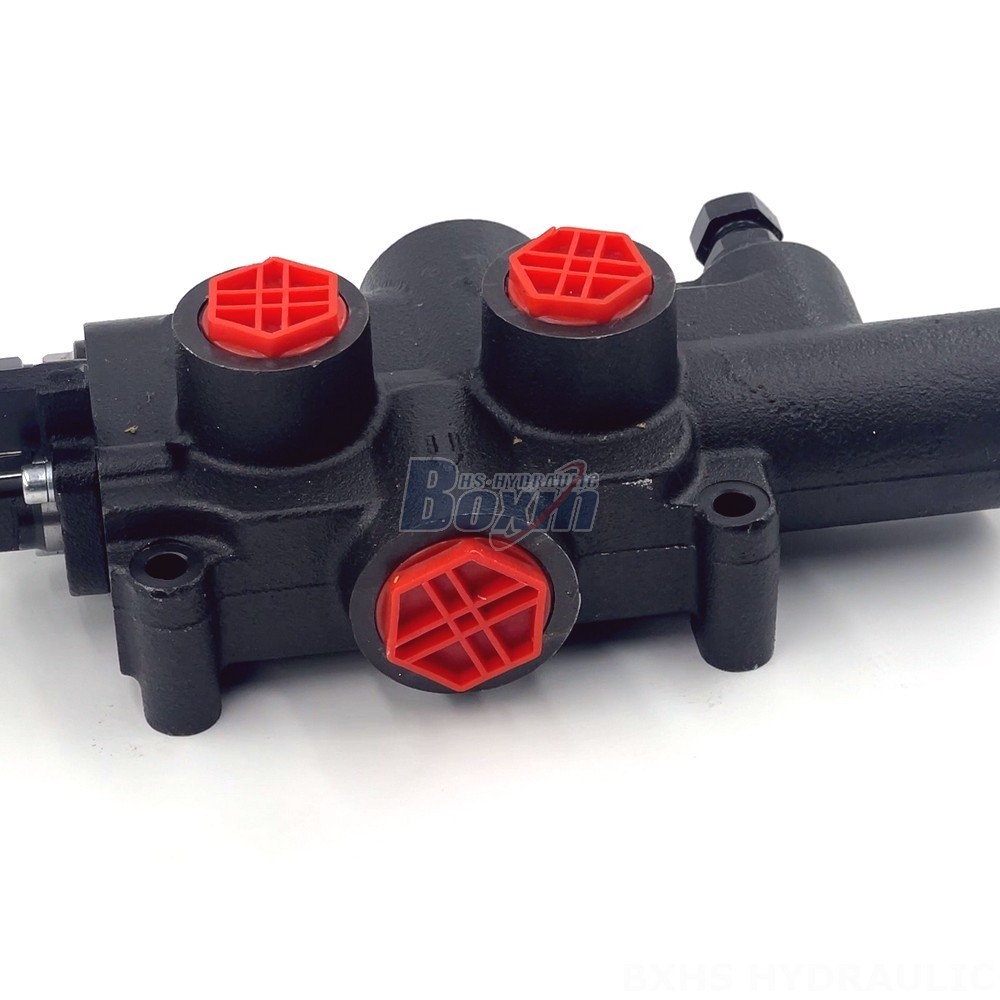

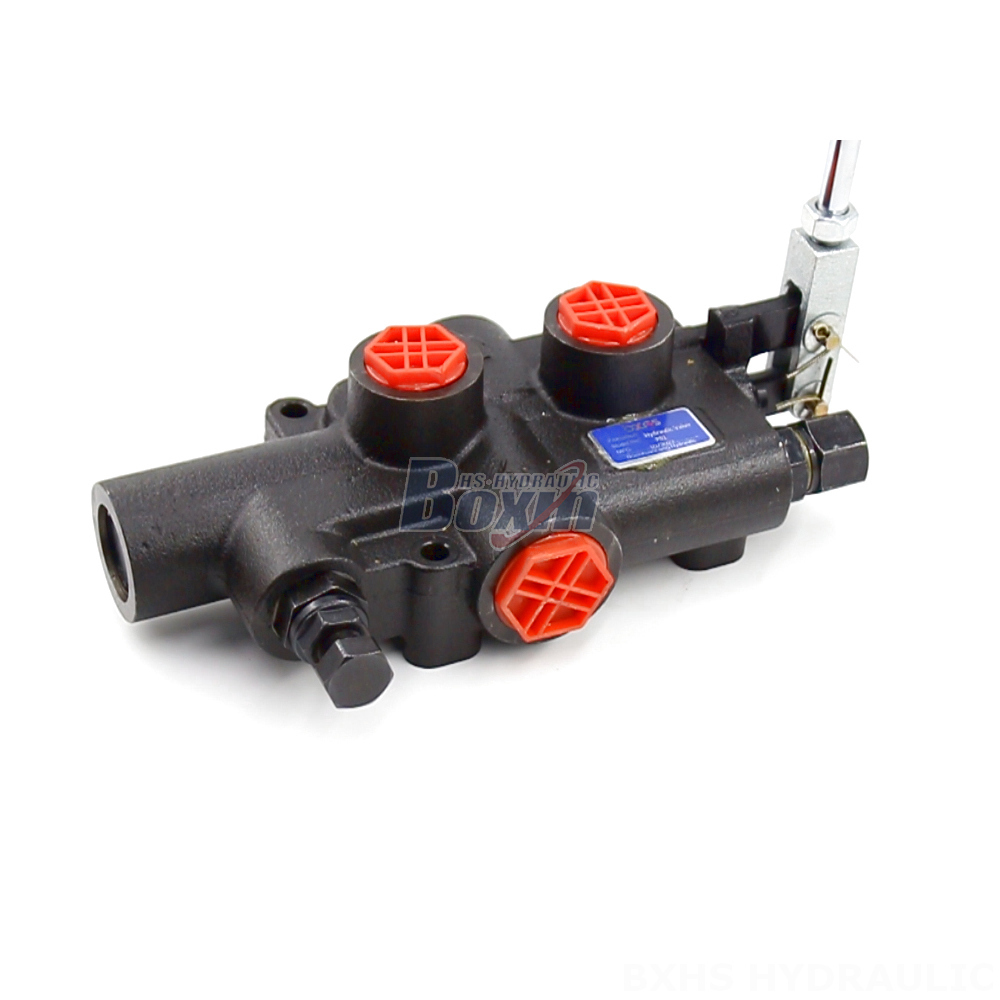

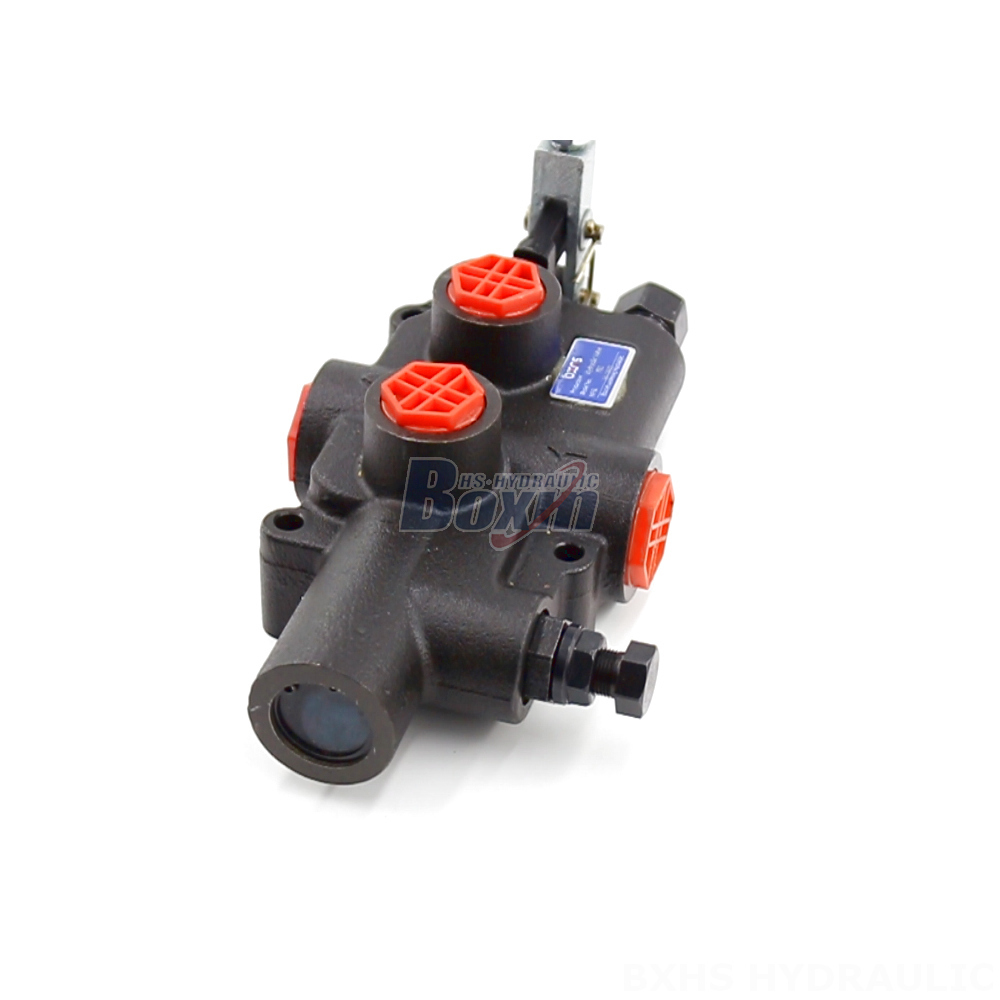

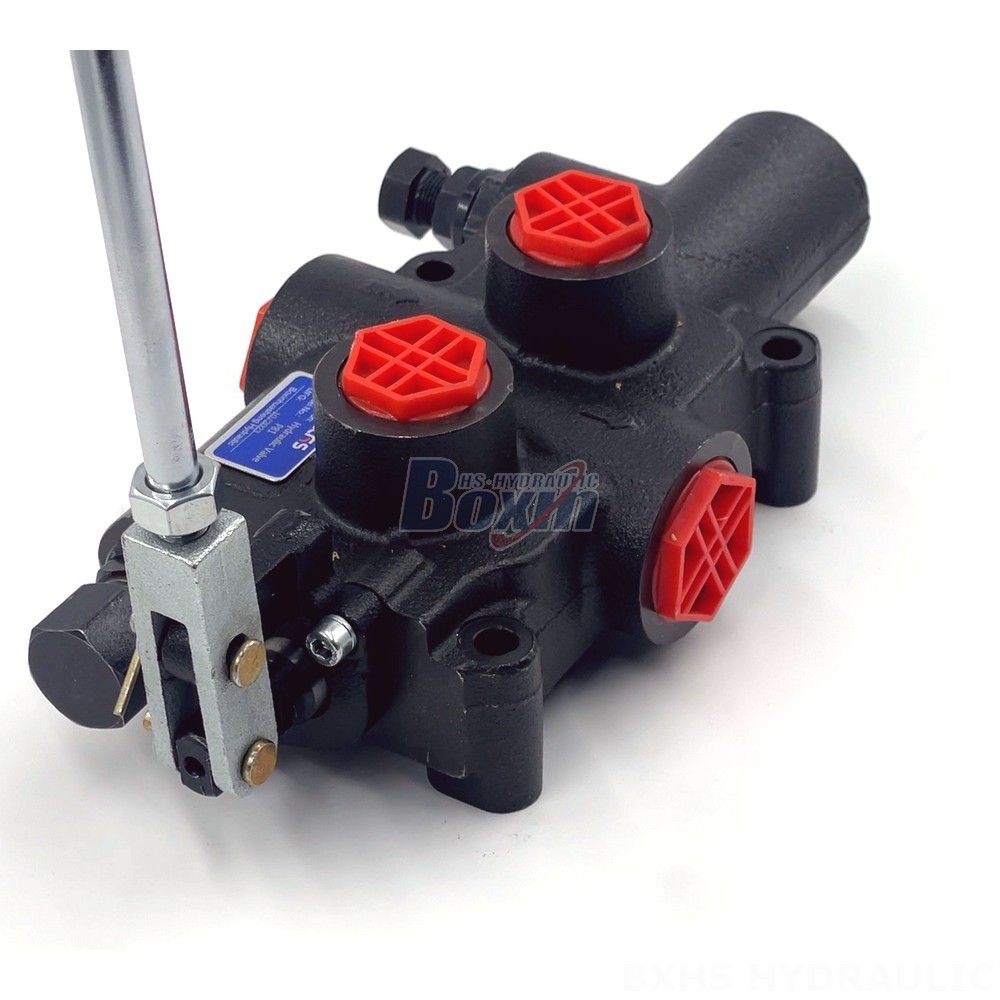

The P81 hydraulic valve is a high-performance, heavy-duty valve designed for use in tractor-powered log splitters. It features a manual control method, 1 section monoblock construction, 80 L/min flow rate, and 250 bar maximum pressure. This durable valve is perfect for industrial applications and offers customizable options to meet your specific needs.

P81系列 伐木机多路阀 参数
控制方式 手控
路数 1 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm), 95 L/min (25.1 US gpm)
最大压力 19 MPa (145 psi)
进油口 G1/2接口
出油口 G1/2接口
接口尺寸 G3/4接口

The P81 model is a robust tractor joy stick log splitter hydraulic valve, ideal for industrial vehicles. This monoblock valve boasts a 1 section design and offers a rated flow of 80 L/min (21.2 US gpm) with a maximum pressure of 250 bar (3600 psi). It operates within a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve features a single spool with a kick-out setting pressure of 70~140bar (1015-2030psi). We offer this valve for manufacturing, OEM, private label, and custom orders, allowing you to tailor it to your specific requirements. We are also actively seeking distributors, wholesalers, agents, and traders worldwide. Contact us today to discuss your needs and explore the possibilities of this high-quality, customizable hydraulic valve.
