Hydraulic Valve Control With Joystick Innovative P40 Valve Technology: Transforming Fluid Power

控制方式:电液控

路数:4 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:31*24*17

Grossweight:16.50 kg

库存: 有货

1012 次查看了此产品

Hydraulic Valve Control With Joystick Innovative P40 Valve Technology: Transforming Fluid Power

Hydraulic Valve Control With Joystick Innovative P40 Valve Technology: Transforming Fluid Power

Hydraulic Valve Control With Joystick Innovative P40 Valve Technology: Transforming Fluid Power drawing image

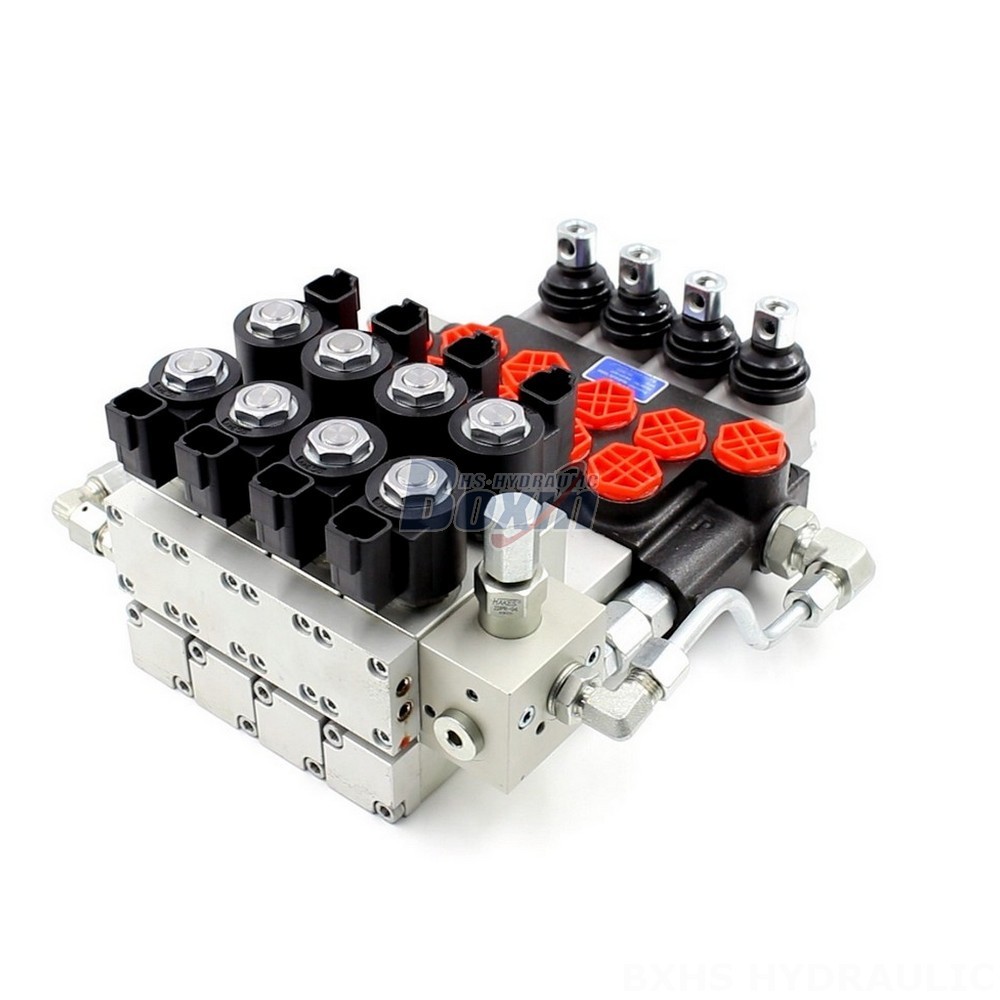

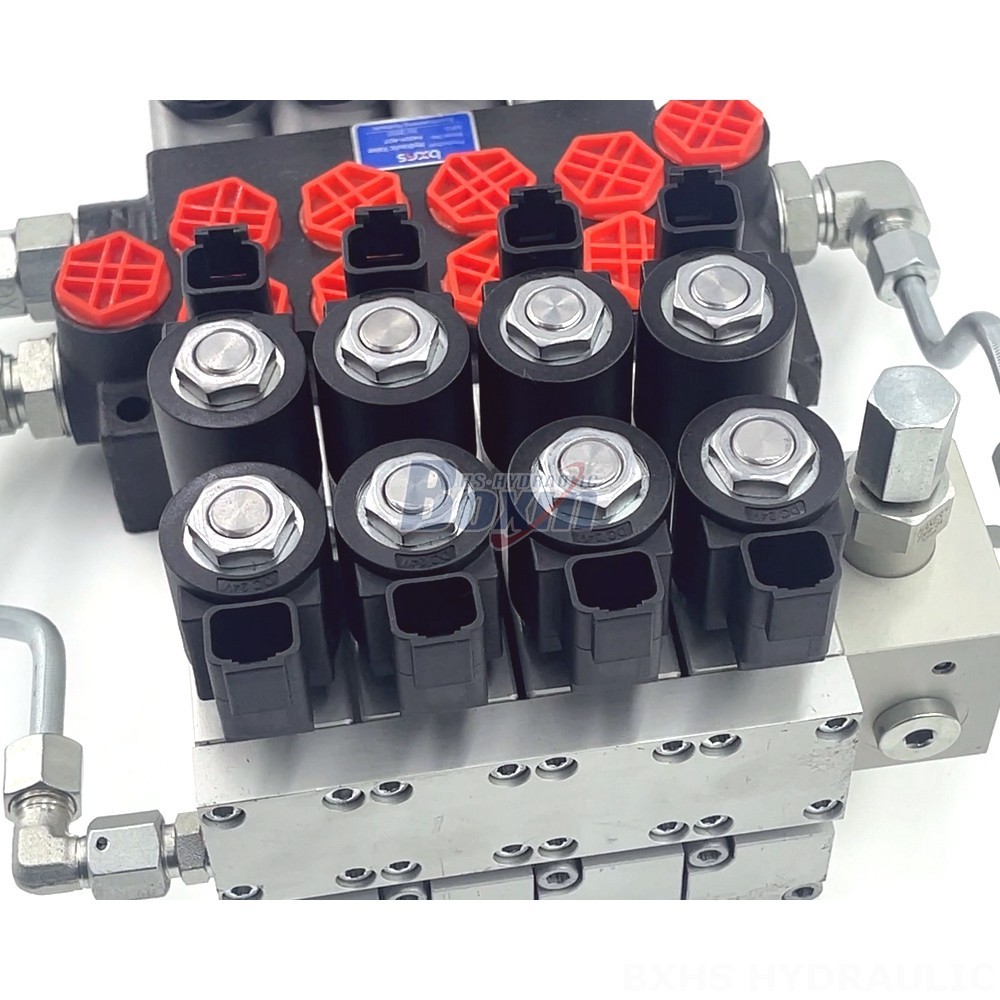

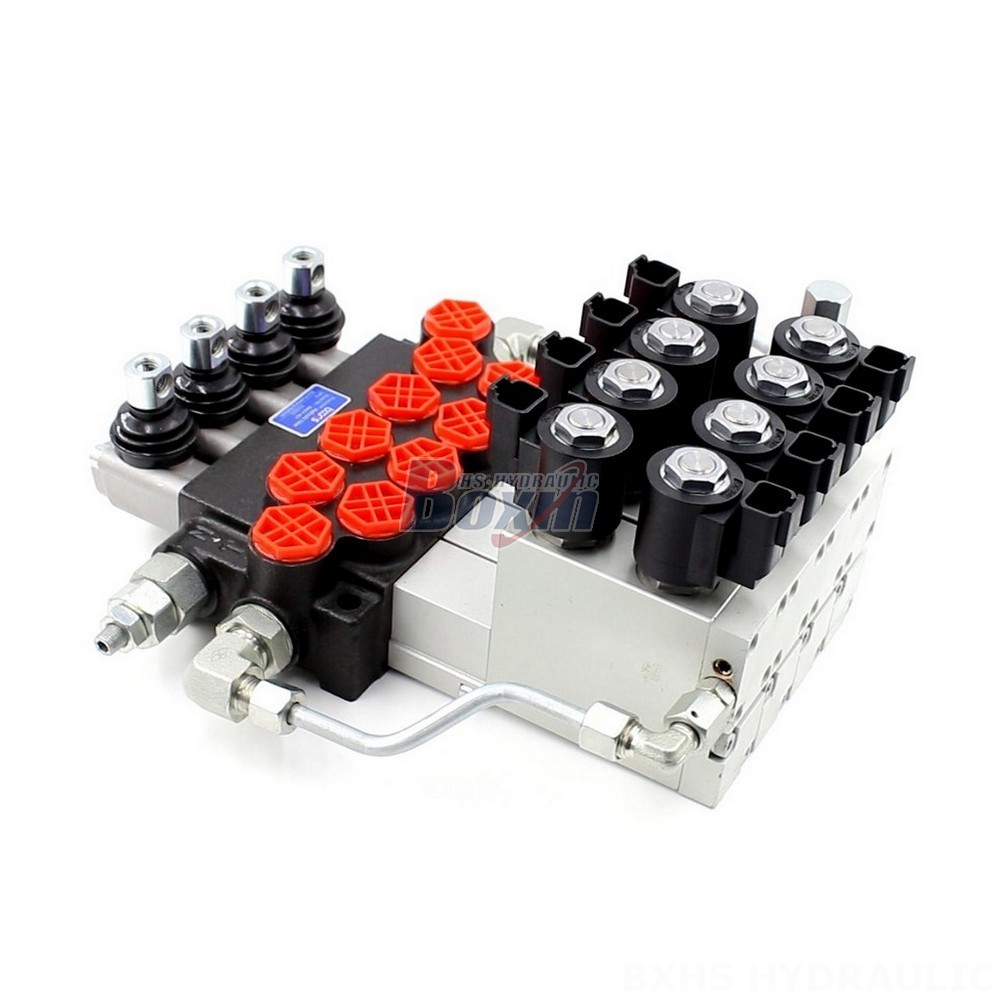

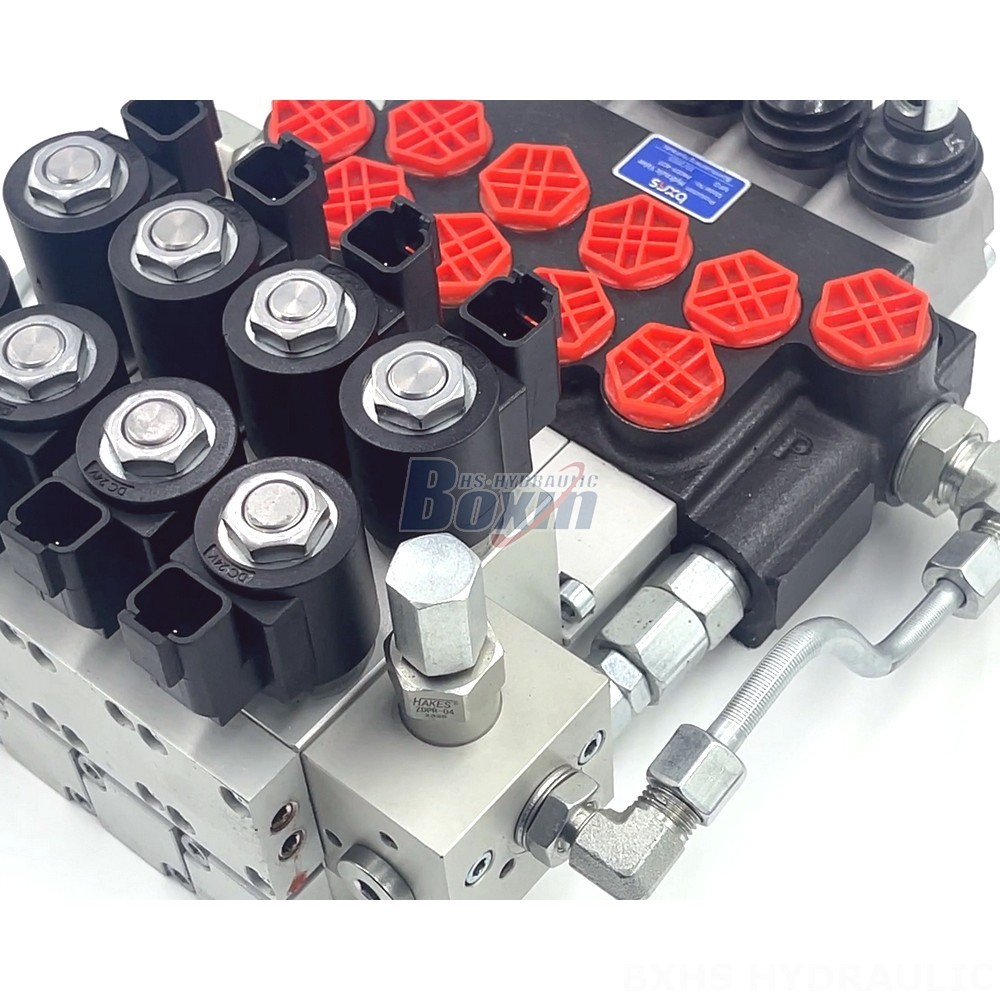

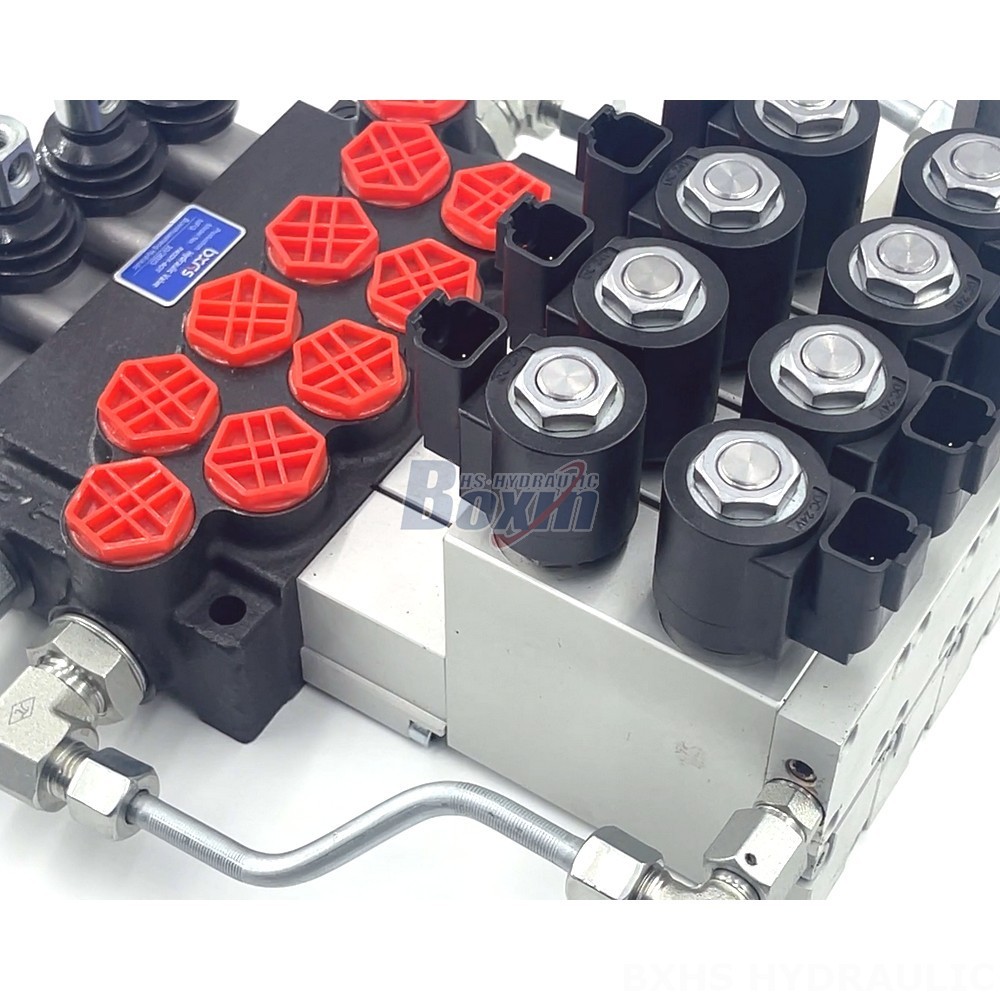

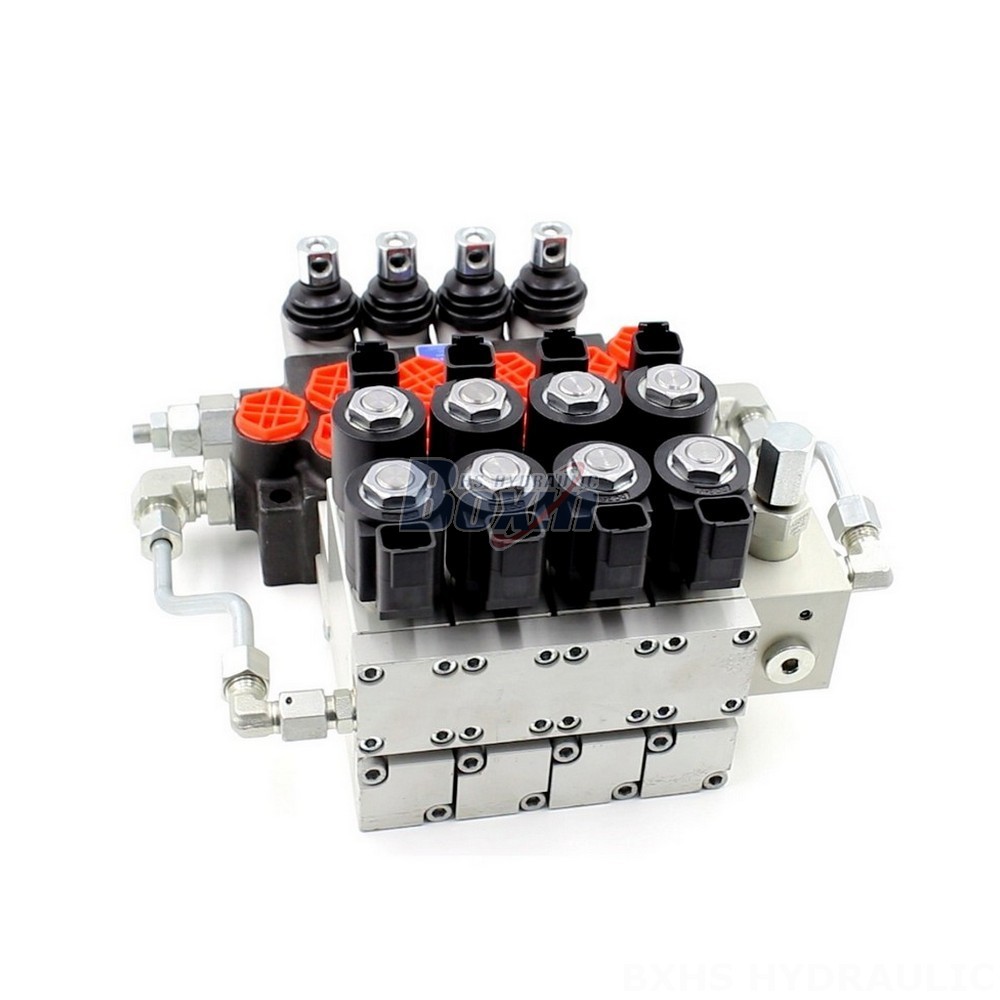

Introducing the innovative P40 Series hydraulic valve control with joystick, designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This electro-hydraulic, 4-section monoblock valve boasts a rated flow of 40 L/min, max pressure of 250 bar, and a compact design for easy integration.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40 Series hydraulic valve control features a robust, compact monoblock design, offering reliable performance and ease of installation. With its electro-hydraulic control, the valve allows for precise and responsive operation, making it ideal for a wide range of applications. The valve is rated for a flow rate of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding heavy-duty equipment. Its 4-section design offers versatile control capabilities, while its joystick operation provides intuitive and ergonomic control. The P40 Series valve is compatible with various types of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, and backhoe loaders. Its wide operating temperature range ensures reliable performance in diverse environments. Choose the P40 Series hydraulic valve control for superior performance, reliability, and ease of operation.
