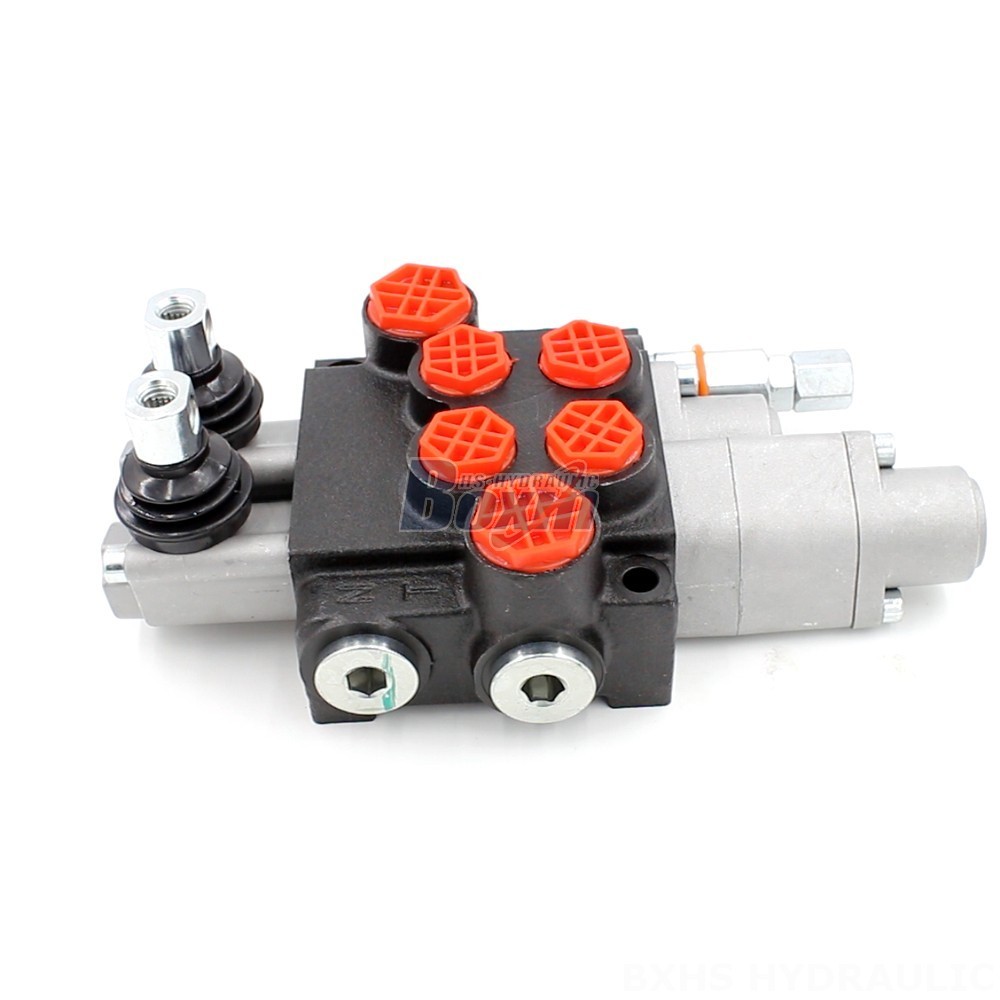

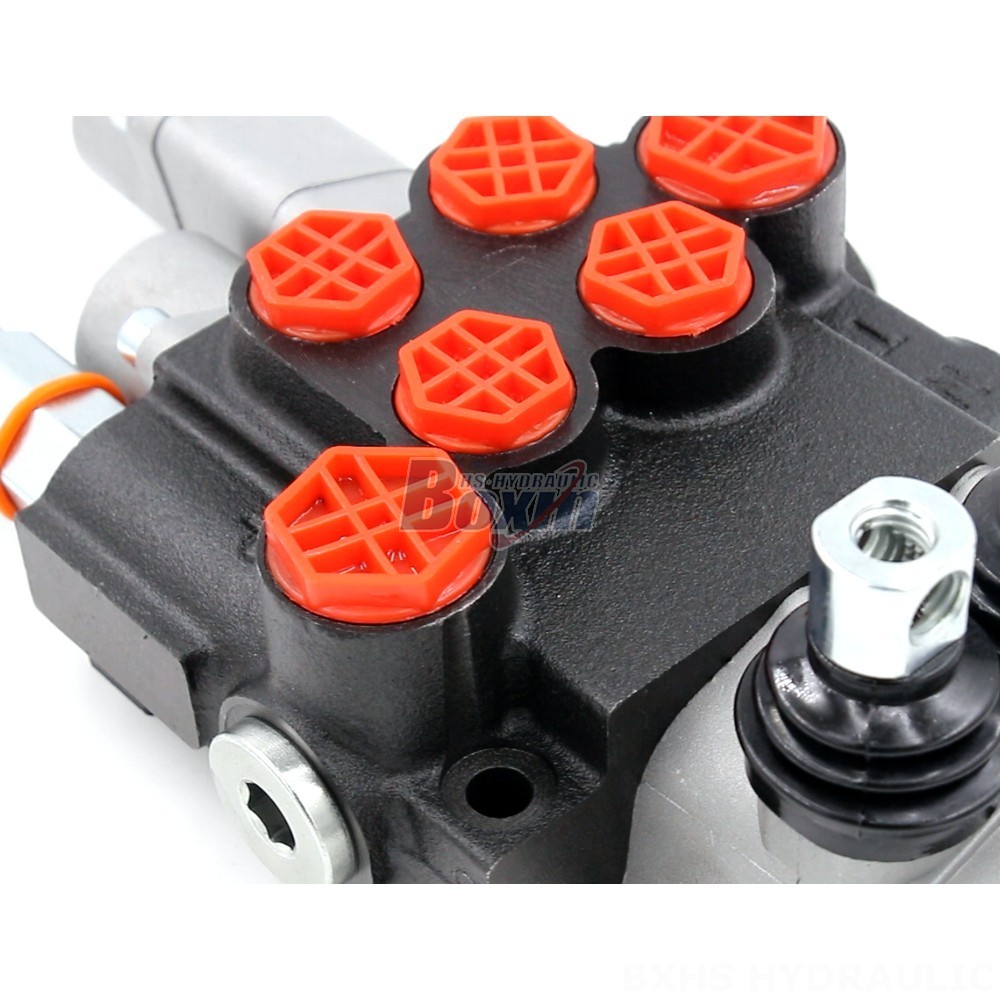

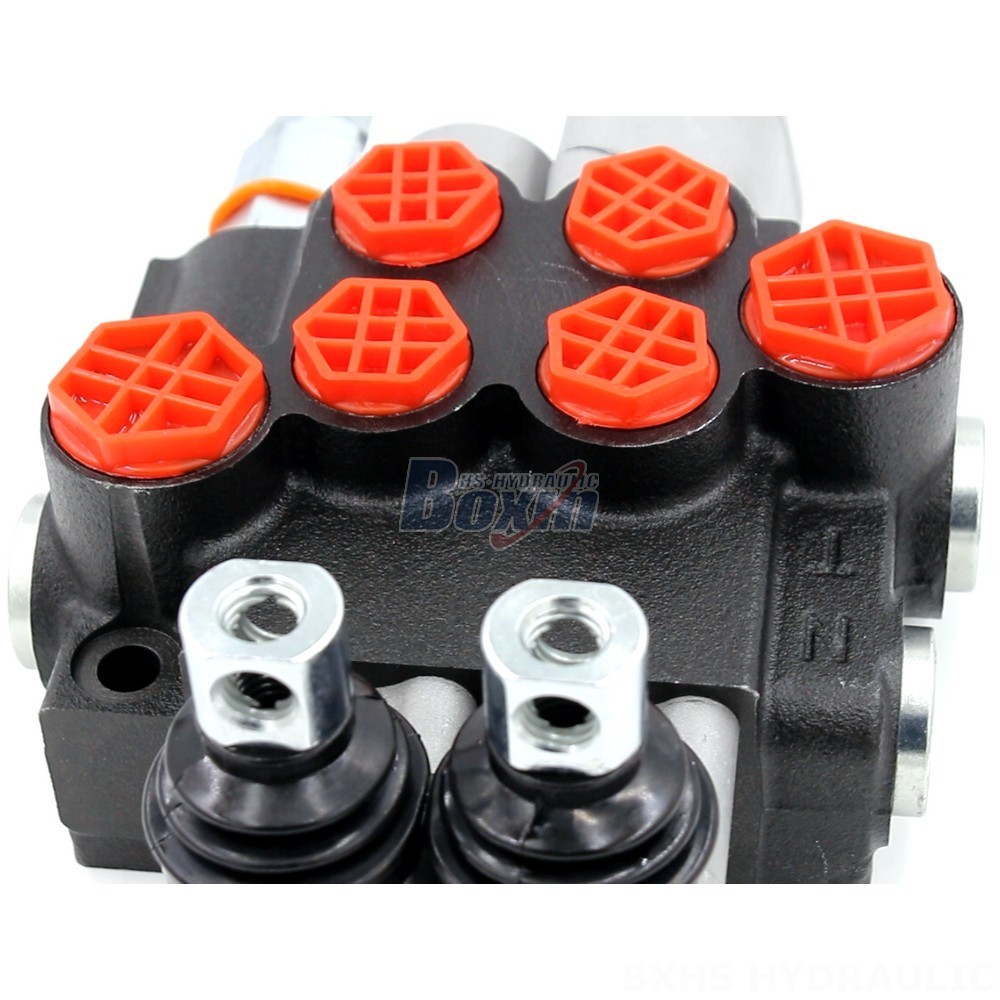

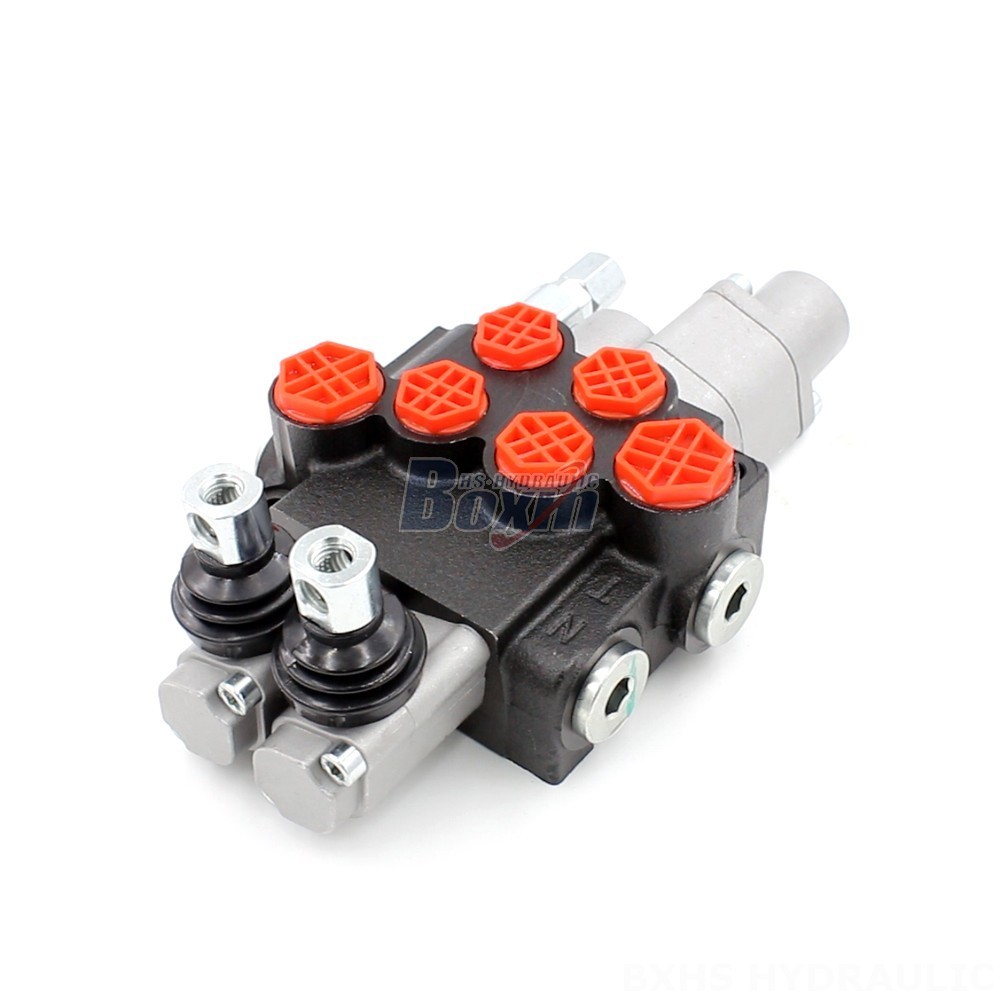

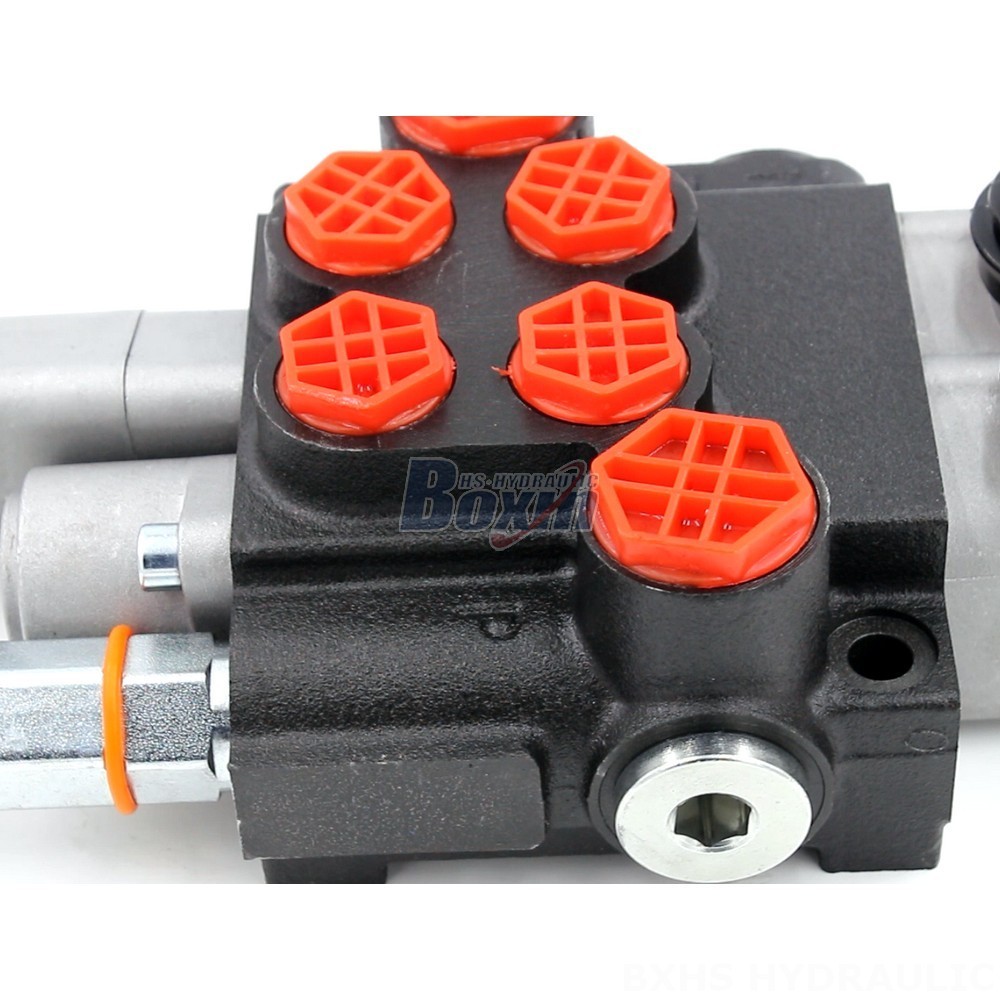

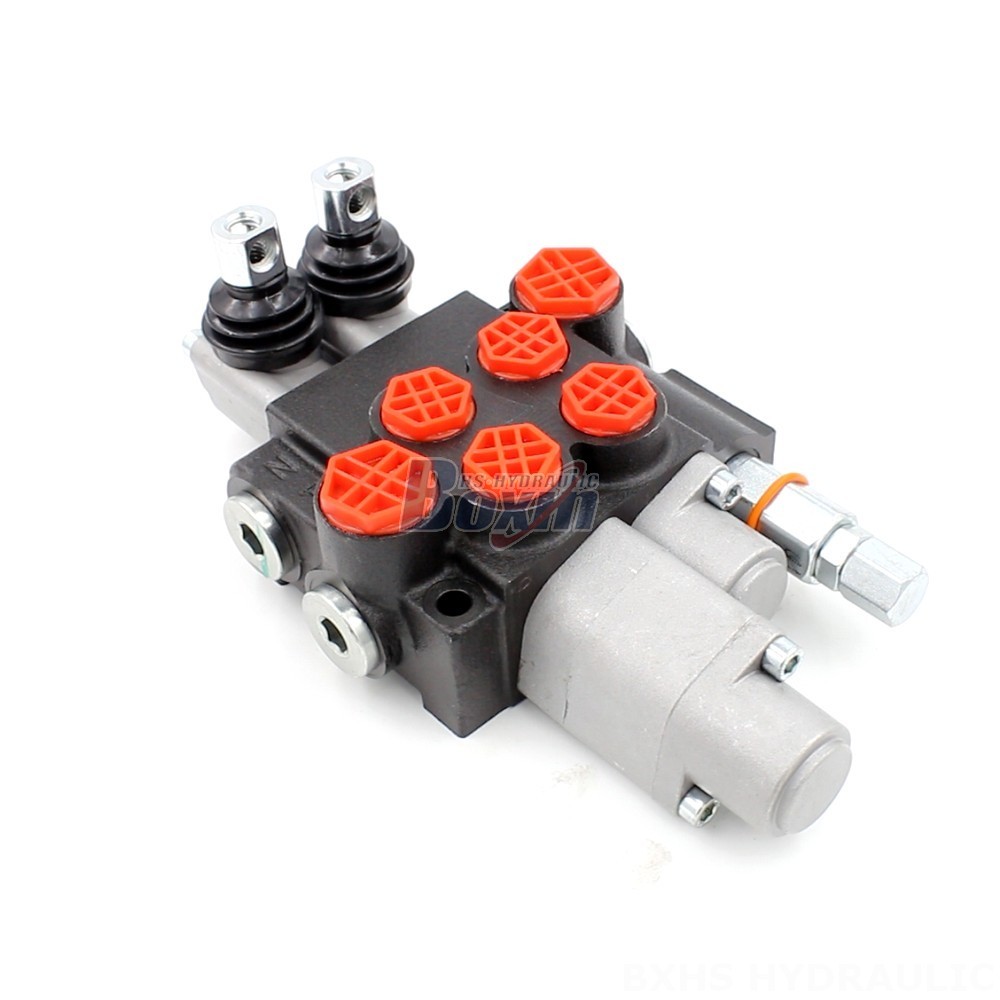

The P40-AQF-G38-G12 Advanced Hydraulic Solutions is a high-performance hydraulic valve designed for demanding applications in various industries. It features a compact monoblock design, manual control, and a rated flow of 40 L/min (10.5 US gpm). With a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), this valve is suitable for a wide range of hydraulic systems.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
**Key Features:**
* Compact monoblock design
* Manual control
* Rated flow: 40 L/min (10.5 US gpm)
* Max pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* 2 spool
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandler
* Forklift
* All terrain crane
* Stacker
* Aerial platform
* Motor grader
* Midi-excavator
* Mini-excavator
* Backhoe loader
